Model Image
Manufacturer

Sony

Model Number

KDL40W655D

Description

40-inch Led Hdtv

Interactive Exploded View

Parts List

Part Number Description

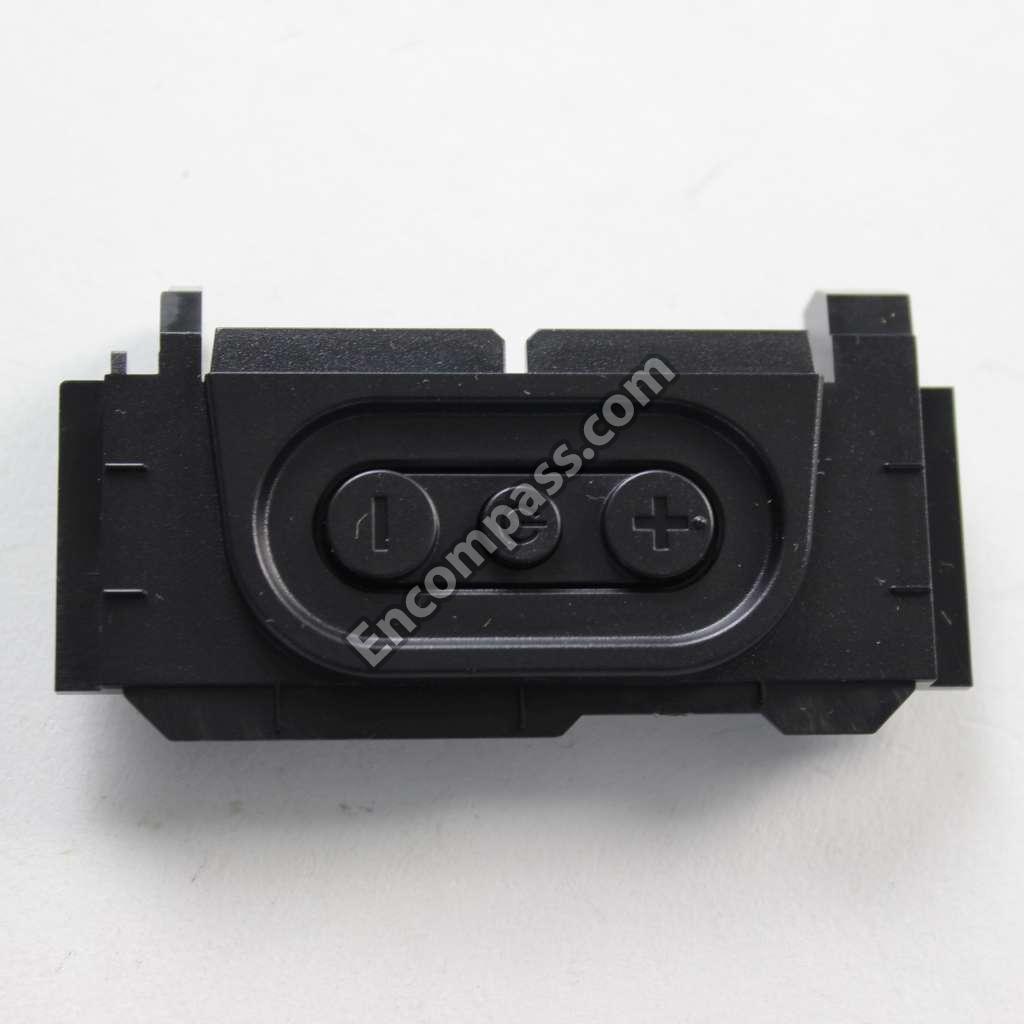

1-474-645-21 1-474-645-21 3M-E-B1 (SWITCH UNIT) (CR1,LA8)
1-493-001-13 1-493-001-13 AC ADAPTOR (60W) (CR1,LA8)
1-785-504-21 1-785-504-21 ADAPTOR, CONVERSION (CR1,LA8)
4-580-630-01 4-580-630-01 ATTACHMENT, WALL MOUNT (TPZ) A (CR1,LA8)
4-583-501-01 4-583-501-01 BACK LIGHT COVER (S TPZ) A (CR1,LA8)
4-579-095-01 4-579-095-01 BACK LIGHT COVER (S TPZ) A (PANEL PART) (AR4,LA8,CR1)
4-488-073-01 4-488-073-01 BAG PE (MMB) (LA8)
4-447-716-32 4-447-716-32 BAG, PROTECTION (1200X900) (CR1,LA8)
4-476-812-02 4-476-812-02 BAG, SCREW ASSY (MRS) (CR1,LA8)
4-579-090-01 4-579-090-01 BEZEL (S TPZ) A (AR4)
4-585-489-01 4-585-489-01 BEZEL (S TPZ) A (CR1,LA8)
4-579-090-31 4-579-090-31 BEZEL (S TPZ) A GOLD (PANEL PART) (AR4,LA8,CR1)
4-579-090-21 4-579-090-21 BEZEL (S TPZ) A SILVER (PANEL PART) (AR4,LA8,CR1)
4-585-061-11 4-585-061-11 BRACKET, UNDER BBA (TPZ) (CR1,LA8)
4-586-951-01 4-586-951-01 CARTON, INDIVIDUAL (S TPZ) (CR1,LA8)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (CR1,LA8)
A-2123-430-C A-2123-430-C COMPL SVC BBA_QW_FHD_CR (CR1)
A-2123-429-C A-2123-429-C COMPL SVC BBA_QW_FHD_SA (LA8)
1-910-805-63 1-910-805-63 CONNECTOR ASSY 10P (PANEL PART) (AR4,LA8,CR1)
4-579-068-11 4-579-068-11 CUSHION, LOWER (S TPZ) (CR1,LA8)
4-589-756-01 4-589-756-01 CUSHION, OPT TOP (SM TPZ) (CR1,LA8)
4-592-658-41 4-592-658-41 CUSHION, SEALING MC (TPZ) (CR1)
4-592-658-61 4-592-658-61 CUSHION, SEALING MC (TPZ) (CR1)
4-592-658-71 4-592-658-71 CUSHION, SEALING MC (TPZ) (CR1)
4-588-440-01 4-588-440-01 CUSHION, SHIELD (TPZ) (CR1,LA8)
4-579-069-11 4-579-069-11 CUSHION, SIDE (S TPZ) (CR1,LA8)
4-579-067-11 4-579-067-11 CUSHION, UPPER (S TPZ) (CR1,LA8)
4-580-638-01 4-580-638-01 DIFFUSER PLATE (S TPZ) (PANEL PART) (AR4,LA8,CR1)
4-581-475-01 4-581-475-01 DIFFUSER SHEET (S TPZ) X-PRSM (PANEL PART) (AR4,LA8,CR1)
1-849-273-11 1-849-273-11 FLEXIBLE FLAT CABLE 51P (CR1,LA8)
1-849-272-11 1-849-272-11 FLEXIBLE FLAT CABLE 51P (CR1,LA8)
1-849-269-11 1-849-269-11 FLEXIBLE FLAT CABLE 5P (CR1,LA8)
1-849-270-11 1-849-270-11 FLEXIBLE FLAT CABLE 5P (CR1,LA8)
4-569-045-01 4-569-045-01 GASKET (5X5 (10)), SOFT (PANEL PART) (AR4,LA8,CR1)
4-569-045-21 4-569-045-21 GASKET(5X5 (10)), SOFT (CR1,LA8)
4-579-070-01 4-579-070-01 GUIDE LIGHT (TPZ) (AR4)
4-585-066-01 4-585-066-01 GUIDE LIGHT (TPZ) (CR1,LA8)
1-910-805-62 1-910-805-62 HARNESS ASSY (CR1,LA8)
A-2093-735-A A-2093-735-A HCY_MOUNT (CR1,LA8)
1-458-900-11 1-458-900-11 J20H090 (WIFI) (CR1,LA8)
4-580-738-01 4-580-738-01 LABEL, SIDE WALL (TPZ) (CR1,LA8)
4-580-097-11 4-580-097-11 LABEL, UNDER TERMINAL (TPZ) (CR1,LA8)
1-812-116-62 1-812-116-62 LIQUID CRYSTAL ELEMENT(S40N01) BM10 (PANEL PART) (AR4,LA8,CR1)
1-812-116-42 1-812-116-42 LIQUID CRYSTAL ELEMENT(S40N01) BM11 (PANEL PART) (AR4,LA8,CR1)
1-859-166-11 1-859-166-11 LOUD SPEAKER(FY16 4X8CM)(FOSTER) (CR1,LA8)
4-579-092-01 4-579-092-01 MIDDLE CHASSIS BT (S TPZ) A (PANEL PART) (AR4,LA8,CR1)
4-579-093-01 4-579-093-01 MIDDLE CHASSIS L (S TPZ) A (PANEL PART) (AR4,LA8,CR1)
4-579-094-01 4-579-094-01 MIDDLE CHASSIS R (S TPZ) A (PANEL PART) (AR4,LA8,CR1)
4-579-091-01 4-579-091-01 MIDDLE CHASSIS TP (S TPZ) A (CR1,LA8)
4-579-091-11 4-579-091-11 MIDDLE CHASSIS TP (S TPZ) A (PANEL PART) (AR4,LA8,CR1)
1-895-891-11 1-895-891-11 MOUNTED PWB LS BAR (40) (PANEL PART) (AR4,LA8,CR1)
4-584-608-01 4-584-608-01 PLATE, MAIN (TPZ) (CR1,LA8)
4-573-960-01 4-573-960-01 POLARIZER F/CF (PANEL PART) (AR4,LA8,CR1)
4-573-961-01 4-573-961-01 POLARIZER R/TFT (PANEL PART) (AR4,LA8,CR1)
1-846-420-11 1-846-420-11 POWER-SUPPLY CORD SET (CR1,LA8)
4-580-641-01 4-580-641-01 PRISM H SHEET (S TPZ) (PANEL PART) (AR4,LA8,CR1)
4-580-644-01 4-580-644-01 PRISM V SHEET (S TPZ) X-PRSM (PANEL PART) (AR4,LA8,CR1)
4-585-192-01 4-585-192-01 REFLECTIVE POLARIZER (S TPZ) DBEF (PANEL PART) (AR4,LA8,CR1)
4-580-647-21 4-580-647-21 REFLECTIVE SHEET (S TPZ) (CR1,LA8)
4-580-647-01 4-580-647-01 REFLECTIVE SHEET (S TPZ) (PANEL PART) (AR4,LA8,CR1)
1-492-977-21 1-492-977-21 REMOTE COMANDER (RMT-TX102B) (CR1,LA8)
7-685-646-79 7-685-646-79 SCREW+BVTP 3X8 TYPE2 IT-3 (LA8)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (LA8)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (LA8)
2-580-608-01 2-580-608-01 SCREW, +PSW M5X16 (LA8)
4-256-393-02 4-256-393-02 SCREW, PSW M3X6 W12 (LA8)
4-585-113-01 4-585-113-01 SHEET, THERMAL (TPZ) (CR1,LA8)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (CR1,LA8)
1-897-009-11 1-897-009-11 SOURCE CONTROL MT BOARD (PANEL PART) (AR4,LA8,CR1)
1-895-824-11 1-895-824-11 SOURCE DRIVER IC MT BOARD (PANEL PART) (AR4,LA8,CR1)
4-579-089-01 4-579-089-01 SOURCE SHIELD (S TPZ) (CR1,LA8)
4-579-847-01 4-579-847-01 SP BOSS BKT (TPZ) (AR4)
4-585-067-01 4-585-067-01 SP BOSS BKT (TPZ) (CR1,LA8)
4-298-004-01 4-298-004-01 SPACER (B) (LA8)
4-584-595-01 4-584-595-01 STAND BKT (S TPZ) (CR1,LA8)
4-578-915-01 4-578-915-01 STAND, BASE ASSY (S TPZ) (CR1,LA8)
4-584-789-11 4-584-789-11 STARTUP GUIDE (LA8)
4-180-215-11 4-180-215-11 SUPPLEMENT (TIPPING OVER) (CR1,LA8)
4-579-103-01 4-579-103-01 SUPPORTER, PIN (TPZ) (CR1,LA8)
7-600-036-11 7-600-036-11 TAPE (1350FB-1) 30MMX66M BLK (LA8)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (PANEL PART) (AR4,LA8,CR1)
4-565-594-11 4-565-594-11 TAPE, SHIELD (PANEL PART) (AR4,LA8,CR1)
4-585-658-61 4-585-658-61 UNDER COVER (S TPZ) A (CR1,LA8)
8-594-308-00 8-594-308-00 UNIVERSAL SIL-TU SUT-RT243ZP (CR1,LA8)
