Sony

Model Number

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-492-995-12 1-492-995-12 AC ADAPTOR (85W)
A-2072-071-A A-2072-071-A ACCESSORY ASSY LA1 XM-L
A-2072-069-A A-2072-069-A ACCESSORY ASSY UC2 XM-L
4-558-330-01 4-558-330-01 BAG, SCREW ASSY (OWL)
4-528-972-03 4-528-972-03 BRACKET, SIDE (CEB)
4-528-973-02 4-528-973-02 BRACKET, UNDER (CEB)
4-565-492-01 4-565-492-01 BRACKET, VESA (PST)
4-564-319-02 4-564-319-02 BRACKET, WIFI (S)
4-564-314-01 4-564-314-01 CASE, BOTTOM (S)

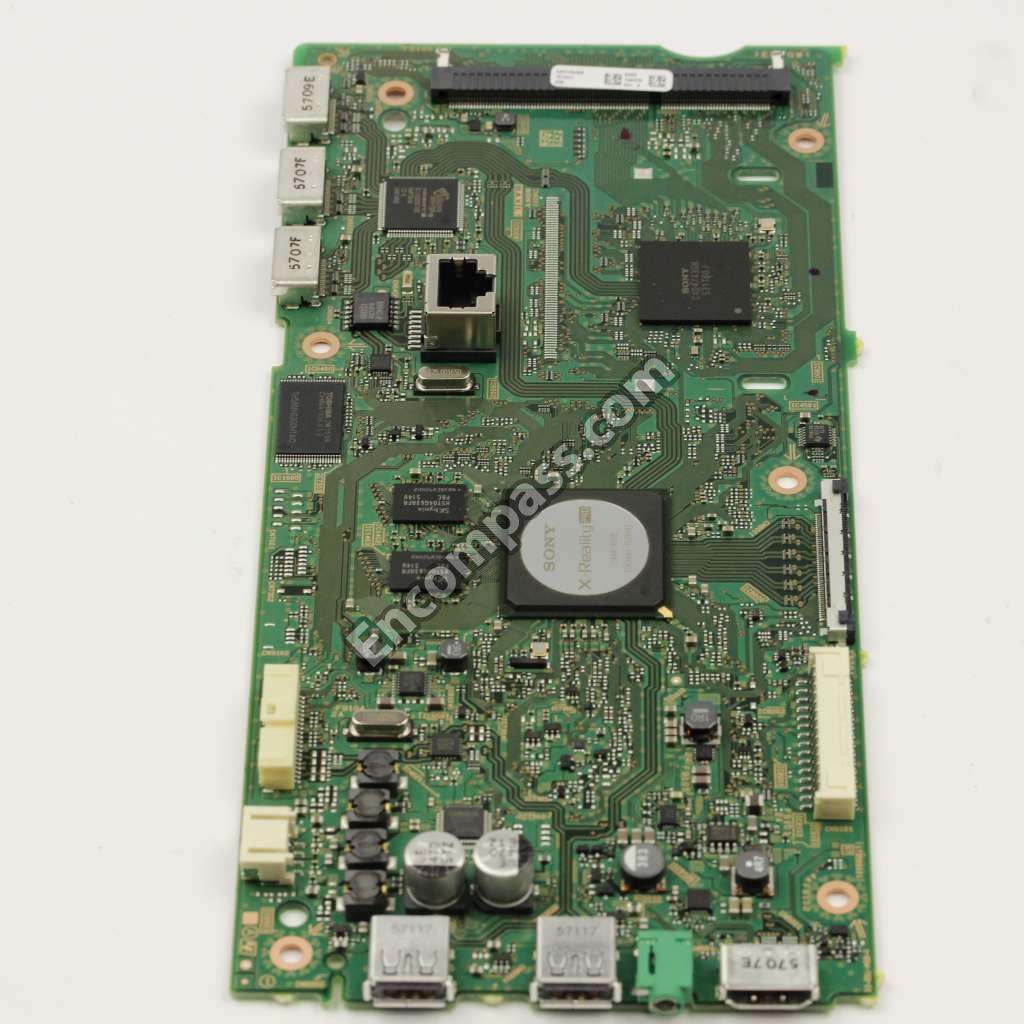

A-2070-508-A A-2070-508-A COMPL SVC BAX (Main CBA)_L2_XML_UC #
A-2063-363-B A-2063-363-B COMPL SVC TUS-A (Main CBA)_UC_1
1-910-805-14 1-910-805-14 CONNECTOR ASSY 10P
1-910-805-09 1-910-805-09 CONNECTOR ASSY 30P
1-846-090-32 1-846-090-32 CORD SET, POWER-SUPPLY !
4-564-317-01 4-564-317-01 COVER, TOP
1-848-933-12 1-848-933-12 FLEXIBLE FLAT CABLE 51P
1-910-805-12 1-910-805-12 HARNESS ASSY
4-566-006-01 4-566-006-01 HEAT SPREADER (40)
A-2066-087-A A-2066-087-A HSC3_S_A MOUNT
A-2066-615-A A-2066-615-A LD-XML40 MOUNT
4-564-313-01 4-564-313-01 LIGHT, GUIDE
1-812-116-31 1-812-116-31 LIQUID CRYSTAL ELEMENT(S40N01)
1-812-116-11 1-812-116-11 LIQUID CRYSTAL ELEMENT(S40N01)
A-2072-067-A A-2072-067-A PACKING COMMON 40 UC2 XM-L
4-564-312-01 4-564-312-01 PANEL, ORNAMENT
4-567-010-62 4-567-010-62 REAR COVER (40 PST) A
4-562-087-31 4-562-087-31 REFERENCE GUIDE
4-562-086-12 4-562-086-12 REFERENCE GUIDE

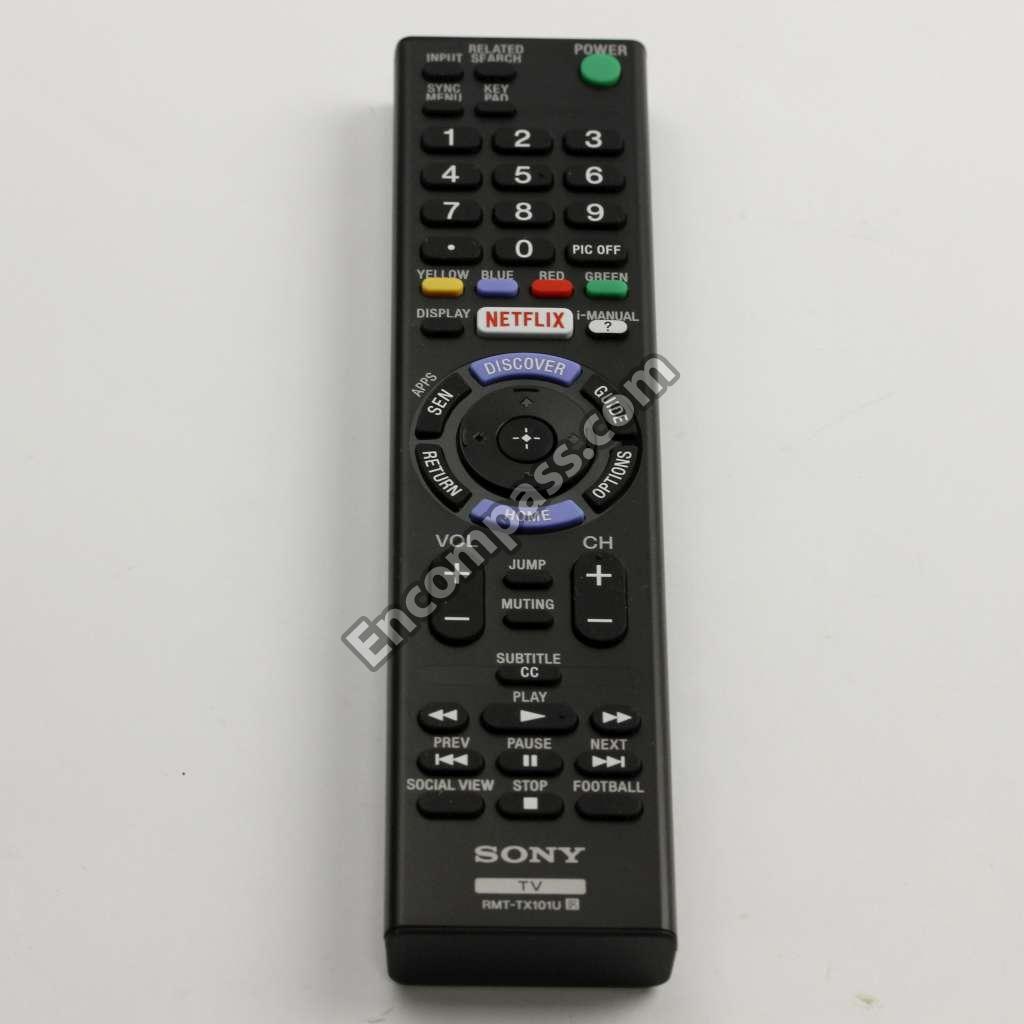

1-492-979-21 1-492-979-21 REMOTE COMMANDER (RMT-TX101U)
2-580-639-01 2-580-639-01 SCREW, +BVTP 4X12 TYPE2 IT-3
4-472-518-01 4-472-518-01 SCREW, +PSW M3X6
4-256-393-02 4-256-393-02 SCREW, +PSW M3X6 W12
4-256-393-12 4-256-393-12 SCREW, +PSW M3X6 W12
2-580-592-11 2-580-592-11 SCREW, +PSW M3X8
2-580-602-01 2-580-602-01 SCREW, +PSW M4X12
4-440-057-01 4-440-057-01 SHEET, THERMAL(AYU2)
2-650-770-21 2-650-770-21 SLIDE, CLAMP
4-256-454-02 4-256-454-02 SPACER (G A)
1-858-963-21 1-858-963-21 SPEAKER BOX ASSY
1-858-963-11 1-858-963-11 SPEAKER BOX ASSY
4-558-425-01 4-558-425-01 STAND ASSY S (PST)

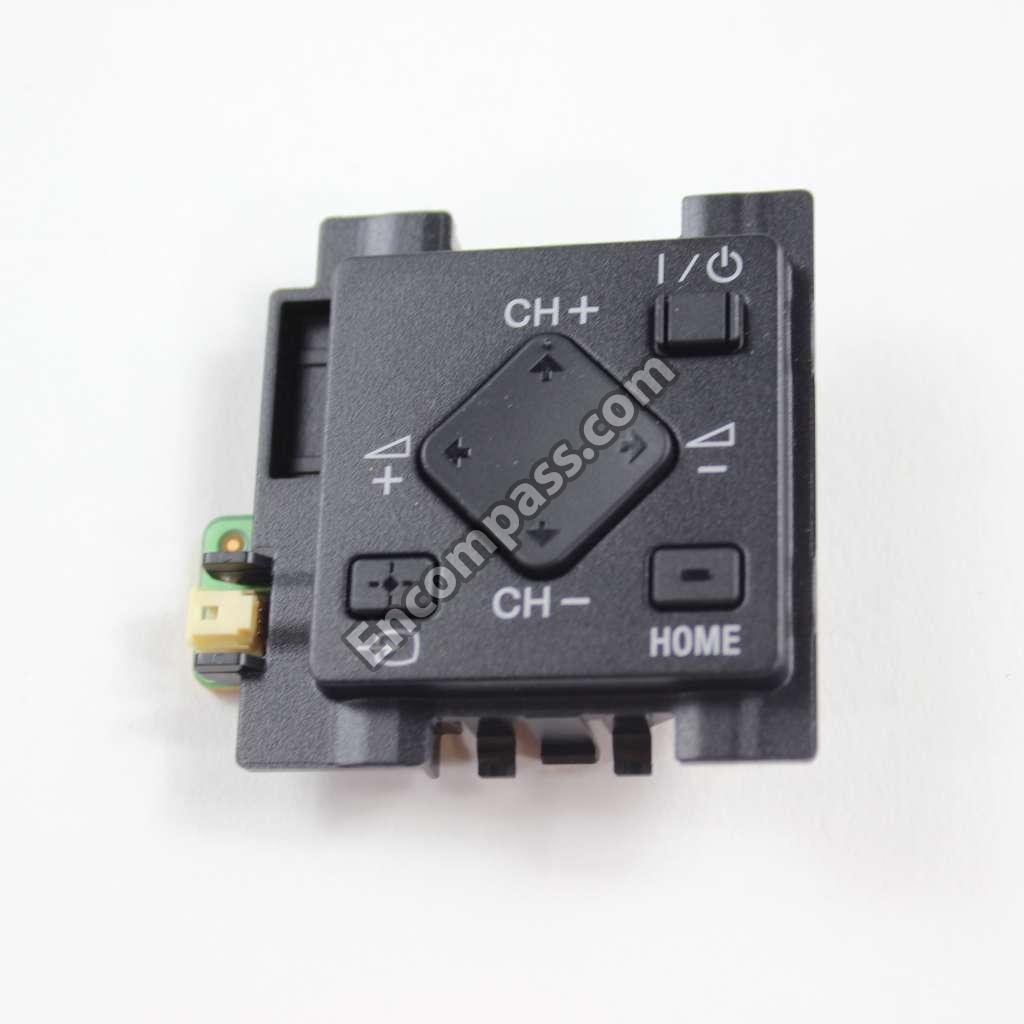

1-798-510-13 1-798-510-13 SWITCH UNIT (SM-WW)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK
4-569-140-11 4-569-140-11 TAPE, HS
3-876-036-71 3-876-036-71 UNI-LABEL, BLANK
1-458-865-11 1-458-865-11 WLAN MODULE
