Sony

Model Number

KDL46EX640

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-910-105-28 1-910-105-28 (LVDS FFC) CONNECTOR
1-910-105-29 1-910-105-29 (LVDS FFC) CONNECTOR
KDL46EX640 46" 2012 SONY TV JIG KDL46EX640
1-895-172-11 1-895-172-11 A BOARD COMPLETE
4-299-528-01 4-299-528-01 AC COVER
AM4PTB2D AM4PTB2D BATTERY "AAA"
4-409-324-01 4-409-324-01 BEZEL (46NK2)
1-910-105-17 1-910-105-17 CONNECT ASSEM 46 4P SP-MB
1-910-105-23 1-910-105-23 CONNECT ASSEM 46 MB-PSU 15P
1-895-206-11 1-895-206-11 CONTROL MT BOARD

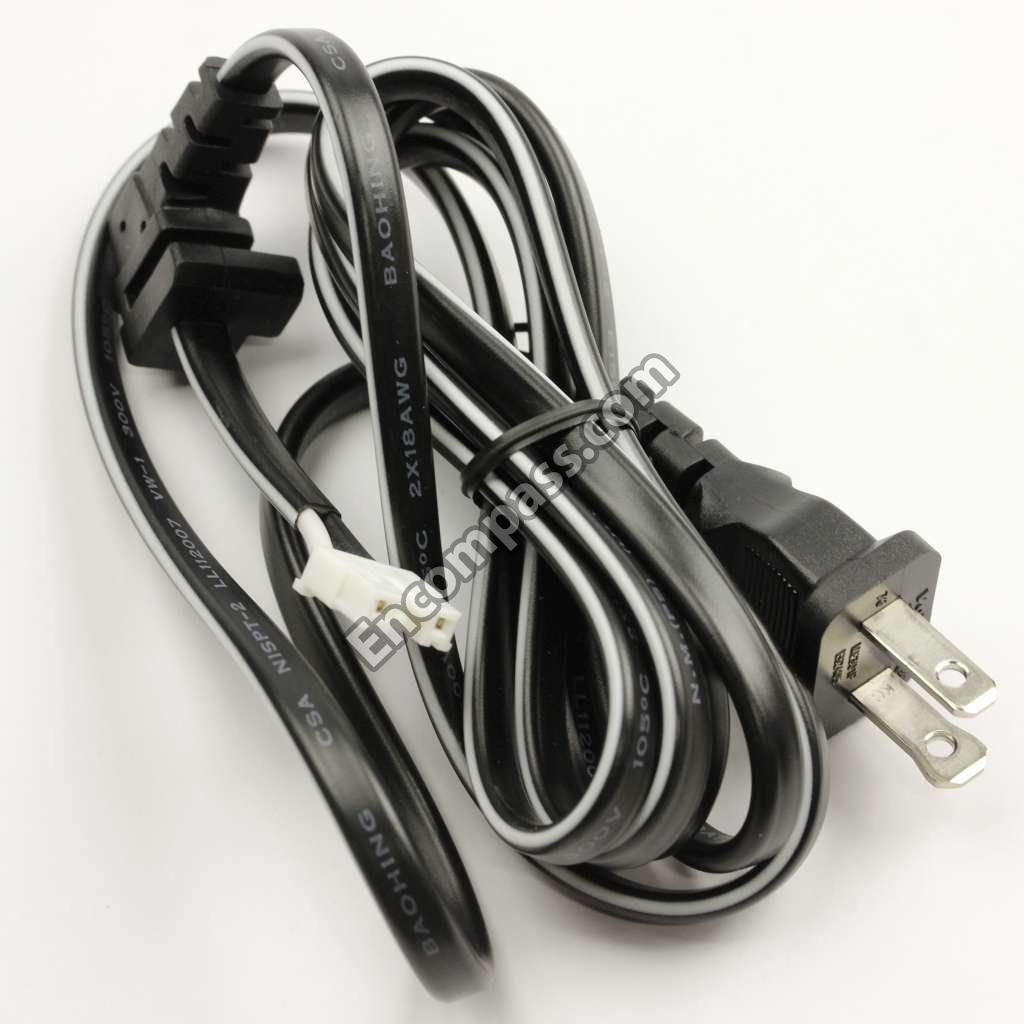

1-839-679-11 1-839-679-11 CORD POWER (WITH CONNECTOR)

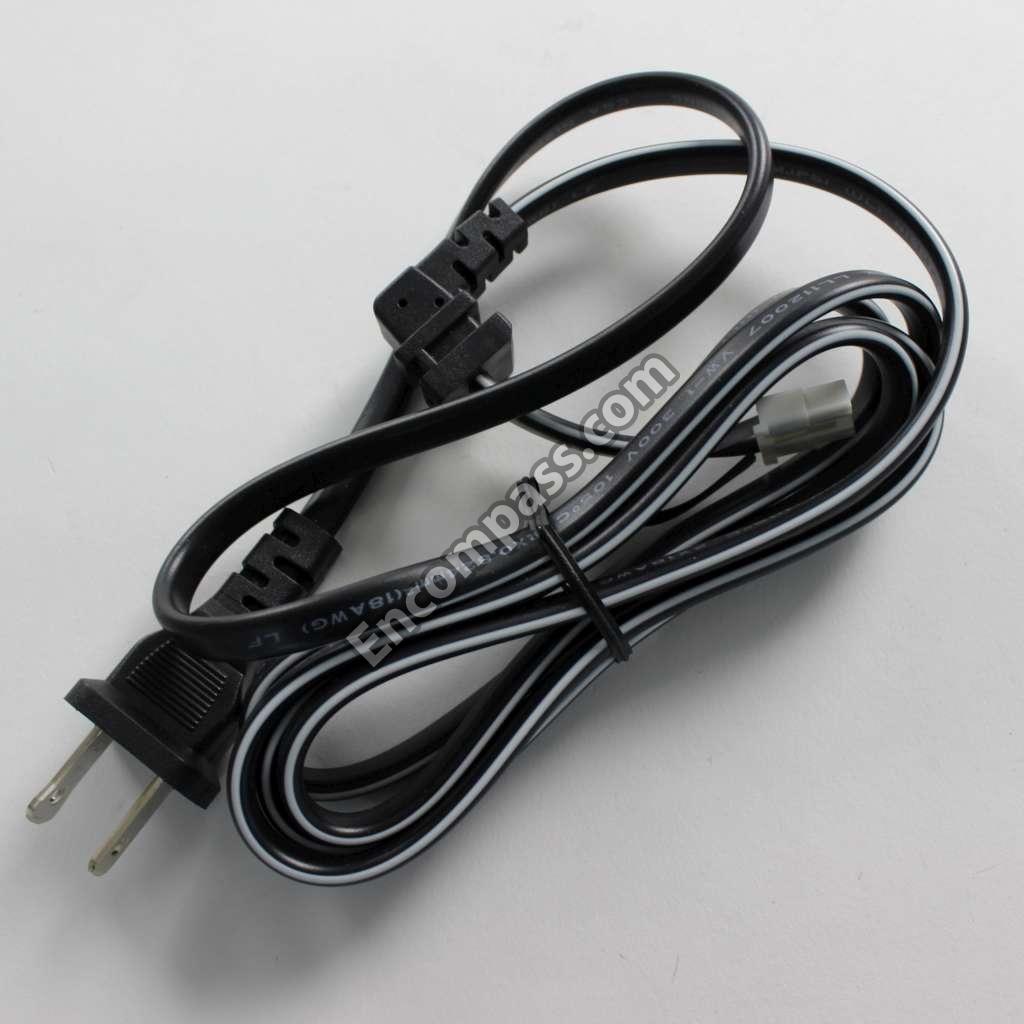

1-839-696-11 1-839-696-11 CORD POWER (WITH CONNECTOR)
1-839-696-12 1-839-696-12 CORD POWER (WITH CONNECTOR)
4-409-321-01 4-409-321-01 COVER SIDE JACK(NK2)
4-409-326-01 4-409-326-01 FRAME BOTTOM(46NK2)
1-895-174-11 1-895-174-11 GL5A BOARD COMPLETE
1-895-176-11 1-895-176-11 H BOARD,MOUNTED
1-857-986-11 1-857-986-11 INVERTER M TBOARD
4-400-043-01 4-400-043-01 JOINT SCREW
4-409-325-01 4-409-325-01 REAR COVER(46NK2)
1-490-009-11 1-490-009-11 REMOTE COMMANDER (RM-YD075)
1-487-829-12 1-487-829-12 REMOTE CONTROL
3-299-071-05 3-299-071-05 SAFETY AND REGULATORY BOOKLET
2-580-608-01 2-580-608-01 SCREW +PSW M5X16 SCREW WITH
4-409-317-01 4-409-317-01 SHEET INSULATION(NK2)
4-415-097-02 4-415-097-02 STAND BASE
4-415-089-02 4-415-089-02 STAND HEAD
4-298-271-03 4-298-271-03 STAND NECK
4-421-427-01 4-421-427-01 STAND SCREW (EACH, USES 4)
1-489-986-11 1-489-986-11 SWITCH UNIT
1-837-549-11 1-837-549-11 UWA-BR100 EXTENSION CABLE
