Model Image
Manufacturer

Sony

Model Number

KDL46HX750

Description

46" (diag.) Sony Led Hx750 Internet Tv

Interactive Exploded View

Parts List

Part Number Description
1-910-105-85 1-910-105-85 3A 46 FLEXIBLE FLAT CABLE 51P
1-910-105-51 1-910-105-51 3A 46 HARNESS ASSY
KDL46HX750 46" 2012 SONY TV JIG KDL46HX750
4-299-528-01 4-299-528-01 AC COVER
4-299-531-01 4-299-531-01 AC COVER

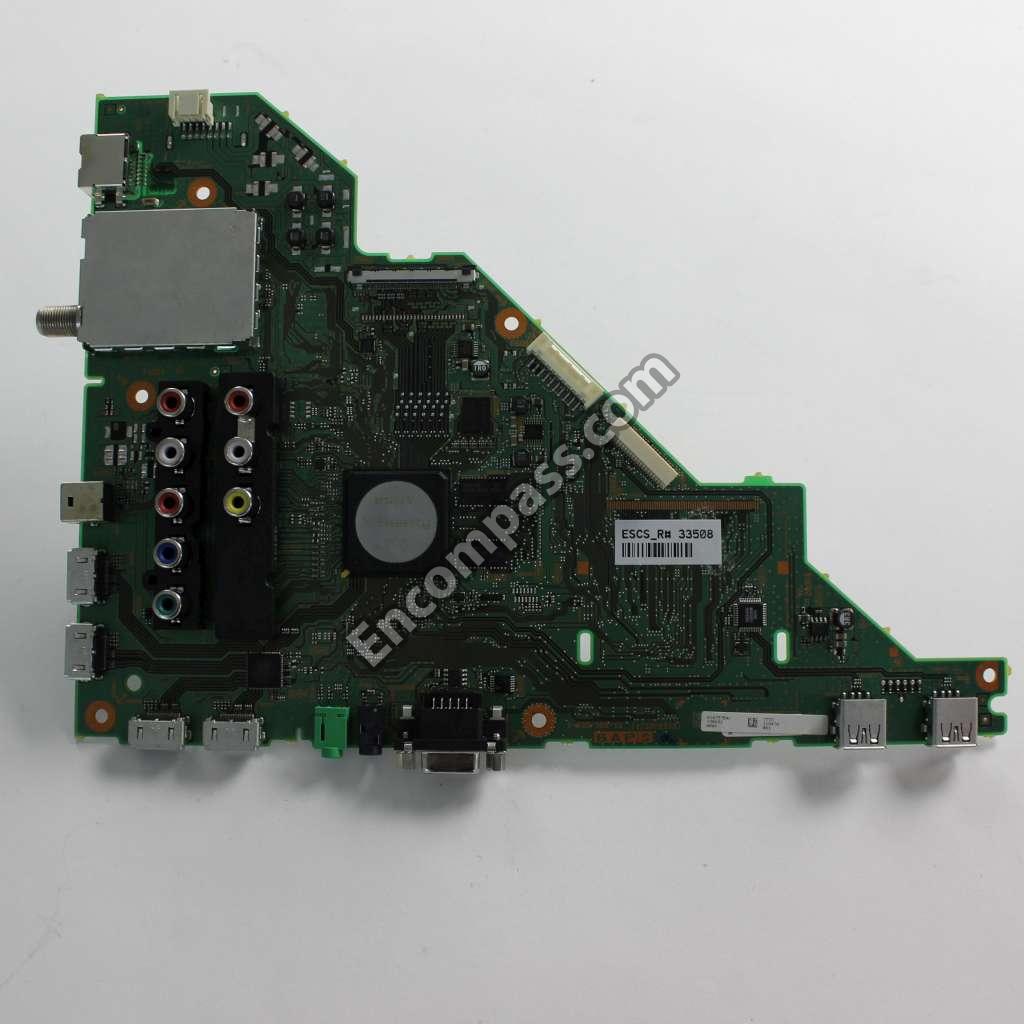

A-1875-754-C A-1875-754-C BAPS SERVICE COMPLE
AM4PTB2D AM4PTB2D BATTERY "AAA"

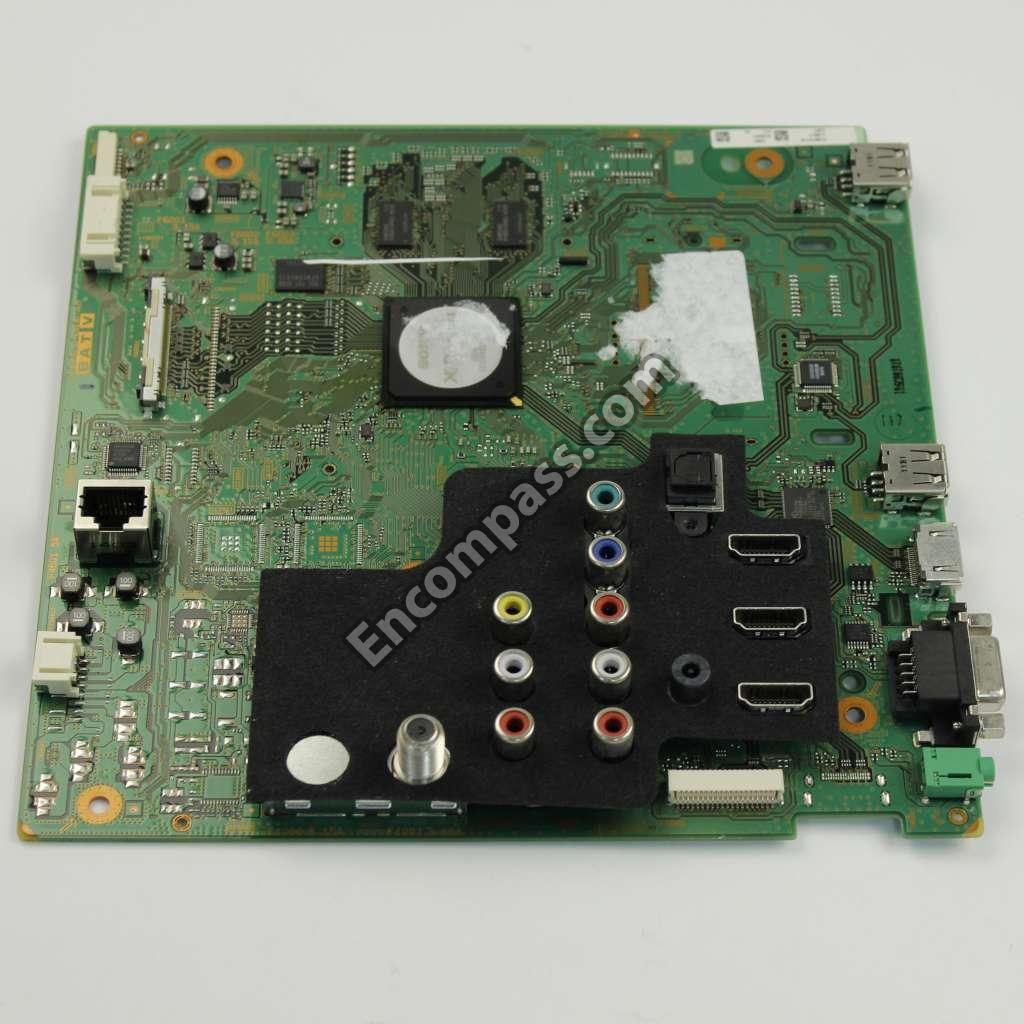

A-1807-978-B A-1807-978-B BATV COMPL(SERVICE)
4-414-790-01 4-414-790-01 BEZEL (46 ZE2) A
1-839-696-11 1-839-696-11 CORD POWER (WITH CONNECTOR)
1-839-679-11 1-839-679-11 CORD POWER (WITH CONNECTOR)
1-839-884-11 1-839-884-11 FLEXIBLE FLAT CABLE 51P
1-474-377-21 1-474-377-21 GL6 BOARD
1-474-377-11 1-474-377-11 GL6(CH)-STATIC CONVERTER(TV)
A-1865-308-A A-1865-308-A HEM3 MOUNT
4-424-815-21 4-424-815-21 LABEL MX ENERGY (3A)
4-400-428-01 4-400-428-01 LABEL, SIDE TERMINAL
4-400-433-01 4-400-433-01 LABEL, UNDER TERMINAL
1-811-506-21 1-811-506-21 LCD PANEL (S46WQL)
1-858-715-11 1-858-715-11 LOUDSPEAKER(30X150MM)
4-425-017-01 4-425-017-01 NOSE PAD (L)
4-425-016-01 4-425-016-01 NOSE PAD (M)
1-458-531-11 1-458-531-11 PLOARIZER ADAPTER
4-421-097-01 4-421-097-01 POLARIZER R/TFT
4-415-492-41 4-415-492-41 REAR COVER (46 ZEU) A
3-299-071-05 3-299-071-05 SAFETY AND REGULATORY BOOKLET
2-580-608-01 2-580-608-01 SCREW +PSW M5X16 SCREW WITH
1-895-196-11 1-895-196-11 SOURCE DRIVER IC MT BOARD
4-415-114-01 4-415-114-01 STAND BASE
4-415-187-01 4-415-187-01 STAND NECK
4-421-427-01 4-421-427-01 STAND SCREW

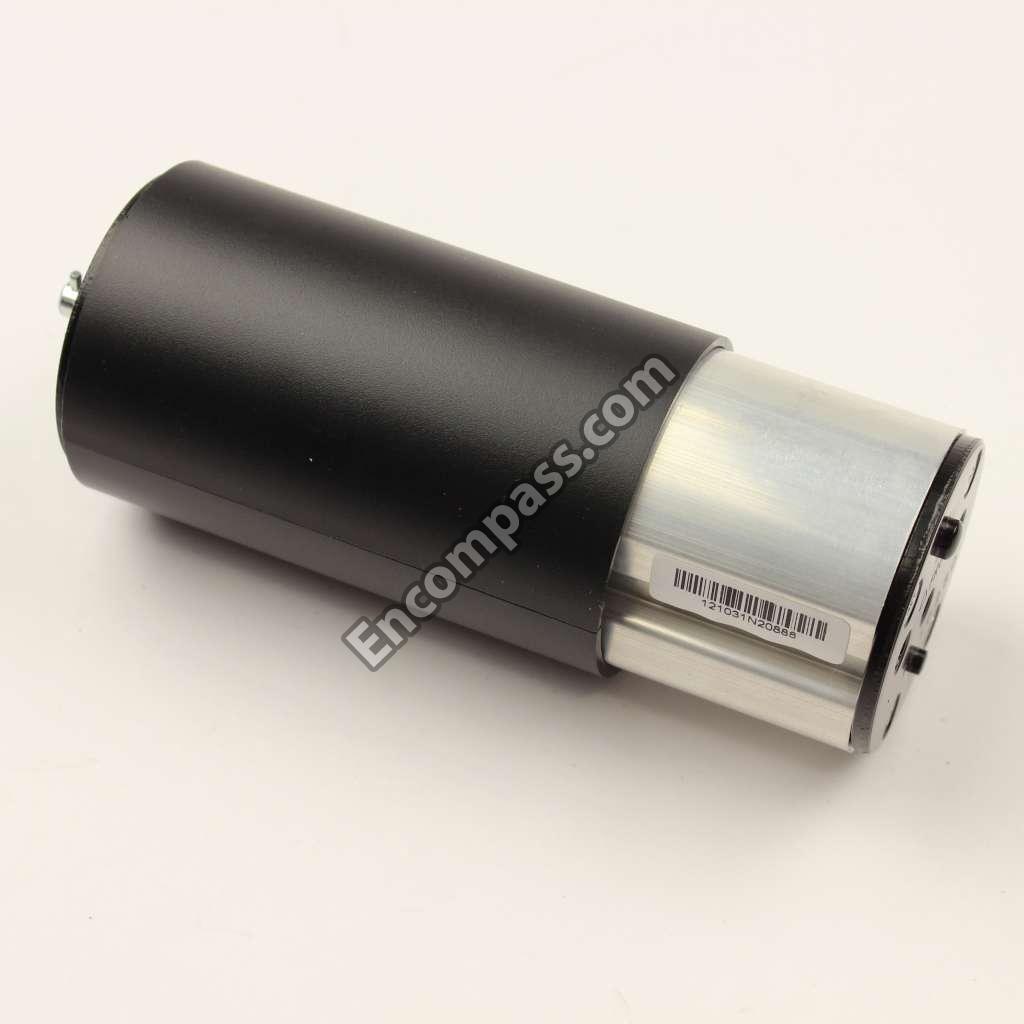

4-298-271-03 4-298-271-03 STAND SUPPORT
1-489-983-11 1-489-983-11 SWITCH UNIT
1-895-191-11 1-895-191-11 T-CON BOARD
1-458-353-33 1-458-353-33 WIRELESS LAN CARD
