Model Image
Manufacturer

Sony

Model Number

KDL50W800B

Description

50 (diag) W800b Premium Led Hdtv

Interactive Exploded View

Parts List

Part Number Description
1-848-111-11 1-848-111-11 (LVDS) FFC WITH CONNECTOR 51P
1-458-628-21 1-458-628-21 3D GLASSES (SINGLE KIT)
1-492-733-11 1-492-733-11 AC ADAPTOR (120W)
4-474-894-01 4-474-894-01 BACK COVER
AM4PTB2D AM4PTB2D BATTERY "AAA"
A-1998-282-A A-1998-282-A BAX BOARD, COMPLETE
4-474-888-01 4-474-888-01 BOTTOM CASE
4-474-888-02 4-474-888-02 BOTTOM CASE A
4-528-972-01 4-528-972-01 BRACKET, SIDE
4-528-973-01 4-528-973-01 BRACKET, UNDER
1-492-760-11 1-492-760-11 BT MODULE
1-492-760-12 1-492-760-12 BT MODULE
4-488-692-01 4-488-692-01 CARTON INDIVIDUAL (CEB 50)
4-547-950-01 4-547-950-01 CARTONINDIVIDUAL (CEB 50)
4-460-760-01 4-460-760-01 CASE, BATTERY (SERVICE)
4-262-708-03 4-262-708-03 CLAMPER, CABLE
1-910-804-02 1-910-804-02 CONNECTOR ASSEMBLY 30P
1-895-639-11 1-895-639-11 CONTROL MT BOARD
4-474-893-01 4-474-893-01 FRONT COVER
1-910-804-06 1-910-804-06 HARNESS ASSEMBLY
A-1969-162-A A-1969-162-A HSC2 BOARD, MOUNTED
4-484-997-01 4-484-997-01 LABEL, SIDE TERMINAL ALSO NEEDS LOC 51
4-484-999-51 4-484-999-51 LABEL, UNDER TERMINAL ALSO NEED LOC 51

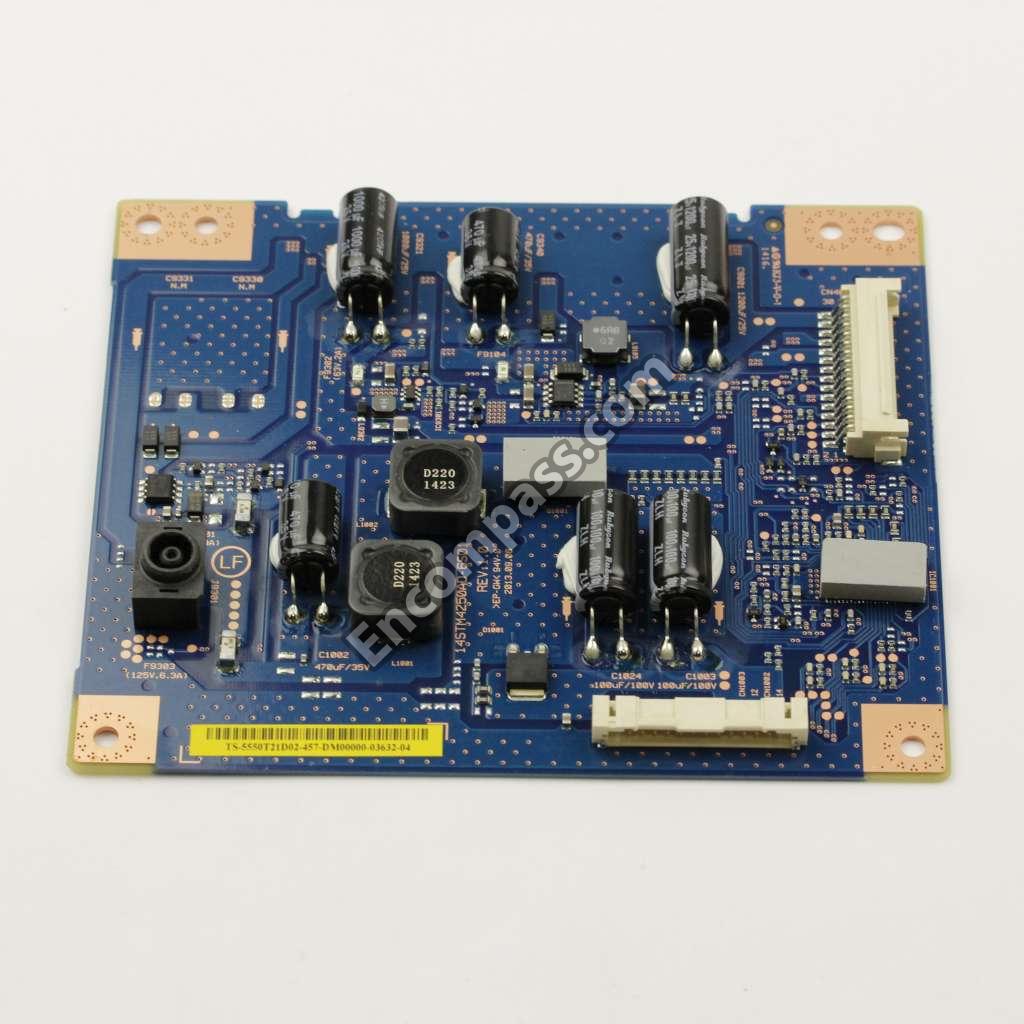

1-895-651-11 1-895-651-11 LD MT BOARD
4-485-844-01W 4-485-844-01W M VESA ADAPTER ASSEMBLY
4-488-200-11 4-488-200-11 MANUAL, INSTRUCTION
4-460-761-01 4-460-761-01 PAD, NOSE (3D GLASSES)
1-846-090-32 1-846-090-32 POWER SUPPLY CORD
4-488-606-01 4-488-606-01 REAR COVER ALSO NEEDS LOCS 54 + 55
1-492-766-11 1-492-766-11 REMOTE COMMANDER (RM-YD102)
2-580-639-01 2-580-639-01 SCREW +BVTP2 4X12
4-479-543-01 4-479-543-01 SCREW, M4X11 LOCK (STAND NECK TO STAND PIPE X4)
4-440-057-01 4-440-057-01 SHEET, THERMAL (AYU2) ALSO NEEDS LOC 65
4-256-454-02 4-256-454-02 SPACER (G A)
1-858-963-11 1-858-963-11 SPEAKER BOX (LEFT)
1-858-963-21 1-858-963-21 SPEAKER BOX (RIGHT)
4-449-743-01 4-449-743-01 STAND SCREW, +PSW M5X16
4-462-165-02 4-462-165-02 STAND, NECK
4-414-470-01 4-414-470-01 SUPPORT BELT KIT
1-798-510-11 1-798-510-11 SWITCH UNIT
4-474-892-01 4-474-892-01 TOP COVER
1-492-758-12 1-492-758-12 TOUCHPAD REMOTE CONTROL (RMF-YD003)
4-485-844-01 4-485-844-01 W/M VESA ADAPTER ASSEMBLY
4-487-766-03 4-487-766-03 WALL MOUNT BKT ASSEMBLY
4-159-298-21 4-159-298-21 WALL MOUNT SCREW, +PSW M4X10 X2
4-457-126-01 4-457-126-01 WALL MOUNT SCREW,+PSW M6X12 X2
1-458-865-11 1-458-865-11 WIRELESS LAN CARD
