Model Image
Manufacturer

Sony

Model Number

KDL55EX720

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-910-801-43 1-910-801-43 (LVDS) FLEXIBLE FLAT CABLE 56 PIN
1-839-421-11 1-839-421-11 (LVDS) FLEXIBLE FLAT CABLE N4 55S
TDG-BR250_B TDG-BR250_B 3D GLASSES (SIZE ADULT)
TDG-BR200_B TDG-BR200_B 3D GLASSES (SIZE SMALL)
14797 14797 40"-70" LED CD PL STAND
KDL55EX720 55" 2011 SONY TV JIG KDL55EX720
AM4PTB2D AM4PTB2D BATTERY "AAA"
A-1814-572-C A-1814-572-C BATV BOARD, COMPLETE
4-266-680-11 4-266-680-11 BEZEL(55 CAS)
4-266-680-01 4-266-680-01 BEZEL- SCREEN FRAME
TDG-BR250_DBL TDG-BR250_DBL BL 3D GLASSES - TWO PACK (SIZE ADULT)
4-265-834-02 4-265-834-02 BRACKET SIDE (BAT-V METAL)
4-266-019-01 4-266-019-01 BRACKET, PANEL (M)
1-910-801-30 1-910-801-30 CONNECTOR ASSEMBLY 14P
1-910-801-33 1-910-801-33 CONNECTOR ASSEMBLY 28P
1-910-801-45 1-910-801-45 CONNECTOR ASSEMBLY 7P
1-857-957-11 1-857-957-11 CONTROL MT BOARD
4-281-014-01 4-281-014-01 DOUBLE SIDED TAPE (PANEL 10)
1-856-184-11 1-856-184-11 FRENEL LENS

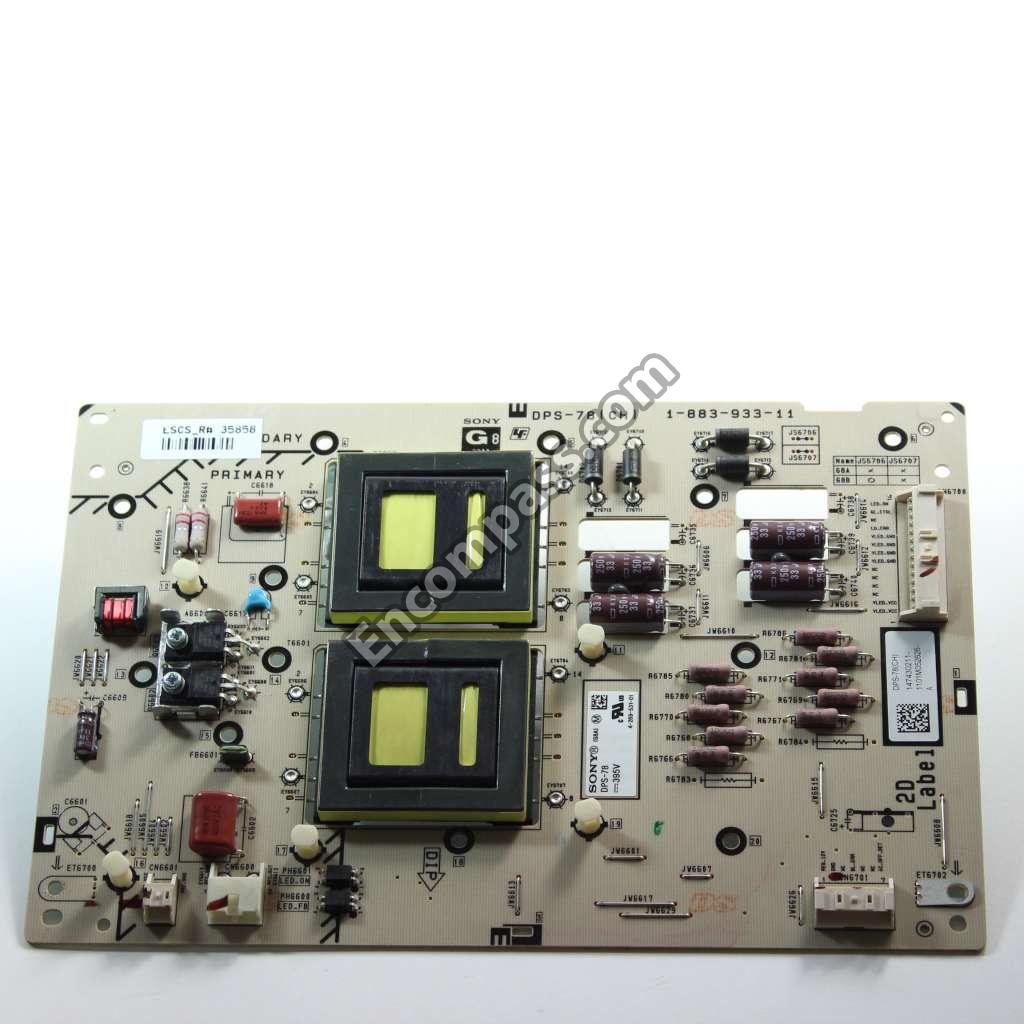

1-474-303-11 1-474-303-11 G6 (POWER) BOARD, COMPLETE

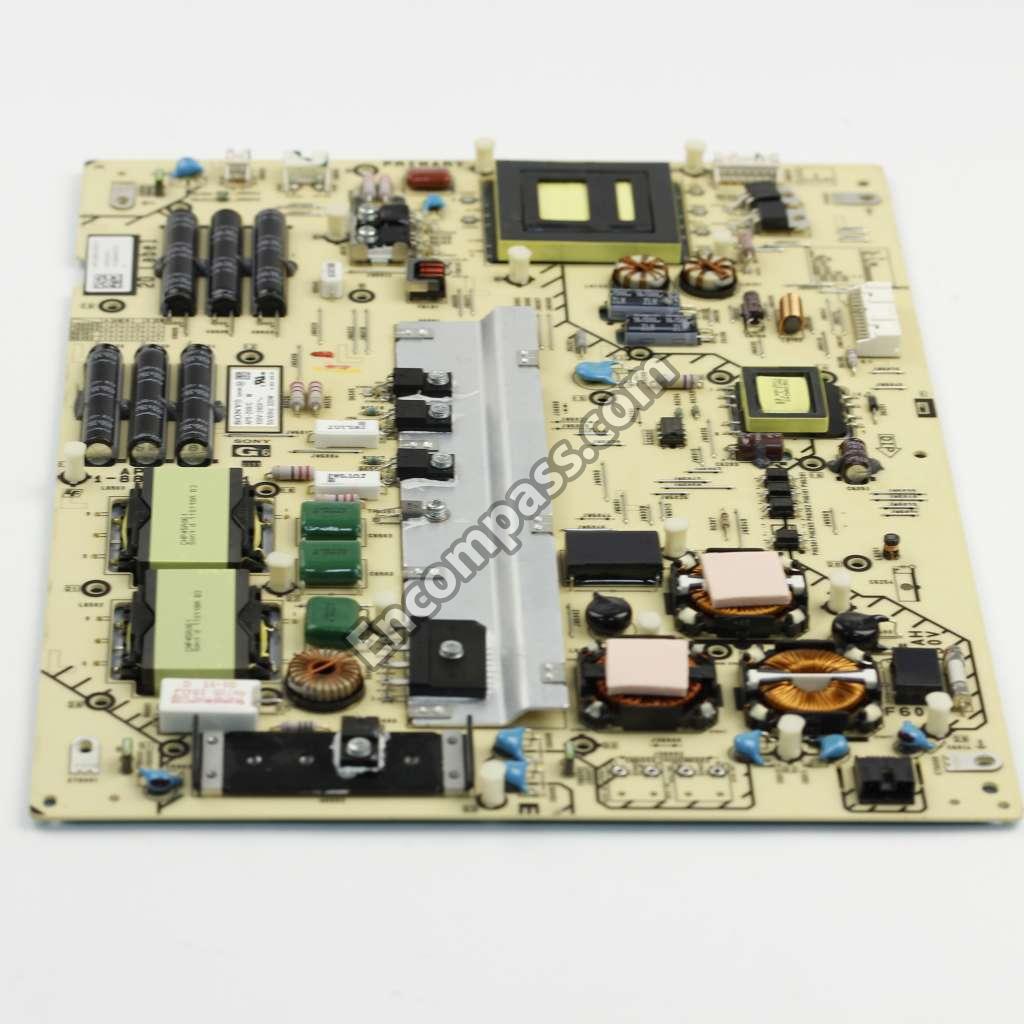

1-474-302-11 1-474-302-11 G8 (POWER) BOARD, COMPLETE
1-910-801-38 1-910-801-38 HARNESS ASSEMBLY
4-188-302-11 4-188-302-11 HEXAGON WRENCH

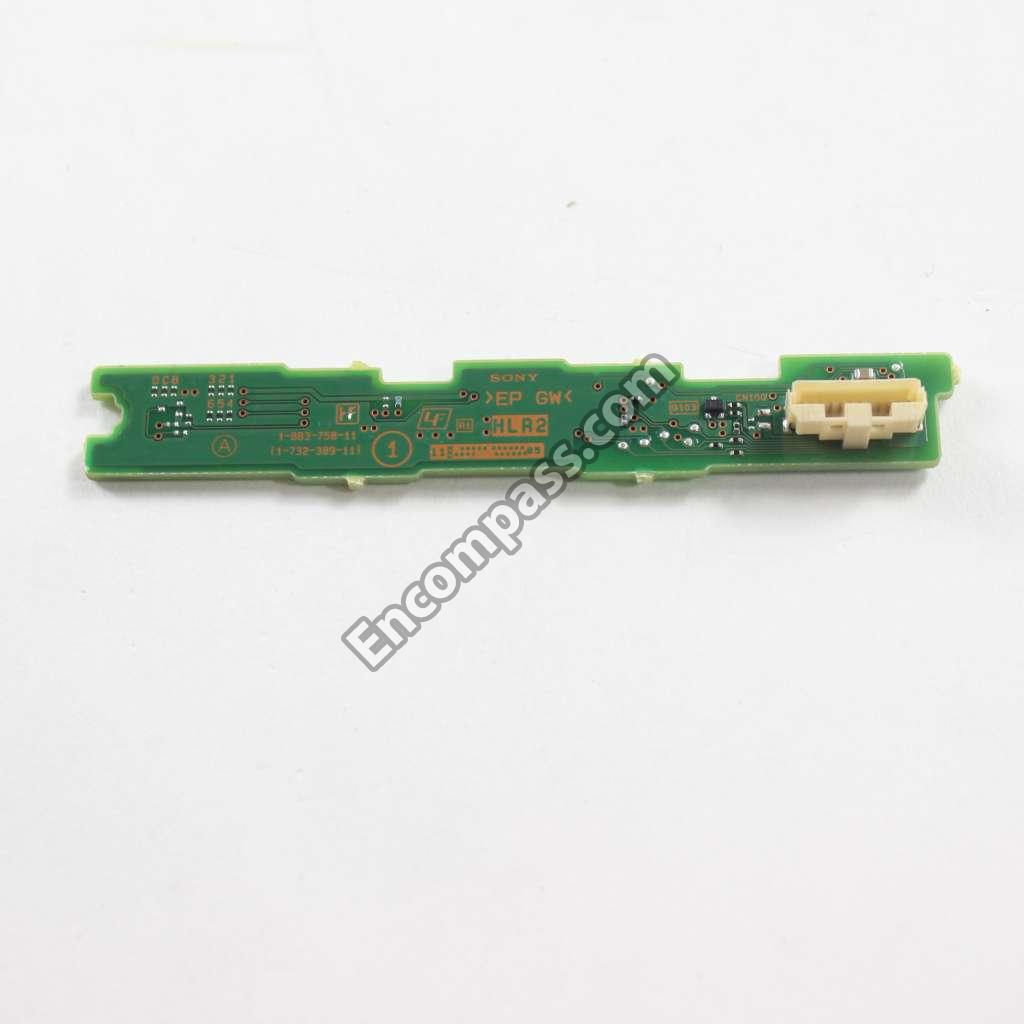

A-1792-877-A A-1792-877-A HLR2 BOARD, MOUNTED
A-1806-495-A A-1806-495-A HMS3 BOARD, MOUNTED
4-257-907-01 4-257-907-01 JOINT, STAND
4-256-437-01 4-256-437-01 LABEL (BAT-V METAL SIDE) (FOR SIDE JACK)
4-265-028-01 4-265-028-01 LABEL (BATV REAR)

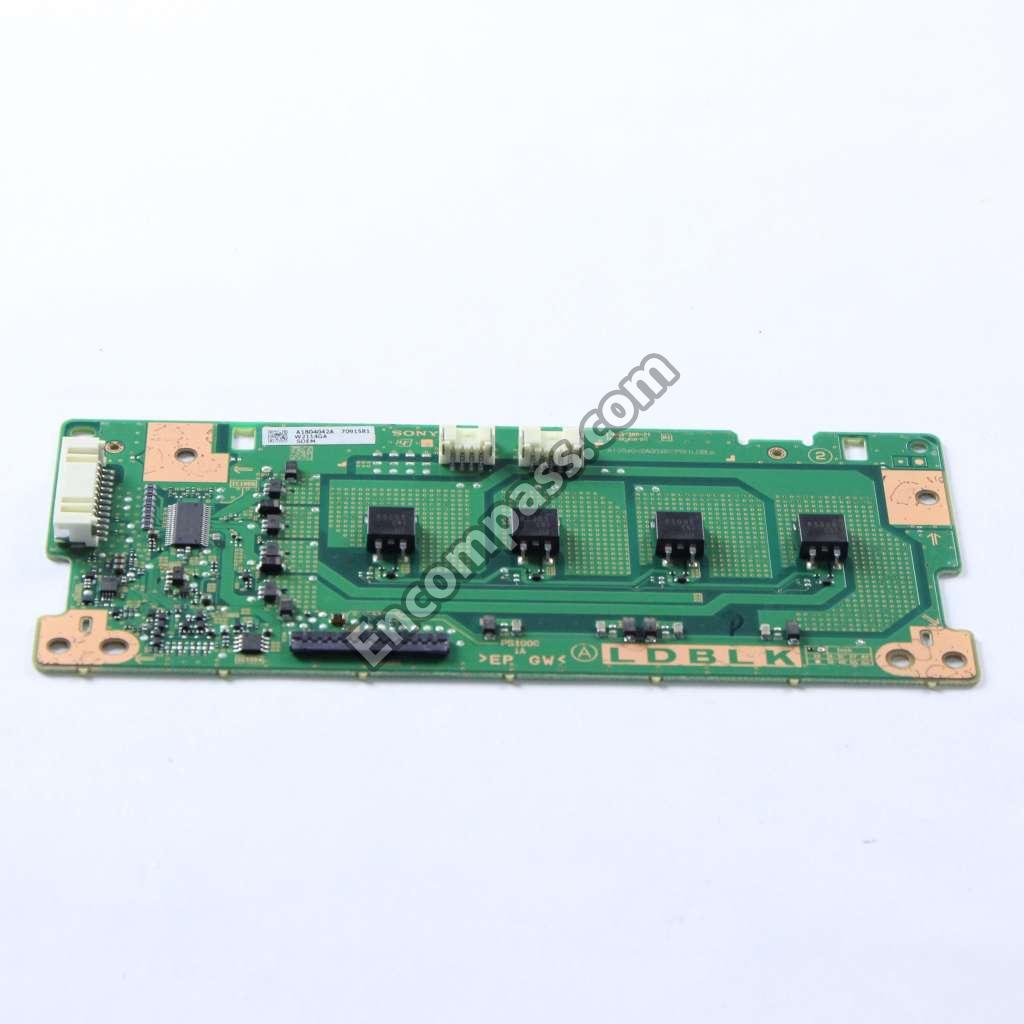

A-1804-042-A A-1804-042-A LD BOARD, MOUNTED
4-289-288-01 4-289-288-01 LID, BATTERY COVER FOR 3D GLASSES
4-275-462-31 4-275-462-31 MANUAL, INSTRUCTION (SPANISH VERSION)
4-286-204-01 4-286-204-01 POLARIZER R/TFT

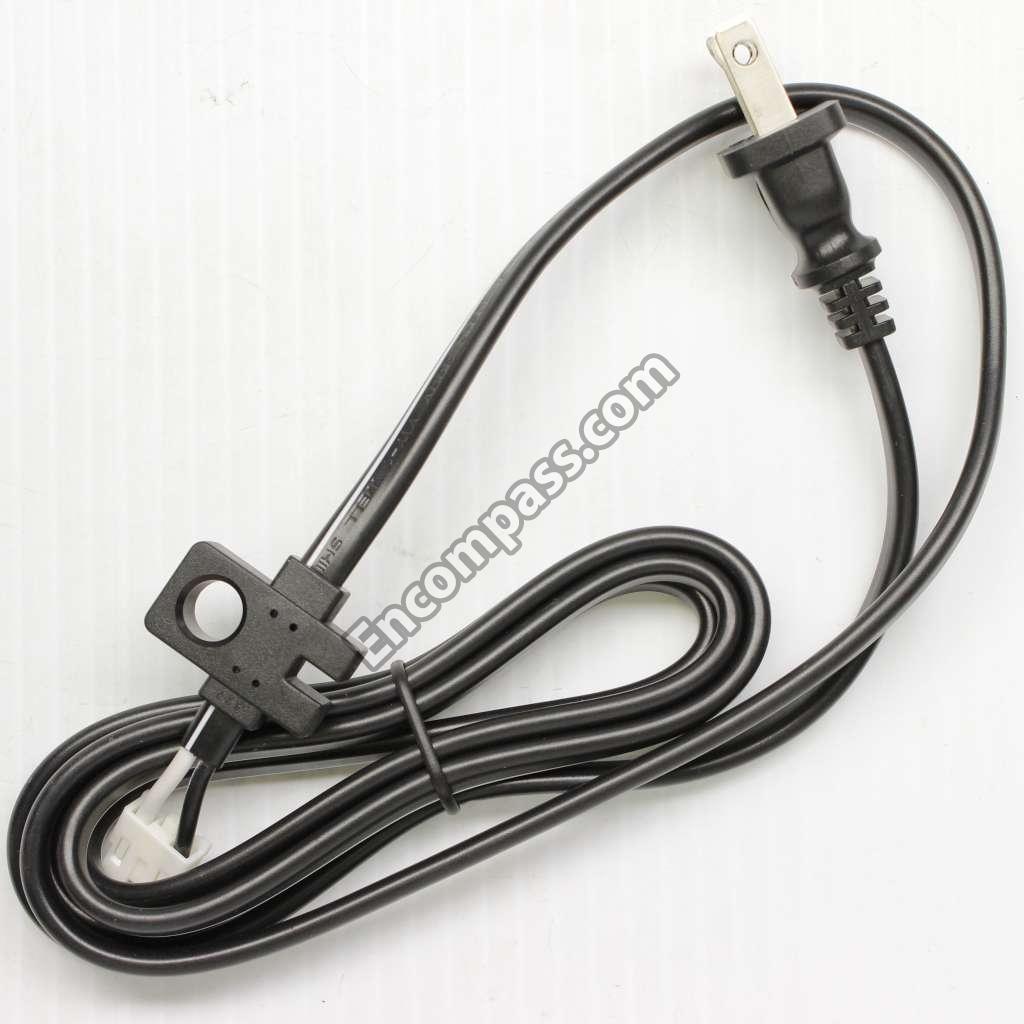

1-838-797-11 1-838-797-11 POWER-SUPPLY CORD (WITH CONN.)
4-268-009-02 4-268-009-02 REAR COVER(55 CAS)A
1-489-473-11 1-489-473-11 REMOTE CONTROL RMYD061
3-299-071-05 3-299-071-05 SAFETY AND REGULATORY BOOKLET

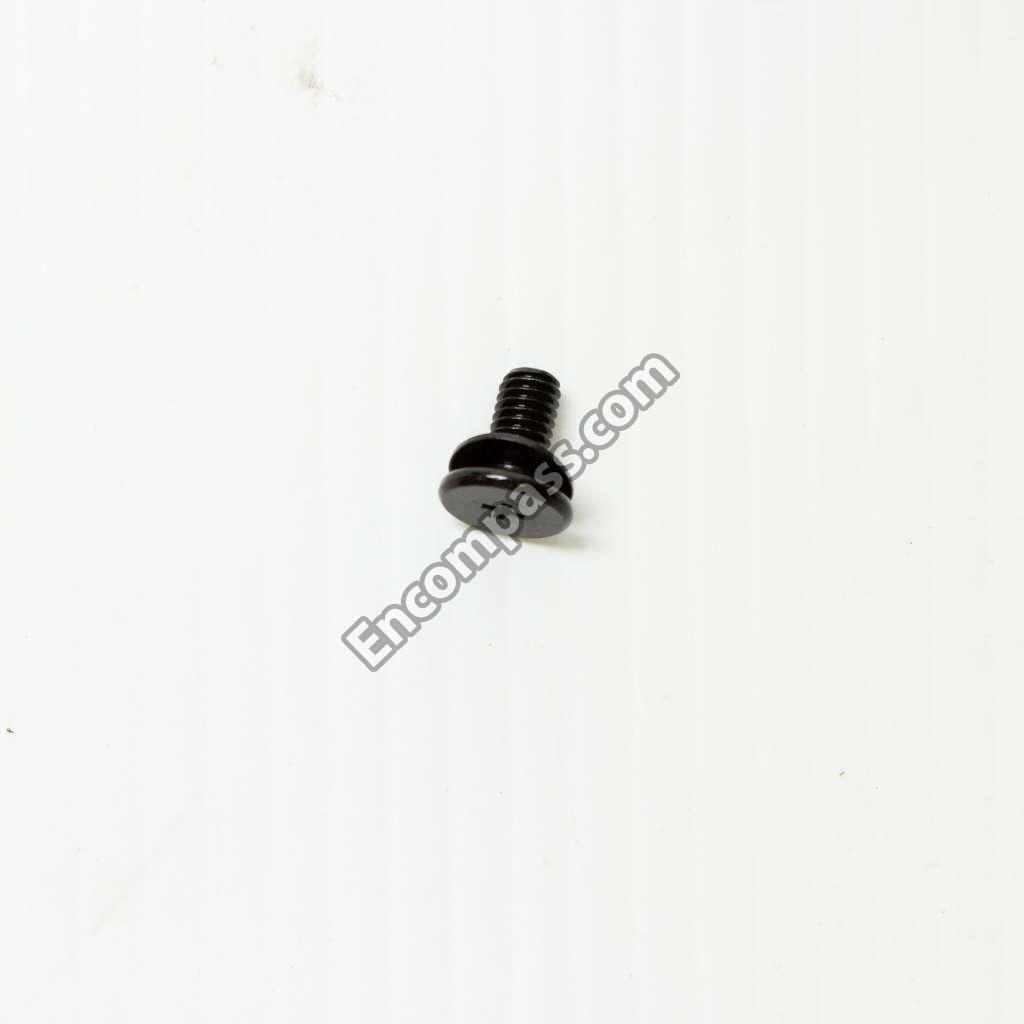

2-990-421-41 2-990-421-41 SCREW (+PSW) (M3X6)
7-685-646-79 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
2-580-639-01 2-580-639-01 SCREW, +BVTP 4X12 TYPE2 IT-3
4-256-393-01 4-256-393-01 SCREW, +PSW M3X6 W12
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12
4-256-443-01 4-256-443-01 SHEET RADIATION (BAT-L/V)
4-268-443-01 4-268-443-01 SHEET, INSULATION (G4)
4-268-445-01 4-268-445-01 SHEET, INSULATION (G7)
1-857-981-11 1-857-981-11 SOURCE DRIVER IC MT BOARD
4-267-566-01 4-267-566-01 STAND BASE

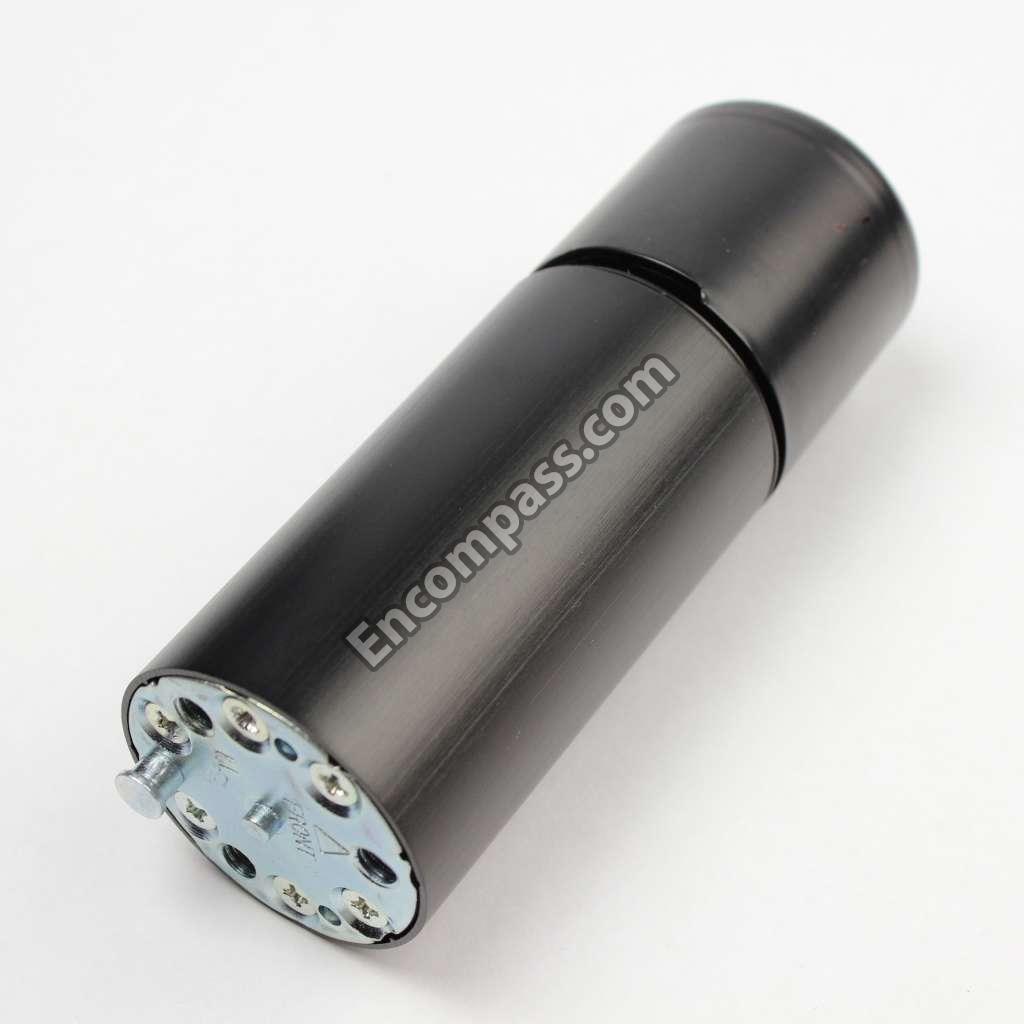

4-259-186-02 4-259-186-02 STAND NECK
4-259-541-02 4-259-541-02 STAND SCREW- HEAD/NECK & BASE/NECK USES 2
2-580-608-01 2-580-608-01 STAND SCREW- HEAD/TV USES 2

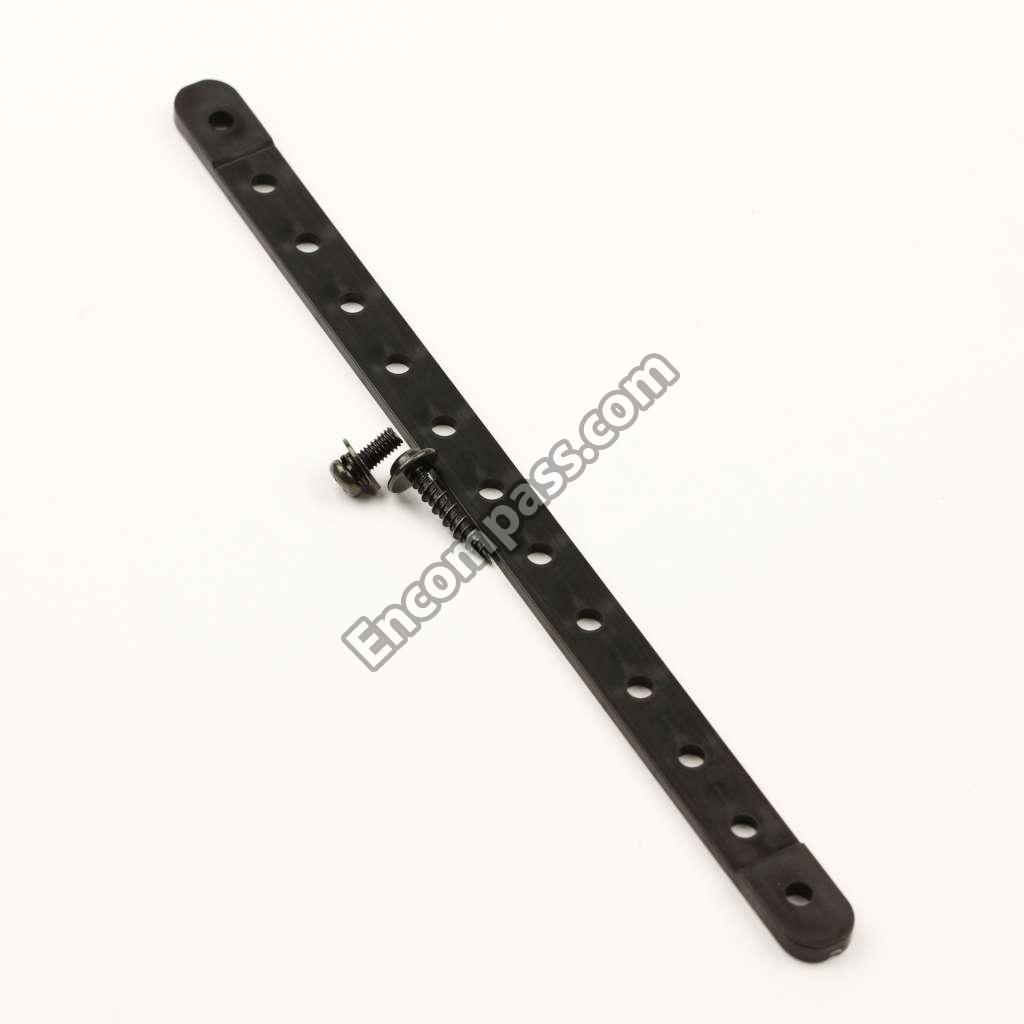

X-2581-158-1 X-2581-158-1 SUPPORT BELT KIT

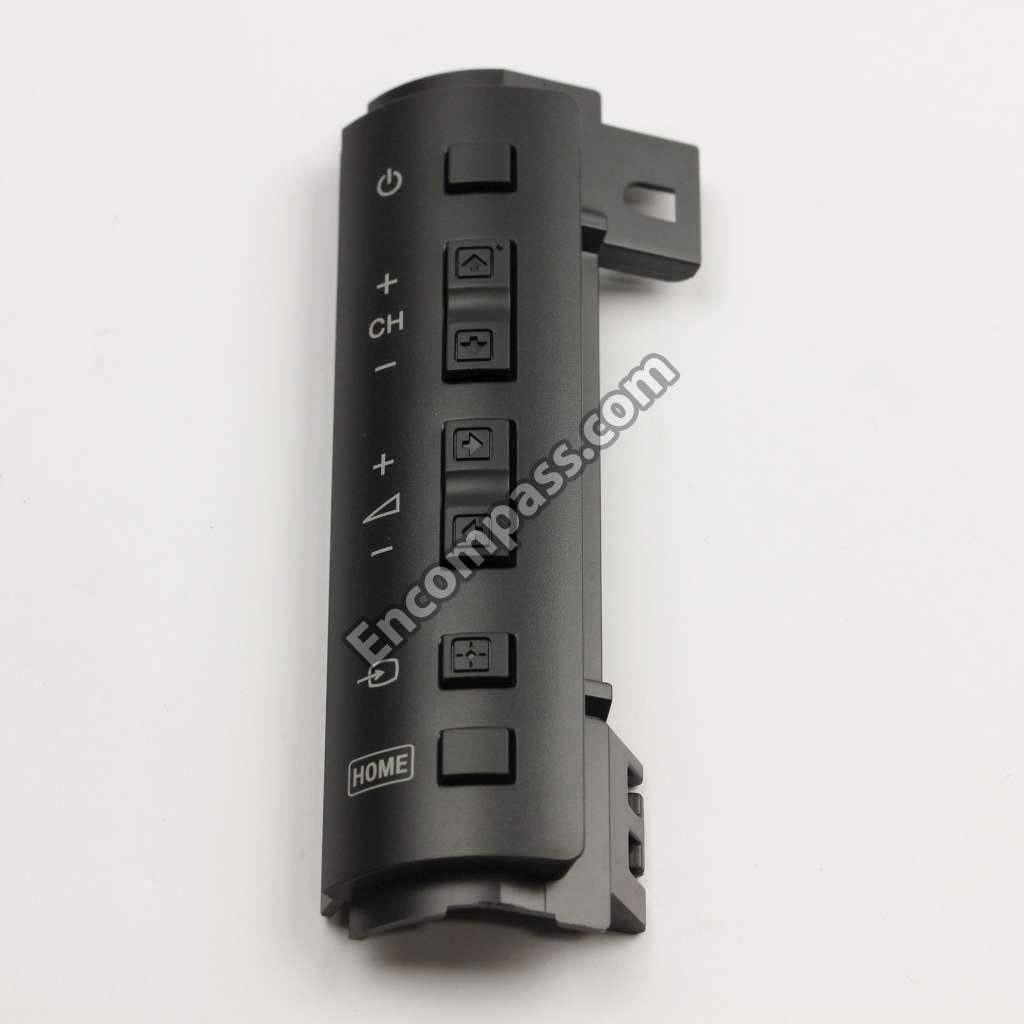

1-489-582-11 1-489-582-11 SWITCH UNIT
