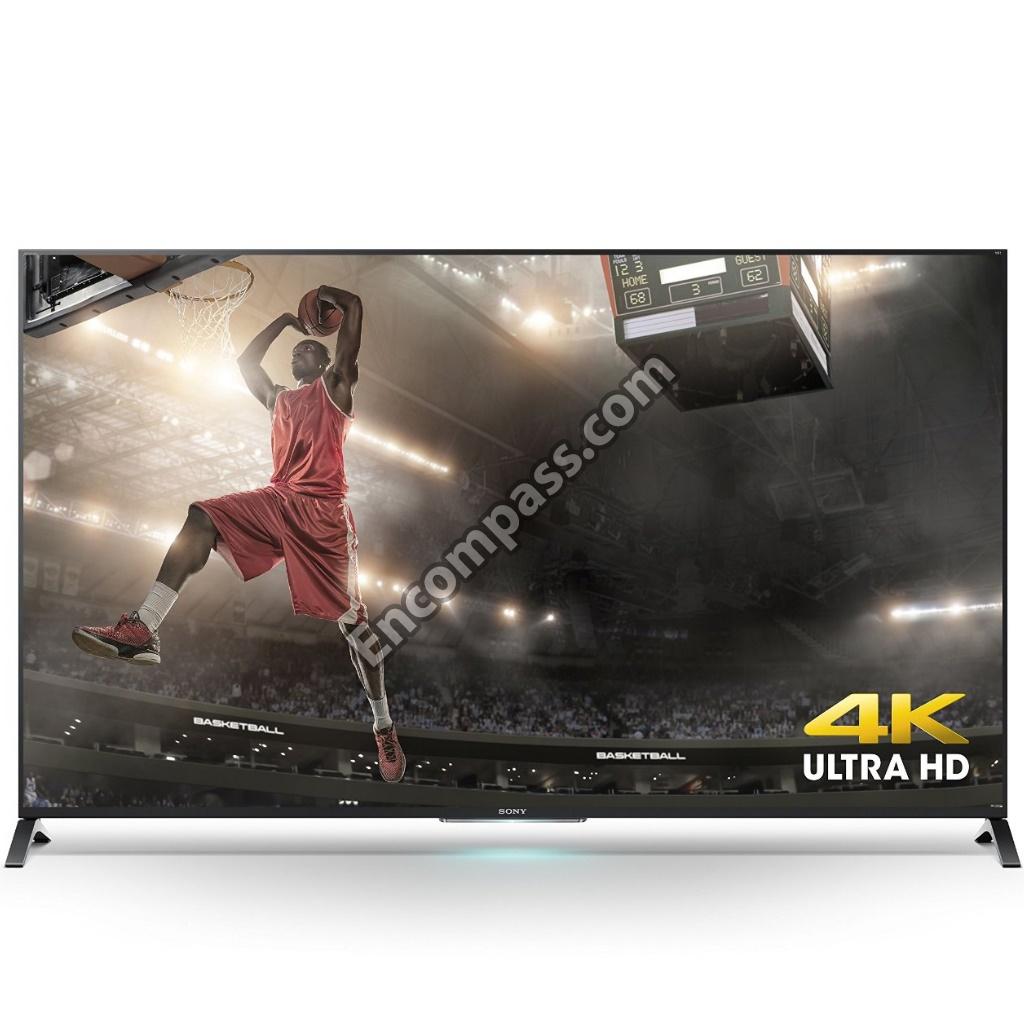

Model Image
Manufacturer

Sony

Model Number

KDL55X830B

Description

55-inch Led Hdtv

Interactive Exploded View

Parts List

Part Number Description
1-848-312-11 1-848-312-11 (LVDS) FLEXIBLE FLAT CABLE 41P
1-848-313-11 1-848-313-11 (LVDS) FLEXIBLE FLAT CABLE 51P
AM4PTB2D AM4PTB2D BATTERY "AAA"
A-2057-841-B A-2057-841-B BAXF BOARD, COMPLETE
1-492-760-12 1-492-760-12 BT MODULE
1-458-796-11 1-458-796-11 CAMERA MODULE
4-532-606-01 4-532-606-01 COVER STAND HOLE
1-474-577-11 1-474-577-11 G7A BOARD, COMPLETE
A-2057-722-A A-2057-722-A HSC2 BOARD, MOUNTED
4-533-569-12 4-533-569-12 I/M XBR-55X850B/65X850B
1-845-283-21 1-845-283-21 IR BLASTER
A-2033-108-A A-2033-108-A K2 BOARD, COMPLETE
4-527-285-01 4-527-285-01 LABEL REAR TERMINAL
1-458-793-11 1-458-793-11 MIC UNIT
X-2588-944-1 X-2588-944-1 PASSIVE 3D GLASSES TDG-500P
4-532-595-02 4-532-595-02 REAR COVER (55)
1-492-766-11 1-492-766-11 REMOTE COMMANDER (RM-YD102)
2-580-639-01 2-580-639-01 SCREW +BVTP2 4X12
4-256-393-01 4-256-393-01 SCREW +PSW M3X6 W12
2-990-421-41 2-990-421-41 SCREW, (+PSW) (M3X6)
1-858-963-11 1-858-963-11 SPEAKER BOX (LEFT)
1-858-963-21 1-858-963-21 SPEAKER BOX (RIGHT)

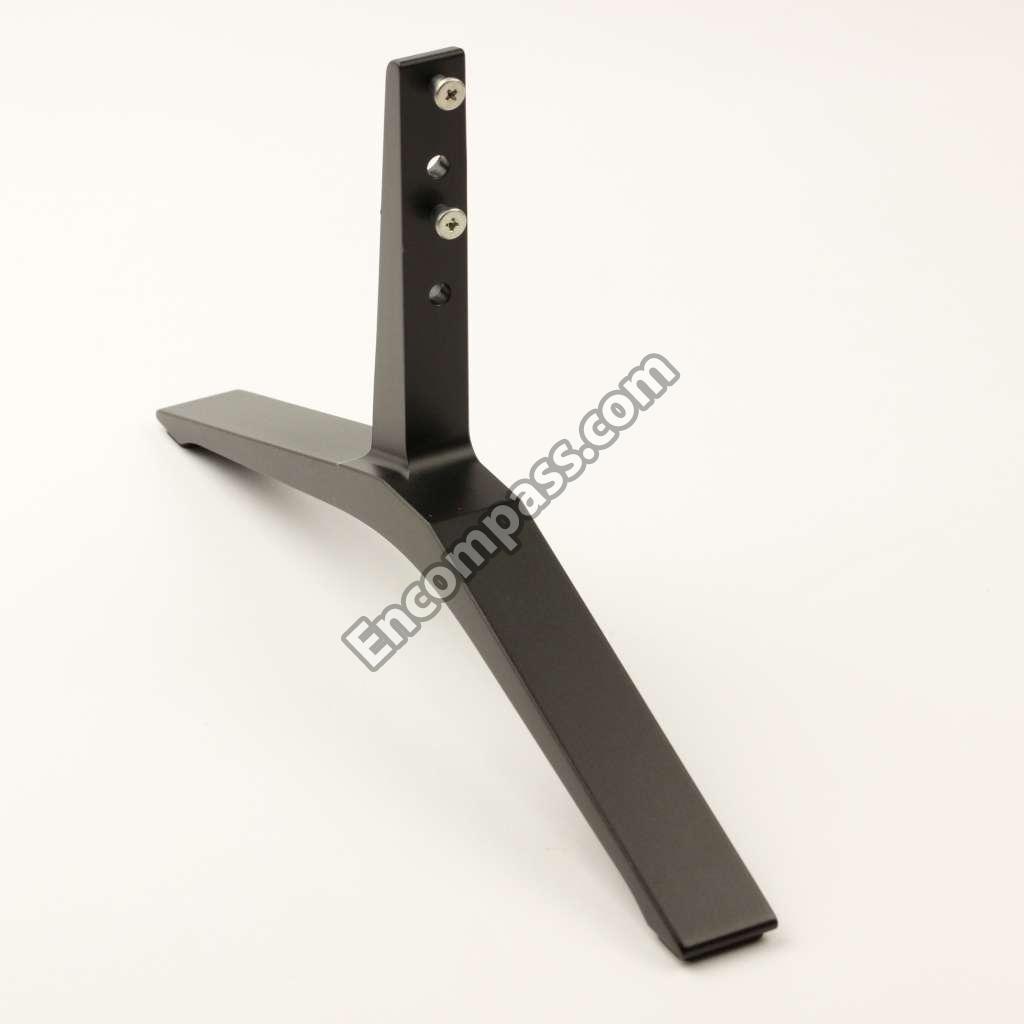

4-532-610-11 4-532-610-11 STAND LEFT

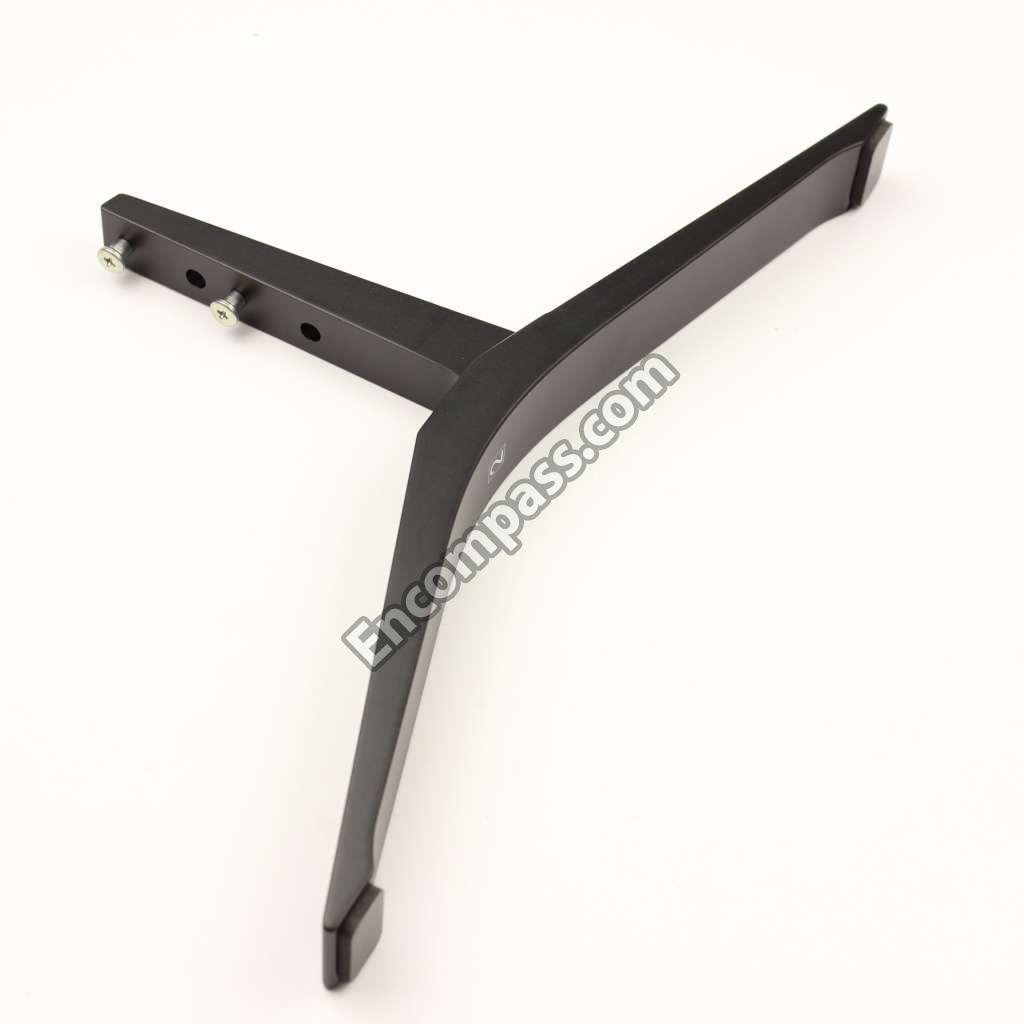

4-533-086-11 4-533-086-11 STAND RIGHT
1-798-510-11 1-798-510-11 SWITCH UNIT
1-848-342-11 1-848-342-11 USB CABLE W/CONNECTOR
1-458-865-11 1-458-865-11 WIRELESS LAN CARD
