Model Image
Manufacturer

Sony

Model Number

KDL60W850B

Description

60 (diag) W850b Premium Led Hdtv

Interactive Exploded View

Parts List

Part Number Description
1-848-161-11 1-848-161-11 (LVDS) FLEXIBLE FLAT CABLE 51P (BAX-TCON)
1-458-628-41 1-458-628-41 3D GLASSES (SINGLE KIT)
KDL60W850B 60" 2014 SONY TV JIG KDL60W850B
4-480-119-01 4-480-119-01 AC COVER
4-547-377-01 4-547-377-01 ATTACHMENT, WALL MOUNT
4-474-894-01 4-474-894-01 BACK COVER
AM4PTB2D AM4PTB2D BATTERY "AAA"
A-1998-282-A A-1998-282-A BAX BOARD COMPLETE
4-480-408-01 4-480-408-01 BOTTOM CASE
4-480-408-11 4-480-408-11 BOTTOM CASE (L) A
4-486-220-01 4-486-220-01 BRACKET SP (LEFT)
4-486-222-01 4-486-222-01 BRACKET SP (RIGHT)
4-488-271-01 4-488-271-01 BRACKET STAND IN
4-488-272-01 4-488-272-01 BRACKET STAND OUT (LEFT)

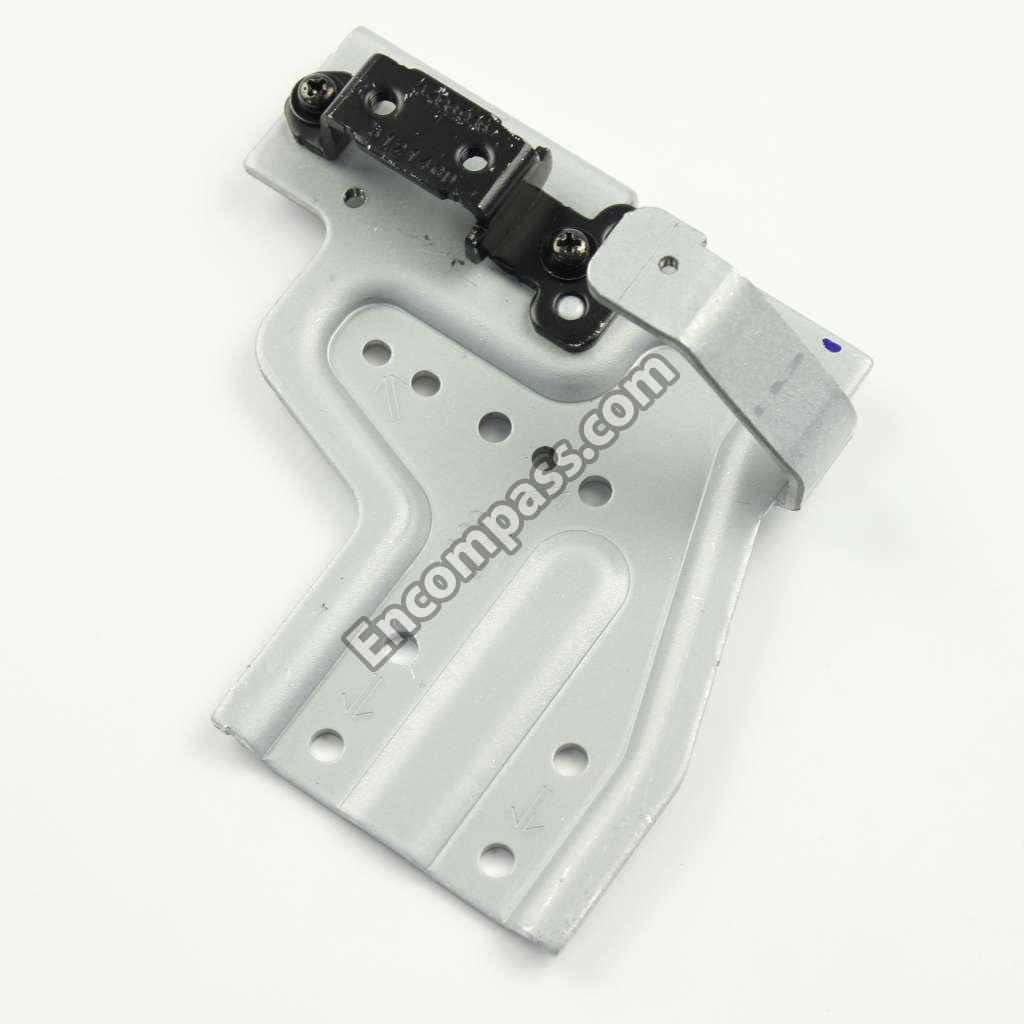

4-488-273-01 4-488-273-01 BRACKET STAND OUT (RIGHT)
4-480-399-01 4-480-399-01 BRACKET, REAR
4-480-397-01 4-480-397-01 BRACKET, SIDE
4-480-398-01 4-480-398-01 BRACKET, UNDER
4-484-098-01 4-484-098-01 BRACKET, VESA (L)
4-484-096-01 4-484-096-01 BRACKET, VESA (S)
1-492-760-12 1-492-760-12 BT MODULE
4-529-610-01 4-529-610-01 CARTON INDIVIDUAL (PKT 60)
4-460-760-01 4-460-760-01 CASE, BATTERY (3D GLASSES)
4-262-708-03 4-262-708-03 CLAMPER, CABLE
4-485-653-01 4-485-653-01 CLAMPER, CABLE (M)
1-910-804-26 1-910-804-26 CONNECTOR ASSEMBLY 14P (G2B-LD)
1-910-804-23 1-910-804-23 CONNECTOR ASSEMBLY 30P (BAX-SC-SU-SPKS)
4-532-660-01 4-532-660-01 COVER UNDER
4-529-483-02 4-529-483-02 FOOT STAND
4-489-835-02 4-489-835-02 FRAME B (60 PKT) A
4-474-893-01 4-474-893-01 FRONT COVER
1-474-565-11 1-474-565-11 G2B BOARD, COMPLETE
1-910-804-24 1-910-804-24 HARNESS ASSEMBLY (BAX-LD-G2B)
4-480-122-01 4-480-122-01 HOLDER, SIDE SW
A-1969-163-A A-1969-163-A HSC2 BOARD, MOUNTED
1-845-283-21 1-845-283-21 IR BLASTER

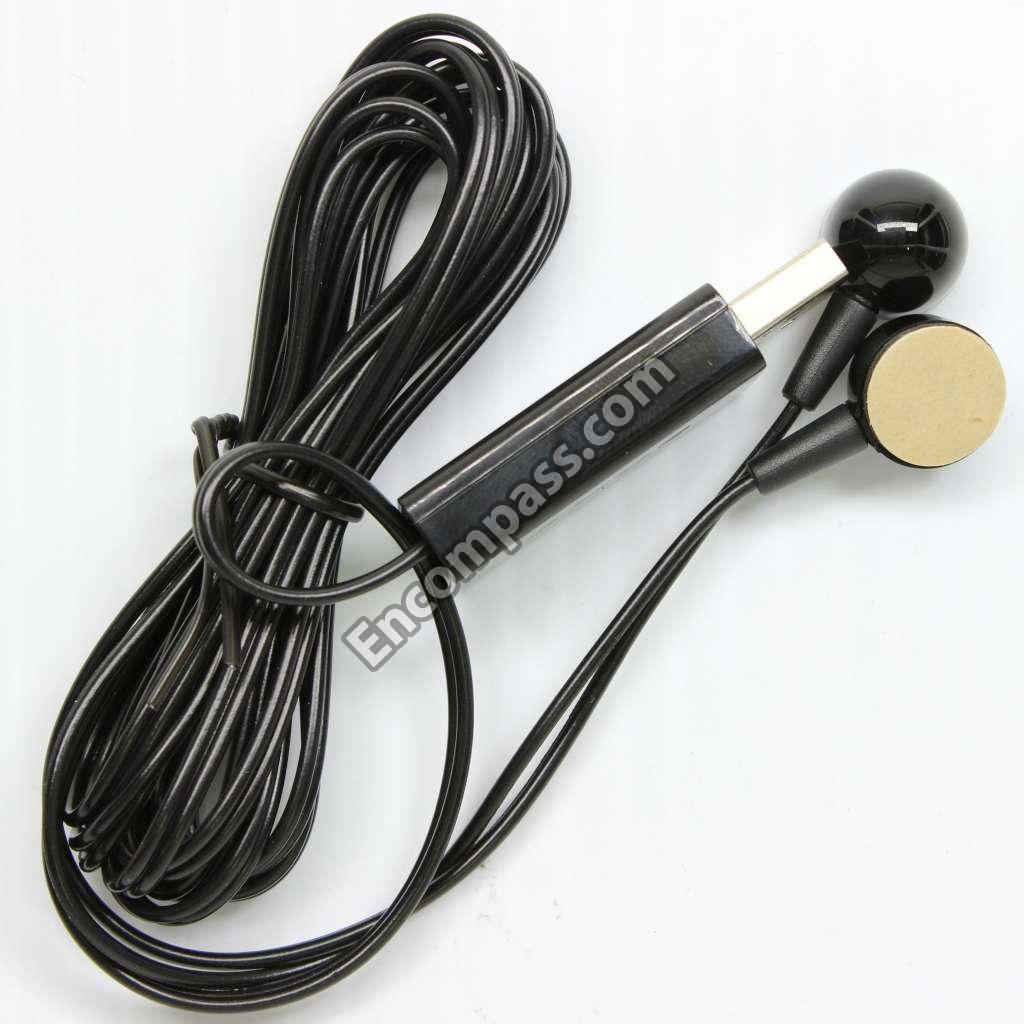

1-845-283-12 1-845-283-12 IR BLASTER
4-528-436-01 4-528-436-01 LABEL, REAR TERMINAL
4-484-998-01 4-484-998-01 LABEL, SIDE TERMINAL
4-484-999-51 4-484-999-51 LABEL, UNDER TERMINAL
4-489-959-11 4-489-959-11 MANUAL, INSTRUCTION
4-460-761-01 4-460-761-01 PAD, NOSE (3D GLASSES)
4-485-990-01 4-485-990-01 PANEL SIDE (LEFT)
4-485-991-01 4-485-991-01 PANEL SIDE (RIGHT)
4-485-987-01 4-485-987-01 PANEL, BKT L
4-485-986-01 4-485-986-01 PANEL, BKT M
4-485-981-01 4-485-981-01 REAR COVER (60)
1-492-766-11 1-492-766-11 REMOTE COMMANDER (RM-YD102)
2-580-639-01 2-580-639-01 SCREW +BVTP2 4X12
4-256-393-01 4-256-393-01 SCREW +PSW M3X6 W12
2-990-421-41 2-990-421-41 SCREW, (+PSW) (M3X6)
2-580-608-01 2-580-608-01 SCREW-STAND TO LCD TV- M5X16
4-479-954-11 4-479-954-11 SHEET, INSULATION (G2)
4-440-057-01 4-440-057-01 SHEET, THERMAL (AYU2)
1-859-005-11 1-859-005-11 SPEAKER BOX (LEFT)
1-859-005-21 1-859-005-21 SPEAKER BOX (RIGHT)
4-539-210-11 4-539-210-11 STAND LEFT (60)
4-539-211-11 4-539-211-11 STAND R (60 PKT) A
4-443-737-02 4-443-737-02 SUPPORT BELT KIT
1-798-510-11 1-798-510-11 SWITCH UNIT
4-480-410-01 4-480-410-01 TOP COVER
1-492-758-12 1-492-758-12 TOUCHPAD REMOTE CONTROL (RMF-YD003)
1-458-865-11 1-458-865-11 WIRELESS LAN CARD
