Model Image
Manufacturer

Sony

Model Number

KDL65S990A

Description

Sony S990 Curved Led Hdtv

Interactive Exploded View

Parts List

Part Number Description
1-846-861-11 1-846-861-11 (LVDS) FLEXIBLE FLAT CABLE 51P
4-297-989-01 4-297-989-01 AC COVER
AM4PTB2D AM4PTB2D BATTERY "AAA"
4-464-800-01 4-464-800-01 BEZEL BOTTOM
4-464-799-01 4-464-799-01 BEZEL TOP
1-492-062-11 1-492-062-11 BLUETOOTH MODULE
4-460-567-91 4-460-567-91 BRACKET SIDE
4-464-816-01 4-464-816-01 BRACKET STAND (65 SNT) L
4-464-815-01 4-464-815-01 BRACKET STAND (65 SNT) R
4-464-813-01 4-464-813-01 BRACKET, BT
4-464-811-01 4-464-811-01 BRACKET, IR
4-464-814-01 4-464-814-01 BRACKET, LED
4-439-633-01 4-439-633-01 BRACKET, UNDER
4-464-812-01 4-464-812-01 BRACKET, WF
1-910-108-67 1-910-108-67 CONNECTOR ASSEMBLY 10P (BA2SC-K)
1-910-108-64 1-910-108-64 CONNECTOR ASSEMBLY 28P (BA2SC-G6)
1-846-714-11 1-846-714-11 CONNECTOR ASSEMBLY 3P (G6-G7B)
4-414-305-01 4-414-305-01 CUSHION
4-487-577-01 4-487-577-01 CUSHION SUPPORT(65 SNT)
1-910-108-68 1-910-108-68 FLEXIBLE FLAT CABLE 32P (BA2SC-LD)

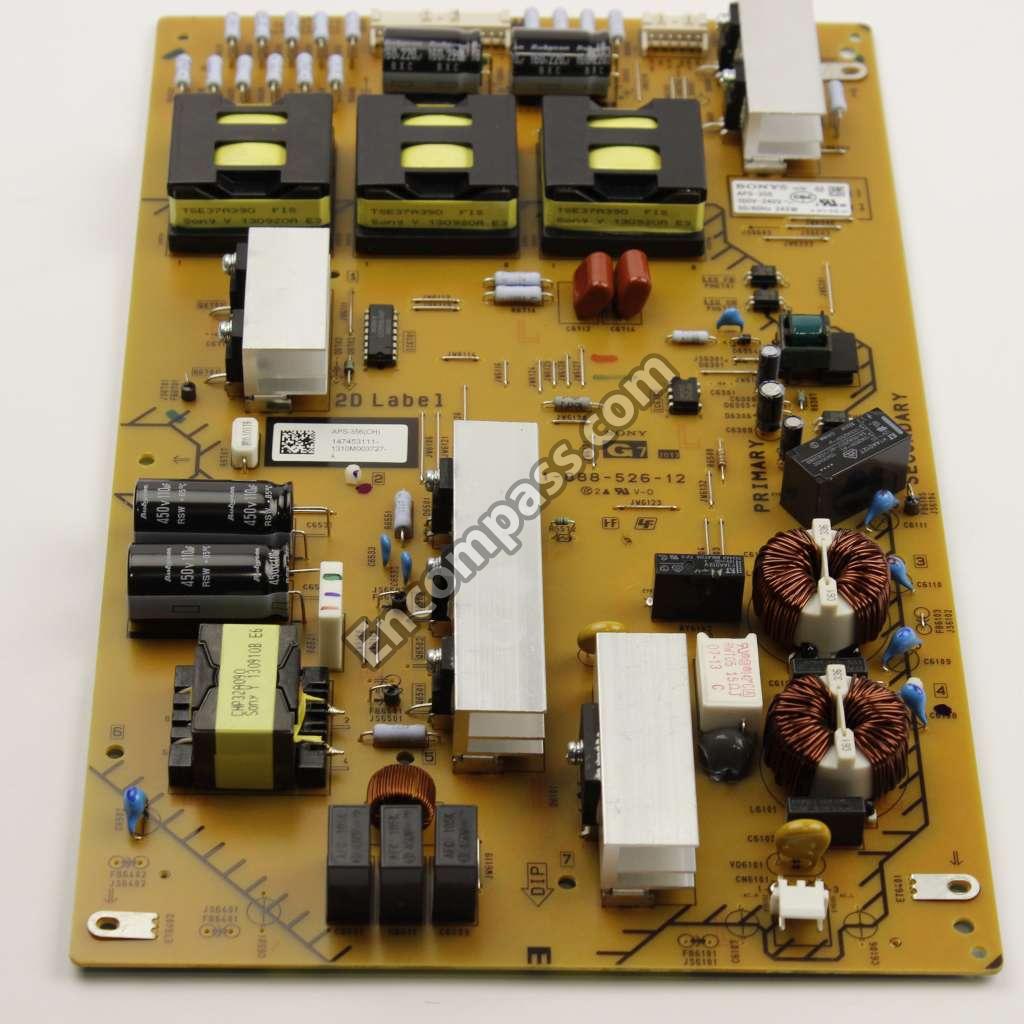

1-474-516-11 1-474-516-11 G6 POWER SUPPLY BOARD

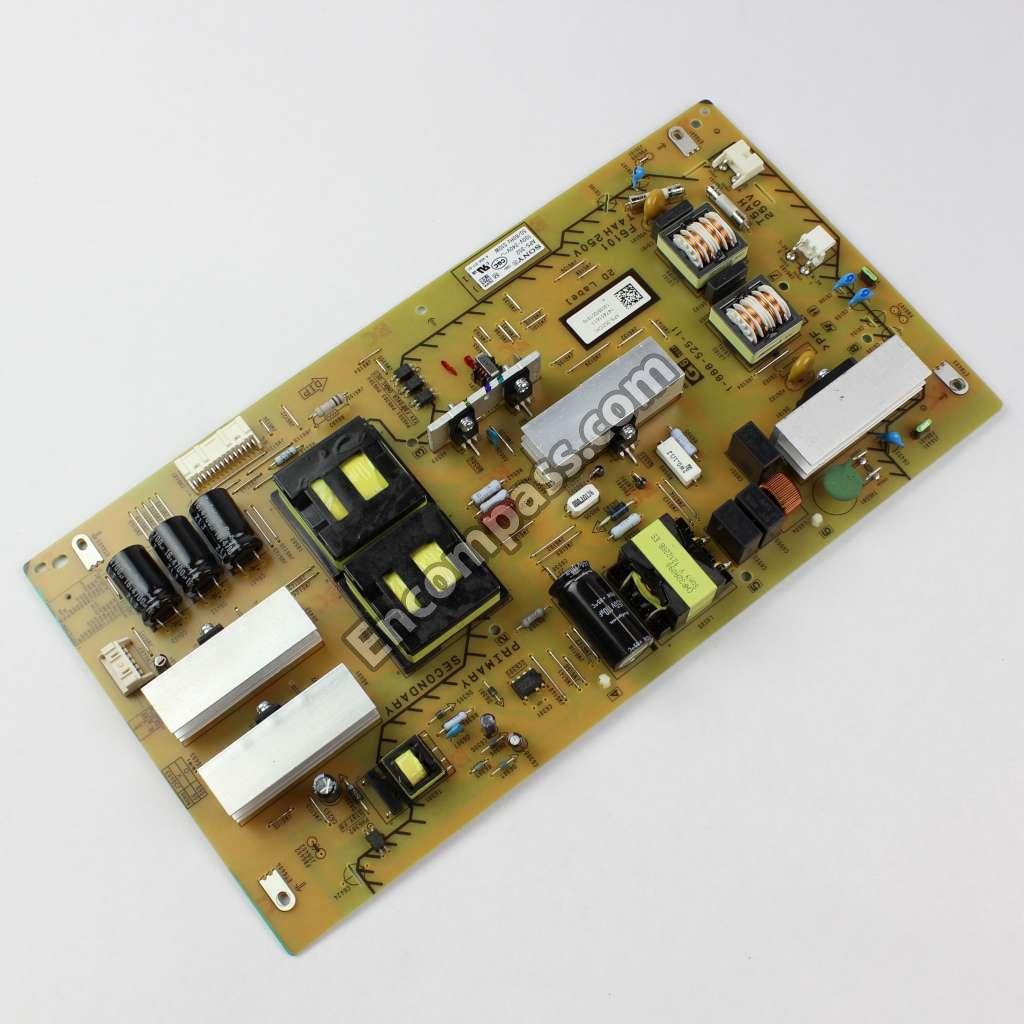

1-474-531-11 1-474-531-11 G7B POWER SUPPLY BOARD
1-910-108-66 1-910-108-66 HARNESS ASSEMBLY (G6/G7-LD)
1-910-108-65 1-910-108-65 HARNESS ASSEMBLY (MAIN)
A-1906-619-A A-1906-619-A HIR BOARD, MOUNTED
A-1937-462-A A-1937-462-A HSC-CM-BT BOARD, MOUNTED
A-1936-362-A A-1936-362-A HW BOARD, MOUNTED

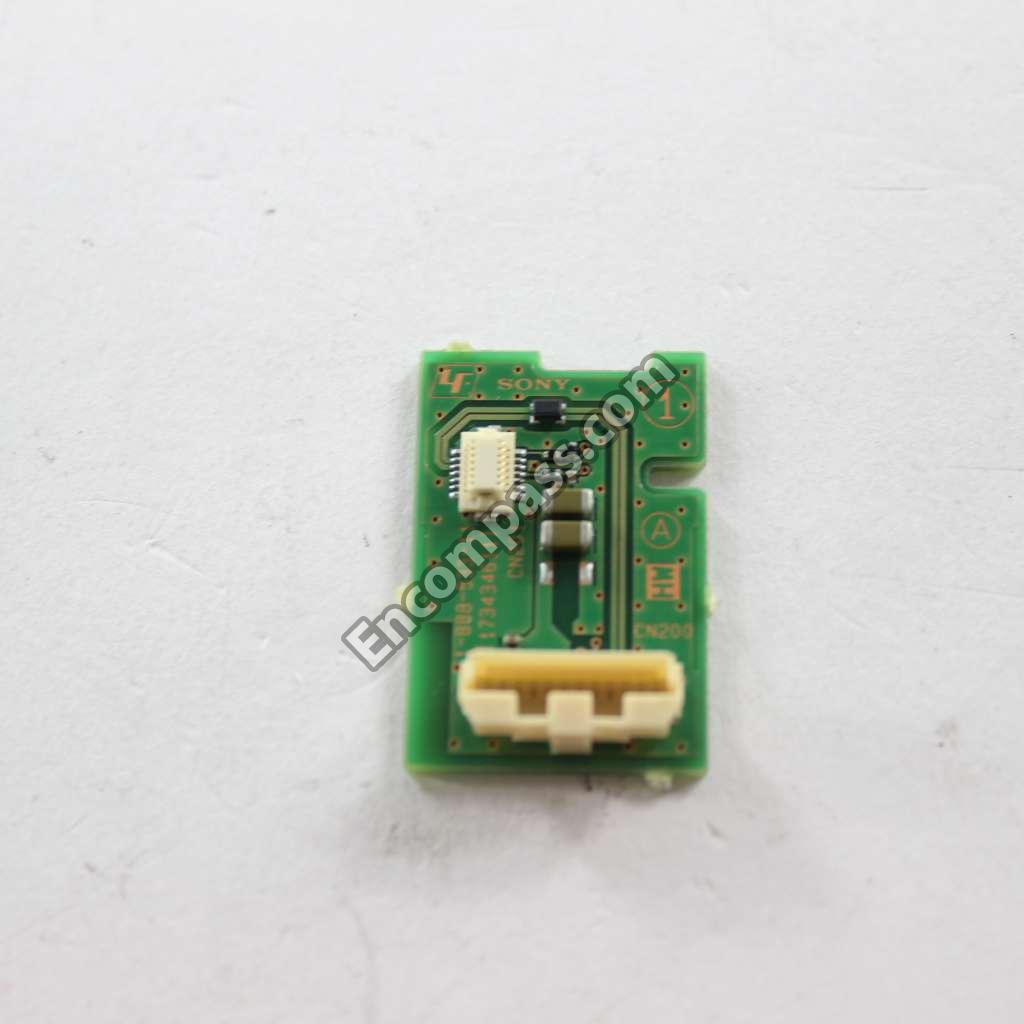

A-1963-527-A A-1963-527-A K BOARD
4-449-086-41 4-449-086-41 LABEL, UNDER TERMINAL

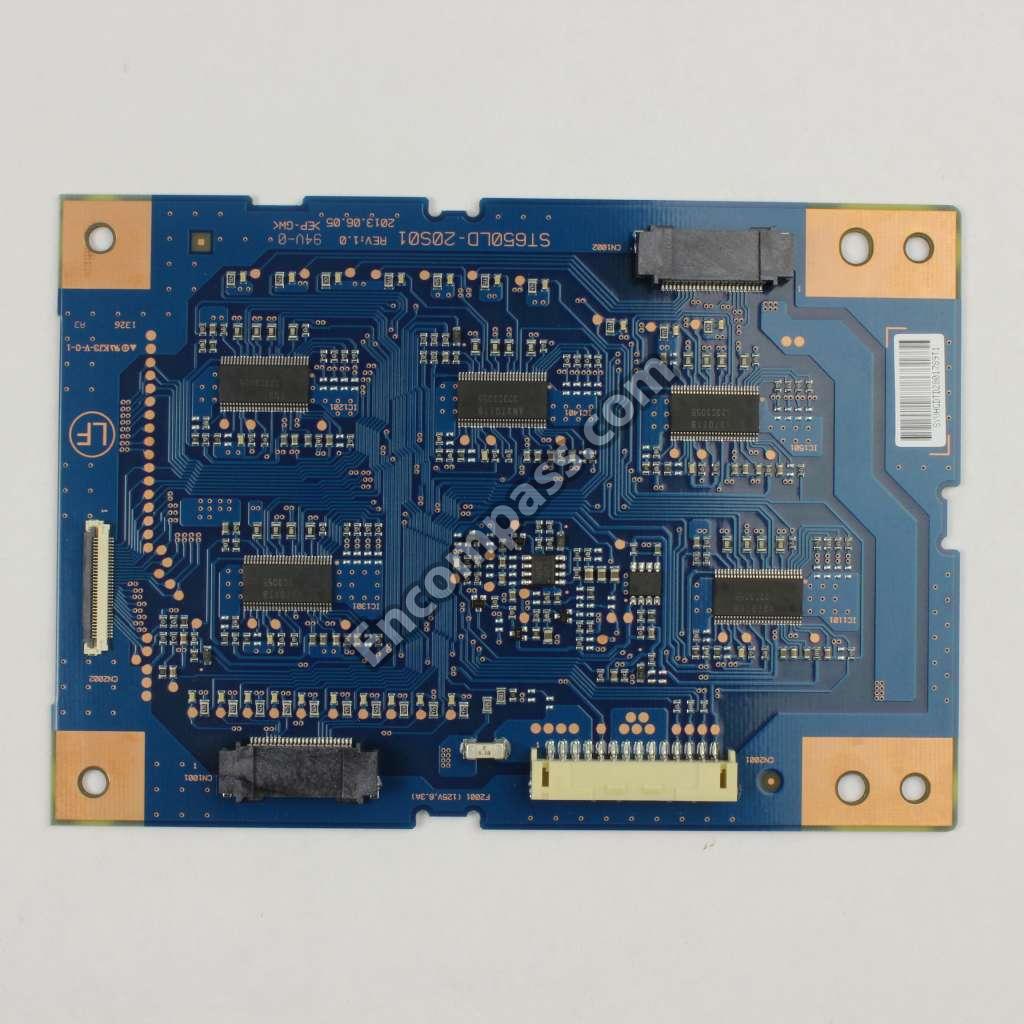

1-895-465-11 1-895-465-11 LD POWER BOARD
4-487-578-01 4-487-578-01 PANEL CUSHION(65 SNT)
X-2588-944-1 X-2588-944-1 PASSIVE 3D GLASSES
1-839-679-11 1-839-679-11 POWER SUPPLY CORD
4-466-300-01 4-466-300-01 RC ORNAMENT LEFT
4-466-299-01 4-466-299-01 RC ORNAMENT RIGHT
4-464-778-01 4-464-778-01 REAR COVER
4-159-298-01 4-159-298-01 SCREW PSW M4X10
2-990-421-41 2-990-421-41 SCREW, (+PSW) (M3X6)
4-465-752-01 4-465-752-01 SHEET, INSULATION; ORDER THIS PART WHEN REPLACING THE LCD PANEL.
4-467-707-01 4-467-707-01 SHEET, RADIATION; NEEDED WHEN REPLACING THE LCD PANEL.
4-440-057-01 4-440-057-01 SHEET, THERMAL
2-650-770-31 2-650-770-31 SLIDE CLAMP
4-464-810-01 4-464-810-01 SP CABINET LEFT
4-464-802-01 4-464-802-01 SP CABINET RIGHT
4-467-708-01 4-467-708-01 SPACER
1-858-930-11 1-858-930-11 SPEAKER BOX ASSY(MAIN LCH)
1-858-930-21 1-858-930-21 SPEAKER BOX ASSY(MAIN RCH)
1-858-931-11 1-858-931-11 SPEAKER BOX ASSY(SUB LCH)
1-858-931-21 1-858-931-21 SPEAKER BOX ASSY(SUB RCH)
4-464-843-01 4-464-843-01 STAND BASE LEFT
4-464-837-01 4-464-837-01 STAND BASE RIGHT
4-464-845-01 4-464-845-01 STAND NECK LEFT
4-464-841-01 4-464-841-01 STAND NECK RIGHT
2-580-608-01 2-580-608-01 STAND SCREW

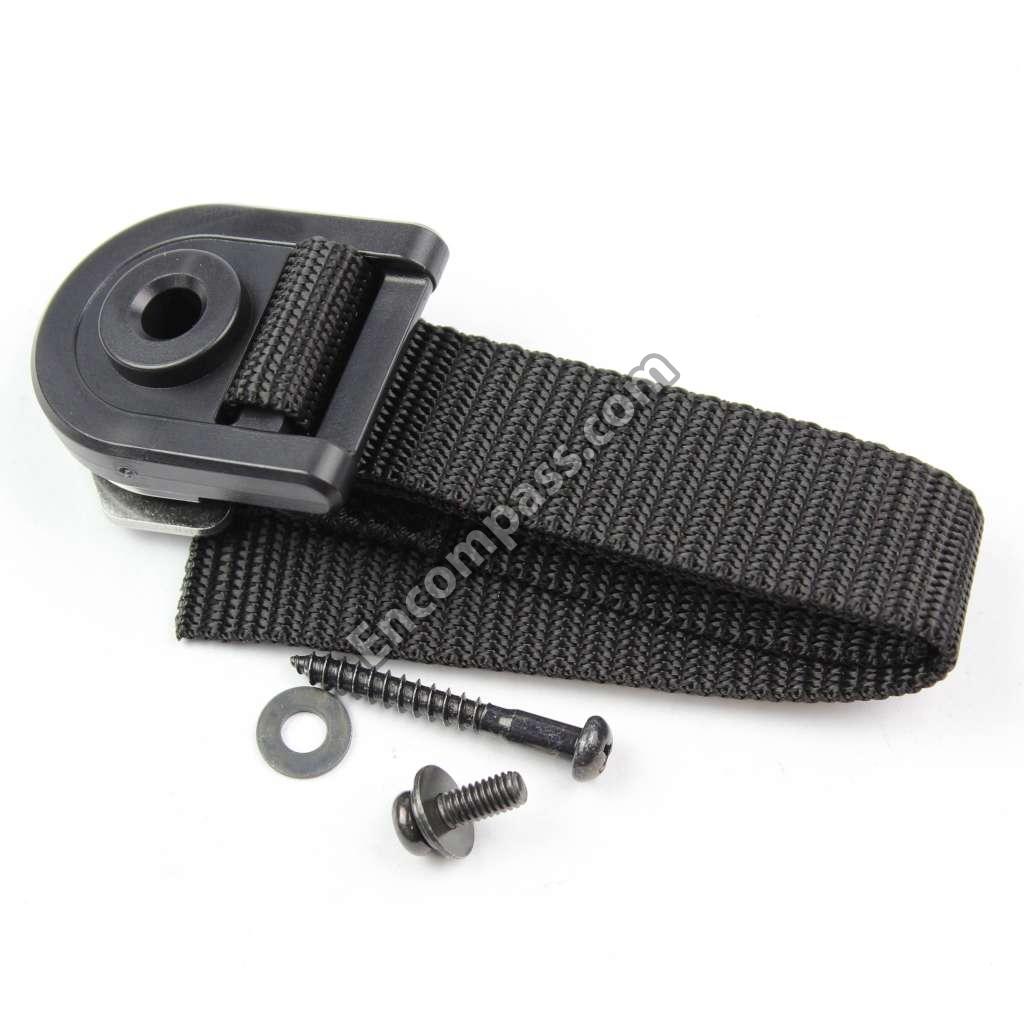

4-443-737-02 4-443-737-02 SUPPORT BELT KIT

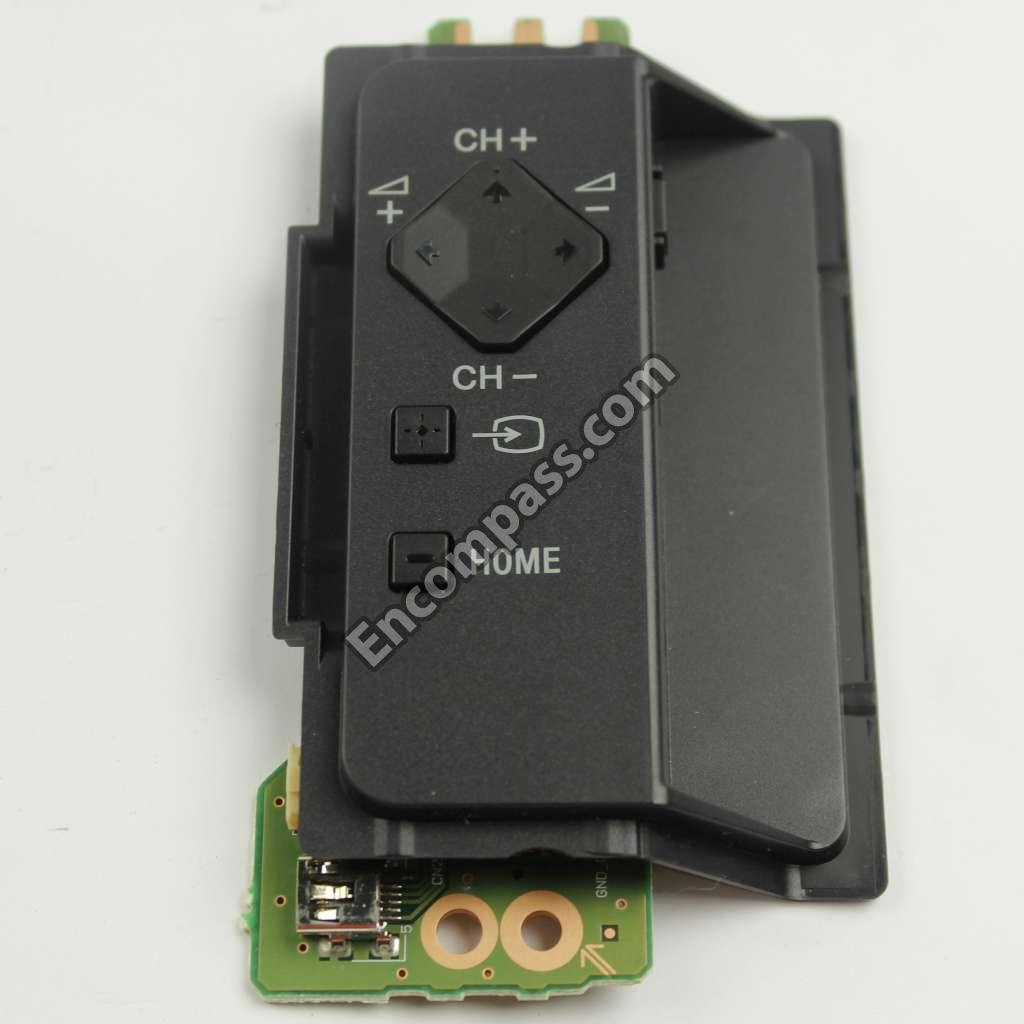

1-492-110-11 1-492-110-11 SWITCH UNIT
A-1906-605-B A-1906-605-B WIFI BOARD
1-492-076-11 1-492-076-11 WLAN MODULE
