Model Image
Manufacturer

Sony

Model Number

KDL70R520A

Description

70" Class (69.5" Diag.) Sony R520a Series Internet

Interactive Exploded View

Parts List

Part Number Description
1-910-108-41 1-910-108-41 (LVDS) FFC CABLE 70 MB-TCON 51P

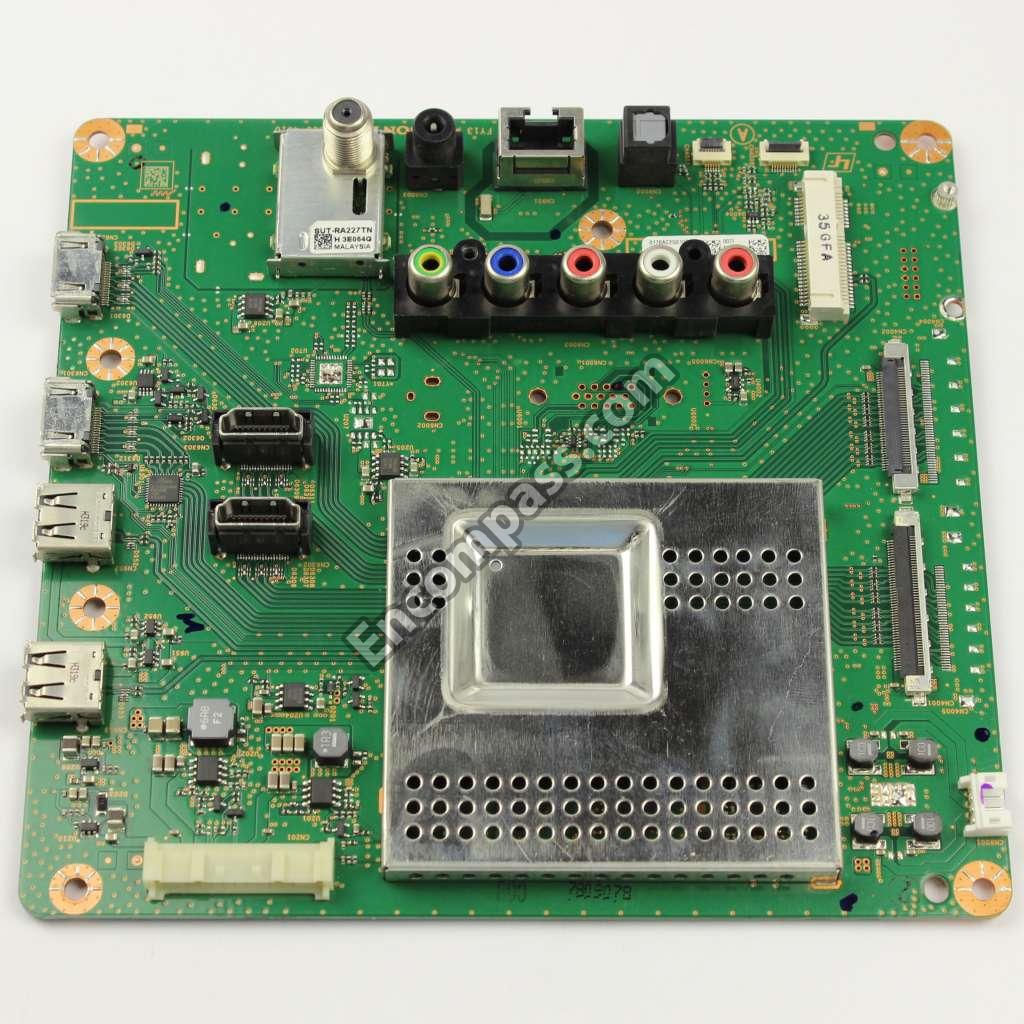

1-895-402-51 1-895-402-51 A BOARD
AM4PTB2D AM4PTB2D BATTERY "AAA"
4-451-601-01 4-451-601-01 BRACKET, VESA
1-846-734-51 1-846-734-51 CABLE, ANTENNA B
1-846-734-61 1-846-734-61 CABLE, ANTENNA W
1-910-108-38 1-910-108-38 CONNECTOR ASSEMBLY 70 MB-PSU 14P
1-910-108-39 1-910-108-39 CONNECTOR ASSEMBLY 70 MB-SP LR 4P
4-451-600-01 4-451-600-01 COVER, AC
1-910-108-42 1-910-108-42 FFC CABLE 70 MB-IR 10P
1-910-108-43 1-910-108-43 FFC CABLE 70 MB-KEY 6P
4-451-604-01 4-451-604-01 FRAME, BOTTOM (LEFT)
4-451-605-01 4-451-605-01 FRAME, BOTTOM (RIGHT)
1-895-407-11 1-895-407-11 GE BOARD
1-895-408-11 1-895-408-11 H BOARD
1-858-890-11 1-858-890-11 LOUD SPEAKER (LEFT)
1-858-890-21 1-858-890-21 LOUD SPEAKER (RIGHT)
1-846-741-51 1-846-741-51 POWER CORD
1-492-504-11 1-492-504-11 REMOTE CONTROL
2-580-639-01 2-580-639-01 SCREW +BVTP2 4X12
7-682-647-09 7-682-647-09 SCREW +PSW 3X6
4-468-027-01 4-468-027-01 SPACER (H9.0)
4-446-626-01 4-446-626-01 STAND NECK (LEFT)
4-446-627-01 4-446-627-01 STAND NECK (RIGHT)
2-580-602-01 2-580-602-01 STAND NECK SCREW (QTY 2 NEEDED PER NECK)
2-580-608-01 2-580-608-01 STAND SCREW M5X16 (QTY 4 NEEDED FOR STAND)
4-446-639-01 4-446-639-01 STAND SHAFT
4-423-541-01 4-423-541-01 SUPPORT BELT KIT
1-492-329-11 1-492-329-11 SWITCH UNIT
1-895-409-11 1-895-409-11 WF BOARD
