Model Image
Manufacturer

Sony

Model Number

KDL70R550A

Description

70" Class (69.5" Diag.) Sony Led R550a Internet Tv

Interactive Exploded View

Parts List

Part Number Description
1-910-108-41 1-910-108-41 51 PIN LVDS CABLE
KDL70R550A 70" 2013 SONY TV JIG KDL70R550A
1-895-402-31 1-895-402-31 A BOARD - MAIN BOARD SERIAL 6000001-6600000
4-451-600-01 4-451-600-01 AC COVER
AM4PTB2D AM4PTB2D BATTERY "AAA"
4-451-601-01 4-451-601-01 BRACKET, VESA
1-846-734-51 1-846-734-51 CABLE, ANTENNA B
1-846-734-61 1-846-734-61 CABLE, ANTENNA W
4-450-793-01 4-450-793-01 CARTON INDIVIDUAL(FUG 70)
4-465-140-01 4-465-140-01 CARTON TRAY(FUG 70)

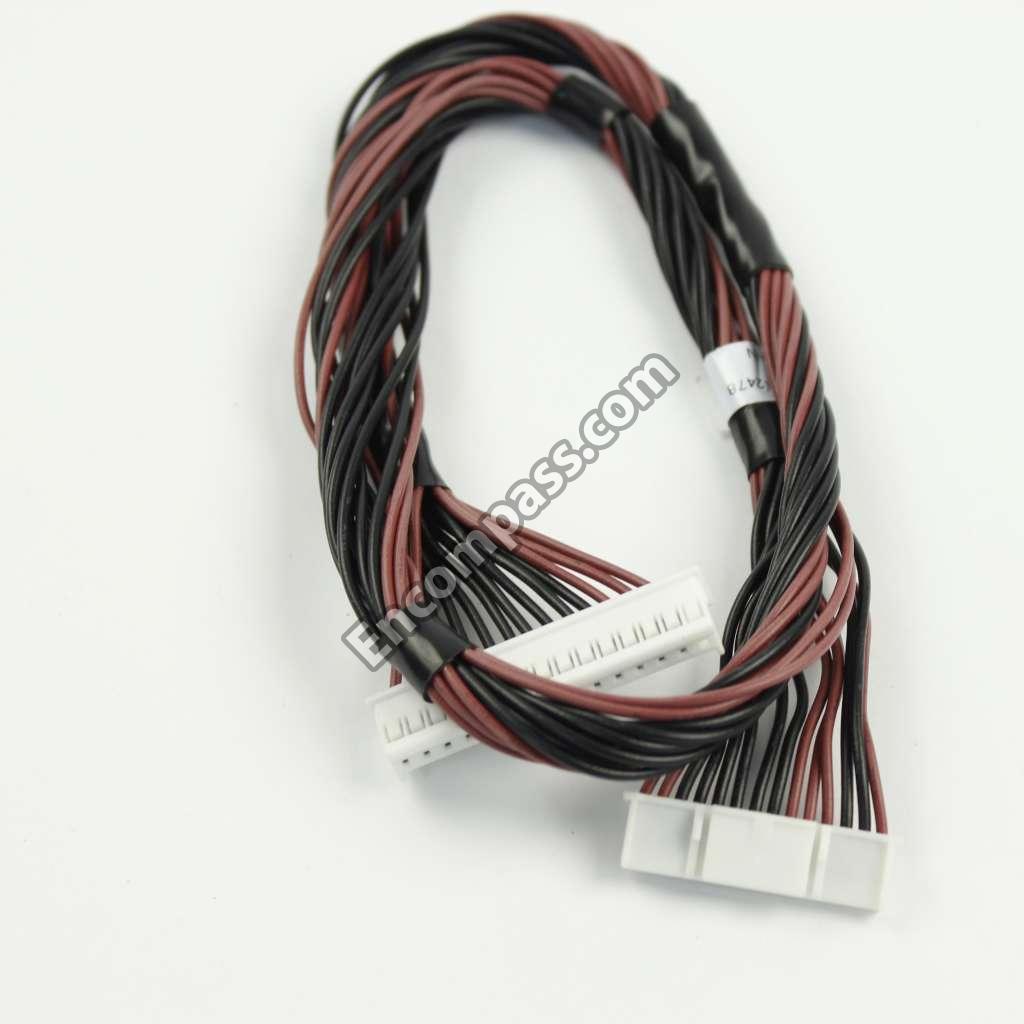

1-910-108-38 1-910-108-38 CONNECTOR ASSEMBLY 70 MB-PSU 14P
1-910-108-39 1-910-108-39 CONNECTOR ASSEMBLY 70 MB-SP LR 4P
4-464-834-01 4-464-834-01 CUSHION LOWER(FUG 70)
4-464-974-01 4-464-974-01 CUSHION SIDE L(FUG 70)
4-464-835-01 4-464-835-01 CUSHION UPPER(FUG 70)

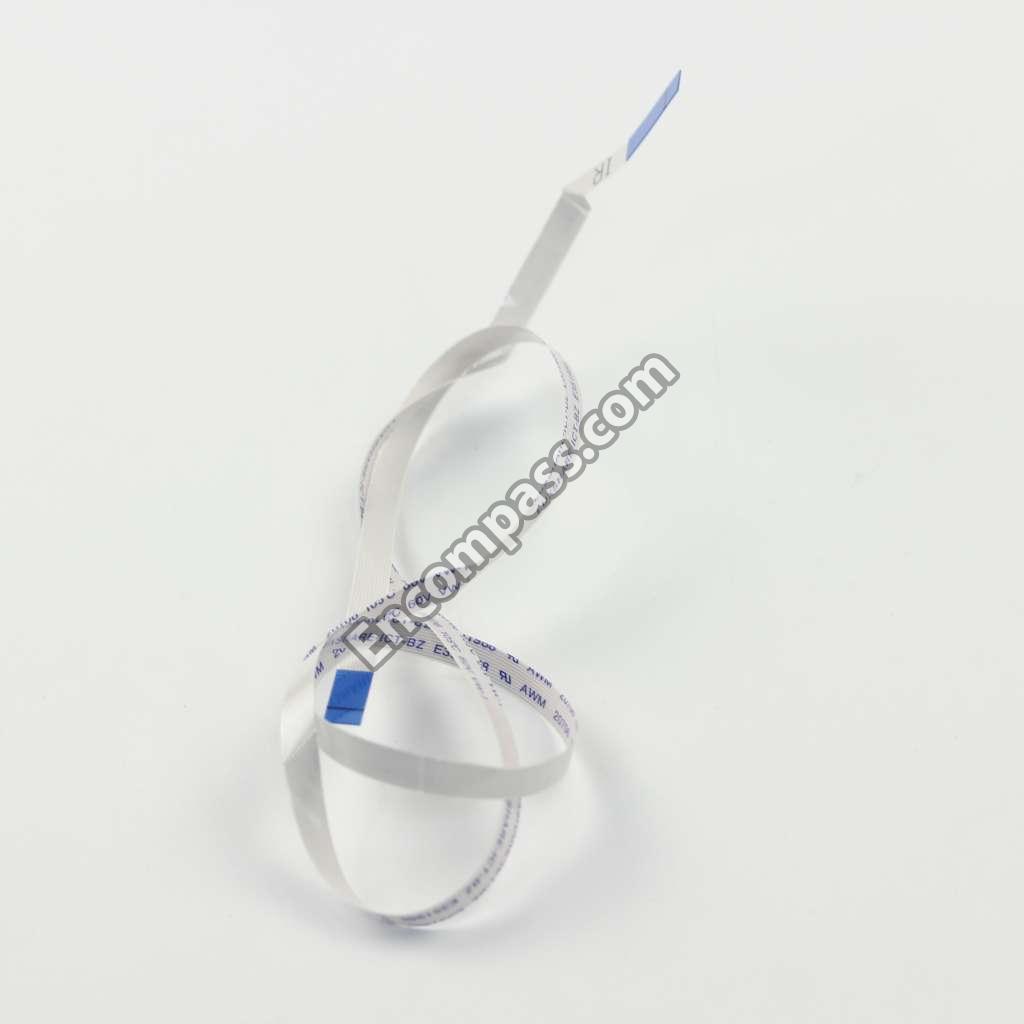

1-910-108-42 1-910-108-42 FFC CABLE 70 MB-IR 10P
1-910-108-43 1-910-108-43 FFC CABLE 70 MB-KEY 6P

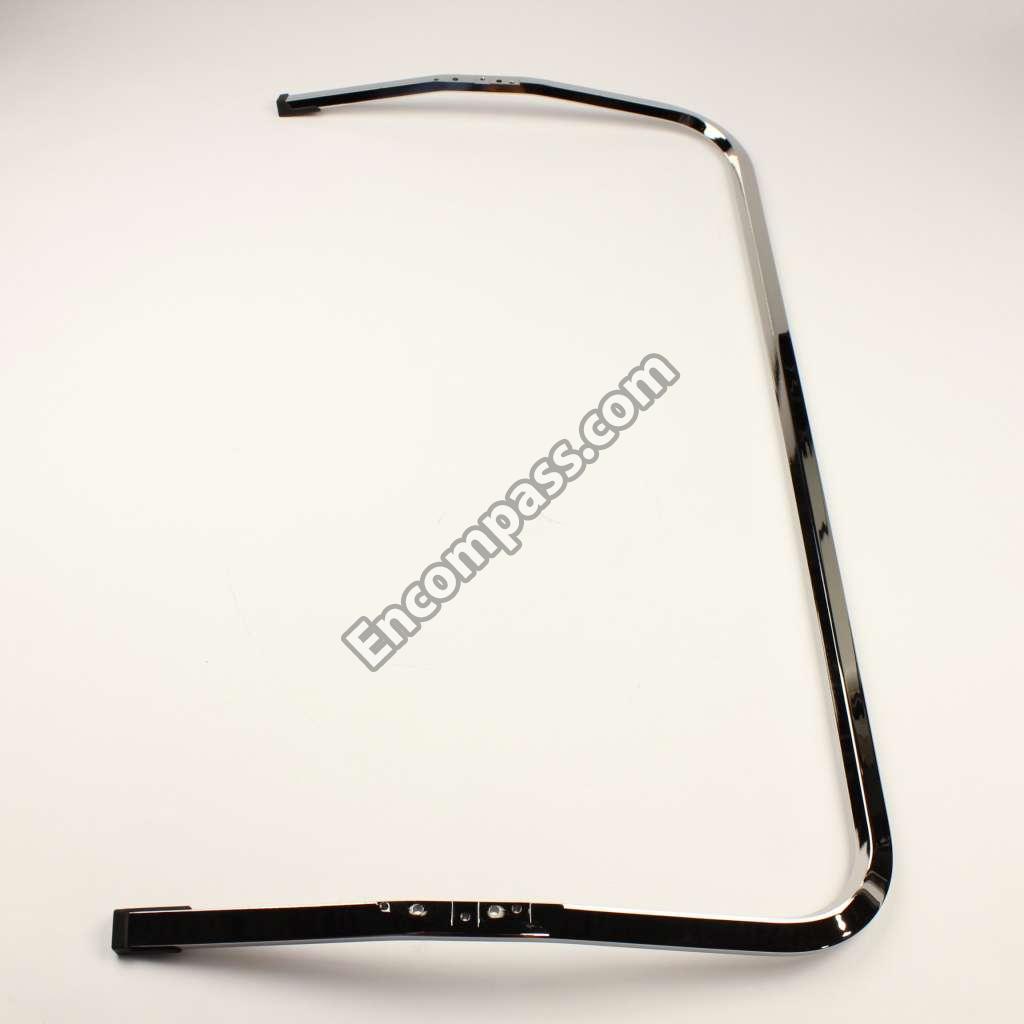

4-451-604-01 4-451-604-01 FRAME, BOTTOM LEFT
4-451-605-01 4-451-605-01 FRAME, BOTTOM RIGHT
4-464-831-01 4-464-831-01 FRONT CABINET
1-895-407-11 1-895-407-11 GE70 BOARD ( POWER SUPPLY PCB )
4-460-668-21 4-460-668-21 GUIDE, QUICK SET UP (FRENCH VERSION)
4-460-668-31 4-460-668-31 GUIDE, QUICK SET UP (SPANISH VERSION)
1-895-408-11 1-895-408-11 H BOARD PCB ( IR / FUNCTION)
1-492-329-11 1-492-329-11 KEYBOARD PCB
4-460-662-21 4-460-662-21 MANUAL, INSTRUCTION (FRENCH VERSION)

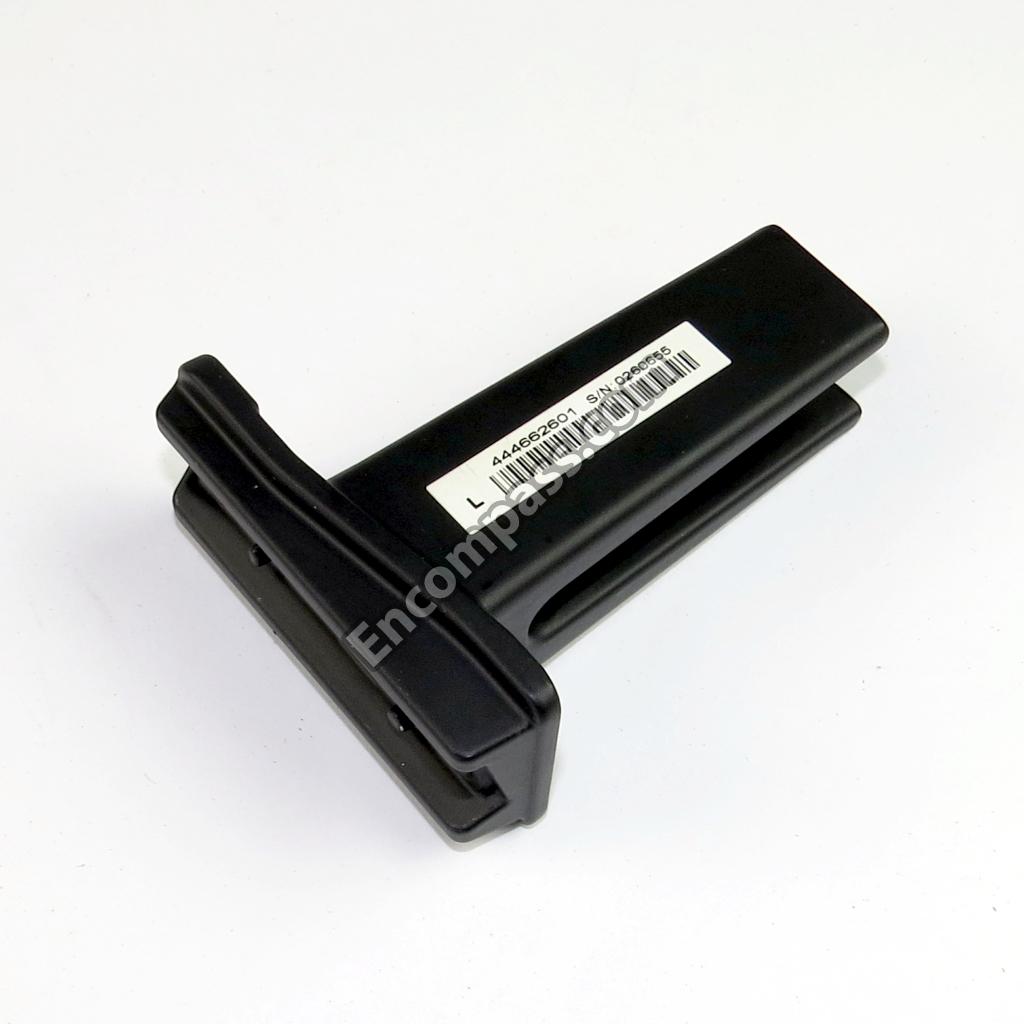

4-446-626-01 4-446-626-01 NECK LEFT
4-446-627-01 4-446-627-01 NECK RIGHT
X-2588-944-1 X-2588-944-1 PASSIVE 3D GLASSES
1-846-741-51 1-846-741-51 POWER CORD
4-464-832-01 4-464-832-01 REAR COVER
PREFL3517TPZZ PREFL3517TPZZ REFLECTION SHEET

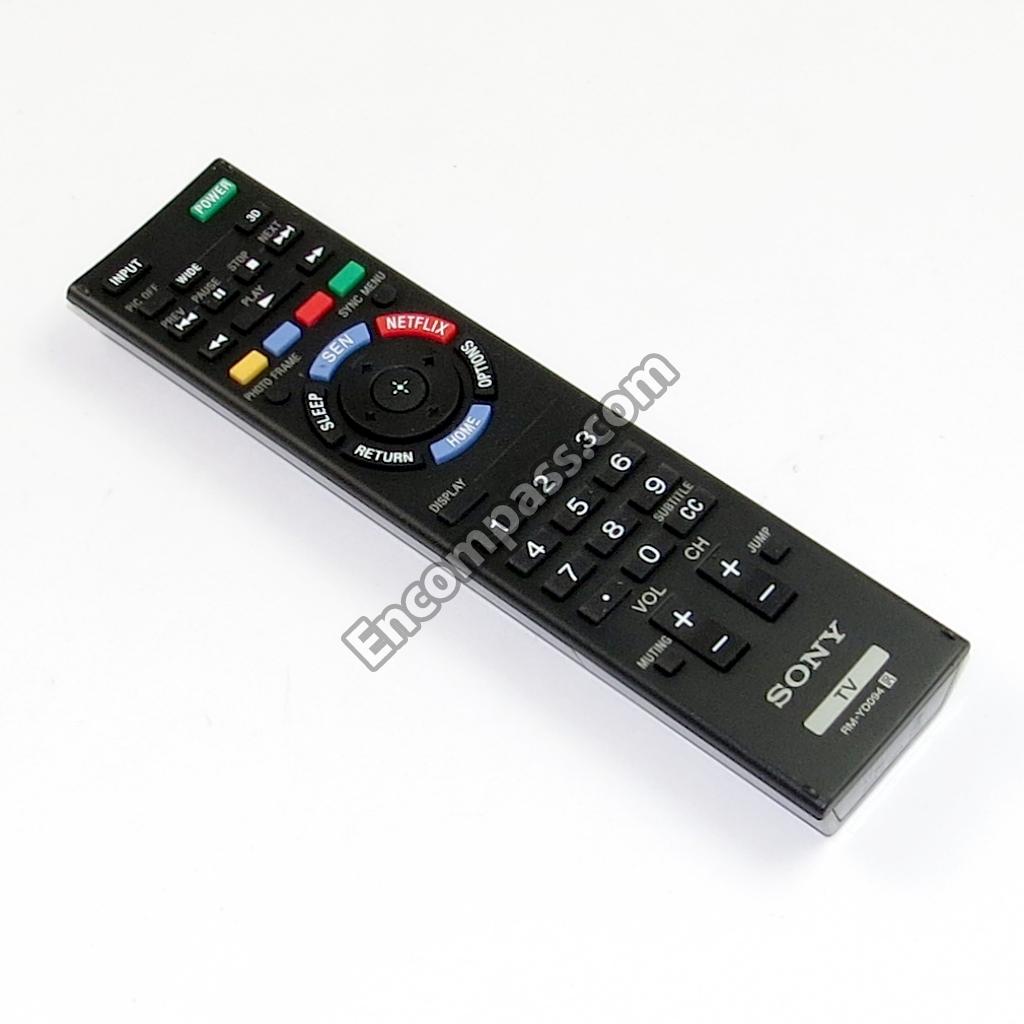

1-492-072-11 1-492-072-11 REMOTE RM-YD094
2-580-639-01 2-580-639-01 SCREW +BVTP2 4X12
7-682-647-09 7-682-647-09 SCREW +PSW 3X6
4-468-027-01 4-468-027-01 SPACER (H8.5)
1-858-890-11 1-858-890-11 SPEAKER (LEFT)
1-858-890-21 1-858-890-21 SPEAKER (RIGHT)
4-446-639-01 4-446-639-01 STAND BASE
2-580-608-01 2-580-608-01 STAND SCREW
4-423-541-01 4-423-541-01 SUPPORT BELT KIT
1-895-409-11 1-895-409-11 WF BOARD
