Manufacturer

Sony

Model Number

KV36FV15

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

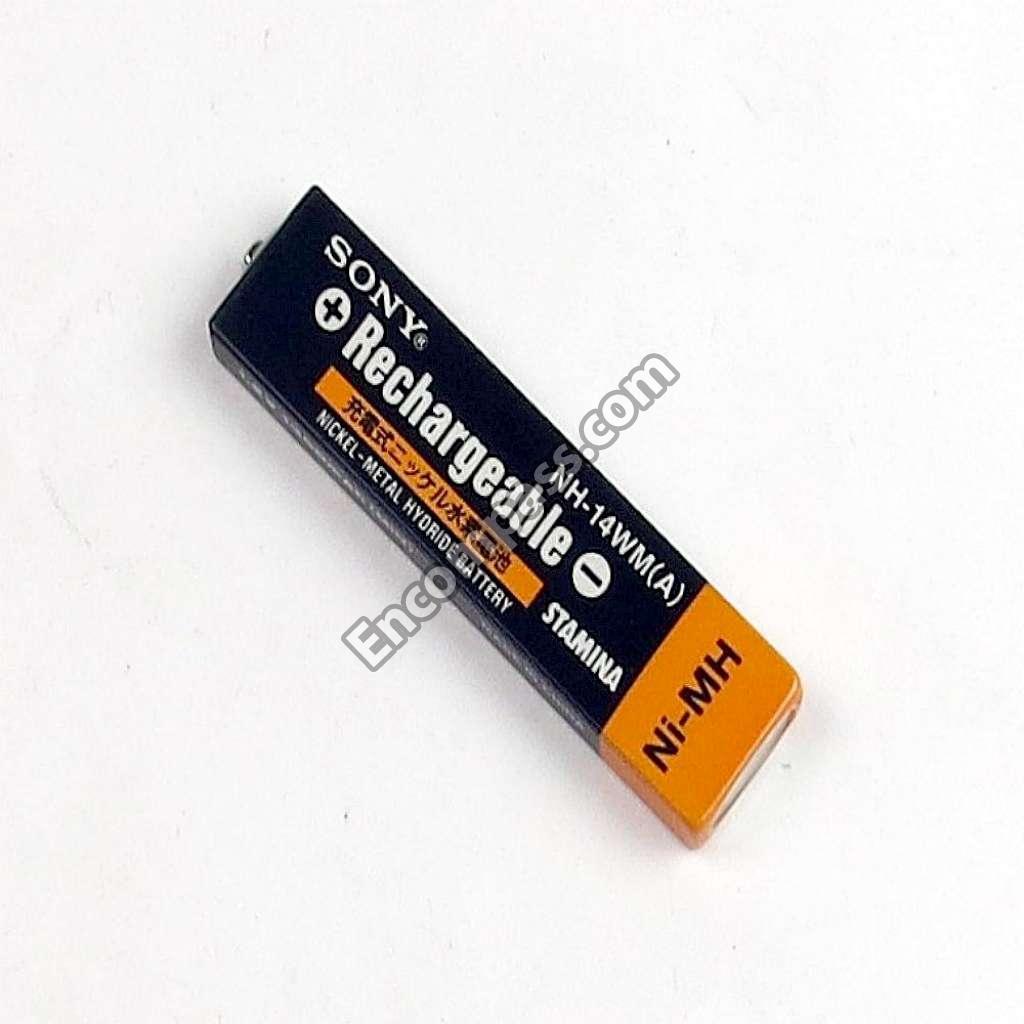

1-756-194-61 1-756-194-61 BATTERY
1-162-116-00 1-162-116-00 C507 C509
1-117-652-11 1-117-652-11 C511
1-130-118-00 1-130-118-00 C513
1-136-176-00 1-136-176-00 C610 C609
1-131-696-11 1-131-696-11 C611
8-719-062-40 8-719-062-40 DIODE D4SBL20UF3
8-759-696-71 8-759-696-71 IC561
8-759-394-35 8-759-394-35 IC650
8-759-450-47 8-759-450-47 IC651
8-729-140-50 8-729-140-50 Q501 - 2SC3209LK
8-729-422-33 8-729-422-33 Q503 - 2SD601A-Q
8-729-809-29 8-729-809-29 Q512
1-216-047-00 1-216-047-00 R1322
1-216-025-91 1-216-025-91 R1397
1-249-405-11 1-249-405-11 R1753
1-424-584-11 1-424-584-11 T504
1-809-539-11 1-809-539-11 THP601
