Model Image
Manufacturer

Sony

Model Number

LSPXP1

Description

Portable Ultra Short Throw Projector

Interactive Exploded View

Parts List

Part Number Description
1-971-069-11 1-971-069-11 10P WIFI CABLE (US)
1-492-525-34 1-492-525-34 AC ADAPTER (VGP-AC19V77) 2PIN (US)

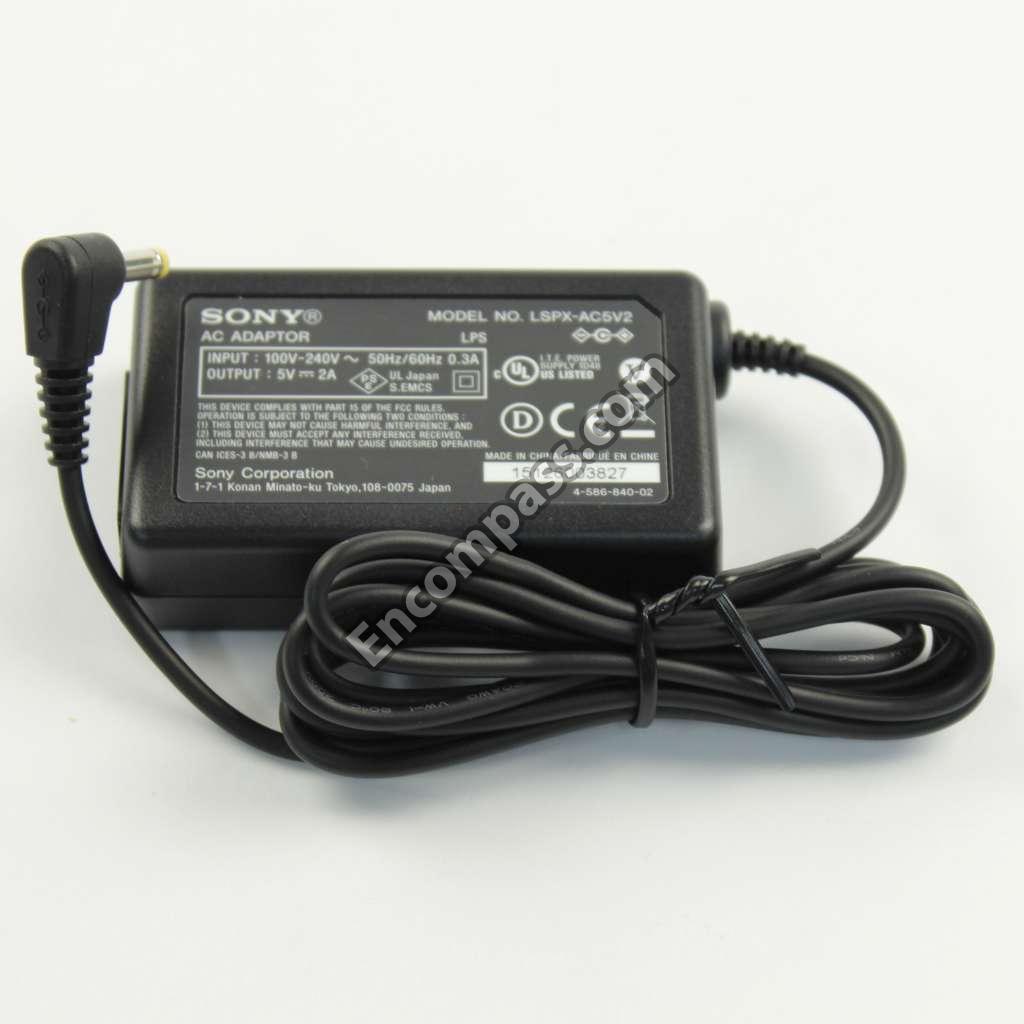

1-493-152-21 1-493-152-21 ADAPTOR, AC (US)
4-581-898-01 4-581-898-01 BACK FOCUS COVER (P001) (US)
4-581-897-01 4-581-897-01 BACK FOCUS PLATE (P001) (US)
4-589-919-01 4-589-919-01 BAG (RG) (US)
A-2090-726-A A-2090-726-A BLE COMPL (US)
A-2090-694-A A-2090-694-A BLOCK ASSY,HELP GUIDE (US)
4-300-106-11 4-300-106-11 BTITE (1.4 (CH)) (US)
A-2090-730-A A-2090-730-A BTM COMPL (US)
1-458-903-11 1-458-903-11 CARD, WIRELESS LAN (US)
A-2090-807-A A-2090-807-A CHASSIS ASSY, LD (US)
A-2090-806-A A-2090-806-A CHASSIS ASSY, MAIN (US)

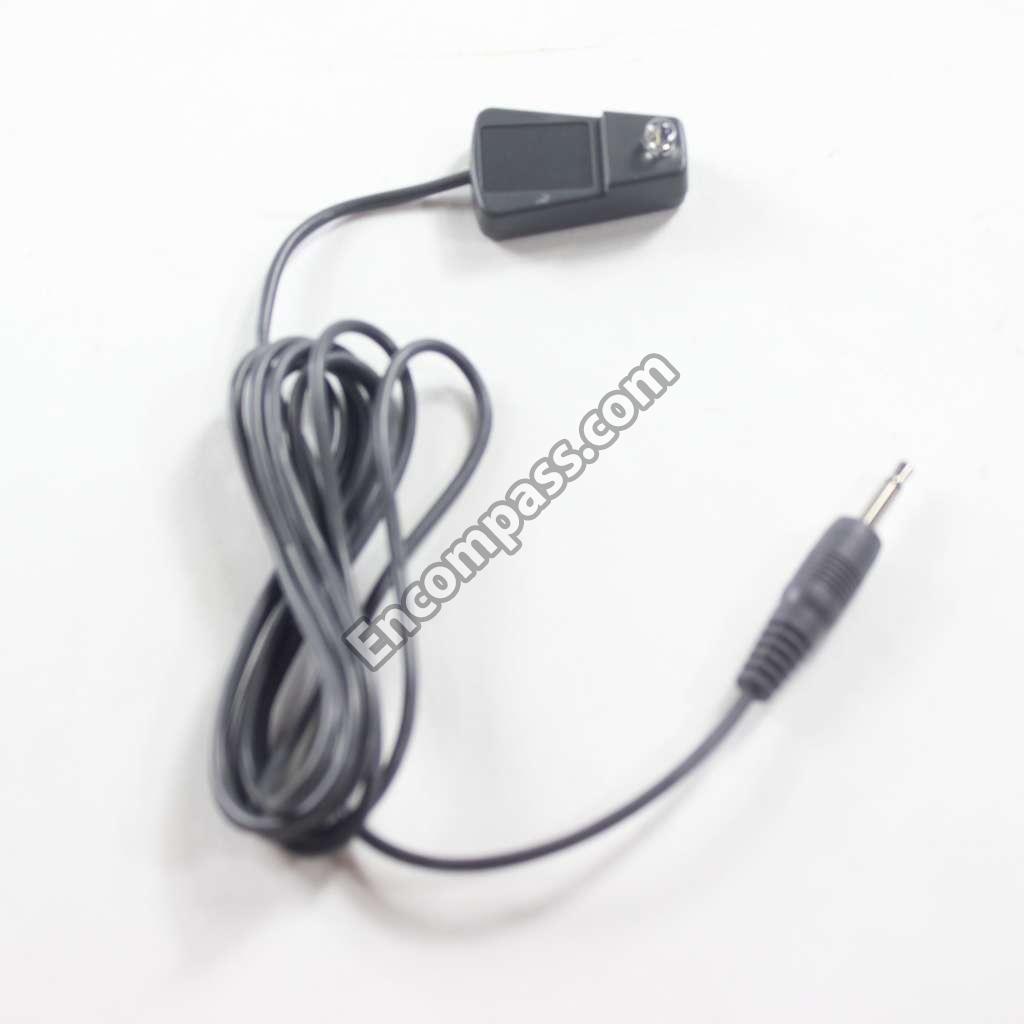

1-759-586-62 1-759-586-62 CONTROLLER, VIDEO (AV MOUSE) (US)
1-846-425-33 1-846-425-33 CORD SET, POWER-SUPPLY (US)
4-577-644-01 4-577-644-01 COVER, IR (US)
4-577-636-01 4-577-636-01 COVER, WINDOW (US)
4-590-037-01 4-590-037-01 CUSHION (A4 025) (US)
4-590-038-01 4-590-038-01 CUSHION (A4 035) (US)
4-577-659-01 4-577-659-01 CUSHION A, MESH (US)
4-577-660-01 4-577-660-01 CUSHION B, MESH (US)
4-590-036-01 4-590-036-01 CUSHION, DUCT (UPPER) (US)
4-589-857-01 4-589-857-01 CUSHION, MAGNET (US)
4-590-035-01 4-590-035-01 CUSHION, MESH FRAME (R) (US)
1-855-414-11 1-855-414-11 DC FAN (US)
1-971-068-11 1-971-068-11 DC JACK WITH WIRE (US)
A-2090-732-A A-2090-732-A DC MOUNT (US)
4-581-151-01 4-581-151-01 F NUT (P001) (US)
4-581-901-01 4-581-901-01 FET THERMAL SHEET (P001) (US)
4-587-071-01 4-587-071-01 FILM (QSG) (US)
4-577-647-01 4-577-647-01 FIX BUSH (US)
4-577-658-01 4-577-658-01 FOOT (US)
A-2091-290-A A-2091-290-A FPC ASSY (US)
4-577-639-01 4-577-639-01 FRAME, MAIN (US)
4-577-634-01 4-577-634-01 FRAME, MESH F (US)
4-577-635-01 4-577-635-01 FRAME, MESH R (US)
4-577-653-01 4-577-653-01 GASKET (US)
4-577-657-01 4-577-657-01 GND PLATE REAR (US)
4-582-004-81 4-582-004-81 GUIDE, HELP (US)
4-582-004-71 4-582-004-71 GUIDE, HELP (US)
4-582-004-61 4-582-004-61 GUIDE, HELP (US)
4-582-004-51 4-582-004-51 GUIDE, HELP (US)
4-582-004-41 4-582-004-41 GUIDE, HELP (US)
4-582-004-31 4-582-004-31 GUIDE, HELP (US)
4-582-004-21 4-582-004-21 GUIDE, HELP (US)
4-582-004-11 4-582-004-11 GUIDE, HELP (US)
4-582-004-01 4-582-004-01 GUIDE, HELP (US)
4-581-618-11 4-581-618-11 GUIDE, REFERENCE (US)
4-582-001-11 4-582-001-11 GUIDE, START (US)
4-577-649-01 4-577-649-01 HOLDER, DC JACK (US)
4-590-171-01 4-590-171-01 LABEL (U), SERIAL (US)
A-2119-376-A A-2119-376-A LABEL BLOCK ASSY (U),STANDARD (US)
4-586-378-01 4-586-378-01 LABEL(U2) (US)
4-587-074-01 4-587-074-01 LABEL, CAUTION (US)
4-582-093-01 4-582-093-01 LABEL, LASER CAUTION (US)
A-2090-816-A A-2090-816-A LCOS ASSY (US)
4-581-893-01 4-581-893-01 LD HEAT SINK (P001) (US)
1-856-765-11 1-856-765-11 LENS (P001), ULTRA SHORT THROW (US)
1-856-739-11 1-856-739-11 LENS 2 (P001), CONDENSER (US)
4-577-645-01 4-577-645-01 LENS, IR CONDENSE (US)
1-853-537-11 1-853-537-11 LI-ION BATTERY (US)
4-577-650-01 4-577-650-01 LID USB (US)
4-577-652-01 4-577-652-01 LOWER, DUCT (US)
4-577-655-01 4-577-655-01 MAGNET METAL (US)
4-581-895-01 4-581-895-01 MAIN COVER(P001) (US)
A-2119-369-A A-2119-369-A MANUAL BLOCK ASSY (U) (US)
4-582-089-01 4-582-089-01 MASTER CARTON, 2 SETS (US)
4-577-646-01 4-577-646-01 O RING (US)
A-2119-371-A A-2119-371-A PACKING (GP (E)) (U) (US)
X-2593-070-1 X-2593-070-1 PACKING ASSY (US)
A-2119-377-A A-2119-377-A PACKING BLOCK ASSY (M) (U) (US)
A-2090-690-A A-2090-690-A PACKING GP (M) (US)
4-581-915-01 4-581-915-01 PANEL HEAT SINK(P001) (US)
4-577-638-02 4-577-638-02 PANEL, SIDE L (US)
4-577-637-02 4-577-637-02 PANEL, SIDE R (US)
4-581-896-01 4-581-896-01 PBS GASKET (P001) (US)
A-2119-374-A A-2119-374-A PJ ASSY (U) (US)
4-581-899-02 4-581-899-02 PJ PWB PLATE (P001) (US)
A-2119-375-A A-2119-375-A PLATE ASSY (U), MESH (US)
4-577-656-01 4-577-656-01 PLATE, BM (US)
4-577-633-01 4-577-633-01 PLATE, MESH (US)
4-577-716-01 4-577-716-01 PLATE, SY (US)
4-577-648-01 4-577-648-01 PLATE, TOP (US)
A-2090-775-A A-2090-775-A PROJECTOR PC BOARD ASSY (US)
4-591-196-01 4-591-196-01 PROTECTION PP TAPE (US)
1-980-664-11 1-980-664-11 PWB, SY-PJ FLEXIBLE (US)
4-584-939-01 4-584-939-01 RUBBER, FOOT (US)
2-599-475-31 2-599-475-31 SCREW(M1.7) (US)
2-635-562-31 2-635-562-31 SCREW(M1.7) (US)
3-080-204-31 3-080-204-31 SCREW, TAPPING, P2 (US)
3-080-205-21 3-080-205-21 SCREW,TAPPING,P2 (US)
4-587-060-01 4-587-060-01 SEAL (A) (US)
4-587-061-01 4-587-061-01 SEAL (B) (US)
4-583-650-01 4-583-650-01 SEALING TAPE L(P001) (US)
A-2119-373-A A-2119-373-A SERVICE (U) (US)
4-443-059-91 4-443-059-91 SHIM (US)
4-443-059-61 4-443-059-61 SHIM (US)
4-443-059-31 4-443-059-31 SHIM (US)
4-443-059-01 4-443-059-01 SHIM (US)
4-577-641-01 4-577-641-01 SIDE FRAME L (US)
4-577-640-01 4-577-640-01 SIDE FRAME R (US)
A-2117-279-A A-2117-279-A SPEAKER ASSY (US)
1-859-137-11 1-859-137-11 SPEAKER BOX (US)
1-855-417-11 1-855-417-11 STEPPING MOTOR, OPTICAL(P001) (US)
1-493-086-11 1-493-086-11 SW BLOCK (US)
A-2090-724-A A-2090-724-A SY COMPL (US)
4-577-643-01 4-577-643-01 TAPE, WINDOW (US)
4-300-115-01 4-300-115-01 TAPPING (1.7) (CH) (US)
A-2090-728-A A-2090-728-A TOP COMPL (US)
4-577-651-01 4-577-651-01 UPPER, DUCT (US)
4-577-661-01 4-577-661-01 WASHER (FAN) (US)
4-577-662-01 4-577-662-01 WASHER (SP) (US)
4-577-642-01 4-577-642-01 WINDOW (US)
A-2117-280-A A-2117-280-A WINDOW ASSY (US)
4-577-654-01 4-577-654-01 WINDOW CHARGE (US)
1-845-348-21 1-845-348-21 WIRELESS HDMI UNIT (US)
