Interactive Exploded View

Parts List

Part Number Description
9-910-999-30 9-910-999-30 1N60 DIODE |1N6
1-480-538-12 1-480-538-12 AC ADAPTOR (930B)BUY 147399715
3-353-962-01 3-353-962-01 BRACKET,MOTOR
X-3353-912-3 X-3353-912-3 CABINET (LOWER) ASSY
X-3353-901-2 X-3353-901-2 CABINET (UPPER) ASSY

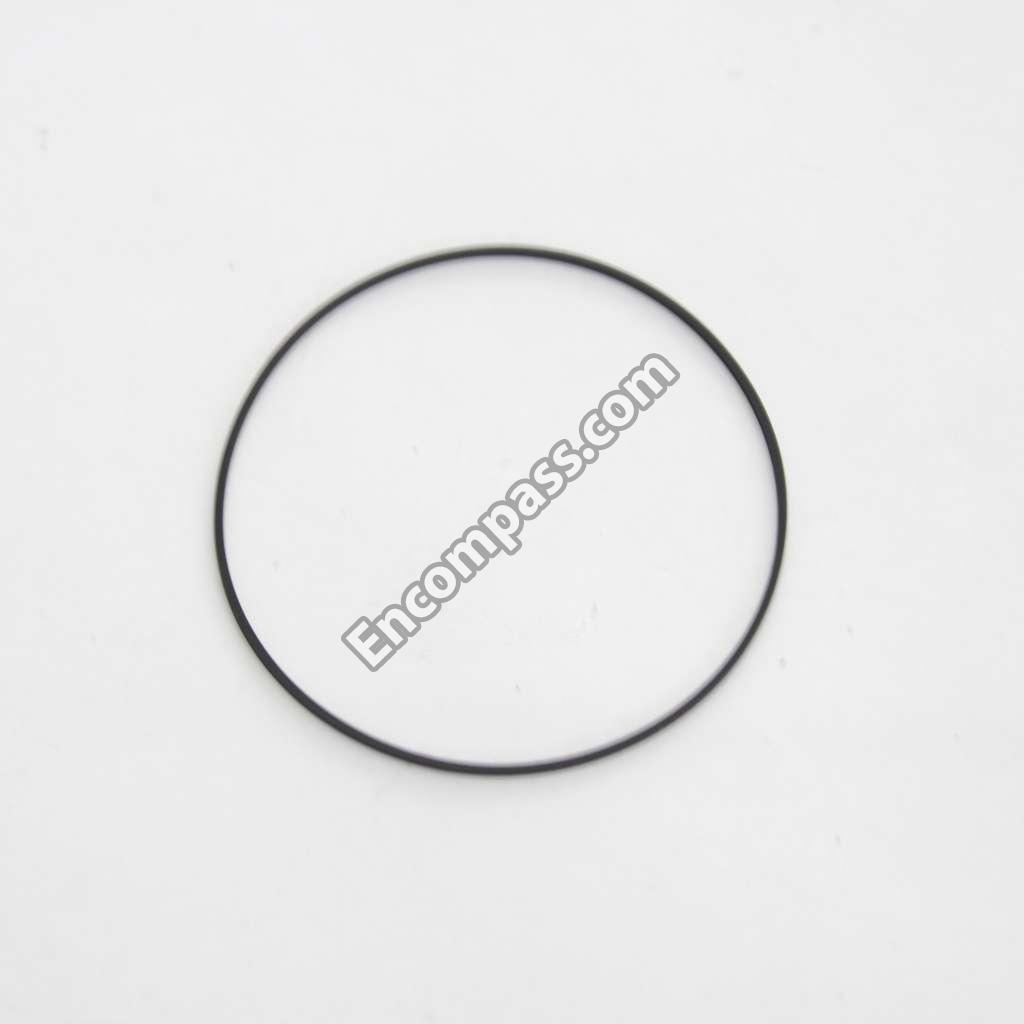

3-554-106-00 3-554-106-00 CAPSTAN BELT
X-3353-903-1 X-3353-903-1 CHASSIS (OUTSERT) ASSY
X-3353-909-1 X-3353-909-1 CHASSIS ASSY,HEAD

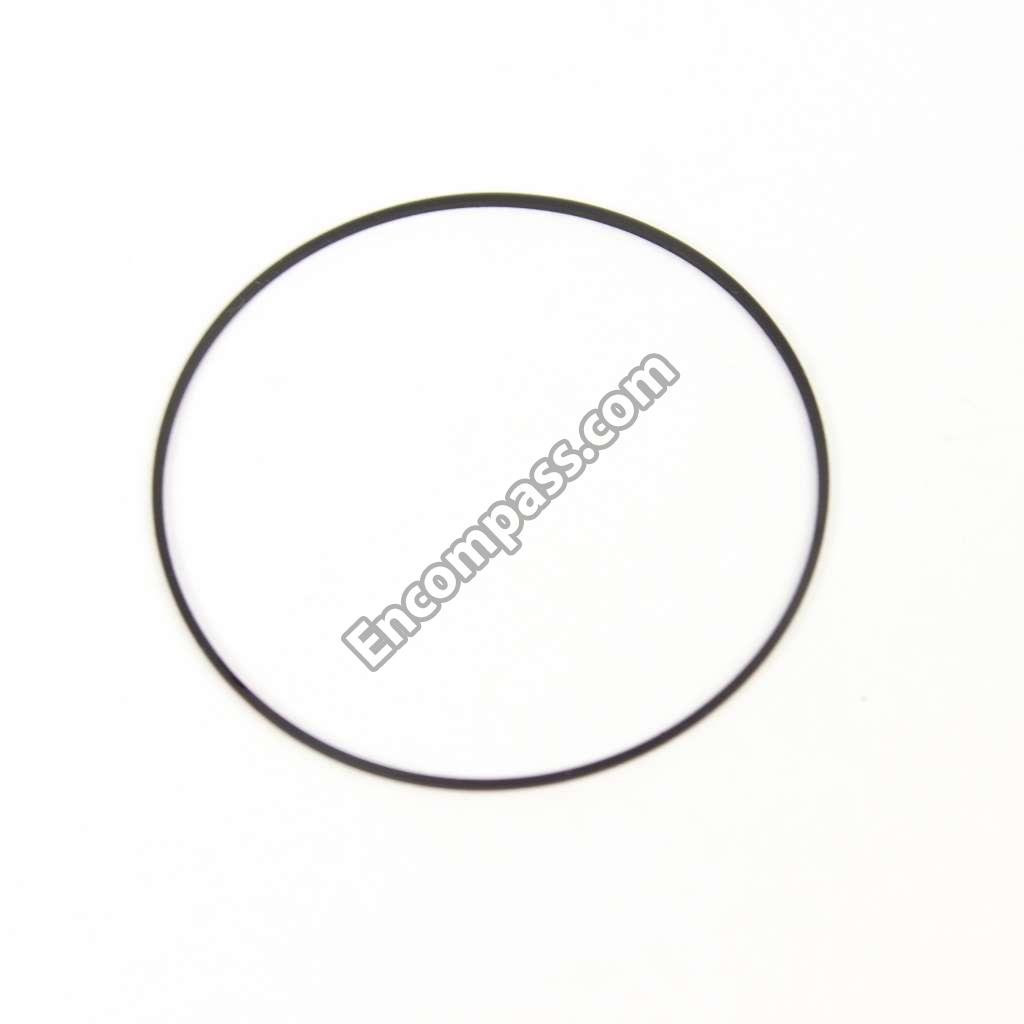

3-353-952-01 3-353-952-01 COUNTER BELT
3-353-974-01 3-353-974-01 CUSHION(MICROPHONE)
3-353-951-01 3-353-951-01 DETECT BELT
3-353-975-01 3-353-975-01 FOIL,SHIELD

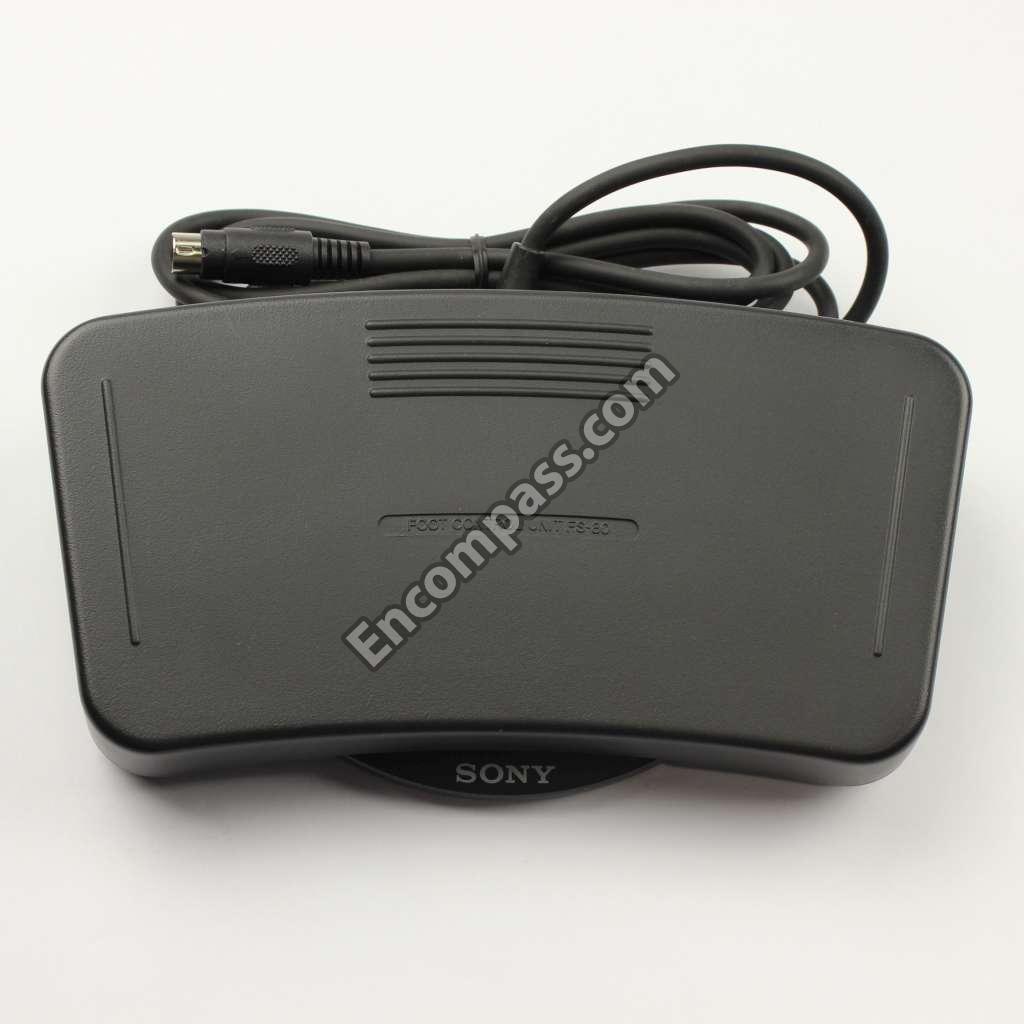

1-771-219-16 1-771-219-16 FOOT PEDEL
X-3353-907-1 X-3353-907-1 GEAR ASSY, IDLER
3-353-959-01 3-353-959-01 GUIDE (S),TAPE
8-759-349-56 8-759-349-56 IC UPD75402AGB-568-3B4
3-353-903-01 3-353-903-01 KNOB EJECT
3-353-902-01 3-353-902-01 KNOB REC
3-353-973-01 3-353-973-01 KNOB SPEED
3-353-950-01 3-353-950-01 LEVER (SAFETY)
X-3353-902-1 X-3353-902-1 LID ASSY CASSETTE
1-698-452-11 1-698-452-11 M901 DC MOTOR (FWD) (CORR
X-3371-751-1 X-3371-751-1 MOTOR ASSY, FR
3-353-960-01 3-353-960-01 PIN,PARALLEL (S
X-3353-911-1 X-3353-911-1 PULLEY (RELAY) ASSY
8-729-820-90 8-729-820-90 Q406
8-729-807-34 8-729-807-34 Q407 2SB1123
1-238-646-11 1-238-646-11 RESISTOR, VARIABLE
9-953-888-14 9-953-888-14 S/MANUAL ASSY 13 8123 91
3-353-979-01 3-353-979-01 SCREW
3-353-905-01 3-353-905-01 SHEET,ADHESIVE,MICROPHONE
1-568-229-11 1-568-229-11 SOCKET
1-454-486-11 1-454-486-11 SOLENOID,PLUNGER
3-353-981-01 3-353-981-01 SPACER
3-353-958-01 3-353-958-01 SPRING,COMPRESSION (COIL)
3-353-964-01 3-353-964-01 SPRING,TENSION (COIL)
3-353-956-01 3-353-956-01 SPRING,TENSION(IDLER)(COI
3-353-954-01 3-353-954-01 SPRING,TENSION(PLAY)(COIL
3-353-955-01 3-353-955-01 SPRING,TENSION(SAFTY)(COI
3-353-982-01 3-353-982-01 WASHER (DIA.4),RUBBER
X-3353-910-1 X-3353-910-1 WHEEL ASSY CAPSTAN
