Model Image
Manufacturer

Sony

Model Number

MATERIA

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
9-919-587-65 9-919-587-65 (PAPERS)ANTI STATIC CLEAN
7-651-000-11 7-651-000-11 320 LUB 50G BLACK
7-640-011-91 7-640-011-91 440 OIL 50 ML 60G
7-651-302-21 7-651-302-21 ADH TAPE (W)
7-432-920-00 7-432-920-00 ADHESIVE TAPE 10MM
MS200 MS200 CLEANING LIQUID
7-491-100-00 7-491-100-00 DESICCANT
7-491-001-00 7-491-001-00 DESICCANT
7-491-001-03 7-491-001-03 DRY GEL
9-911-837-99 9-911-837-99 DUST FELT,T=1MM (4X8)
7-662-004-10 7-662-004-10 EVERCORT

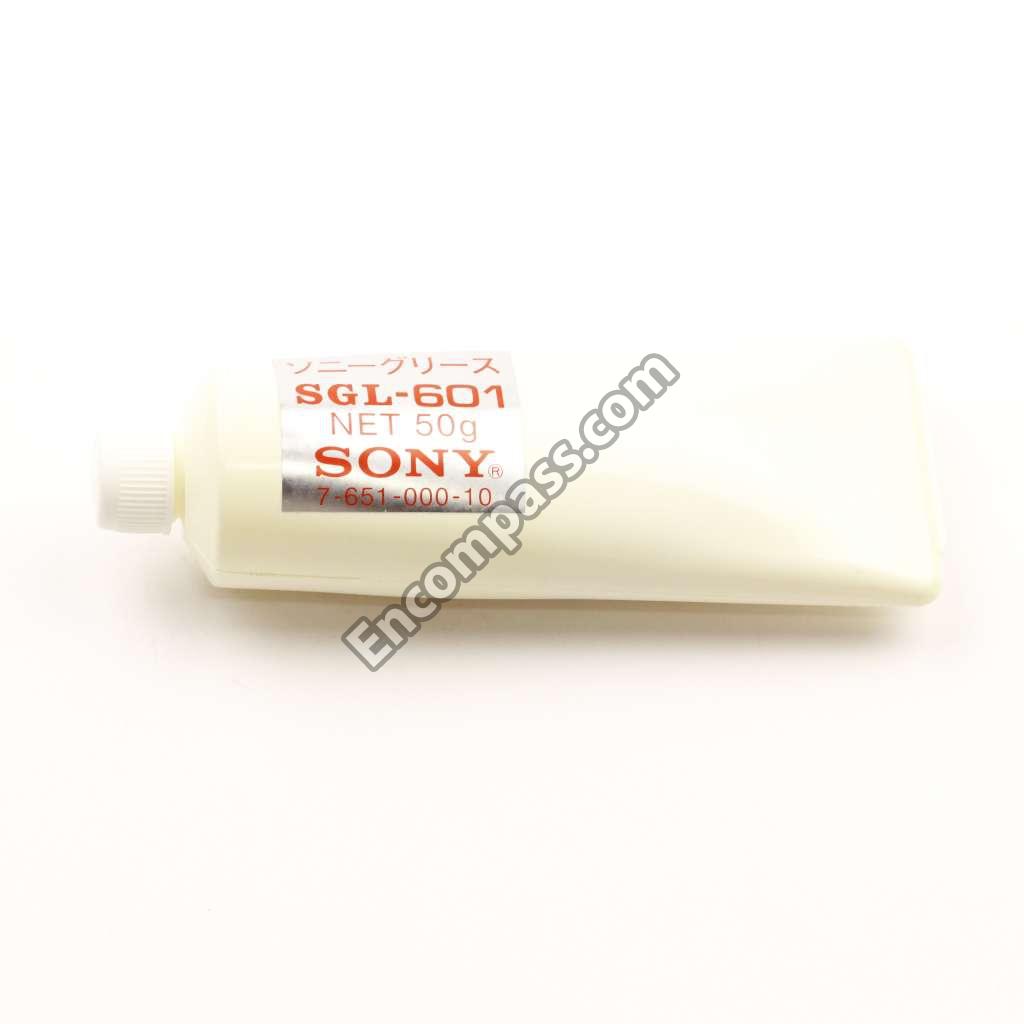

7-651-000-10 7-651-000-10 GREASE
X-3701-105-0 X-3701-105-0 HEAD CLEANING PEN
7-662-001-52 7-662-001-52 LUBRICANT SG-101
7-740-900-31 7-740-900-31 PASTE,STATIC ELECTRICITY
9-911-863-99 9-911-863-99 PLASTIC SHEET,INSULAT 4.0
9-919-587-61 9-919-587-61 POINT COOLER (2 450G)
9-919-535-00 9-919-535-00 POLY JACKET COPPER WIRE:B
7-633-111-21 7-633-111-21 RIBBON,YELLOW
9-911-841-99 9-911-841-99 RUBBER, T=5MM (2X2)
9-911-839-99 9-911-839-99 RUBBER,T=1.5MM (2X8)
9-911-838-99 9-911-838-99 RUBBER,T=1MM (2X8)
7-632-452-24 7-632-452-24 SCOTCH TAPE 18MM X 35M
7-651-302-30 7-651-302-30 SEAL TAPE
95F6237 95F6237 SOLDER WICK,50-4-5,5'
T-9980-247-1 T-9980-247-1 SOLDER:61.5/35.5/3:F=66;2
7-631-104-04 7-631-104-04 SPAG TB 3* YEL
7-661-017-02 7-661-017-02 SPARK PREVENTIVE
9-911-845-99 9-911-845-99 SPONGE, T=5MM (4X8)
9-911-844-99 9-911-844-99 SPONGE,T=2MM (8X4)
7-432-922-03 7-432-922-03 SUPER 3 CEMENT
7-432-922-02 7-432-922-02 SUPER THREE CEMENT(SUPER
3-572-364-00 3-572-364-00 TAPE (LARGE), ALUMINIUM
7-632-202-12 7-632-202-12 TAPE,FILAMENT 6MMX50M
3-701-748-00 3-701-748-00 TIE CORD
9-919-540-00 9-919-540-00 VARNISH TUBE 0.6MM DIA YE
7-631-103-04 7-631-103-04 VARNISH TUBE 2MM DIA(YELL
9-919-539-00 9-919-539-00 VINYL TUBE (UL)BLACK
9-919-537-00 9-919-537-00 WIRE;SHIELD 4 CORES 10M
