Manufacturer

Sony

Model Number

MDSJA20ESC

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

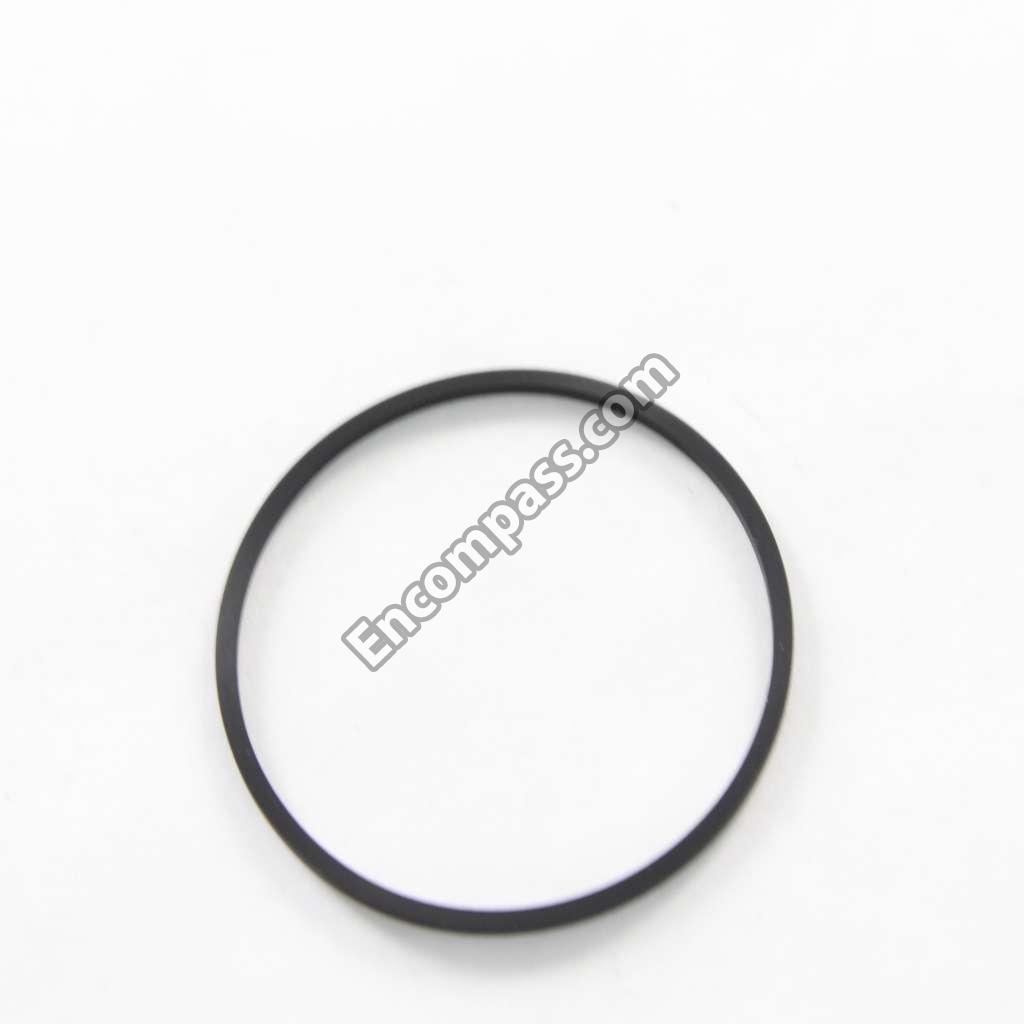

4-999-537-01 4-999-537-01 BELT (LOADING)
1-784-337-11 1-784-337-11 CONNECTOR (FFC) 25P
1-784-835-21 1-784-835-21 CONNECTOR (SMD) 27P
1-785-374-11 1-785-374-11 CONNECTOR, FFC/FPC 11P
4-999-516-01 4-999-516-01 GEAR (B), PLANET
4-999-518-01 4-999-518-01 GEAR (D), PLANET
4-999-544-01 4-999-544-01 GEAR (TOP)
8-759-498-20 8-759-498-20 IC CXD8735N-TP
8-759-539-14 8-759-539-14 IC M30610MCA-260FP
A-4724-285-A A-4724-285-A MOUNTED C.BOARD, BD (A)
4-998-740-11 4-998-740-11 PANEL, LOADING
1-225-646-11 1-225-646-11 RESISTOR, VAR 20K/20K
X-4949-786-1 X-4949-786-1 SLIDER ASSY
1-783-989-11 1-783-989-11 WIRE (FLAT TYPE) (11 CORE
1-783-987-11 1-783-987-11 WIRE (FLAT TYPE) (25 CORE
1-783-986-11 1-783-986-11 WIRE (FLAT TYPE) (27 CORE
