Model Image
Manufacturer

Sony

Model Number

MDX400

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
7-621-770-67 7-621-770-67 +B 2.6X6.0
3-349-410-01 3-349-410-01 BUSHING
X-3372-037-1 X-3372-037-1 BUTTON ASSY
1-590-519-11 1-590-519-11 CABLE (W/CONNECTOR) UNILINK
1-128-590-11 1-128-590-11 CAPACITOR, CHIP ELECT 100
1-128-489-11 1-128-489-11 CAPACITOR,ELECT 3300MF 16
3-907-888-01 3-907-888-01 CHASSIS (MAIN)
3-907-891-01 3-907-891-01 CHASSIS (REAR)
1-403-584-11 1-403-584-11 COIL, CHIP CHOKE
1-764-585-11 1-764-585-11 CONNECTOR,PIN (PC BOARD)
1-557-820-11 1-557-820-11 CORD (ANT.) EXTENSION
1-690-814-11 1-690-814-11 CORD (WITH TERMINAL)
1-765-259-31 1-765-259-31 CORD CONNECTION
3-910-751-01 3-910-751-01 CUSHION (H)
3-912-971-01 3-912-971-01 CUSHION (H)
3-907-917-01 3-907-917-01 CUSHION (STTOPPER A)(RBR)
3-907-918-01 3-907-918-01 CUSHION (STTOPPER B)(RBR)
8-719-423-21 8-719-423-21 DIODE MA8110-L-TX
3-908-683-01 3-908-683-01 HOLDER (KC STOPPER)
3-909-825-01 3-909-825-01 HOLDER (KJ)
3-908-346-01 3-908-346-01 HOLDER (MOTOR A)
3-907-903-01 3-907-903-01 HOLDER (R)
X-3367-569-1 X-3367-569-1 HOLDER (ROLLER) ASSY
X-3367-538-1 X-3367-538-1 HOLDER (SL MOTOR) ASSY
X-2625-822-1 X-2625-822-1 HOLDER ASSY, FLEXIBLE
8-752-067-31 8-752-067-31 IC CXA1846M-T6
8-759-197-13 8-759-197-13 IC MSM6665C-02GS-K
8-759-082-61 8-759-082-61 IC TC4W53FU-TE12L
1-764-011-11 1-764-011-11 JACK, ANT
X-3367-570-1 X-3367-570-1 JOINT (KC-A) ASSY
X-3367-571-1 X-3367-571-1 JOINT (KC-B) ASSY
X-3367-572-1 X-3367-572-1 JOINT (KC-C) ASSY
1-517-181-31 1-517-181-31 LAMP, PILOT
1-517-276-11 1-517-276-11 LAMP, PILOT
3-908-335-01 3-908-335-01 LEVER (KC-H-A)
3-908-336-01 3-908-336-01 LEVER (KC-H-B)
3-908-339-01 3-908-339-01 LEVER (SW)
3-908-358-01 3-908-358-01 LEVER (UD-C)
X-3367-748-1 X-3367-748-1 MOTOR ASSY, U-D
1-651-144-11 1-651-144-11 PRINTED C.BOARD,,ROTARY F
1-650-601-11 1-650-601-11 PRINTED C.BOARD,BSL FLEXI
3-908-490-01 3-908-490-01 RACK
1-241-225-11 1-241-225-11 RES, ADJ, METAL GRAZE 22K
3-909-435-01 3-909-435-01 RETAINER (HINGE)

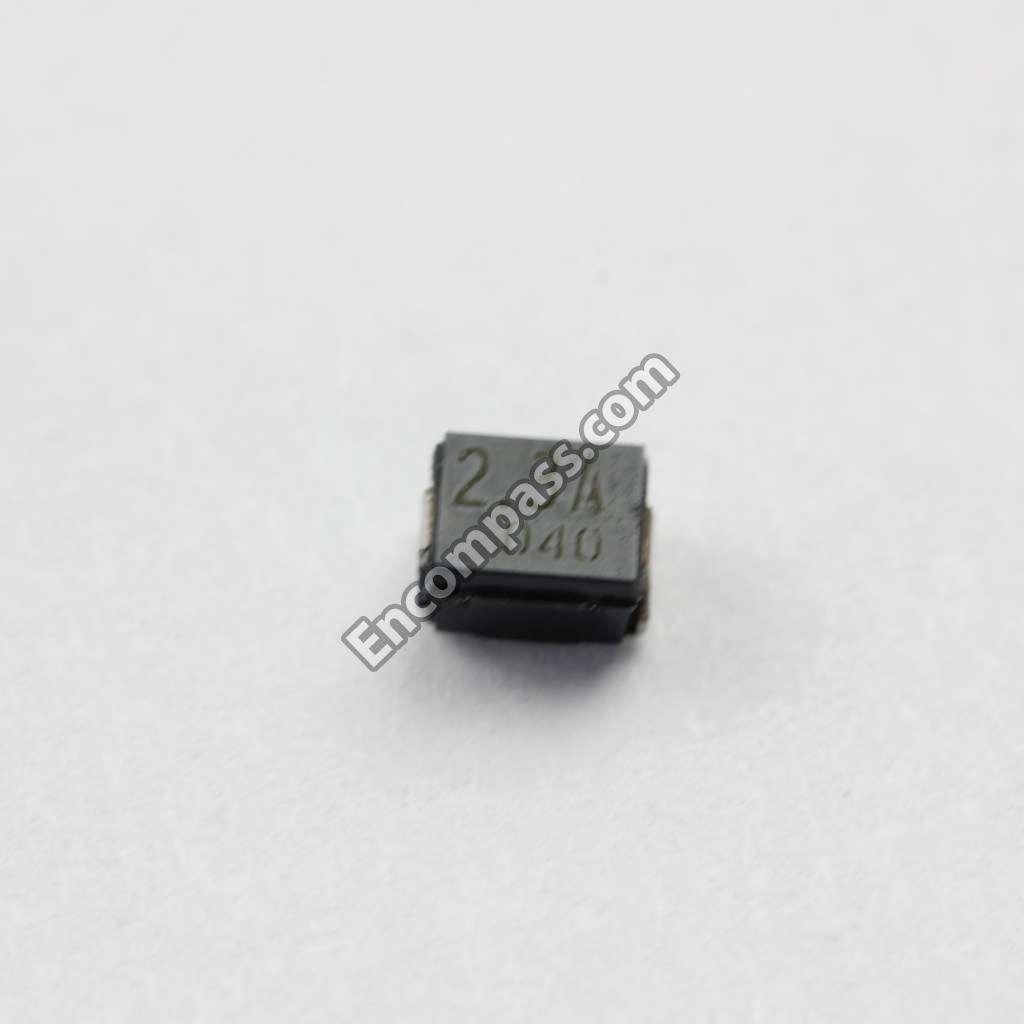

1-533-397-11 1-533-397-11 RINK, CHIP IC
X-3367-709-1 X-3367-709-1 ROLLER (F) ASSY
3-909-607-01 3-909-607-01 SCREW
3-909-412-01 3-909-412-01 SCREW () (1.7X2) (TYPE
3-912-525-01 3-912-525-01 SCREW (2.6X4) (CU),
3-376-447-01 3-376-447-01 SCREW (2.6X6)
3-912-956-01 3-912-956-01 SCREW (2.6X6) (CU), ?
3-906-713-01 3-906-713-01 SCREW (?), GROUND POIN
X-3368-680-1 X-3368-680-1 SCREW (FITTING) ASSY
9-959-245-11 9-959-245-11 SERVICE MANUAL SUP-1
3-911-213-01 3-911-213-01 SHEET (FLEXIBLE A)
3-909-606-01 3-909-606-01 SHEET (FLEXIBLE)
3-911-215-02 3-911-215-02 SHEET (LEAD RETAINER)
3-907-922-01 3-907-922-01 SHEET, INSULATING
3-911-121-01 3-911-121-01 SPACER (BUZZER)
3-909-608-01 3-909-608-01 SPACER (H)
3-910-446-02 3-910-446-02 SPACER (L)
3-911-699-01 3-911-699-01 SPACER (TU)
X-3367-578-1 X-3367-578-1 SPRING (BF) ASSY
3-908-684-01 3-908-684-01 SPRING (BR)
3-908-492-01 3-908-492-01 SPRING (EJU), TENSION
3-907-914-01 3-907-914-01 SPRING (FL)
3-907-900-01 3-907-900-01 SPRING (FP), LEAF
3-908-491-01 3-908-491-01 SPRING (HM), TENSION
3-912-230-01 3-912-230-01 SPRING (HOME SW)
3-908-495-01 3-908-495-01 SPRING (OP-UD)
3-907-901-01 3-907-901-01 SPRING (PLATE)
3-908-357-01 3-908-357-01 SPRING (UD-B)
3-483-117-01 3-483-117-01 SPRING, TENSION
3-500-129-01 3-500-129-01 SPRING, TENSION
3-909-437-01 3-909-437-01 SPRING, TENSION
3-539-226-11 3-539-226-11 SPRING,TENSION(COIL) (S
3-323-206-01 3-323-206-01 STOPPER (FRAME COVER)
1-571-532-32 1-571-532-32 SWITCH, TACTIL
3-909-686-11 3-909-686-11 TRIMRING
1-760-168-11 1-760-168-11 VIBRATOR, CRYSTAL
