Model Image
Manufacturer

Sony

Model Number

MHCEC909IP

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-754-399-11 1-754-399-11 ANTENNA, LOOP (FM LEAD/AM LOOP ANTENNA)
X-2547-790-1 X-2547-790-1 BASE (DOCK) ASSY
2-055-382-01 2-055-382-01 BATTERY COVER
1-838-088-21 1-838-088-21 CABLE FLEXIBLE FLAT 15 CORE
1-834-965-22 1-834-965-22 CORD POWER
1-837-548-11 1-837-548-11 FRONT SPEAKER CORD
6-714-864-01 6-714-864-01 IC STK433070SE
6-600-731-01 6-600-731-01 IC STK433870E
A-1749-035-A A-1749-035-A IP BOARD COMPLETE (EC909IP)
X-2348-584-1 X-2348-584-1 IPOD ASSY
4-169-806-01 4-169-806-01 KNOB (VOL)
A-1749-008-B A-1749-008-B MAIN BOARD COMPLETE
1-856-037-11 1-856-037-11 OPTICAL PICKUP BLOCK
A-1747-904-A A-1747-904-A OVERALL ASSY MHCEC909

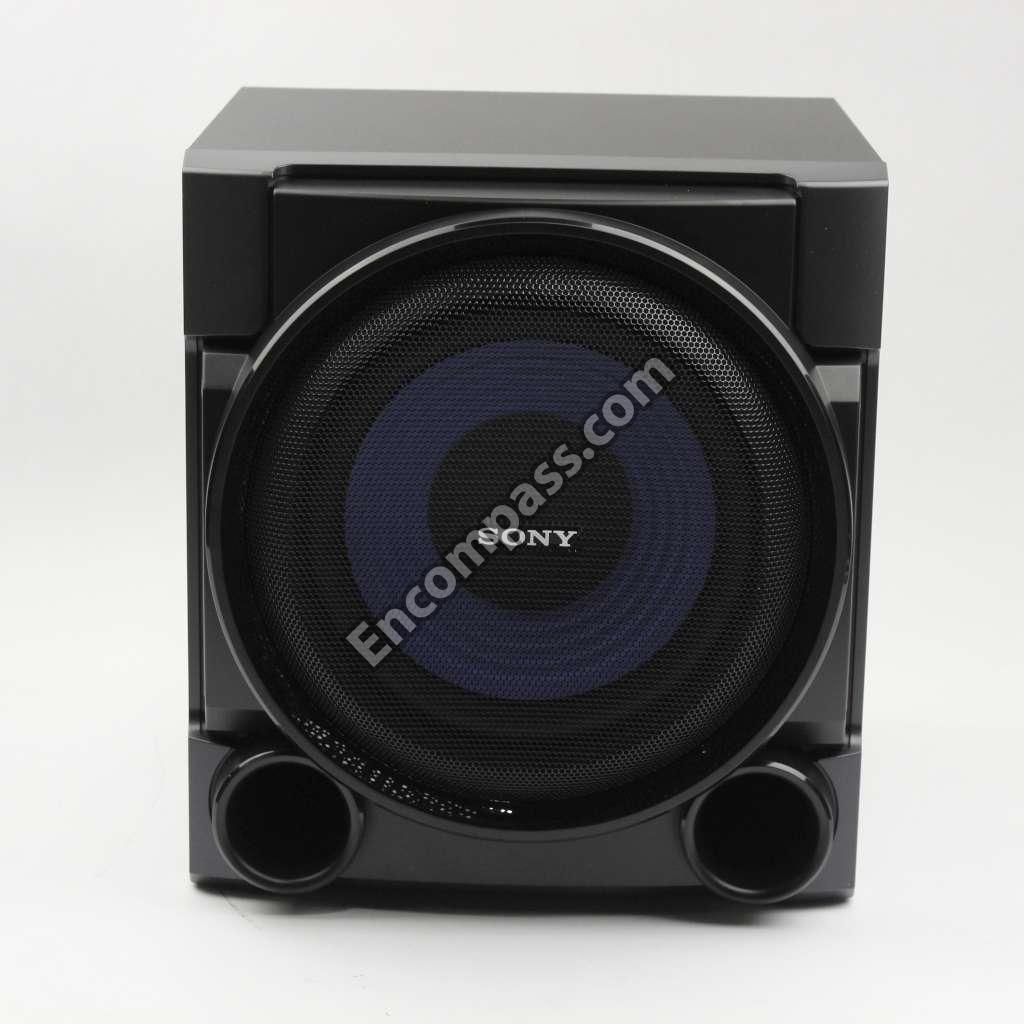

A-1747-906-A A-1747-906-A OVERALL ASSY SSW MHCEC909
2-890-830-21 2-890-830-21 PANEL (R ), SIDE

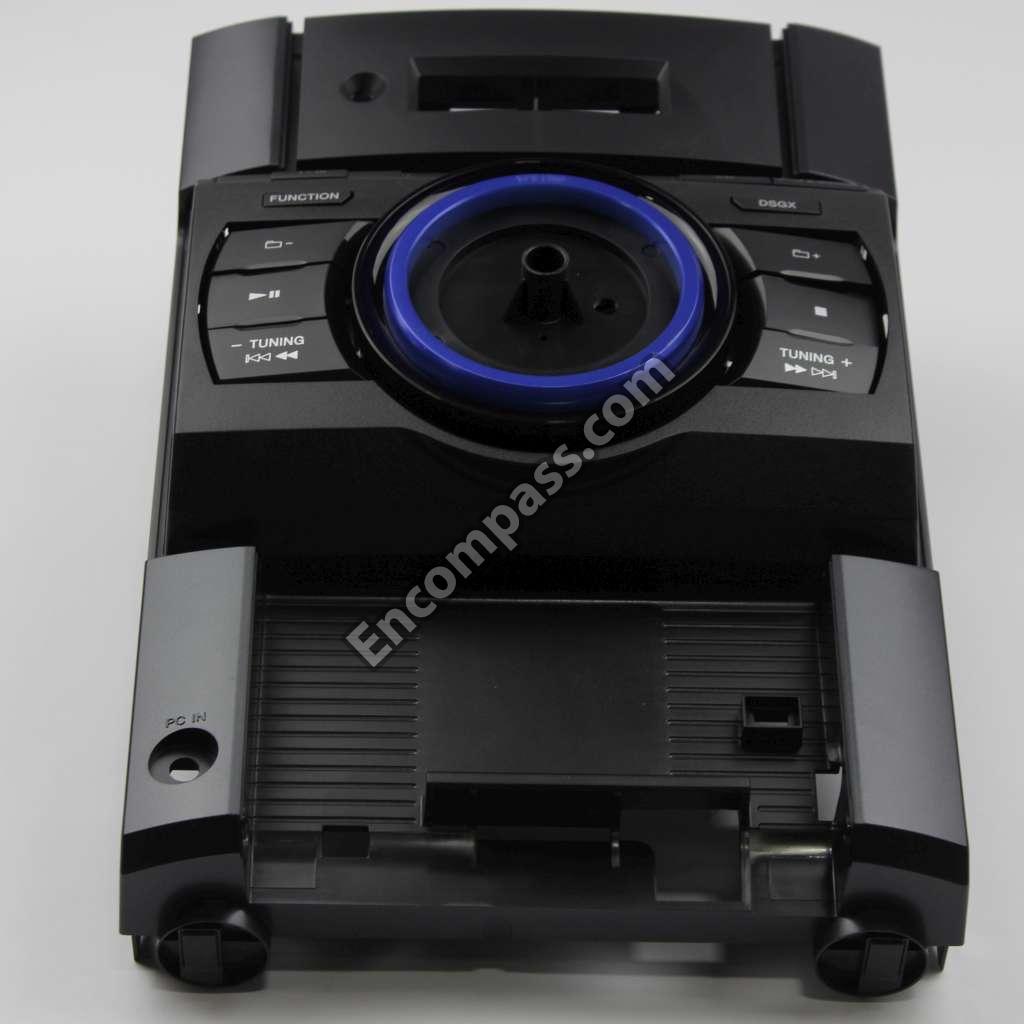

A-1749-938-A A-1749-938-A PANEL ASSY FRONT (EC909IP: US)
4-162-452-01 4-162-452-01 PANEL BACK (EC909IP: US)
A-1749-021-A A-1749-021-A PANEL BOARD, COMPLETE
4-136-037-02 4-136-037-02 PANEL TOP (1) (US)
1-819-140-11 1-819-140-11 PIN CONNECTOR 12P
A-1438-479-A A-1438-479-A REMOTE CONTROL
8-729-040-76 8-729-040-76 TRANSISTOR KTA1273-Y-AT
4-120-650-61 4-120-650-61 WINDOW (EC909IP: US CND)
