Model Image
Manufacturer

Sony

Model Number

NEX5A

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-191-823-04 4-191-823-04 ALPHA APPLICATIONSOFTWARE
4-186-525-01 4-186-525-01 BASE (FRONT), PW KNOB
4-186-565-11 4-186-565-11 BASE (G), STRAP
4-186-565-01 4-186-565-01 BASE (G), STRAP (BLACK)
4-186-566-11 4-186-566-11 BASE (L), STRAP
4-186-566-01 4-186-566-01 BASE (L), STRAP(BLACK)
4-186-526-01 4-186-526-01 BASE (REAR), PW KNOB
4-186-444-11 4-186-444-11 BASE, BT LID
4-186-444-01 4-186-444-01 BASE, BT LID (BLACK)
4-186-551-12 4-186-551-12 BASE, JACK COVER
4-186-551-02 4-186-551-02 BASE, JACK COVER
8-026-238-30 8-026-238-30 BATTERY PACK(FW50)
8-026-418-30 8-026-418-30 BATTERY PACK(FW50)

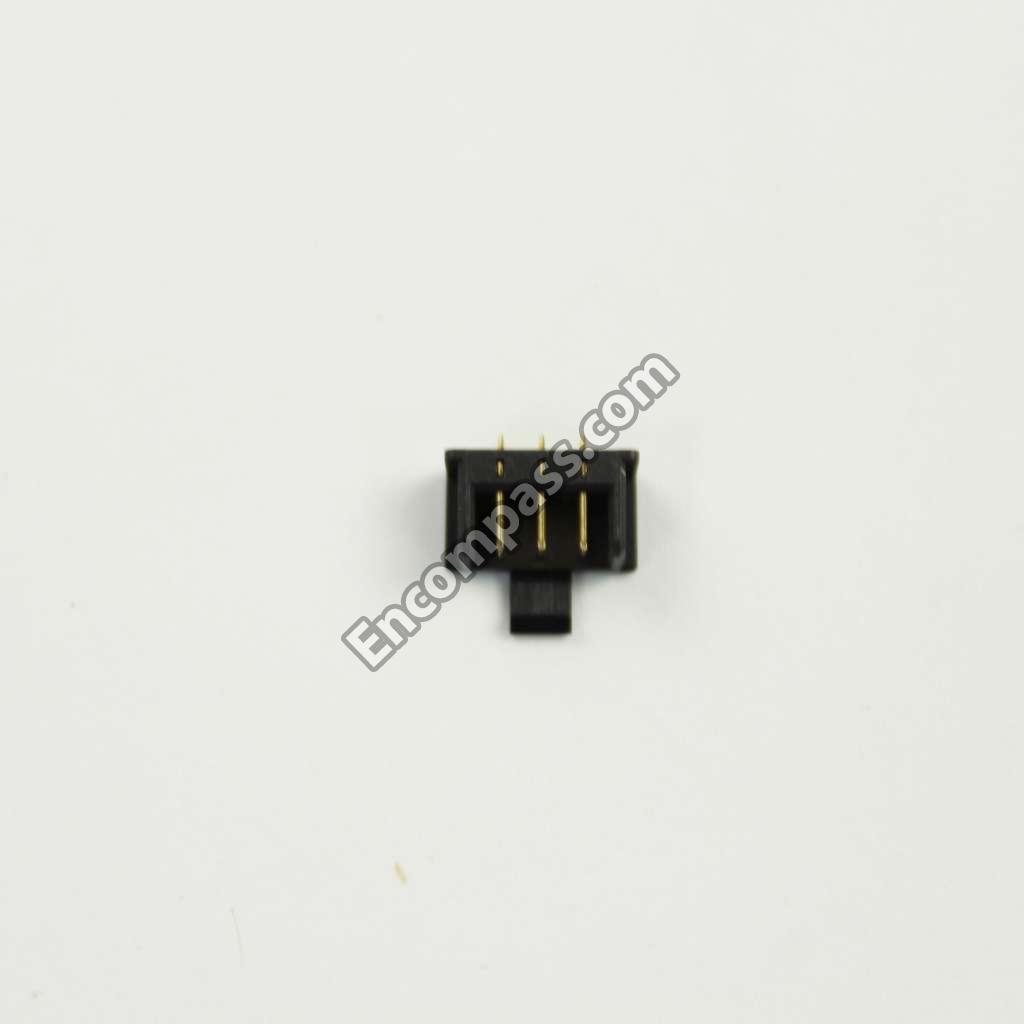

1-780-858-11 1-780-858-11 BATTERY TERMINAL BOARD
J-6082-736-A J-6082-736-A BLISTER, BATTERY A
J-6082-736-D J-6082-736-D BLISTER, BATTERY D
J-6082-736-F J-6082-736-F BLISTER, BATTERY F
4-186-424-01 4-186-424-01 BRACKET (G), STRAP
4-186-425-01 4-186-425-01 BRACKET (L), STRAP
A-1774-556-A A-1774-556-A BUTTON BLOCK ASSY, RL
4-186-534-11 4-186-534-11 BUTTON, L LOCK
4-186-534-01 4-186-534-01 BUTTON, L LOCK(BLACK)

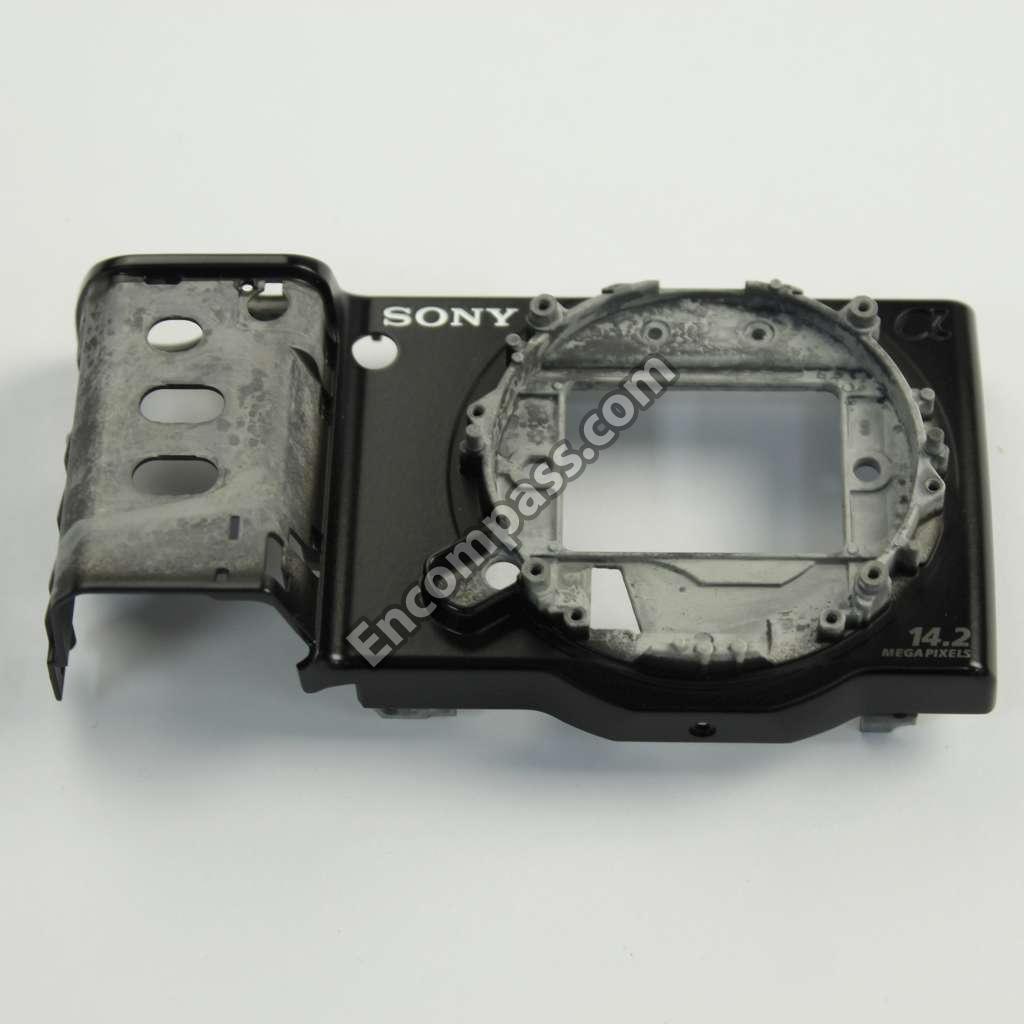

4-186-517-11 4-186-517-11 CABINET (FRONT )
4-186-517-01 4-186-517-01 CABINET (FRONT ) (BLACK)
X-2547-951-1 X-2547-951-1 CABINET (REAR) ASSY, LC
4-188-536-01 4-188-536-01 CAP, BODY
4-186-787-01 4-186-787-01 CASE, ST
1-487-907-81 1-487-907-81 CHARGER, BATTERY (BC-VW1)
1-487-907-23 1-487-907-23 CHARGER, BATTERY (BC-VW1)
1-487-907-12 1-487-907-12 CHARGER, BATTERY (BC-VW1)
4-186-437-01 4-186-437-01 CLAW, BT LOCK
1-457-941-21 1-457-941-21 COIL, CHOKE 4.7UH
1-818-674-71 1-818-674-71 CONNECTOR, FPC (ZIF) 11P
1-818-677-71 1-818-677-71 CONNECTOR, FPC (ZIF) 19P
1-842-176-51 1-842-176-51 CONNECTOR, FPC (ZIF) 61P
4-186-554-11 4-186-554-11 COVER, HDMI
4-186-554-01 4-186-554-01 COVER, HDMI (BLACK)
4-186-532-11 4-186-532-11 COVER, ORNAMENTAL RING
4-186-532-01 4-186-532-01 COVER, ORNAMENTAL RING (BLACK)
4-186-557-11 4-186-557-11 COVER, SHOE
4-186-557-01 4-186-557-01 COVER, SHOE (BLACK)
4-186-553-11 4-186-553-11 COVER, USB
4-186-553-01 4-186-553-01 COVER, USB (BLACK)
4-185-997-01 4-185-997-01 CUTTER, IM FLARE(S)
6-501-017-01 6-501-017-01 DIODE VDZT2R12B
A-1774-691-A A-1774-691-A FLASH COMPLETE ASSY
4-186-448-01 4-186-448-01 GASKET (MS)

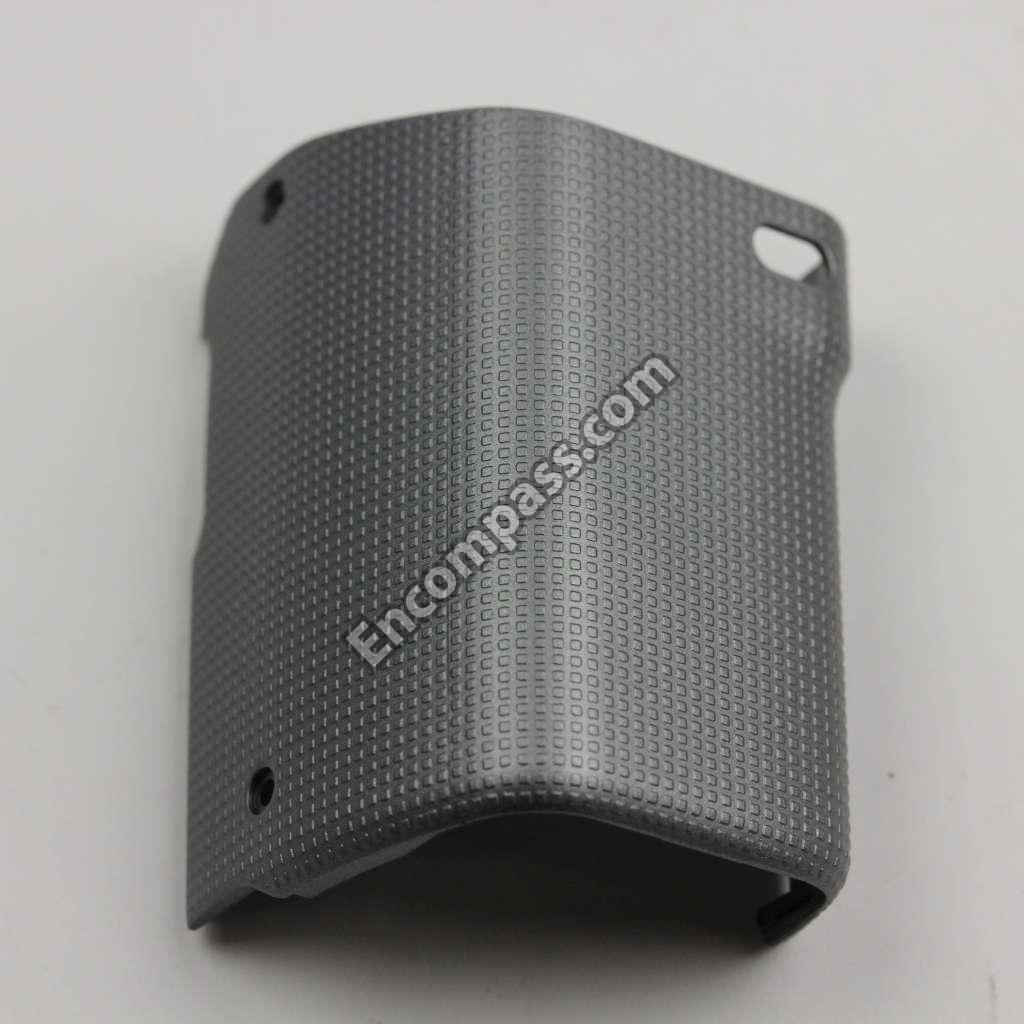

4-186-521-14 4-186-521-14 GRIP
4-186-521-04 4-186-521-04 GRIP (BLACK)
4-186-478-01 4-186-478-01 GRIP (REAR), BLACK
4-186-478-11 4-186-478-11 GRIP (REAR), SILVER
4-186-560-01 4-186-560-01 GROUND PLATE (G), BOTTOM
4-186-559-01 4-186-559-01 GROUND PLATE (L), BOTTOM
4-186-561-01 4-186-561-01 GROUND PLATE (L), TOP
4-186-455-01 4-186-455-01 HEAT SINK
4-186-536-01 4-186-536-01 HOLDER, L LOCK
4-186-473-01 4-186-473-01 HOLDER, SP
6-715-286-01 6-715-286-01 IC AN41400A-PB
6-715-364-01 6-715-364-01 IC NJM2878F4-45 (TE2)
6-715-365-01 6-715-365-01 IC NJM8532RB1
6-715-287-01 6-715-287-01 IC R2062K01-E2
6-715-285-01 6-715-285-01 IC S-1200B31-I6T2G
6-711-430-01 6-711-430-01 IC TC74VHC367FK(EL)
6-715-366-01 6-715-366-01 IC UPD79F0107FC-402-2N1-E2-A
A-1773-805-A A-1773-805-A IM PLATE UNIT, LOWPASS RETAINER
4-185-996-01 4-185-996-01 IM PLATE, IMAGER
4-185-993-02 4-185-993-02 IM SHEET, SPACER
4-281-915-01 4-281-915-01 IM TAPE, SPACER FIXED(S)
4-185-995-91 4-185-995-91 IM WASHER(A), ADJUST
4-185-995-81 4-185-995-81 IM WASHER(A), ADJUST
4-185-995-71 4-185-995-71 IM WASHER(A), ADJUST
4-185-995-61 4-185-995-61 IM WASHER(A), ADJUST
4-185-995-51 4-185-995-51 IM WASHER(A), ADJUST
4-185-995-41 4-185-995-41 IM WASHER(A), ADJUST
4-185-995-31 4-185-995-31 IM WASHER(A), ADJUST
4-185-995-21 4-185-995-21 IM WASHER(A), ADJUST
4-185-995-11 4-185-995-11 IM WASHER(A), ADJUST
4-185-995-01 4-185-995-01 IM WASHER(A), ADJUST
4-185-998-91 4-185-998-91 IM WASHER(B), ADJUST
4-185-998-81 4-185-998-81 IM WASHER(B), ADJUST
4-185-998-71 4-185-998-71 IM WASHER(B), ADJUST
4-185-998-61 4-185-998-61 IM WASHER(B), ADJUST
4-185-998-51 4-185-998-51 IM WASHER(B), ADJUST
4-185-998-41 4-185-998-41 IM WASHER(B), ADJUST
4-185-998-31 4-185-998-31 IM WASHER(B), ADJUST
4-185-998-21 4-185-998-21 IM WASHER(B), ADJUST
4-185-998-11 4-185-998-11 IM WASHER(B), ADJUST
4-185-998-01 4-185-998-01 IM WASHER(B), ADJUST
4-185-999-91 4-185-999-91 IM WASHER(C), ADJUST
4-185-999-81 4-185-999-81 IM WASHER(C), ADJUST
4-185-999-71 4-185-999-71 IM WASHER(C), ADJUST
4-185-999-61 4-185-999-61 IM WASHER(C), ADJUST
4-185-999-51 4-185-999-51 IM WASHER(C), ADJUST
4-185-999-41 4-185-999-41 IM WASHER(C), ADJUST
4-185-999-31 4-185-999-31 IM WASHER(C), ADJUST
4-185-999-21 4-185-999-21 IM WASHER(C), ADJUST
4-185-999-11 4-185-999-11 IM WASHER(C), ADJUST
4-185-999-01 4-185-999-01 IM WASHER(C), ADJUST
4-186-447-01 4-186-447-01 INSULATING SHEET (MS)
4-186-572-02 4-186-572-02 INSULATING SHEET A (SY)
4-186-573-01 4-186-573-01 INSULATING SHEET B (SY)
4-186-568-01 4-186-568-01 INSULATING SHEET, LC CONNECTOR
4-186-569-01 4-186-569-01 INSULATING SHEET, LC FLEXIBLE
4-186-530-11 4-186-530-11 KNOB, PW
4-186-530-01 4-186-530-01 KNOB, PW (BLACK)
4-186-841-01 4-186-841-01 LABEL, VCCI/ JAPAN RECYCLE MARK
4-170-837-01 4-170-837-01 LENS REAR CAP
X-2547-947-2 X-2547-947-2 LID ASSY (BLACK), BT
4-186-555-01 4-186-555-01 LIGHT (LC), GUIDE,
4-186-446-01 4-186-446-01 LIGHT (MS), GUIDE,
3-197-324-01 3-197-324-01 M1.7X2.5X3GF(D4X0.5)
4-186-545-01 4-186-545-01 M1.7X4 SPIN
1-471-549-11 1-471-549-11 MAGNET (ND7.9X2.9X1.2)
4-183-856-81 4-183-856-81 MANUAL, INSTRUCTION
4-183-856-05 4-183-856-05 MANUAL, INSTRUCTION
J-6082-735-A J-6082-735-A MASK SHEET SETTING JIG
A-1876-371-B A-1876-371-B MB CONTACT UNIT, N
A-1876-371-A A-1876-371-A MB CONTACT UNIT, N
4-283-999-02 4-283-999-02 MB N PLATE (A)
4-185-962-01 4-185-962-01 MB N PLATE (B)

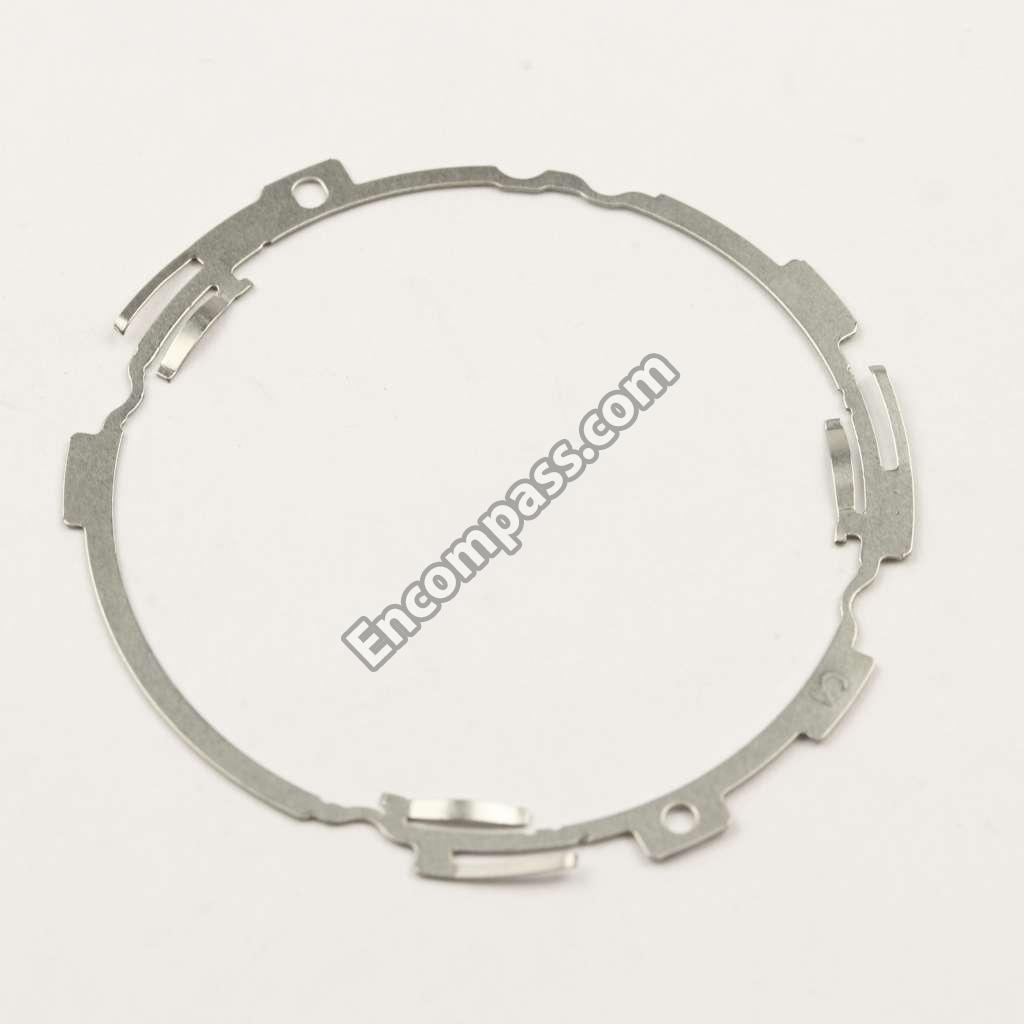

4-185-963-01 4-185-963-01 MB N PLATE SP
4-185-990-01 4-185-990-01 MB SCREW, CHARGE UNIT FIXED
4-185-966-01 4-185-966-01 MB SHEET, MASK
4-185-968-02 4-185-968-02 MB TAPE, MASK SHEET
1-542-757-61 1-542-757-61 MICROPHONE UNIT
A-1782-475-A A-1782-475-A MOUNTED C, BOARD SY-258 SERVICE
A-1773-793-A A-1773-793-A MOUNTED C.BOARD FP-1237
J-6082-738-A J-6082-738-A ND FILTER(ND4)
1-856-102-11 1-856-102-11 OPTICAL FILTER BLOCK(OFB-01-09
1-813-067-61 1-813-067-61 OSCILLATOR, CRYSTAL

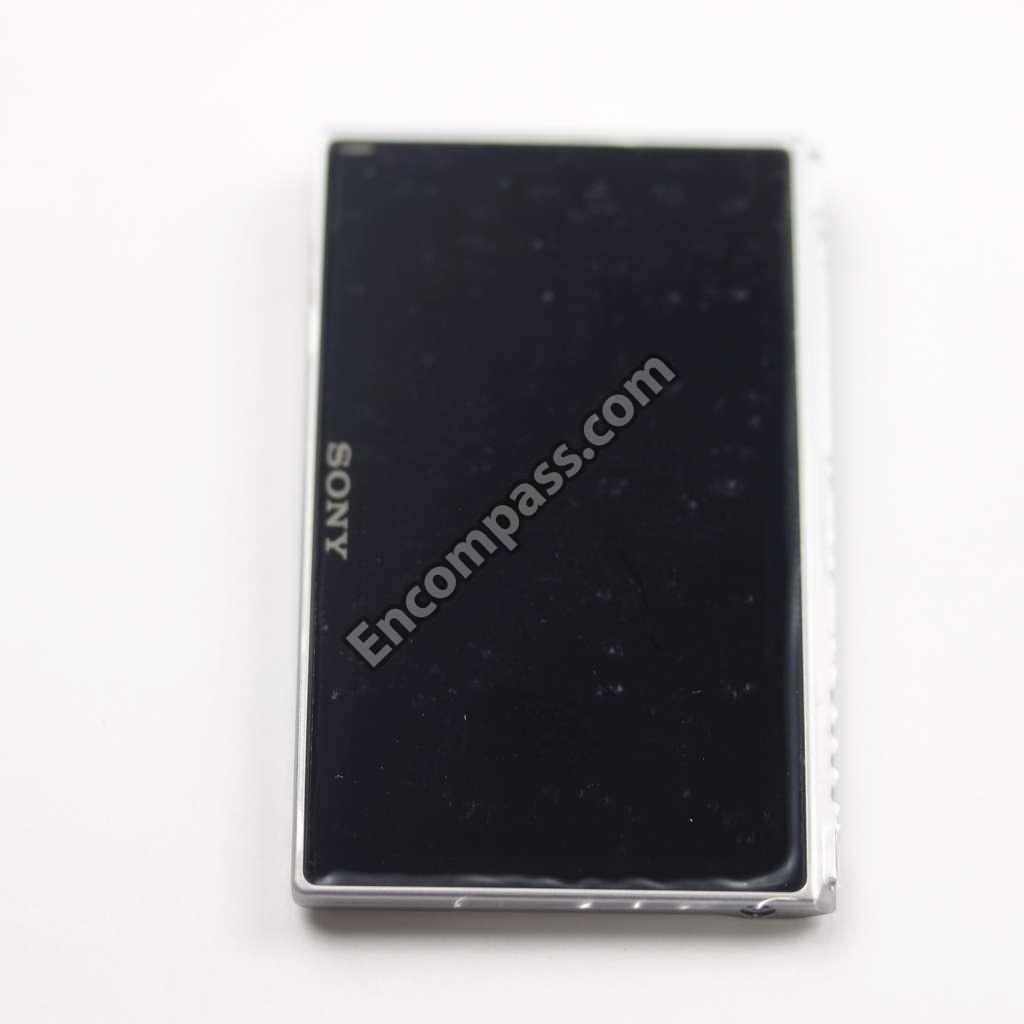

A-1774-561-A A-1774-561-A PANEL BLOCK ASSY

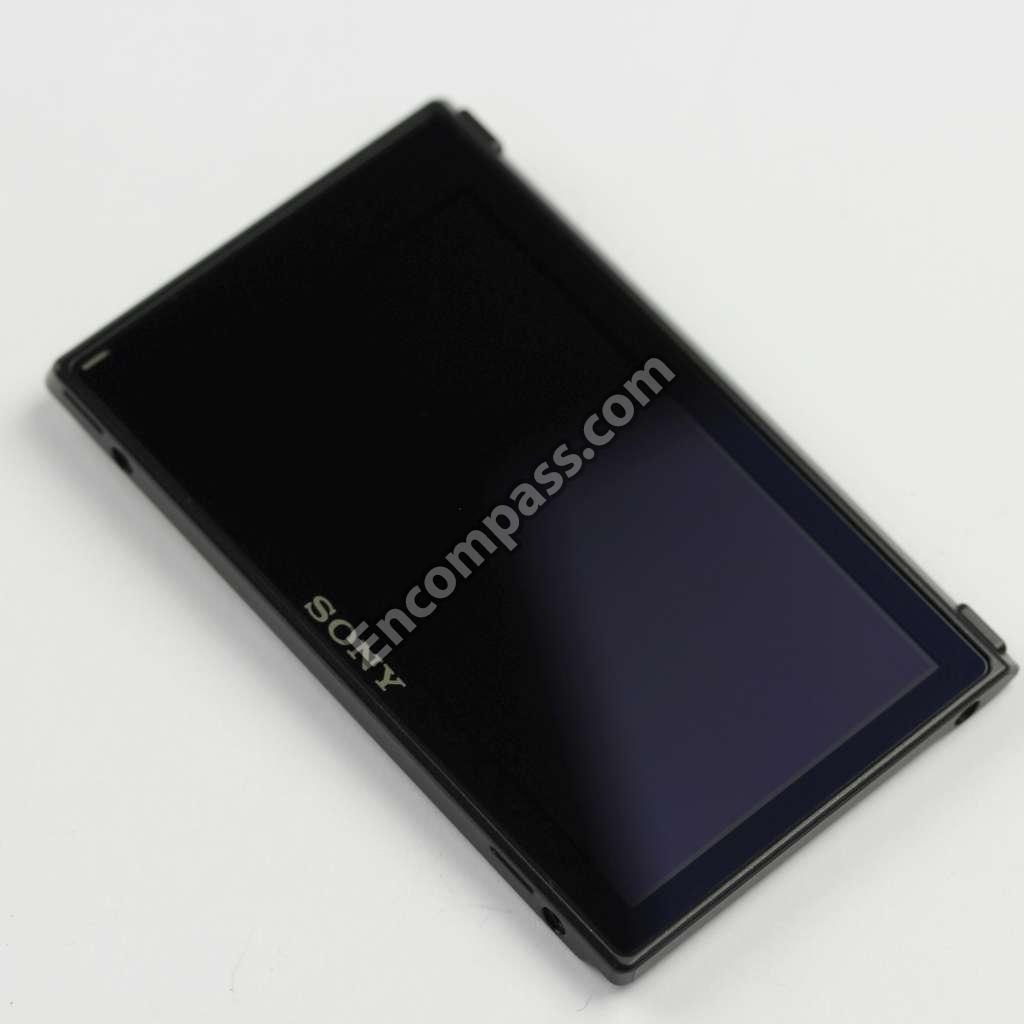

A-1774-560-A A-1774-560-A PANEL BLOCK ASSY TN:PV12NEX505
4-264-032-01 4-264-032-01 PART-NO. +Z M1.4 NEW TORASUTA
X-2547-937-1 X-2547-937-1 PIN ASSY, L LOCK
X-2547-950-1 X-2547-950-1 PIN ASSY, S LOCK
X-2547-938-1 X-2547-938-1 PLATE ASSY, SHOE NUT

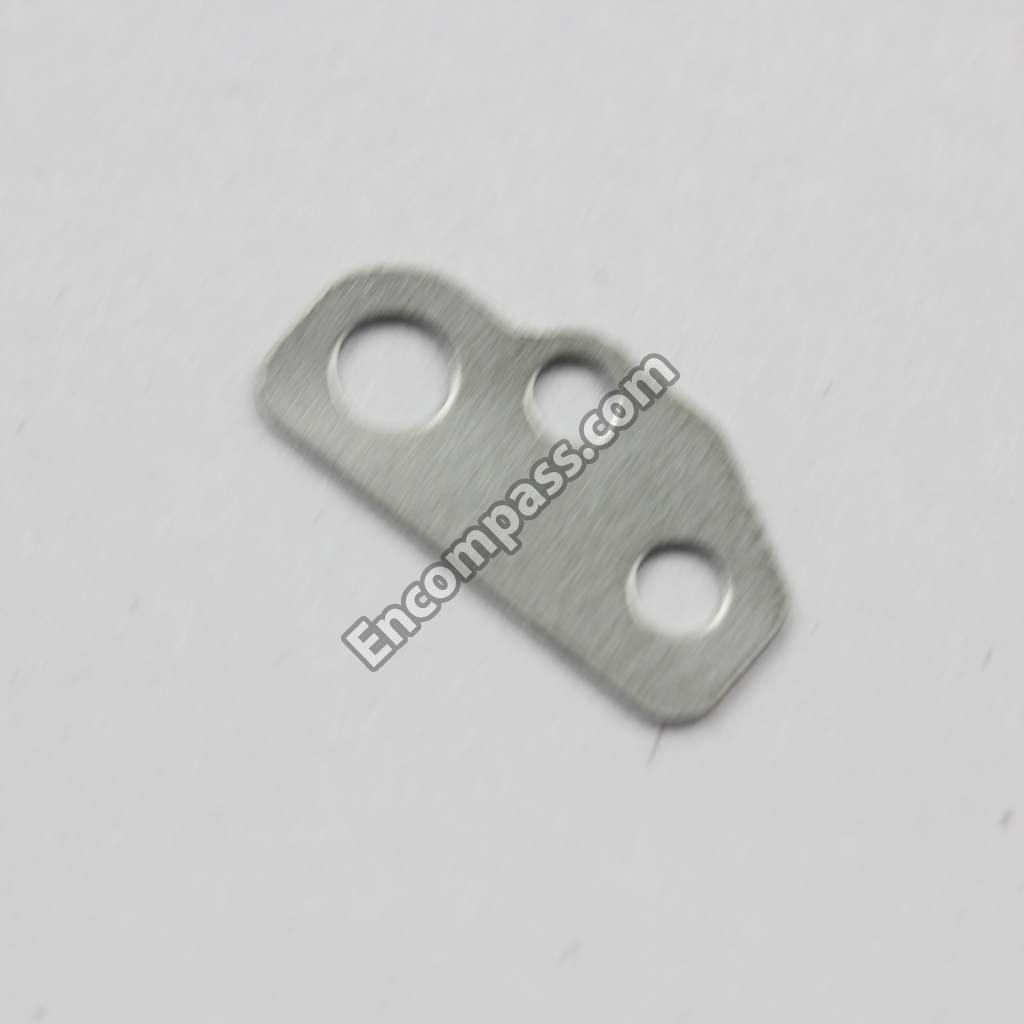

4-186-438-01 4-186-438-01 PLATE, BT LOCK
4-186-543-11 4-186-543-11 PLATE, LOGO
J-6082-737-A J-6082-737-A POSITIONER FOR OLPF BLOCK
1-880-965-11 1-880-965-11 PWB, BT-060 FLEXIBLE
1-880-967-11 1-880-967-11 PWB, FP-1236 FLEXIBLE
1-880-963-11 1-880-963-11 PWB, IS-075 FLEXIBLE
1-880-964-11 1-880-964-11 PWB, IS-076 FLEXIBLE
1-881-220-31 1-881-220-31 PWB, ST-234 FLEXIBLE (USE FOR
4-186-454-01 4-186-454-01 RADIATION SHEET (IS)
1-248-336-11 1-248-336-11 RESISTOR METAL FILM 0.1 (2012)
1-240-735-91 1-240-735-91 RESISTOR, CHIP 3.3M(0603)
4-186-563-01 4-186-563-01 RETAINER, LC FLEXIBLE
4-186-524-01 4-186-524-01 RETAINER, PW KNOB
4-186-528-01 4-186-528-01 RING (BLACK), PW ORNAMENTAL
4-186-528-11 4-186-528-11 RING , PW ORNAMENTAL
4-186-539-01 4-186-539-01 RING, ORNAMENTAL
4-188-735-01 4-188-735-01 SCREW (M1.7)
4-188-736-01 4-188-736-01 SCREW (TP1.4), P2
4-186-556-01 4-186-556-01 SCREW, TRIPOD
1-487-951-11 1-487-951-11 SENSOR
4-186-476-01 4-186-476-01 SHAFT, BT LID
4-273-158-01 4-273-158-01 SHEET (CN FPC)
4-186-540-01 4-186-540-01 SHEET (FRONT), BT SLIDER
4-186-541-01 4-186-541-01 SHEET (HORIZONTAL), BT SLIDER
4-256-166-01 4-256-166-01 SHEET (MAGNET)
4-273-157-01 4-273-157-01 SHEET (SY) (DS), RADIATION
4-186-479-01 4-186-479-01 SHEET, GRIP (REAR) ADHESIVE
4-186-542-01 4-186-542-01 SHEET, GRIP ADHESIVE
4-260-159-01 4-260-159-01 SHEET, LC FLEXIBLE PROTECTION
4-186-571-01 4-186-571-01 SHEET, LC LIGHT INTERCEPTION
4-186-508-01 4-186-508-01 SHEET, LCD ADHESIVE
4-186-527-01 4-186-527-01 SHEET, PW RING AD

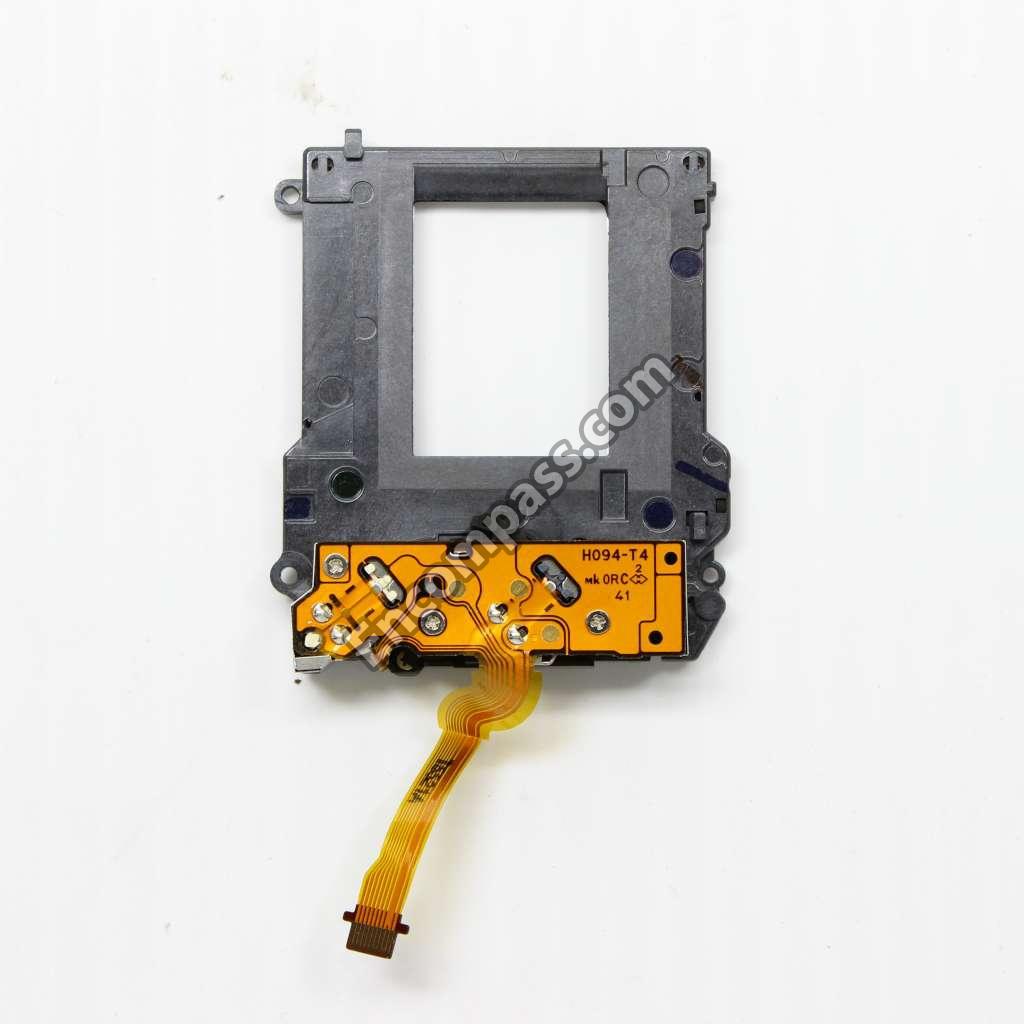

1-487-619-31 1-487-619-31 SHUTTER UNIT (H094)
1-487-619-21 1-487-619-21 SHUTTER UNIT (H094)
1-487-961-11 1-487-961-11 SLANT SENSOR
4-178-124-31 4-178-124-31 SPECIAL (M1.4 (D2.75))
4-178-124-21 4-178-124-21 SPECIAL (M1.4 (D2.75))
4-178-124-11 4-178-124-11 SPECIAL (M1.4 (D2.75))
4-178-124-01 4-178-124-01 SPECIAL (M1.4 (D2.75))
4-186-475-01 4-186-475-01 SPRING, BT LID OPEN
4-186-538-01 4-186-538-01 SPRING, LENS LOCK
4-186-537-01 4-186-537-01 SPRING, PW KNOB
4-188-538-01 4-188-538-01 STRAP (7511), SHOULDER
9-910-999-TF 9-910-999-TF SWITCH BLOCK, CONTROL(SW75110)
6-552-540-01 6-552-540-01 TR HN1A01F
6-552-077-01 6-552-077-01 TR RUE003N02TL
4-186-523-01 4-186-523-01 WINDOW (AF)
4-186-519-01 4-186-519-01 WINDOW (IR) (BLACK)
