Model Image
Manufacturer

Sony

Model Number

OEP5

Description

Olympus Oep-5 Color Video Printer

Interactive Exploded View

Parts List

Part Number Description
7-621-255-65 7-621-255-65 +BVTT 2X10 (S)
1-842-233-11 1-842-233-11 AC INLET (SNAP IN) 3P FASTEN
X-2581-246-1 X-2581-246-1 ASSEMBLY, PLATE SHIELD(P)
A-1551-703-A A-1551-703-A ASSEMBLY, PRESSURE SPOOL
X-2581-351-1 X-2581-351-1 ASSEMBLY,COVER BATTERY
X-3704-817-1 X-3704-817-1 ASSEMBLY,PAPER FLAP
X-2581-245-1 X-2581-245-1 ASSEMBLY,TOP COVER(P)
3-603-423-01 3-603-423-01 BALL BEARING,NON-FLANGED
1-500-112-11 1-500-112-11 BEAD, FERRITE
3-854-416-01 3-854-416-01 BEARING(630)
3-854-445-01 3-854-445-01 BEARING(850)
3-154-532-11 3-154-532-11 BEARING, RADIAL
3-854-437-01 3-854-437-01 BELT,TIMMING(100TN15-3.0T)
3-854-523-02 3-854-523-02 BLOCK,GUIDE,TRAY
3-854-570-02 3-854-570-02 BRACKET(SW)
3-854-486-02 3-854-486-02 BRACKET,LIMITER
4-279-568-02 4-279-568-02 BRACKET,REMOTE
4-279-568-01 4-279-568-01 BRACKET,REMOTE
3-986-622-11 3-986-622-11 BUTTON,POWER(O)
1-504-920-11 1-504-920-11 BUZZER,PIEZOELECTRIC
1-115-416-91 1-115-416-91 C-CAP,U 1000P-25 J CH
1-164-390-91 1-164-390-91 C-CAP,U 330P-50 CH
1-164-315-11 1-164-315-11 C-CAP,U 470P-50 J CH
1-162-924-11 1-162-924-11 C-CAP,U 56P-50 J CH GRM
1-216-823-91 1-216-823-91 C-RES,U 1.5K-1/16W J
1-216-809-91 1-216-809-91 C-RES,U 100-1/16W J
1-216-853-11 1-216-853-11 C-RES,U 470K-1/16W J
1-216-841-91 1-216-841-91 C-RES,U 47K-1/16W J
1-839-003-11 1-839-003-11 CABLE, FLEXIBLE FLAT (14 CORE)
1-831-101-11 1-831-101-11 CABLE, FLEXIBLE FLAT (14 CORE)
1-017-757-11 1-017-757-11 CABLE, FLEXIBLE FLAT (14 CORE)
1-831-091-11 1-831-091-11 CABLE, FLEXIBLE FLAT (18 CORE)
1-831-096-11 1-831-096-11 CABLE, FLEXIBLE FLAT (20 CORE)
1-831-093-11 1-831-093-11 CABLE, FLEXIBLE FLAT (20 CORE)
X-3948-934-5 X-3948-934-5 CABLE, FLEXIBLE FLAT (20 CORE)
1-017-758-11 1-017-758-11 CABLE, FLEXIBLE FLAT (20 CORE)
1-017-756-11 1-017-756-11 CABLE, FLEXIBLE FLAT (20 CORE)
1-831-097-11 1-831-097-11 CABLE, FLEXIBLE FLAT (22 CORE)
1-830-974-11 1-830-974-11 CABLE, FLEXIBLE FLAT (32 CORE)
1-831-094-11 1-831-094-11 CABLE, FLEXIBLE FLAT (40 CORE)
1-967-430-11 1-967-430-11 CABLE, USB
1-112-815-91 1-112-815-91 CAP, CERAMIC 10MF C (1608)
1-165-919-81 1-165-919-81 CAP, CERAMIC 120PF (1005)
1-114-579-11 1-114-579-11 CAP, CERAMIC 220PF U2J (3216)
1-100-159-91 1-100-159-91 CAP, CERAMIC 22MF B (SMD) 3216
1-107-826-11 1-107-826-11 CAP, CHIP CERAMIC 0.1MF B
1-125-891-91 1-125-891-91 CAP, CHIP CERAMIC0.47M
3-854-505-01 3-854-505-01 CAP,EJECTION,TRAY
1-118-345-11 1-118-345-11 CAPACITOR CERAMIC 0.01MF/25V B
1-112-298-91 1-112-298-91 CAPACITOR CERAMIC 1MF B (1608)
1-141-669-21 1-141-669-21 CAPACITOR, ADJ
1-165-884-91 1-165-884-91 CAPACITOR, CERAMIC 2.2MF(1608)
1-100-597-91 1-100-597-91 CAPACITOR, CHIP 0.1MF B 1608
1-112-015-91 1-112-015-91 CAPACITOR, CHIP CERAMIC 47MF B
1-114-499-11 1-114-499-11 CAPACITOR, ELECT 47MF
1-164-227-11 1-164-227-11 CAPACITOR,CERAMIC 0.022MF/25V
1-115-339-11 1-115-339-11 CAPACITOR,CERAMIC 0.1MF/50V
1-162-964-11 1-162-964-11 CAPACITOR,CERAMIC 1000PF/50V B
1-162-927-91 1-162-927-91 CAPACITOR,CERAMIC 100PF/50V CH
1-162-916-11 1-162-916-11 CAPACITOR,CERAMIC 12PF/50V CH
1-162-919-11 1-162-919-11 CAPACITOR,CERAMIC 22PF/50V CH
1-164-846-11 1-164-846-11 CAPACITOR,CHIP CERAMIC 6PF/50V
1-131-661-11 1-131-661-11 CAPACITOR,ELECT 100MF/10V CHIP
1-126-394-11 1-126-394-11 CAPACITOR,ELECT 10MF/16V(CHIP)
1-165-871-11 1-165-871-11 CAPACITOR,ELECT 22MF
1-126-396-11 1-126-396-11 CAPACITOR,ELECT 47MF/16V(CHIP)
3-854-436-01 3-854-436-01 CAPSTAN
A-8279-998-H A-8279-998-H CASSETTE ASSEMBLY,RIBBON
1-535-757-11 1-535-757-11 CHIP, CHECKER (CONNECTOR)
3-955-834-01 3-955-834-01 CLAMP
4-237-065-01 4-237-065-01 CLAMP (L35)
1-419-521-21 1-419-521-21 COIL, COMMON MODE CHOKE
1-400-284-21 1-400-284-21 COIL, COMMON MODE CHOKE
1-216-864-91 1-216-864-91 CONDUCTOR, CHIP(1608)
1-793-175-12 1-793-175-12 CONECTOR, BNC (2P SW TYPE)
1-573-590-22 1-573-590-22 CONNECTOR, (S) TERMINAL 4P
1-793-260-11 1-793-260-11 CONNECTOR, BNC (RECEPTACLE)
1-779-331-61 1-779-331-61 CONNECTOR, FFC/FPC 14P
1-779-333-61 1-779-333-61 CONNECTOR, FFC/FPC 18P
1-779-334-61 1-779-334-61 CONNECTOR, FFC/FPC 20P
1-766-350-61 1-766-350-61 CONNECTOR, FFC/FPC 20P
1-766-352-61 1-766-352-61 CONNECTOR, FFC/FPC 22P
1-816-374-61 1-816-374-61 CONNECTOR, FFC/FPC 40P
1-562-508-11 1-562-508-11 CONNECTOR, MICRO (HOUSING) 6P
1-562-511-11 1-562-511-11 CONNECTOR, MICRO(HOUSING) 9P
1-794-962-31 1-794-962-31 CONNECTOR, SQUARE TYPE(USB 5P)
1-815-194-11 1-815-194-11 CONNECTOR, USB (B)
1-794-848-21 1-794-848-21 CONNECTOR,BOARD TO CABLE(4 PIN
1-556-813-34 1-556-813-34 CORD, POWER
1-556-813-33 1-556-813-33 CORD, POWER
1-556-813-32 1-556-813-32 CORD, POWER
1-967-432-11 1-967-432-11 CORD, WITH COAXIAL CONNECTOR
1-967-431-11 1-967-431-11 CORD, WITH COAXIAL CONNECTOR
1-543-982-12 1-543-982-12 CORE, FERRITE
X-2581-262-1 X-2581-262-1 COVER(P) ASSEMBLY,DOOR
3-854-559-03 3-854-559-03 COVER,CHASSIS
X-2581-247-1 X-2581-247-1 COVER,MS SLOT (P)ASSEMBLY
3-990-271-01 3-990-271-01 COVER,POWER SWITCH
3-854-511-01 3-854-511-01 COVER,SENSOR(R),RIBBON
1-787-185-21 1-787-185-21 D.C. FAN
3-022-410-01 3-022-410-01 DAMPER
X-3608-880-1 X-3608-880-1 DAMPER ASSEMBLY
8-719-053-18 8-719-053-18 DIODE 1SR154-400TE-25
8-719-988-61 8-719-988-61 DIODE 1SS355TE-17
8-719-069-28 8-719-069-28 DIODE 1SS400TE61
8-719-064-52 8-719-064-52 DIODE CL-191YG-CD-T
6-501-381-01 6-501-381-01 DIODE CL-201IR-X-TSL-BC
8-719-989-03 8-719-989-03 DIODE DAN222-TL
6-500-701-01 6-500-701-01 DIODE PGB0010603NR
8-719-058-80 8-719-058-80 DIODE STZ6.8N-T146
8-719-069-60 8-719-069-60 DIODE UDZS-TE17-9.1B
1-805-706-11 1-805-706-11 DISPLAY PANEL, LIQUID CRYSTAL
X-2581-263-2 X-2581-263-2 DOOR(P)ASSEMBLY, RIBBON
3-872-899-01 3-872-899-01 EDGING(CE)
3-854-588-01 3-854-588-01 EDGING(CE)
1-414-445-11 1-414-445-11 FERRITE, EMI (SMD)
1-469-324-21 1-469-324-21 FERRITE, EMI (SMD) (2012)
3-279-508-01 3-279-508-01 FLANGE (BELT)
3-854-417-01 3-854-417-01 FLANGE,BEARING
3-854-461-01 3-854-461-01 FLANGE,IDLER PULLEY
3-854-513-05 3-854-513-05 FLAP,EJECTION,PAPER
3-993-780-01 3-993-780-01 FOOT(PORON MX)
X-3608-879-1 X-3608-879-1 FULCRUM ASSEMBLY
1-576-269-11 1-576-269-11 FUSE CHIP 3.15A/125V (6125)
3-903-976-02 3-903-976-02 GASKET(230)
3-854-422-01 3-854-422-01 GEAR(L),CAM
3-854-423-01 3-854-423-01 GEAR(R),CAM
3-854-473-01 3-854-473-01 GEAR(R),IDLER
3-854-424-01 3-854-424-01 GEAR(S),RIBBON IDLER
3-854-425-01 3-854-425-01 GEAR(T),RIBBON IDLER
3-854-438-01 3-854-438-01 GEAR,BELT,PICKUP
3-854-426-03 3-854-426-03 GEAR,CONNECT
3-854-426-02 3-854-426-02 GEAR,CONNECT
3-854-574-01 3-854-574-01 GEAR,DAMPER
3-854-439-01 3-854-439-01 GEAR,PICKUP
3-854-476-01 3-854-476-01 GEAR,RIBBON
3-854-427-01 3-854-427-01 GEAR,SENSOR
7-640-025-62 7-640-025-62 GREASE,SONY(MULTEMP AC-D)2.5KG
3-854-626-03 3-854-626-03 GUIDE(T),RIBBON
3-854-414-05 3-854-414-05 GUIDE,BOTTOM PAPER
3-854-414-04 3-854-414-04 GUIDE,BOTTOM PAPER
3-854-514-06 3-854-514-06 GUIDE,CENTER,PAPER
3-854-507-07 3-854-507-07 GUIDE,FEED
4-279-553-01 4-279-553-01 GUIDE,FFC
3-854-561-02 3-854-561-02 GUIDE,PAPER(B)
1-962-976-13 1-962-976-13 HARNESS BOTTOM
1-962-965-13 1-962-965-13 HARNESS MA(D)-MEC(P)
1-962-975-12 1-962-975-12 HARNESS POS_MTR0
1-962-979-13 1-962-979-13 HARNESS POS_MTR1
1-962-964-12 1-962-964-12 HARNESS POWER-HEAD
1-962-970-12 1-962-970-12 HARNESS PP_EJ
1-962-978-12 1-962-978-12 HARNESS PP_F_LED
1-962-973-13 1-962-973-13 HARNESS PP_IN_LED
1-962-971-11 1-962-971-11 HARNESS PP_IN_TR
1-962-968-13 1-962-968-13 HARNESS RBN_TR
1-963-939-12 1-963-939-12 HARNESS, SUB (MA-PANEL)
1-962-980-12 1-962-980-12 HARNESS, SUB (MEC_EX)
1-962-972-13 1-962-972-13 HARNESS, SUB (POSITION)
1-963-938-12 1-963-938-12 HARNESS, SUB (POWER-MA(DM))
1-963-937-12 1-963-937-12 HARNESS, SUB (POWER-MA(PNX))
1-962-966-12 1-962-966-12 HARNESS, SUB (PP_R_LED)
1-962-977-13 1-962-977-13 HARNESS, SUB (PP_R_TR)
1-962-967-13 1-962-967-13 HARNESS, SUB (RBN_LED)
1-962-974-12 1-962-974-12 HARNESS, SUB (RBN_MTR)
1-478-833-11 1-478-833-11 HEAD, THERMAL (TPH172R1)
3-854-467-03 3-854-467-03 HEAT SINK
1-550-104-21 1-550-104-21 HOLDER,BATTERY
3-991-457-01 3-991-457-01 HOLDER,CORE(L)
3-854-592-03 3-854-592-03 HOLDER,MEC
3-854-510-05 3-854-510-05 HOLDER,ROLLER,PRESS
3-854-510-04 3-854-510-04 HOLDER,ROLLER,PRESS
3-701-822-00 3-701-822-00 HOLDER,WIRE
1-569-619-11 1-569-619-11 HOUSING, CONNECTOR 4P
6-708-816-01 6-708-816-01 IC ADV7403BSTZ-110
8-759-654-91 8-759-654-91 IC CXD9137R
6-720-875-01 6-720-875-01 IC EM6AB160TSD-5G
6-600-805-01 6-600-805-01 IC RPM7140-H9R
6-713-520-01 6-713-520-01 IC SLA7076MPR-LF2155
8-759-234-04 8-759-234-04 IC TA7267BP
8-759-075-70 8-759-075-70 IC TA75S393F
8-759-334-77 8-759-334-77 IC TA8428K
6-706-484-01 6-706-484-01 IC TC7SH04FU(T5RSOYJF)
6-706-704-01 6-706-704-01 IC TLV3402IDGKR
6-600-064-01 6-600-064-01 IC TPS2041ADR
6-705-879-01 6-705-879-01 IC XC62EP1602MR
4-270-211-01 4-270-211-01 INDIVIDUAL CARTON
1-412-975-31 1-412-975-31 INDUCTOR (SMALL TYPE) 0.47UH
1-412-946-11 1-412-946-11 INDUCTOR 3.9UH (2520)
1-469-555-21 1-469-555-21 INDUCTOR, CHIP 10UH (LB2016)
1-770-206-11 1-770-206-11 JACK
1-566-822-21 1-566-822-21 JACK
3-218-172-01 3-218-172-01 LABEL, CAUTION
1-811-834-11 1-811-834-11 LCD MODULE
8-719-047-66 8-719-047-66 LED CL-190D-CD
8-719-045-75 8-719-045-75 LED CL-200IR-X-TU
3-854-575-21 3-854-575-21 LEVER(RIBBON)
A-5002-526-A A-5002-526-A LIMITER (S) ASSEMBLY
A-8286-000-C A-8286-000-C LIMITTER(S)ASSEMBLY
A-8286-000-B A-8286-000-B LIMITTER(S)ASSEMBLY
A-8286-001-F A-8286-001-F LIMITTER(T)ASSEMBLY
A-8286-001-D A-8286-001-D LIMITTER(T)ASSEMBLY
A-5002-527-A A-5002-527-A LIMITTER(T)ASSEMBLY
3-854-478-01 3-854-478-01 LOCK,RIBBON
3-854-474-01 3-854-474-01 LOCK,SUPPLY
3-736-779-21 3-736-779-21 MAGNET
4-258-624-31 4-258-624-31 MANUAL (1), INSTRUCTION
4-258-624-15 4-258-624-15 MANUAL (1), INSTRUCTION
4-258-624-14 4-258-624-14 MANUAL (1), INSTRUCTION
4-258-624-11 4-258-624-11 MANUAL (1), INSTRUCTION
4-258-625-31 4-258-625-31 MANUAL (2), INSTRUCTION
4-258-625-14 4-258-625-14 MANUAL (2), INSTRUCTION
4-258-625-11 4-258-625-11 MANUAL (2), INSTRUCTION

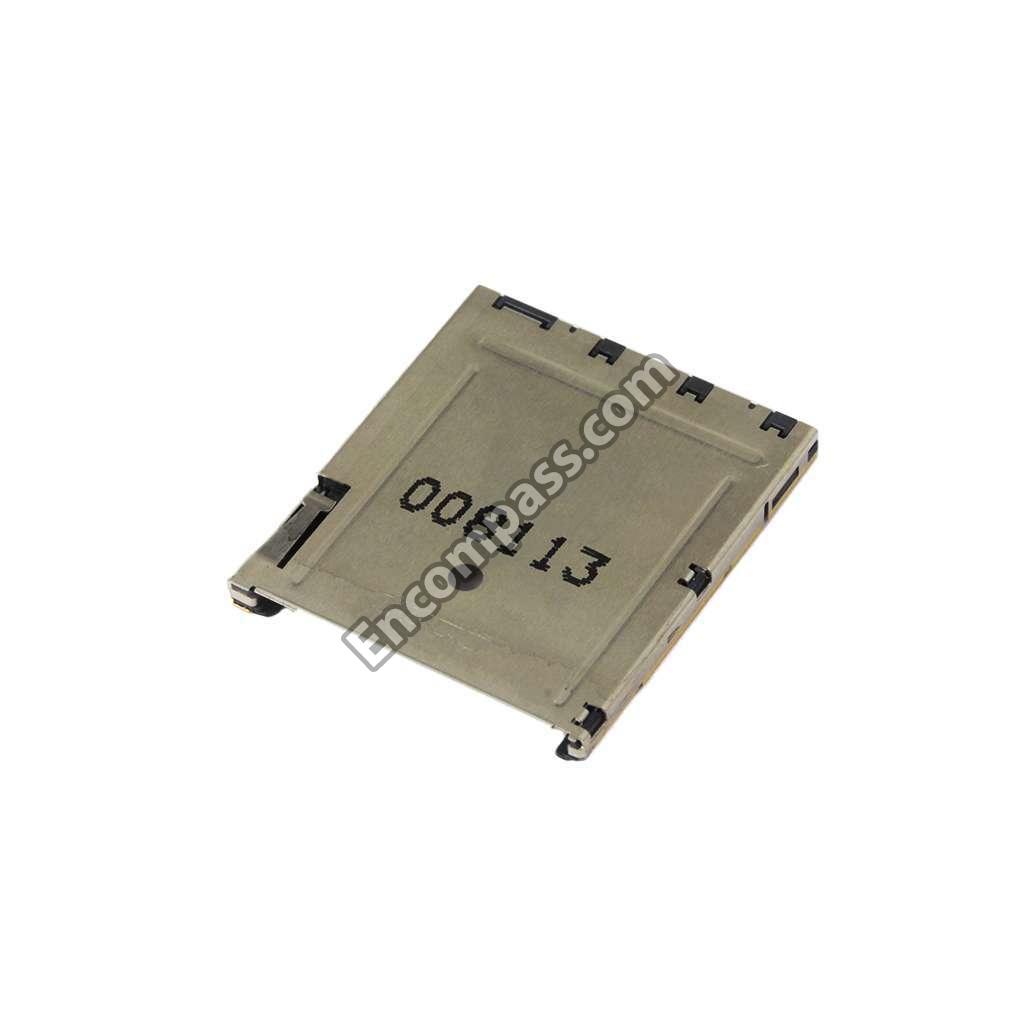

1-819-611-22 1-819-611-22 MEMORY STICK DUO CONNECTOR 10P
3-990-302-01 3-990-302-01 MINI FLAT CABLE CLAMP
1-787-185-11 1-787-185-11 MOTOR, FAN
1-787-184-11 1-787-184-11 MOTOR, STEPPING
A-1782-152-B A-1782-152-B MOUNT, DP-468
A-1782-148-A A-1782-148-A MOUNT, IF-1117
A-1782-149-A A-1782-149-A MOUNT, IF-1118
A-1782-150-A A-1782-150-A MOUNT, IF-1126
A-1782-151-A A-1782-151-A MOUNT, KY-659
A-1782-147-A A-1782-147-A MOUNT, MA-180
A-1059-612-A A-1059-612-A MOUNTED C. BOARD, EX-970
A-1059-624-A A-1059-624-A MOUNTED C. BOARD, SE-747
A-1059-642-A A-1059-642-A MOUNTED C. BOARD, SE-748
A-1059-644-A A-1059-644-A MOUNTED C. BOARD, SE-749
A-1059-646-A A-1059-646-A MOUNTED C. BOARD, SE-750
A-1059-648-A A-1059-648-A MOUNTED C. BOARD, SE-751
A-1059-650-A A-1059-650-A MOUNTED C. BOARD, SE-752
A-1059-656-A A-1059-656-A MOUNTED C. BOARD, SE-755
A-1059-658-A A-1059-658-A MOUNTED C. BOARD, SE-756
A-1059-660-A A-1059-660-A MOUNTED C. BOARD, SE-762
A-1059-666-A A-1059-666-A MOUNTED C. BOARD, SW-1200
A-1159-024-A A-1159-024-A MOUNTED C.BOARD, CCM-53G
A-1159-021-C A-1159-021-C MOUNTED C.BOARD, MEC-24G
A-1059-622-A A-1059-622-A MOUNTED C.BOARD, SE-746
A-1059-652-A A-1059-652-A MOUNTED C.BOARD, SE-753
A-1059-654-A A-1059-654-A MOUNTED C.BOARD, SE-754
A-1059-614-A A-1059-614-A MOUNTED C.BOARD, SU-84
A-1059-616-A A-1059-616-A MOUNTED C.BOARD, SU-85
A-1059-618-A A-1059-618-A MOUNTED C.BOARD, SU-86
A-1059-620-A A-1059-620-A MOUNTED C.BOARD, SU-87
4-279-576-01 4-279-576-01 MS BRACKET
7-684-026-04 7-684-026-04 NUT M6 TYPE2 (EP-FE/ZN/CM2)
A-1773-935-A A-1773-935-A NVX-M514T4(WW1)
A-5013-442-B A-5013-442-B PAD ASSEMBLY,SEPARATION(OEP-6)
4-278-508-02 4-278-508-02 PANEL, REAR
4-278-508-01 4-278-508-01 PANEL, REAR
3-986-620-11 3-986-620-11 PANEL,FRONT(O)
A-1821-862-A A-1821-862-A PAPER SUPPLY TRAY ASSEMBLY
6-600-670-02 6-600-670-02 PHOTO INTERRUPTER RPI-352C1N
6-600-670-01 6-600-670-01 PHOTO INTERRUPTER RPI-352C1N
1-819-410-11 1-819-410-11 PIN, CONNECTOR (1.5MM) 2P
1-819-411-11 1-819-411-11 PIN, CONNECTOR (1.5MM) 3P
1-819-412-11 1-819-412-11 PIN, CONNECTOR (1.5MM) 4P
1-764-099-11 1-764-099-11 PIN, CONNECTOR (PC BOARD) 14P
1-764-087-21 1-764-087-21 PIN, CONNECTOR (PC BOARD) 14P
1-695-480-21 1-695-480-21 PIN, CONNECTOR (PC BOARD) 2P
1-695-479-11 1-695-479-11 PIN, CONNECTOR (PC BOARD) 2P
1-565-874-11 1-565-874-11 PIN, CONNECTOR (PC BOARD) 2P
1-774-730-21 1-774-730-21 PIN, CONNECTOR (PC BOARD) 3P
1-764-088-11 1-764-088-11 PIN, CONNECTOR (PC BOARD) 3P
1-774-863-11 1-774-863-11 PIN, CONNECTOR (PC BOARD) 8P
1-580-055-21 1-580-055-21 PIN, CONNECTOR 2P
1-580-056-21 1-580-056-21 PIN,CONNECTOR 3P
1-750-005-11 1-750-005-11 PIN,CONNECTOR 4P
1-565-875-11 1-565-875-11 PIN,CONNECTOR(PC BOARD)3P
3-854-466-01 3-854-466-01 PIN,OFFSET
3-703-358-06 3-703-358-06 PIN,PARALLEL (2X14) (STEEL)
3-869-987-02 3-869-987-02 PLATE,FRONT(A)
3-854-446-01 3-854-446-01 PLATE,INTER LOCK
3-854-435-01 3-854-435-01 PLATE,PLATEN EARTH
3-854-568-02 3-854-568-02 PLATE,PROTECTION
3-854-585-01 3-854-585-01 PLATE,SWITCH
3-854-428-01 3-854-428-01 PLATEN
3-854-419-03 3-854-419-03 PULLEY,CAPSTAN
3-854-462-02 3-854-462-02 PULLEY,IDLER
3-854-443-05 3-854-443-05 RAIL(L),RIBBON
3-854-440-05 3-854-440-05 RAIL(L),TRAY
3-854-440-04 3-854-440-04 RAIL(L),TRAY
3-854-444-05 3-854-444-05 RAIL(R),RIBBON
3-854-441-04 3-854-441-04 RAIL(R),TRAY
3-854-441-03 3-854-441-03 RAIL(R),TRAY
1-468-611-15 1-468-611-15 REGULATOR, SWITCHING
1-468-611-14 1-468-611-14 REGULATOR, SWITCHING
1-755-381-11 1-755-381-11 RELAY
1-216-813-11 1-216-813-11 RESISTOR, CHIP 220 1/10W 1608
1-216-821-91 1-216-821-91 RESISTOR,CHIP 1.0K 1/10W(1608)
1-218-851-11 1-218-851-11 RESISTOR,CHIP 1.5K 1/10W(1608)
1-218-871-11 1-218-871-11 RESISTOR,CHIP 10K 1/10W (1608)
1-216-833-91 1-216-833-91 RESISTOR,CHIP 10K 1/10W (1608)
1-218-827-11 1-218-827-11 RESISTOR,CHIP 150 1/10W (1608)
1-216-857-11 1-216-857-11 RESISTOR,CHIP 1M 1/10W(1608)
1-216-825-11 1-216-825-11 RESISTOR,CHIP 2.2K 1/10W 1608
1-218-879-11 1-218-879-11 RESISTOR,CHIP 22K 1/10W (1608)
1-216-837-11 1-216-837-11 RESISTOR,CHIP 22K 1/16W 1608
1-218-833-11 1-218-833-11 RESISTOR,CHIP 270 1/10W (1608)
1-216-803-11 1-216-803-11 RESISTOR,CHIP 33 1/10W (1608)
1-218-835-11 1-218-835-11 RESISTOR,CHIP 330 1/10W (1608)
1-218-883-11 1-218-883-11 RESISTOR,CHIP 33K 1/10W (1608)
1-211-983-11 1-211-983-11 RESISTOR,CHIP 39 1/10W (1608)
NSI NSI RESISTOR,CHIP 390 1/10W (1608)
1-216-829-11 1-216-829-11 RESISTOR,CHIP 4.7K 1/10W(1608)
1-216-805-11 1-216-805-11 RESISTOR,CHIP 47 1/10W
1-211-985-11 1-211-985-11 RESISTOR,CHIP 47 1/10W (1608)
1-216-817-91 1-216-817-91 RESISTOR,CHIP 470 1/10W 1608
1-218-841-11 1-218-841-11 RESISTOR,CHIP 560 1/10W (1608)
1-216-819-11 1-216-819-11 RESISTOR,CHIP 680 1/10W (1608)
3-854-464-02 3-854-464-02 RETAINER,FAN
3-854-468-01 3-854-468-01 RETAINER,HARNESS
3-854-450-01 3-854-450-01 RETAINER,MODE
3-854-469-02 3-854-469-02 RETAINER,RIBBON SENSOR
7-624-108-04 7-624-108-04 RING,RETAINING;E-TYPE 4(STEEL)
3-854-555-01 3-854-555-01 ROD,POWER SWITCH
3-854-448-01 3-854-448-01 ROLLER,PAPER GUIDE
3-854-442-01 3-854-442-01 ROLLER,PICKUP
3-855-704-02 3-855-704-02 ROLLER,PINCH
3-854-508-01 3-854-508-01 ROLLER,PRESS
3-854-465-01 3-854-465-01 ROLLER,RIBBON
3-991-836-01 3-991-836-01 ROLLER,RIBBON TENSION
3-854-456-01 3-854-456-01 ROLLER,TENSION
4-951-620-62 4-951-620-62 SCREW (2.6)
3-080-203-42 3-080-203-42 SCREW (M2), NEW TRUSTER, P2
3-855-700-01 3-855-700-01 SCREW +B M2.5 EG GRIP
7-685-646-79 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
7-685-861-09 7-685-861-09 SCREW +BVTT 2.6X5(EP-FE/ZN/CM2
7-685-755-04 7-685-755-04 SCREW +BVTT 3X14 (S)
7-628-254-00 7-628-254-00 SCREW +PS 2.6X5
7-682-649-09 7-682-649-09 SCREW +PS 3X10
7-682-645-04 7-682-645-04 SCREW +PS 3X4 (ST)
7-682-647-09 7-682-647-09 SCREW +PS 3X6(EP-FE/ZNBK/CM2)
7-628-254-40 7-628-254-40 SCREW +PSW 2.6X12(EP-FE/ZNBK/C
7-628-254-10 7-628-254-10 SCREW +PSW 2.6X6(EP-FE/ZNBK/CM
7-621-759-65 7-621-759-65 SCREW +PSW 2.6X8(EP-FE/ZN/CM2)
7-682-947-09 7-682-947-09 SCREW +PSW 3X6
7-682-961-09 7-682-961-09 SCREW +PSW 4X8
7-621-773-86 7-621-773-86 SCREW +PTT 2.6X4 (S)
4-644-493-11 4-644-493-11 SCREW(M2.6X4), LOCK ACE
4-886-821-11 4-886-821-11 SCREW, M3 CASE STOPPER
4-644-493-13 4-644-493-13 SCREW, NEW TRUSTER (M2.6)
4-644-493-12 4-644-493-12 SCREW, NEW TRUSTER (M2.6)
7-685-133-19 7-685-133-19 SCREW,+BTP2.6X6(EP-FE/ZNBK/CM2
7-685-875-09 7-685-875-09 SCREW,+BVTT 3X14(EP-FE/ZNBK/CM
7-621-759-40 7-621-759-40 SCREW,+PSW 2.6X6(EP-FE/ZN/CM2)
7-621-775-10 7-621-775-10 SCREW,+PTT 2X4(EP-FE/ZNBK/CM2)
3-854-556-01 3-854-556-01 SCREW,COVER
7-627-556-58 7-627-556-58 SCREW,PRECISION +P2.6X5
3-854-429-01 3-854-429-01 SHAFT,CONNECT
3-854-430-01 3-854-430-01 SHAFT,HEAD FULCRUM
3-990-822-01 3-990-822-01 SHAFT,PAPER FLAP
4-279-552-01 4-279-552-01 SHEET INSULATION
3-854-806-03 3-854-806-03 SHIELD PLATE,MA
3-854-806-02 3-854-806-02 SHIELD PLATE,MA
1-562-650-11 1-562-650-11 SOCKET, CONNECTOR 8P
1-565-316-21 1-565-316-21 SOCKET,CONNECTION 25P
1-562-645-11 1-562-645-11 SOCKET,CONNECTOR 3P
3-854-449-01 3-854-449-01 SPACER,CAPSTAN
3-854-447-01 3-854-447-01 SPACER,PLATEN
3-854-758-01 3-854-758-01 SPRING(B)
3-854-584-01 3-854-584-01 SPRING(RIBBON)
3-854-509-01 3-854-509-01 SPRING,COMPRESSION
3-854-558-01 3-854-558-01 SPRING,COMPRESSION(ROD)
3-863-308-01 3-863-308-01 SPRING,EXTENSION
3-855-949-02 3-855-949-02 SPRING,EXTENSION
3-855-703-01 3-855-703-01 SPRING,EXTENSION
3-855-702-01 3-855-702-01 SPRING,EXTENSION
3-854-532-01 3-854-532-01 SPRING,EXTENSION
3-854-528-01 3-854-528-01 SPRING,EXTENSION
3-854-518-01 3-854-518-01 SPRING,EXTENSION
3-854-512-01 3-854-512-01 SPRING,TORSION,FLAP EJECTION
3-854-775-02 3-854-775-02 STATIC ELIMINATOR
3-854-563-02 3-854-563-02 STAY,BOTTOM(L)
3-854-565-01 3-854-565-01 STAY,BOTTOM(R)
3-854-515-03 3-854-515-03 STAY,CENTER
3-854-562-03 3-854-562-03 STAY,CHASSIS
3-854-420-02 3-854-420-02 STAY,FRONT CONER
4-279-564-02 4-279-564-02 STAY,REAR CORNER
4-279-564-01 4-279-564-01 STAY,REAR CORNER
3-854-421-04 3-854-421-04 STAY,TOP
3-854-566-03 3-854-566-03 STAY,TOP(R)
7-624-105-04 7-624-105-04 STOP RING 2.3, TYPE -E
7-624-106-04 7-624-106-04 STOP RING, TYPE-E3(CZN-N4)
3-660-004-01 3-660-004-01 STOPPER,ROD
X-3608-872-1 X-3608-872-1 SUB ASSEMBLY,ARM(L),PICKUP
X-3608-873-1 X-3608-873-1 SUB ASSEMBLY,ARM(R),PICKUP
A-8286-019-B A-8286-019-B SUB ASSEMBLY,CHASSIS BASE
X-3608-865-1 X-3608-865-1 SUB ASSEMBLY,DC MOTOR(RF)
X-3608-878-1 X-3608-878-1 SUB ASSEMBLY,DC MOTOR(RK)
X-3608-861-5 X-3608-861-5 SUB ASSEMBLY,HEAD ARM(L)
X-3608-862-5 X-3608-862-5 SUB ASSEMBLY,HEAD ARM(R)
X-3608-874-1 X-3608-874-1 SUB ASSEMBLY,LEVER,LIFT PAPER
X-3608-876-6 X-3608-876-6 SUB ASSEMBLY,MAIN CHASSIS
X-3608-857-4 X-3608-857-4 SUB ASSEMBLY,MODE LEVER(L)
X-3608-858-5 X-3608-858-5 SUB ASSEMBLY,MODE LEVER(R)
X-3608-867-1 X-3608-867-1 SUB ASSEMBLY,PINCH ARM(L)
X-3608-868-1 X-3608-868-1 SUB ASSEMBLY,PINCH ARM(R)
X-3608-871-2 X-3608-871-2 SUB ASSEMBLY,STAY,BOTTOM
X-3608-860-2 X-3608-860-2 SUB ASSEMBLY,STP MOTOR BRACKET
X-3608-877-2 X-3608-877-2 SUB ASSEMBLY,SWING
A-5007-490-A A-5007-490-A SUB ASSEMBLY,SWING
X-3608-859-2 X-3608-859-2 SUB ASSEMBLY,TENSION ARM
X-3608-875-1 X-3608-875-1 SUB ASSEMBLY,TENSION ARM(S)
X-3608-870-3 X-3608-870-3 SUB ASSEMBLY,TRAY,LATCH
1-963-026-11 1-963-026-11 SUB HARNESS
1-571-433-21 1-571-433-21 SWITCH, AC POWER PUSH
1-572-988-11 1-572-988-11 SWITCH, MICRO
1-572-595-11 1-572-595-11 SWITCH,TACTILE (REFLOW TYPE)
3-736-363-32 3-736-363-32 TAPPING B2X4
3-990-273-11 3-990-273-11 TERMINAL, P.E.
3-990-273-01 3-990-273-01 TERMINAL, P.E.
1-803-383-11 1-803-383-11 THERMISTOR (103KT1608-1P)
3-854-460-01 3-854-460-01 TIMING BELT(100TN10-5.0T)
3-854-457-01 3-854-457-01 TIMING BELT(220TN10-5.0T)
3-854-479-01 3-854-479-01 TORSION SPRING
3-854-477-01 3-854-477-01 TORSION SPRING
8-729-026-53 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR
8-729-820-86 8-729-820-86 TRANSISTOR 2SB1121-ST
8-729-209-78 8-729-209-78 TRANSISTOR 2SC2873Y-TE12R
U-0013-770-U U-0013-770-U TRANSISTOR 2SC4081-R
6-550-545-01 6-550-545-01 TRANSISTOR 2SC4617FTLQ
8-729-140-75 8-729-140-75 TRANSISTOR 2SD999-CLOCK
6-550-988-01 6-550-988-01 TRANSISTOR CPT-184S-C-TS-BCD
6-550-794-01 6-550-794-01 TRANSISTOR CPT-184S-C-TU-BCD
8-729-027-52 8-729-027-52 TRANSISTOR DTC124EKA-T146
8-729-928-82 8-729-928-82 TRANSISTOR DTC144EE-TL
6-550-376-01 6-550-376-01 TRANSISTOR UMX1N-TN
1-813-213-21 1-813-213-21 VIBRATOR, CERAMIC
1-795-838-21 1-795-838-21 VIBRATOR, CERAMIC
1-781-525-11 1-781-525-11 VIBRATOR, CRYSTAL
7-623-425-07 7-623-425-07 WASHER LW 6 (TYPE B)
3-696-510-01 3-696-510-01 WASHER(3),STOPPER (PLA)
3-669-596-01 3-669-596-01 WASHER,2.3 (PLA)
3-854-434-02 3-854-434-02 WORM(M) WHEEL
3-854-475-01 3-854-475-01 WORM(R) WHEEL
Main Menu x
