Sony

Model Number

PAA200

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-217-337-00 1-217-337-00 7W 220OHM WIREWOUND RESIS
2-528-202-00 2-528-202-00 ADAPTER (A),MIC
2-528-201-00 2-528-201-00 ADAPTER (B),MIC
4-902-701-00 4-902-701-00 CARTON,PA-A200
1-421-649-11 1-421-649-11 COIL,TROIDAL
4-902-705-00 4-902-705-00 CUSHION (FRONT),LOWER
4-902-703-00 4-902-703-00 CUSHION (FRONT),UPPER
4-902-706-00 4-902-706-00 CUSHION (REAR),LOWER
4-902-704-00 4-902-704-00 CUSHION (REAR),UPPER
8-719-109-89 8-719-109-89 DIODE HZ6A1
4-902-719-00 4-902-719-00 ESCUTCHEON (B),KNOB
1-532-719-11 1-532-719-11 FUSE,GLASS TUBE
1-527-724-11 1-527-724-11 FUSE,TEMPERATURE
8-719-907-21 8-719-907-21 HZ12C1,DIODE
8-719-109-93 8-719-109-93 HZ6C1,DIODE
1-507-926-11 1-507-926-11 JACK,PIN 6P
X-4902-703-0 X-4902-703-0 KNOB A ASSY,CONTROL
A-4388-368-A A-4388-368-A MCB,PA
1-600-858-00 1-600-858-00 PCB,MIC W/D
1-564-224-00 1-564-224-00 PIN,CONNECTOR
1-564-225-00 1-564-225-00 PIN,CONNECTOR

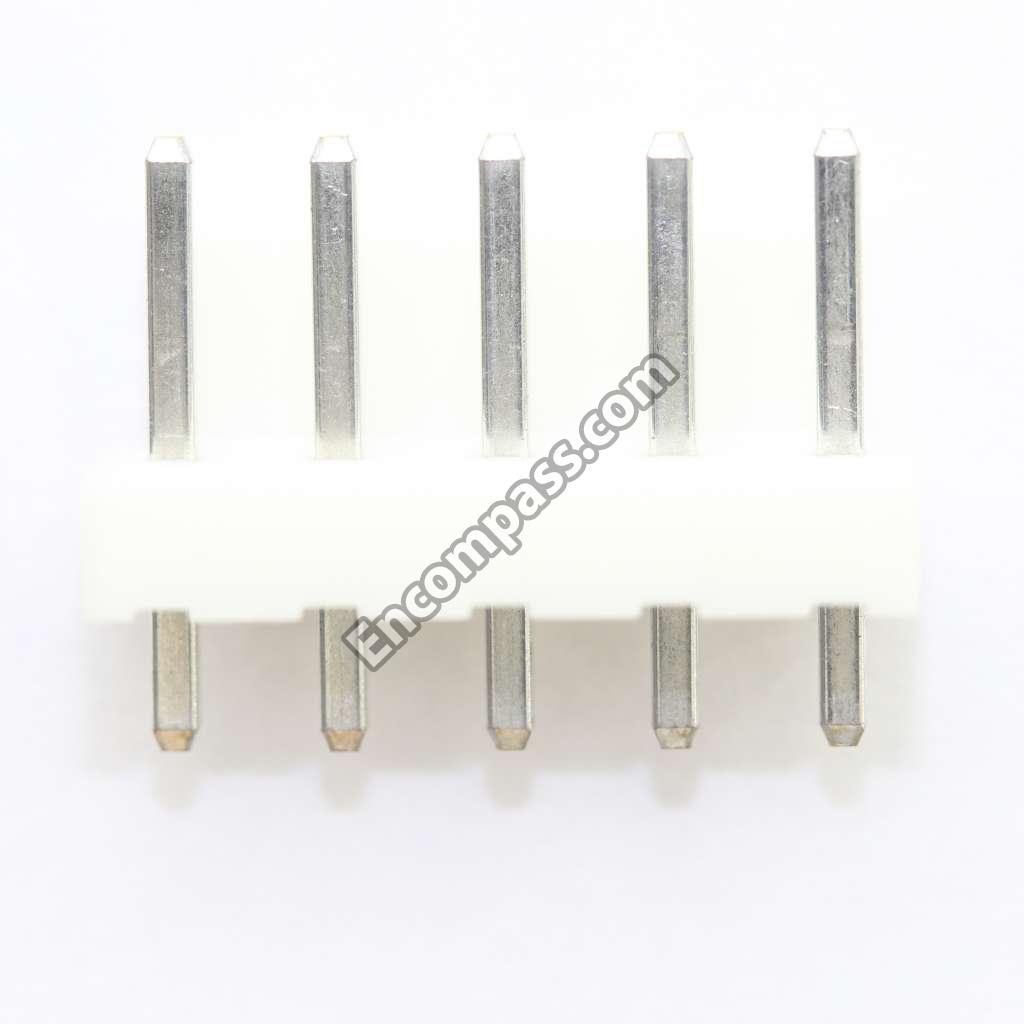

1-564-242-00 1-564-242-00 PIN,CONNECTOR
1-564-217-00 1-564-217-00 PIN,CONNECTOR
1-564-229-00 1-564-229-00 PIN,CONNECTOR 10P
1-564-400-11 1-564-400-11 PIN,CONNECTOR 2P
1-564-226-00 1-564-226-00 PIN,CONNECTOR 5P
1-564-227-00 1-564-227-00 PIN,CONNECTOR 6P
1-564-401-11 1-564-401-11 PIN,CONNECTOR 7P
4-902-729-00 4-902-729-00 PLATE (C),JACK
1-230-308-00 1-230-308-00 RESISTOR VAR 100K/100K
1-230-307-00 1-230-307-00 RESISTOR VAR 250K
1-230-310-00 1-230-310-00 RESISTOR VAR 50K/50K
4-882-768-02 4-882-768-02 SCREW,BUTTON HEAD
1-554-686-00 1-554-686-00 SIWTCH,PUSH 2 KEY
8-719-938-68 8-719-938-68 SLP435B,DIODE
1-508-199-11 1-508-199-11 SOCKET
1-562-402-11 1-562-402-11 SOCKET,CONNECTOR 7P
4-902-702-00 4-902-702-00 SPACER
4-902-711-00 4-902-711-00 SUPPORT
1-459-280-00 1-459-280-00 SWITCHING COIL
1-447-752-11 1-447-752-11 TRANSFORMER,POWER
