Model Image
Manufacturer

Sony

Model Number

PEGT615C

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

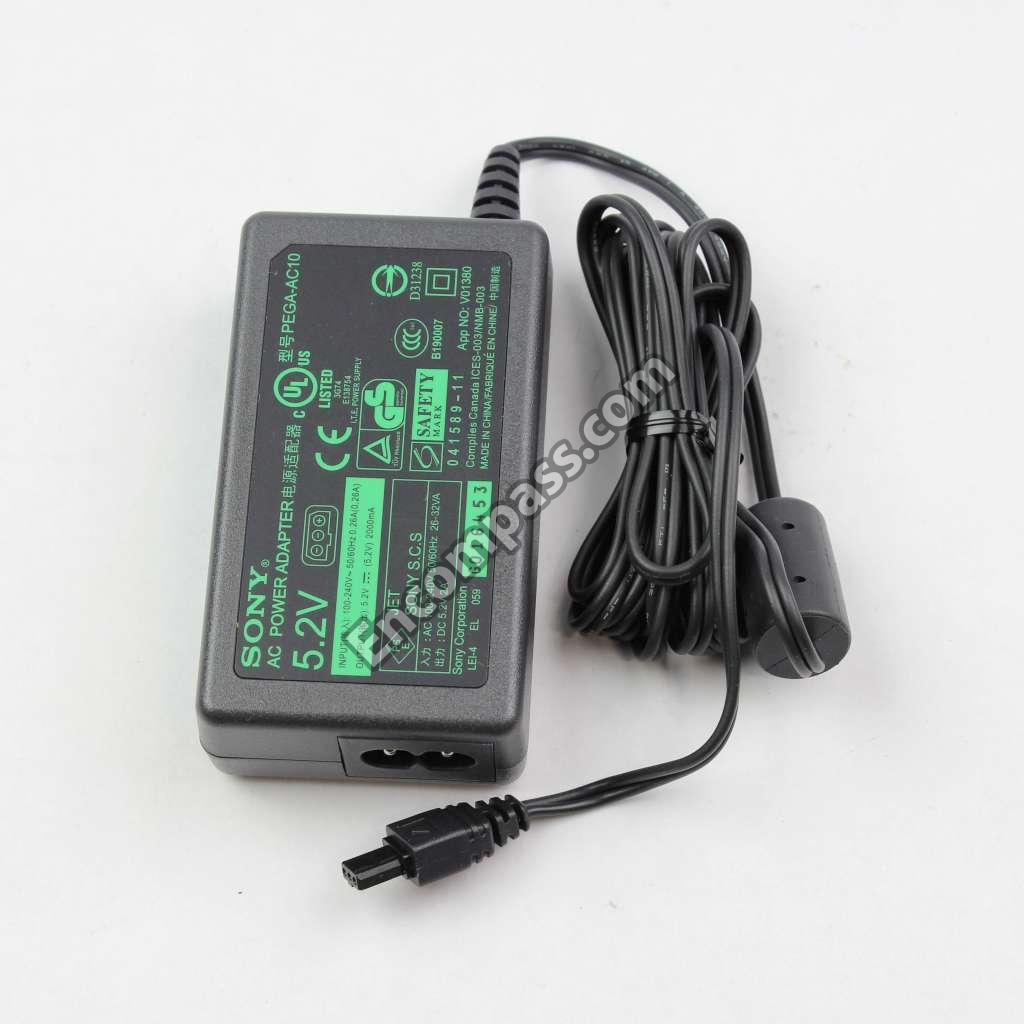

1-477-122-91 1-477-122-91 ADAPTOR, AC
4-659-300-01 4-659-300-01 CHASSIS, MOLD
1-816-274-21 1-816-274-21 CONNECTOR, FPC (ZIF) 9P
1-816-328-21 1-816-328-21 CONNECTOR, FPC/FFC (ZIF 3
1-816-328-11 1-816-328-11 CONNECTOR, FPC/FFC (ZIF 3
1-816-282-21 1-816-282-21 CONNECTOR,BOARD TO BOARD
1-400-092-11 1-400-092-11 CORE, FERRITE
4-659-759-01 4-659-759-01 COVER (B), HOLE
4-660-747-01 4-660-747-01 CUSHION
6-500-168-01 6-500-168-01 DIODE MA4SD1000LS0
4-661-313-01 4-661-313-01 GASKET, LCD
6-701-916-01 6-701-916-01 IC M62212GP-600D
6-701-922-01 6-701-922-01 IC MAX1779EUE-TG068
6-701-917-01 6-701-917-01 IC TC7PA34FU(TE85R)
1-400-203-21 1-400-203-21 INDUCTOR (SMD) 100UH
1-400-188-11 1-400-188-11 INDUCTOR (SMD) 22UH
1-400-189-11 1-400-189-11 INDUCTOR (SMD) 33UH
4-659-925-11 4-659-925-11 LABEL MODEL NUMBER
4-659-925-01 4-659-925-01 LABEL,MODEL NUMBER
A-8067-088-A A-8067-088-A MOUNTED C.BOARD,MP-37 (A)
X-4624-437-4 X-4624-437-4 PANEL ASSY, LOWER
X-4624-337-4 X-4624-337-4 PANEL ASSY, LOWER
X-4624-436-3 X-4624-436-3 PANEL ASSY, UPPER
1-796-343-11 1-796-343-11 PANEL, TOUCH (E)
4-662-848-01 4-662-848-01 PAPER (B), SHIELD
1-816-278-11 1-816-278-11 PIN,CONNECTOR(PC BOARD)2P
1-816-277-11 1-816-277-11 PIN,CONNECTOR(PCBOARD)4P
1-786-324-31 1-786-324-31 PWB, FLEXIBLE PRINT
4-661-588-01 4-661-588-01 SCREW (B1.4), TAPPING
4-661-589-02 4-661-589-02 SCREW (B1.7), TAPPING
4-661-590-01 4-661-590-01 SCREW (M1.4)
4-661-587-01 4-661-587-01 SCREW (M1.4)
4-660-503-01 4-660-503-01 SCREW, 0 PART-NO. 2 MAIN
4-661-385-01 4-661-385-01 SHEET (BATTERY), ADHESIVE
4-661-355-02 4-661-355-02 SHEET, INSULATING
4-659-299-01 4-659-299-01 SHEET, LCD ADHESIVE
4-661-315-01 4-661-315-01 SHEET, MS CONNECTOR ADHES
4-659-298-01 4-659-298-01 SHEET, TOUCH PANEL ADHESI
4-659-231-21 4-659-231-21 SHUTTER, MS
4-661-567-02 4-661-567-02 SPACER
4-654-864-11 4-654-864-11 SPACER
4-662-566-01 4-662-566-01 SPACER (A)
4-662-567-01 4-662-567-01 SPACER (B)
4-661-468-01 4-661-468-01 SPRING, TORSION
6-550-132-01 6-550-132-01 TRANSISTOR 2SA2029T2L
8-729-056-42 8-729-056-42 TRANSISTOR 2SC5658T2L
6-550-131-01 6-550-131-01 TRANSISTOR SI1035X-T1
1-477-107-12 1-477-107-12 VIBRATION UNIT
1-795-393-21 1-795-393-21 VIBRATOR, CERAMIC
1-795-036-11 1-795-036-11 VIBRATOR, CERAMIC
1-781-525-11 1-781-525-11 VIBRATOR, CRYSTAL
