Sony

Model Number

PVM20M

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
X-4033-345-1 X-4033-345-1 ASSY, HEAT SINK (C)
X-4033-347-5 X-4033-347-5 BEZEL ASSY
X-4034-348-1 X-4034-348-1 BEZEL ASSY
X-4035-550-1 X-4035-550-1 BEZEL ASSY
4-393-340-13 4-393-340-13 BRACKET ASSY (R), SIDE
4-057-971-01 4-057-971-01 BRACKET, FOCUS VOLUME
4-052-203-01 4-052-203-01 BRACKET, P PC BOARD
4-043-674-03 4-043-674-03 CABINET, BOTTOM
4-043-677-11 4-043-677-11 COVER, REAR
4-057-973-11 4-057-973-11 COVER, TOP
8-737-272-05 8-737-272-05 CRT 20MT1 (PVM) *I
8-737-270-05 8-737-270-05 CRT 20MT3(PVM)*I
1-900-228-74 1-900-228-74 EARTH ASSY, COATING
A-1372-477-A A-1372-477-A H MOUNTED C. BOARD
4-043-825-01 4-043-825-01 HANDLE
4-052-200-11 4-052-200-11 HANDLE, PROTECTOR
X-4033-346-1 X-4033-346-1 HEAT SINK ASSY (G)
8-759-297-78 8-759-297-78 IC MM1231XFFK
8-759-536-94 8-759-536-94 IC UPD78014FYCW-W23
A-1316-377-A A-1316-377-A MCB/G COMPL
8-453-017-21 8-453-017-21 NA3015-M2
4-058-301-01 4-058-301-01 RING, SHORT
4-052-782-01 4-052-782-01 SHIELD, DY
4-057-974-01 4-057-974-01 SHIELD, G PC BOARD
1-771-328-11 1-771-328-11 SWITCH, TACTILE
4-058-363-01 4-058-363-01 TERMINAL, EARTH

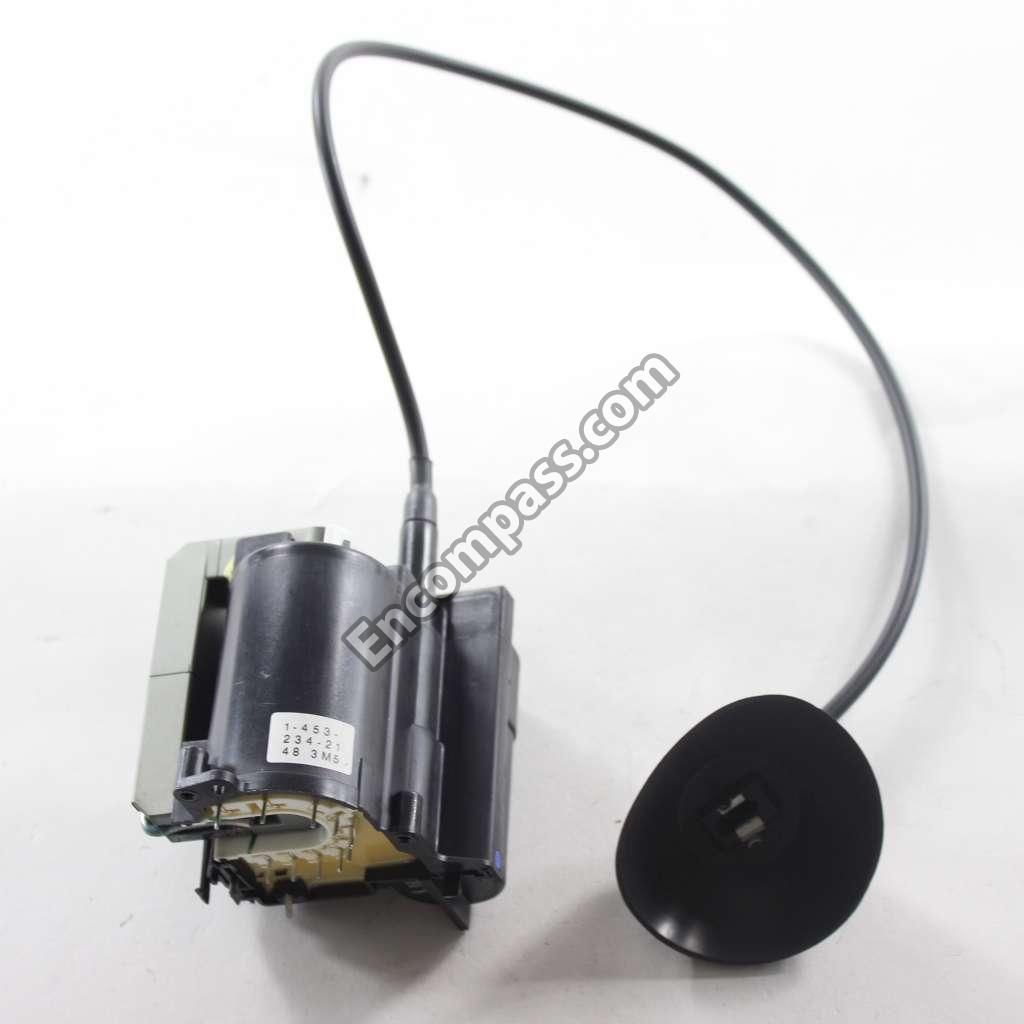

1-453-234-11 1-453-234-11 TRANSFORMER ASSY, FLYBACK
1-431-630-11 1-431-630-11 TRANSFORMER, CONVERTER (S
