Model Image
Manufacturer

Sony

Model Number

SAS350

Description

2.1ch Soundbar

Interactive Exploded View

Parts List

Part Number Description
9-301-000-41 9-301-000-41 AC CORD -US (SA-S350: US, CND/SA-SD35: US)

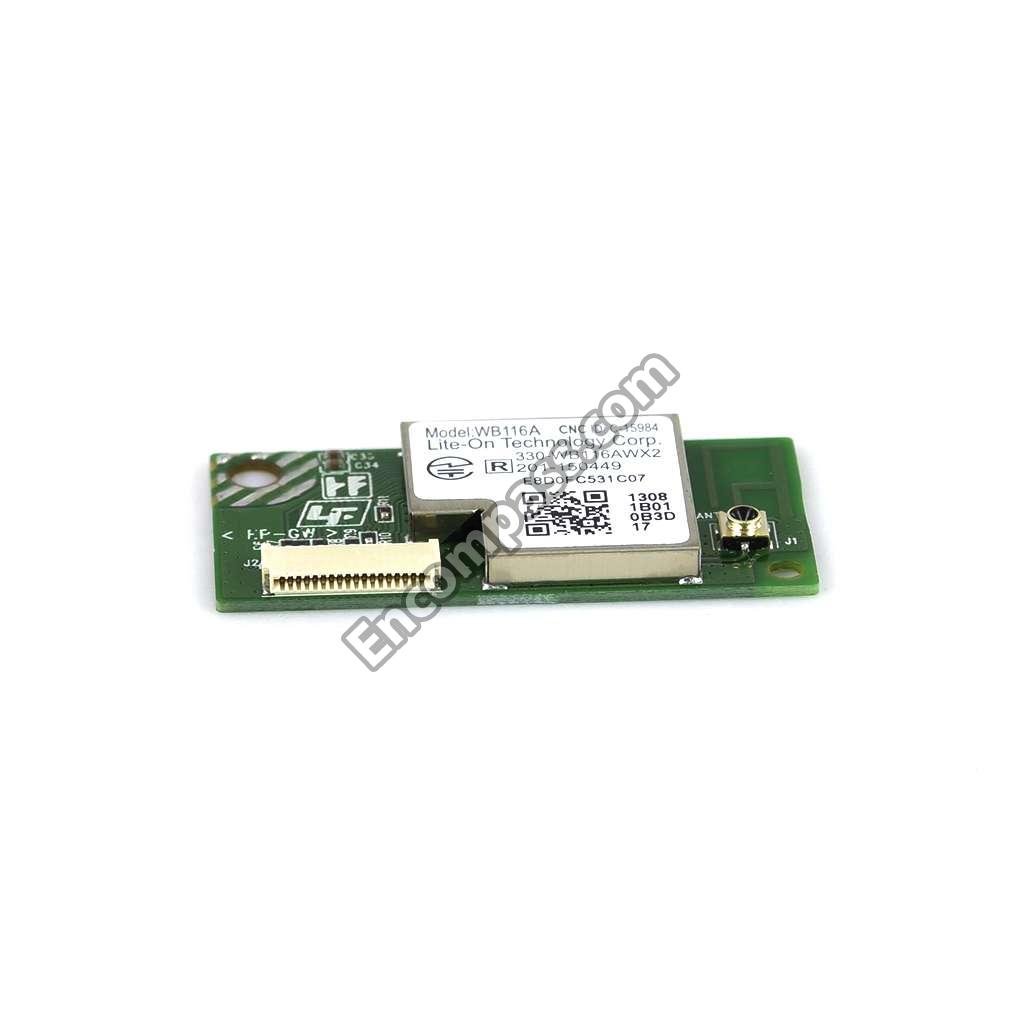

9-301-000-39 9-301-000-39 BT MODULE (CA1 BAR) (SEE NOTE 1)
3-113-062-01 3-113-062-01 CORD BUSH (2104)
4-597-760-01 4-597-760-01 CUSHION FOOT (LARGE) (10 CP, T = 2.2 MM)

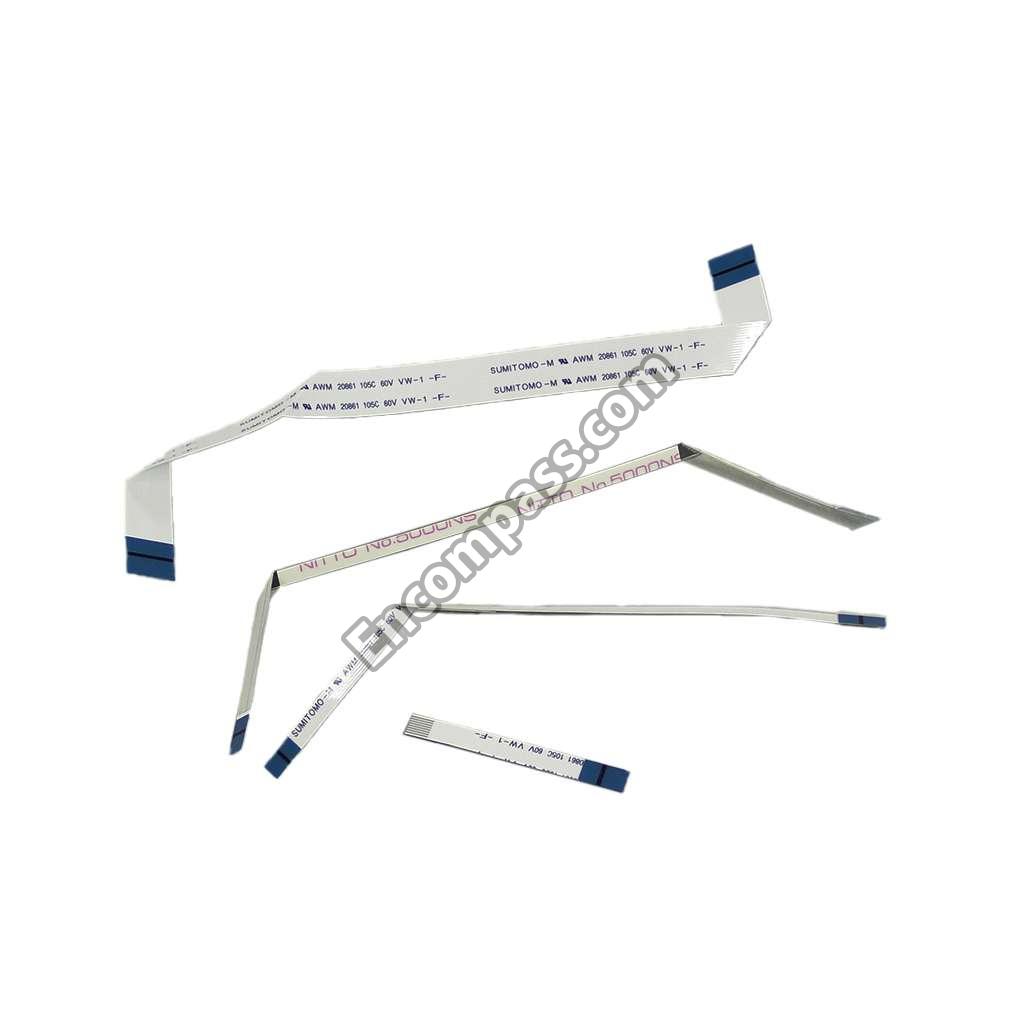

9-301-000-63 9-301-000-63 FFC KIT (CA1_BAR)
4-693-812-01 4-693-812-01 FOOT,RUBBER (SMALL) (8 CP, T = 3.2 MM)
9-301-000-35 9-301-000-35 GRILLE ASSEMBLY (CA1_BAR) (WITH CUSHION)
9-301-000-53 9-301-000-53 IR RP BOARD, COMPLETE

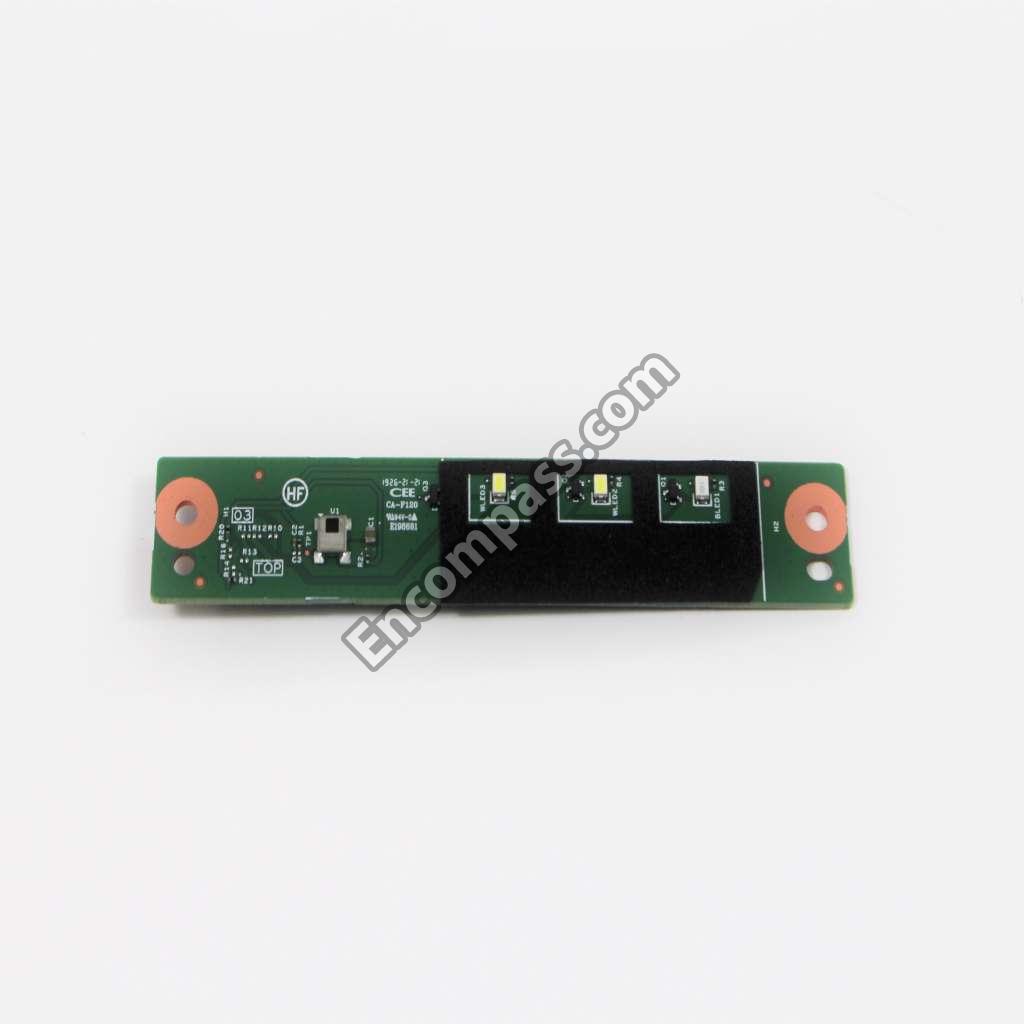

9-301-000-36 9-301-000-36 LED BOARD, COMPLETE (WITH CUSHION)
9-301-001-35 9-301-001-35 MAIN BOARD, COMPLETE (INCLUDING HEAT SINK)
9-301-000-58 9-301-000-58 MAIN BOARD,COMPLETE (INCLUDING HEAT SINK)
9-301-000-52 9-301-000-52 PC SHEET (USB)
9-301-000-54 9-301-000-54 POWER BOARD, COMPLETE
9-301-001-42 9-301-001-42 SCREW +BM 2.5X6 FFC KIT (CA1_BAR)
7-685-547-19 7-685-547-19 SCREW +BTP 3X10 TYPE2 N-S
7-682-547-09 7-682-547-09 SCREW+B3X6
9-301-000-38 9-301-000-38 SPEAKER UNIT (CA1_BAR) (FRONT L)
9-301-000-04 9-301-000-04 TOP PANEL CA1 BAR

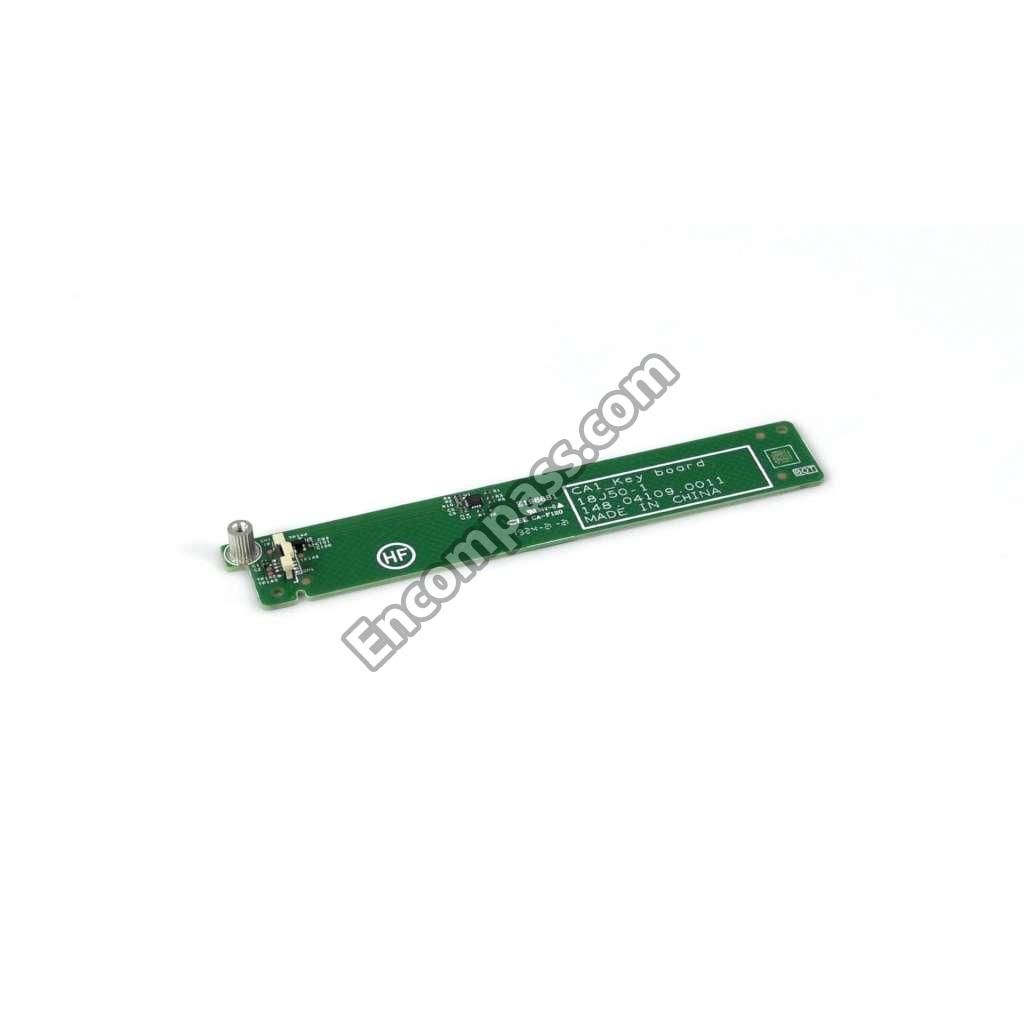

9-301-000-37 9-301-000-37 TOUCH KEY BOARD, COMPLETE
