Model Image
Manufacturer

Sony

Model Number

SAWG700

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
9-301-003-47 9-301-003-47 FOOT (10X10XT2, 4PCS)
9-301-005-22 9-301-005-22 FRONT PANEL ASSY (SB1, SWF) (INCLUDING GRILLE)(TYPE C)
9-301-004-12 9-301-004-12 HEX SPACER (FM_L7) M3X6
9-301-004-22 9-301-004-22 LED BOARD, COMPLETE (INCLUDING LENS, HOLDER)
7-684-023-04 7-684-023-04 N 3, TYPE 2

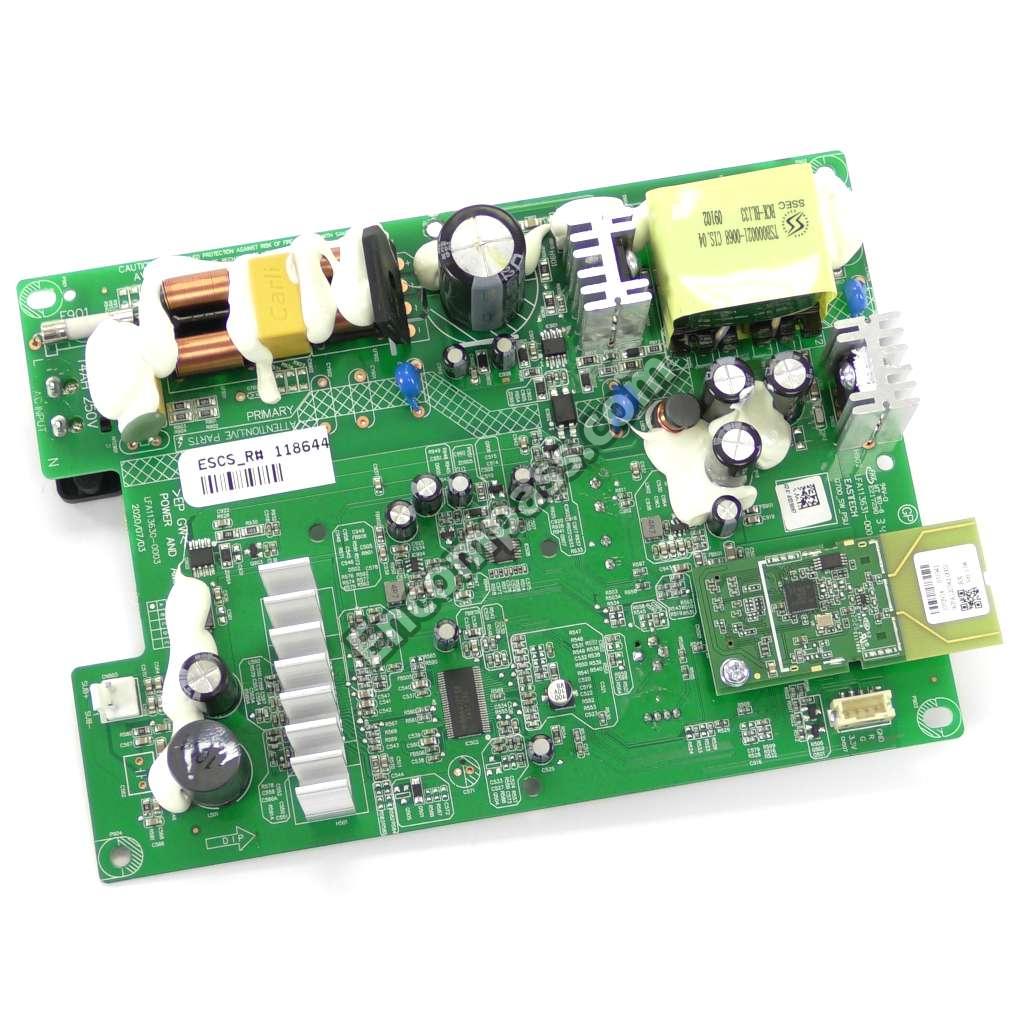

9-301-004-23 9-301-004-23 PSU BOARD, COMPLETE (INCLUDING CUSHION)
9-301-004-21 9-301-004-21 RF MODULE (SB1, SWF) (INCLUDING CUSHION)
4-874-614-52 4-874-614-52 SCREW (1) (3.5X20), TAPPING
7-685-547-19 7-685-547-19 SCREW +BTP 3X10 TYPE2 N-S
7-685-646-79 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
7-682-948-09 7-682-948-09 SCREW +PSW 3X8
9-301-004-13 9-301-004-13 SCREW +PTP2.5X6 (BLACK)
9-301-004-20 9-301-004-20 SPK UNIT (SB1, SWF) (TYPE C)
9-301-005-23 9-301-005-23 SPK UNIT (SB1, SWF) (TYPE V)
9-301-008-47 9-301-008-47 WOOD_BOX ASSY1 (SB1, SWF)(TYPE C)
