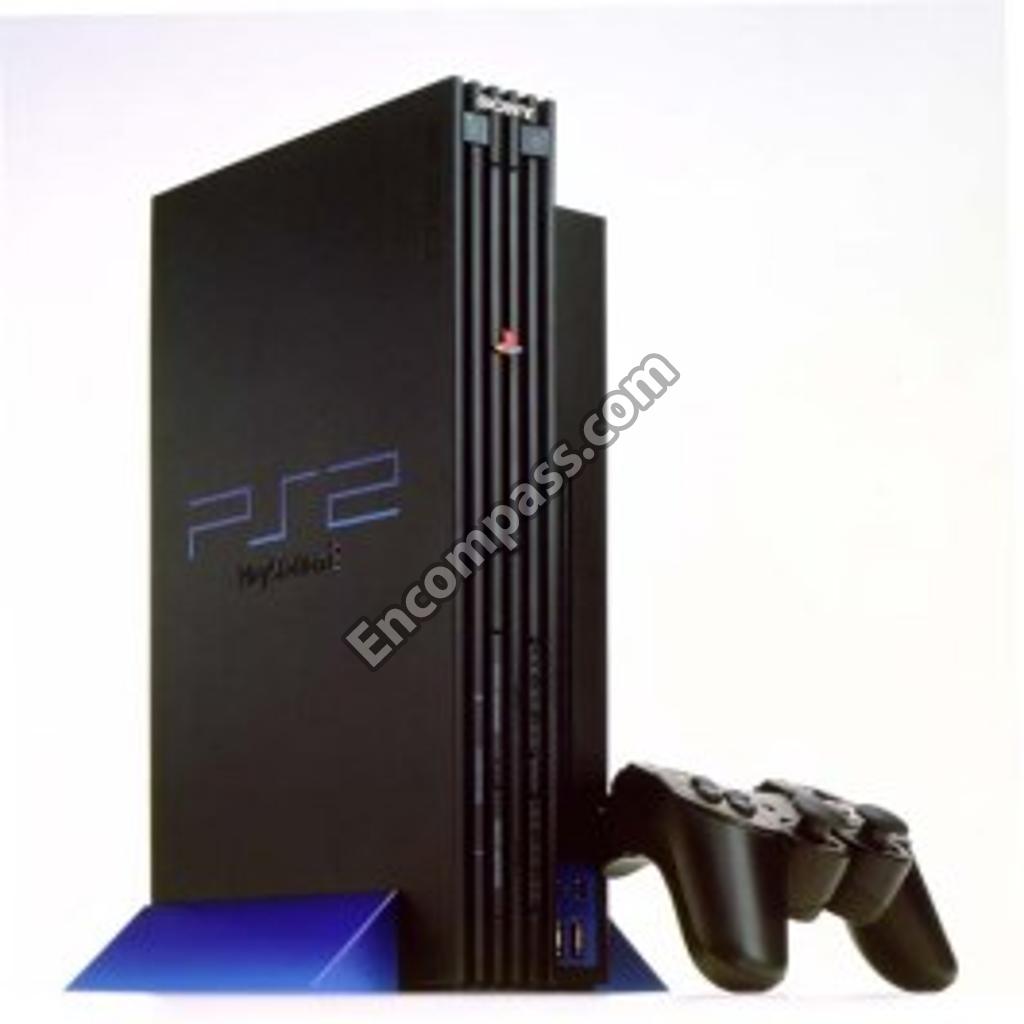

Model Image
Manufacturer

Sony

Model Number

SCPH30001

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-062-728-01 3-062-728-01 0 PLATE 3 MAIN M2X3.2
4-612-635-01 4-612-635-01 BAG, PROTECTION, SAFETY
X-3951-156-4 X-3951-156-4 BOX ASSY, GEAR
3-066-103-01 3-066-103-01 BRACKET (B), UNIT
X-3951-609-2 X-3951-609-2 BRACKET ASSY
X-3952-059-1 X-3952-059-1 BRACKET ASSY, PULLEY
3-059-666-05 3-059-666-05 BRACKET, SWITCH
3-066-494-01 3-066-494-01 BRACKET, SWITCH
J-2504-098-A J-2504-098-A BRG-GHGD JOINT BOARD
3-059-665-03 3-059-665-03 BUTTON, SWITCH
1-757-590-12 1-757-590-12 CABLE (FFC-310), FLEXIBLE
1-757-931-31 1-757-931-31 CABLE, FLAT (FFC-011)
1-757-934-42 1-757-934-42 CABLE, FLAT (FFC-011)
1-757-474-11 1-757-474-11 CABLE, FLEXIBLE FLAT (FFC
1-757-475-11 1-757-475-11 CABLE, FLEXIBLE FLAT (FFC
1-792-491-11 1-792-491-11 CABLE, FLEXIBLE FLAT (FFC
1-823-341-51 1-823-341-51 CABLE, FLEXIBLE FLAT (FFC
3-068-079-02 3-068-079-02 CAM, SLIDE
3-065-278-01 3-065-278-01 CAM, TILT
3-071-965-02 3-071-965-02 CAM, TILT
1-135-609-91 1-135-609-91 CAPITOR 220UFARAD
X-3951-100-2 X-3951-100-2 CHASSIS ASSY
X-3951-393-1 X-3951-393-1 CHASSIS ASSY
X-3950-485-4 X-3950-485-4 CHASSIS ASSY (CEX-10000(J
X-3951-151-1 X-3951-151-1 CHASSIS ASSY, MAIN
X-3951-152-2 X-3951-152-2 CHASSIS ASSY, SUB
X-3951-607-2 X-3951-607-2 CHASSIS ASSY, SUB
X-3952-057-2 X-3952-057-2 CHASSIS ASSY, SUB
X-3951-606-1 X-3951-606-1 CHASSIS ASSY, SUB
1-815-190-21 1-815-190-21 CONNECTOR BOARD TO BOARD
1-815-191-21 1-815-191-21 CONNECTOR BOARD TO BOARD
1-815-240-21 1-815-240-21 CONNECTOR BOARD TO BOARD
1-815-141-21 1-815-141-21 CONNECTOR, BOARD TO BOARD
1-815-142-11 1-815-142-11 CONNECTOR, BOARD TO BOARD
1-779-206-21 1-779-206-21 CONNECTOR, FFC(LIF(NON-ZI
1-818-076-11 1-818-076-11 CONNECTOR, FFC/FPC (ZIF)
1-815-226-21 1-815-226-21 CONNECTOR, FFC/FPC (ZIF)
1-815-231-21 1-815-231-21 CONNECTOR, FFC/FPC (ZIF)
1-815-653-21 1-815-653-21 CONNECTOR, FFC/FPC (ZIF)
1-794-237-61 1-794-237-61 CONNECTOR, FFC/FPC 30P
1-815-089-21 1-815-089-21 CONNECTOR, FPC LIF(NON-ZI
1-815-631-13 1-815-631-13 CONNECTOR, SQUARE TYPE 12
1-794-208-11 1-794-208-11 CONNECTOR, SQUARE TYPE 4P
1-794-207-11 1-794-207-11 CONNECTOR, USB 8P
1-792-028-11 1-792-028-11 CORD, CONNECTION
1-790-108-32 1-790-108-32 CORD, POWER
X-3951-097-1 X-3951-097-1 COVER ASSY, LOWER
X-3951-706-2 X-3951-706-2 COVER ASSY, LOWER
X-3951-096-1 X-3951-096-1 COVER ASSY, UPPER
X-3951-705-2 X-3951-705-2 COVER ASSY, UPPER
3-066-273-01 3-066-273-01 COVER, CONNECTOR
8-820-141-37 8-820-141-37 DEVICE, OPTICAL KHS-400B
8-820-141-34 8-820-141-34 DEVICE, OPTICAL KHS-400B/
3-064-847-01 3-064-847-01 FRAME (LOWER)
X-3951-093-1 X-3951-093-1 FRAME (UPPER) ASSY
X-3951-610-5 X-3951-610-5 FRAME ASSY, MAIN
X-3951-637-1 X-3951-637-1 FRAME ASSY, SUB
3-065-271-02 3-065-271-02 FRAME, MAIN
3-065-271-03 3-065-271-03 FRAME, MAIN
3-065-275-02 3-065-275-02 FRAME, SUB
1-576-434-41 1-576-434-41 FUSE, CHIP
1-576-519-21 1-576-519-21 FUSE, MICRO (1608 TYPE)
A-6712-816-A A-6712-816-A GH005 MAIN BOARD
A-6712-838-A A-6712-838-A GH006-11 MAIN BOARD
3-065-282-01 3-065-282-01 GUIDE (L)
3-065-283-01 3-065-283-01 GUIDE (R)
1-961-160-11 1-961-160-11 HARNESS (HA-059)
1-960-977-11 1-960-977-11 HARNESS (HS-056)
1-756-076-21 1-756-076-21 HOLDER, LITHIUM BATTERY
J-2504-000-2 J-2504-000-2 HOLDER,PIN PROBE (YSS-075
6-701-708-01 6-701-708-01 IC
8-759-658-87 8-759-658-87 IC BA5810FP-E2
8-759-697-65 8-759-697-65 IC BA5815FM-E2
8-759-490-71 8-759-490-71 IC BA5912AFP-YE2
8-759-698-67 8-759-698-67 IC BR2880F-E2
8-759-667-10 8-759-667-10 IC CS4335-KS
8-752-099-53 8-752-099-53 IC CXA3525BR-T4
8-752-409-02 8-752-409-02 IC CXD1869AQ
8-752-414-53 8-752-414-53 IC CXD1869AQ-2
8-752-404-01 8-752-404-01 IC CXD2934GB-T7
8-752-408-53 8-752-408-53 IC CXD2942AR
6-701-570-01 6-701-570-01 IC CXD2949GB-T7
8-752-416-23 8-752-416-23 IC CXD2950R-TL
8-759-699-10 8-759-699-10 IC CXD9611R
8-759-699-11 8-759-699-11 IC CXD9619GB
8-759-658-75 8-759-658-75 IC CY2212ZC-1T
8-759-831-20 8-759-831-20 IC CY2212ZC-2T
6-700-967-01 6-700-967-01 IC CY24141ZC-3T
8-759-712-82 8-759-712-82 IC GM71V18163CT-5
8-759-712-38 8-759-712-38 IC HD74HC1G66CME
8-759-689-90 8-759-689-90 IC LM74CIMX-3
8-759-688-08 8-759-688-08 IC MM1537DFBE
8-759-688-06 8-759-688-06 IC MM3031JULE
8-759-697-24 8-759-697-24 IC MM3051NULE
8-759-697-60 8-759-697-60 IC MM3071CFBE
6-800-182-01 6-800-182-01 IC MR27V1602E-73TPZ
6-800-184-01 6-800-184-01 IC MR27V202F
8-759-712-84 8-759-712-84 IC MR27V3202E-20TPZ020
8-759-693-13 8-759-693-13 IC NJM12904V(TE2)
8-759-370-11 8-759-370-11 IC NJM2100V-TE2
8-759-581-11 8-759-581-11 IC NJM2125F(TE2)
8-759-712-66 8-759-712-66 IC PQ018PZ01ZP
6-705-403-01 6-705-403-01 IC PQ070XZ01ZP
8-759-696-97 8-759-696-97 IC SC44728APBEB
8-749-018-41 8-749-018-41 IC SI-3025LSA-TL
8-749-018-42 8-749-018-42 IC SI-3026LSA-TL
8-759-665-28 8-759-665-28 IC SI-3034LSA-TL
8-759-689-89 8-759-689-89 IC SN104809DBTR
8-759-653-46 8-759-653-46 IC SN104971PWR
8-759-683-81 8-759-683-81 IC SN74CBT1G125DCKR
8-759-685-15 8-759-685-15 IC SP3727ACA0PMR
8-759-830-91 8-759-830-91 IC TC5364200FT-PA01
6-800-183-01 6-800-183-01 IC TC5364200FT-PA05
8-759-666-89 8-759-666-89 IC TC59RM716GB-8(YEL
8-759-826-59 8-759-826-59 IC TMP87C807U-1V33
6-800-967-01 6-800-967-01 IC TMP87C807U-2C64
8-759-699-09 8-759-699-09 IC104 CXD9615GB
3-065-277-01 3-065-277-01 INSULATOR
J-2504-104-A J-2504-104-A INTERFACE BOARD KIT
J-2504-165-A J-2504-165-A JP10B SPURING PROBE
J-2504-166-A J-2504-166-A JR10X RECEPTACLE
X-3951-316-1 X-3951-316-1 LID ASSY
1-576-259-11 1-576-259-11 LINK, CHIP IC ICP-S0.7ZVS
1-763-611-11 1-763-611-11 MOTOR, DC (SPINDLE)
1-763-700-22 1-763-700-22 MOTOR, DC (SPINDLE)
1-763-613-11 1-763-613-11 MOTOR, DC (TILT)
A-6713-761-A A-6713-761-A MOUNTED CIRCUIT BOARD GD-
A-6713-760-A A-6713-760-A MOUNTED CIRCUIT BOARD GH-
A-6713-780-A A-6713-780-A MOUNTED CIRCUIT BOARD GI-
A-6713-759-A A-6713-759-A MOUNTED CIRCUIT BOARD SW-
8-759-830-45 8-759-830-45 MR27V1602E-45TPZ020 IC
8-759-824-91 8-759-824-91 MR27V3202E-24TPZ020
1-234-605-21 1-234-605-21 NETWORK, RC
1-781-857-41 1-781-857-41 OSCILLATOR, CRYSTAL
3-068-676-01 3-068-676-01 PANEL, REAR
3-071-901-01 3-071-901-01 PANEL, REAR
1-815-121-11 1-815-121-11 PIN, CONNECTOR (GD-AC) 4P
1-815-122-11 1-815-122-11 PIN, CONNECTOR (GH-GD) 4P
1-770-619-21 1-770-619-21 PIN, CONNECTOR 2P
1-794-437-21 1-794-437-21 PIN, CONNECTOR 7P
1-468-604-11 1-468-604-11 POWER BLOCK
J-2504-000-1 J-2504-000-1 PROBE, PIN (YPS-75A200)
1-680-370-12 1-680-370-12 PWB, FLEXIBLE
1-680-370-22 1-680-370-22 PWB, FLEXIBLE
1-680-147-11 1-680-147-11 PWB, FP-324 FLEXIBLE
1-533-940-21 1-533-940-21 RINK, CHIP IC
1-576-282-11 1-576-282-11 RINK, SQUARE CHIP TYPE IC
3-059-845-01 3-059-845-01 SCREW (B2X6.5), SHAFT RET
3-065-999-01 3-065-999-01 SCREW (M2X1.4), UNIT
3-061-369-01 3-061-369-01 SCREW (M2X6), PAN
3-065-557-01 3-065-557-01 SCREW (M2X6.0)
3-065-998-01 3-065-998-01 SCREW (M2X9), UNIT
3-065-279-02 3-065-279-02 SCREW, CAM RETAINER
3-060-399-01 3-060-399-01 SCREW, SKEW
3-065-276-01 3-065-276-01 SCREW, STEP
3-059-854-01 3-059-854-01 SHAFT, MAIN
3-059-854-02 3-059-854-02 SHAFT, MAIN
3-064-839-01 3-064-839-01 SHEET (H), ELECTRIC HEAT
3-064-837-01 3-064-837-01 SHEET (J), ELECTRIC HEAT
3-066-011-01 3-066-011-01 SHEET (M), ELECTRIC HEAT
3-066-277-01 3-066-277-01 SHEET (P), ELECTRIC HEAT
3-066-278-01 3-066-278-01 SHEET (Q), ELECTRIC HEAT
3-060-388-01 3-060-388-01 SHEET, FERRITE
3-071-971-01 3-071-971-01 SHEET, INSULATING
3-065-281-01 3-065-281-01 SHEET, SHAFT RETAINER
X-3951-094-1 X-3951-094-1 SHIELD (A) ASSY
3-064-824-01 3-064-824-01 SHIELD (B)
3-064-833-01 3-064-833-01 SHIELD (C)
3-071-970-02 3-071-970-02 SHIELD B (F)
6-550-800-01 6-550-800-01 SI4830DY-T1
3-071-966-03 3-071-966-03 SPRING (TILT), LEAF
3-065-280-01 3-065-280-01 SPRING (TILT), PLATE
3-067-169-01 3-067-169-01 SPRING (TILT), PLATE
1-771-994-11 1-771-994-11 SWITCH, POWER (WITH AC IN
1-771-917-21 1-771-917-21 SWITCH, TACTILE
3-060-398-02 3-060-398-02 TAPE, HARNESS STOPPER
3-060-400-01 3-060-400-01 TAPPING (B2X6.5)
3-069-170-01 3-069-170-01 TAPPING (B2X6.5)
1-694-767-11 1-694-767-11 TERMINAL BOARD (FRONT)
1-694-822-11 1-694-822-11 TERMINAL BOARD (ILINK/USB
3-069-168-01 3-069-168-01 TITE (CZN), M3X6 +BV S
8-729-051-61 8-729-051-61 TRANSISTOR IRF7807D1-TR
6-551-736-01 6-551-736-01 TRANSISTOR IRF7807D1-TR
8-729-051-63 8-729-051-63 TRANSISTOR S1488DY-T1
1-418-965-11 1-418-965-11 TRANSMITTER UNIT, LIGHT
X-3951-608-2 X-3951-608-2 TRAY ASSEMBLY
X-3951-153-2 X-3951-153-2 TRAY ASSY
1-767-300-21 1-767-300-21 VIBRATOR, CRYSTAL
1-760-458-11 1-760-458-11 VIBRATOR, CRYSTAL
1-781-640-21 1-781-640-21 VIBRATOR, CRYSTAL
1-781-768-21 1-781-768-21 VIBRATOR, CRYSTAL
1-781-856-21 1-781-856-21 VIBRATOR, CRYSTAL
1-760-496-21 1-760-496-21 VIBRATOR, LITHIUM NIOBATE
