Model Image
Manufacturer

Sony

Model Number

SEL2470GM

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
A-2072-630-A A-2072-630-A 1ST GROUP BLOCK ASSY S (UC)

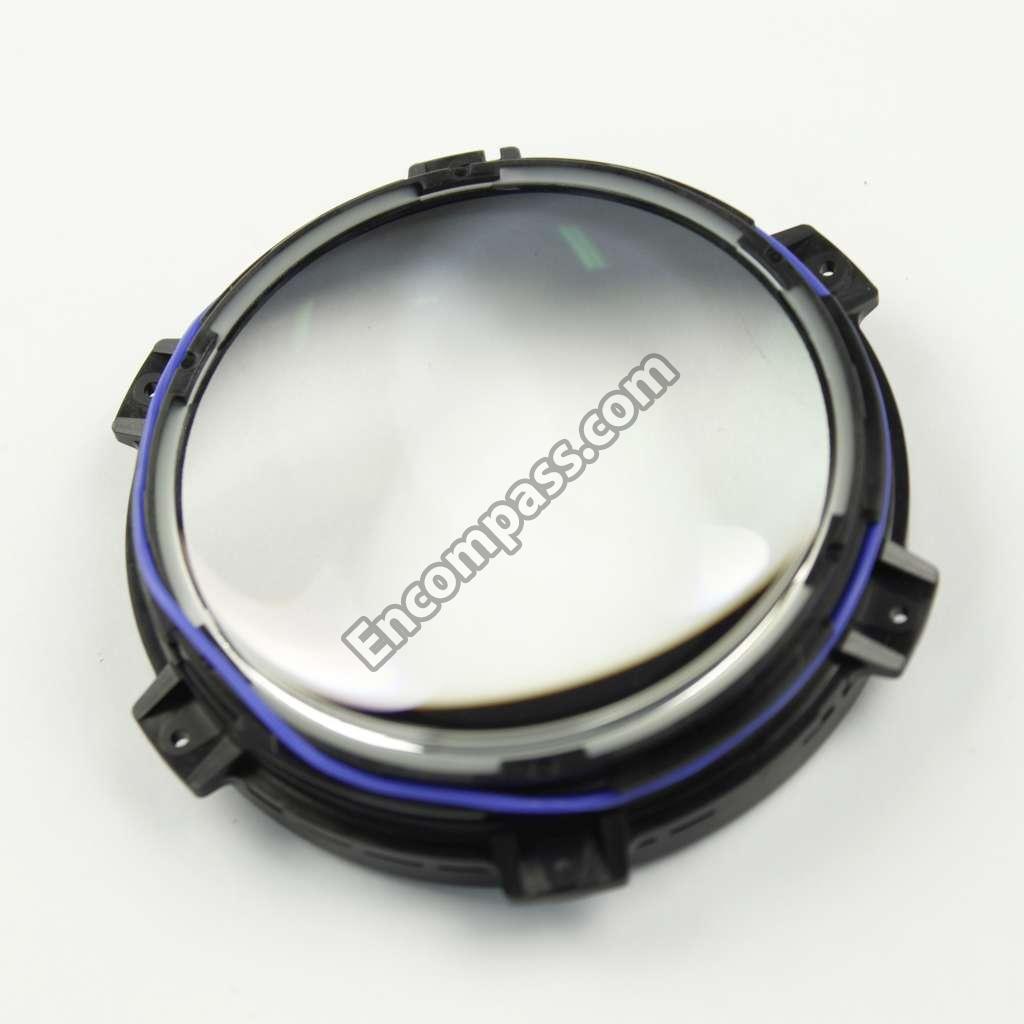

A-2072-006-A A-2072-006-A 1ST LENS ASSY (UC)
A-2072-615-A A-2072-615-A 2ND GROUP BLOCK ASSY (UC)

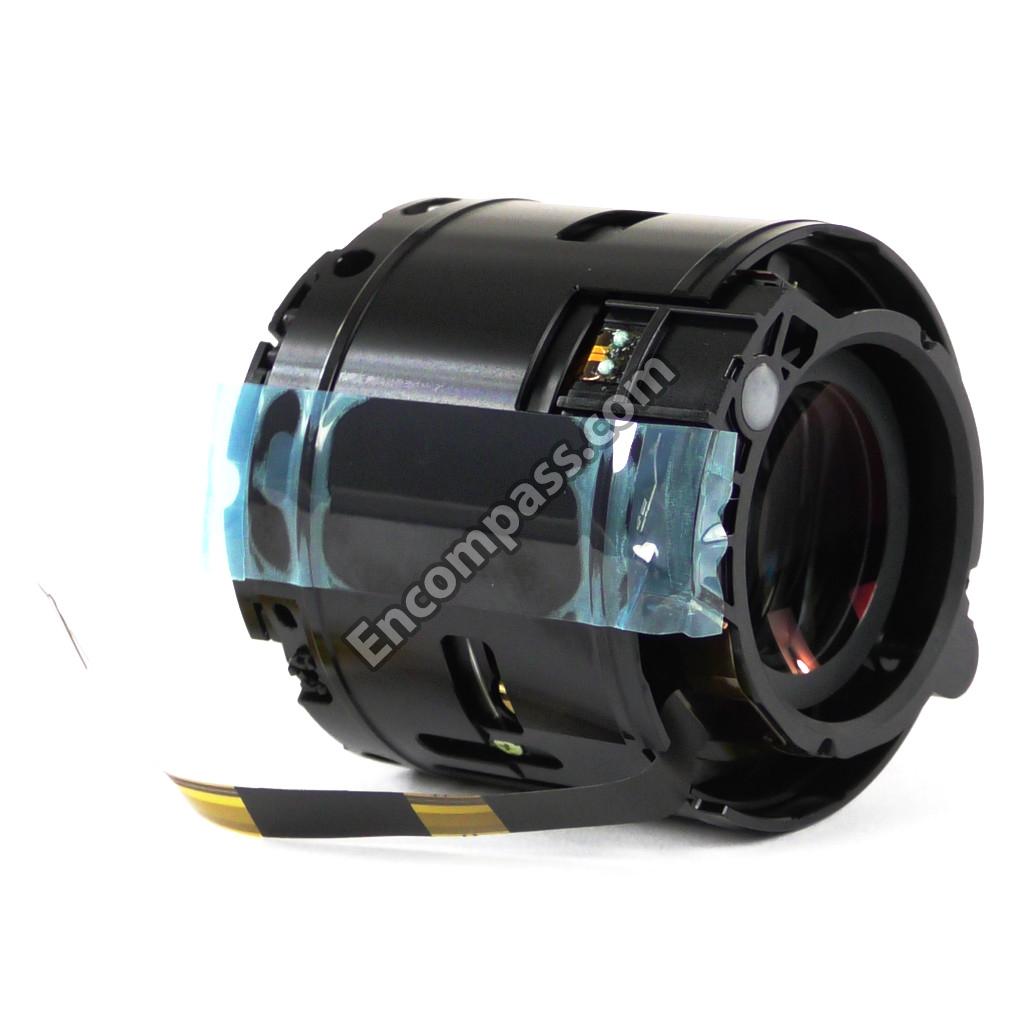

A-2072-616-B A-2072-616-B 3-4 GROUP BLOCK ASSY (UC)
4-583-622-01 4-583-622-01 6 GROUP MASK
A-2072-621-A A-2072-621-A 6TH GROUP BLOCK ASSY (UC)
4-587-823-01 4-587-823-01 BACK WASHER (9137) (UC)

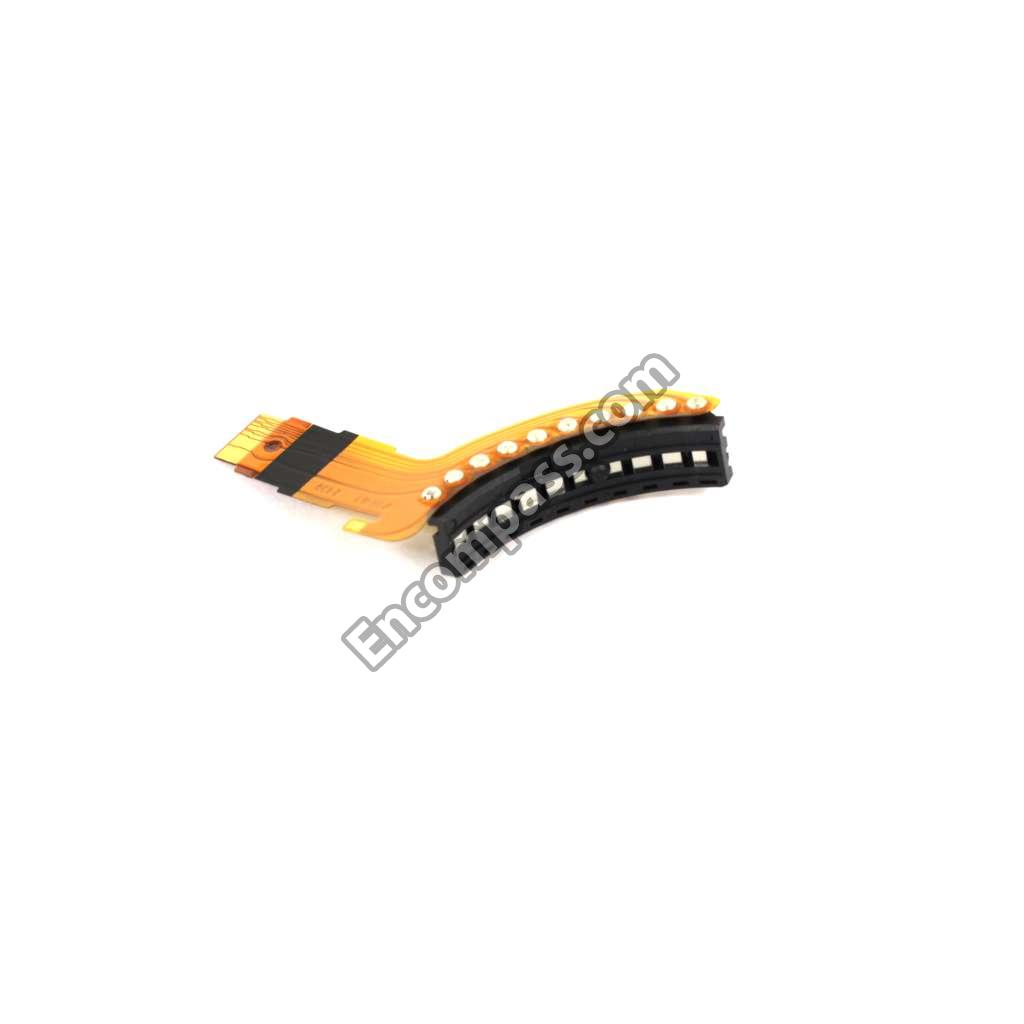

A-2073-555-B A-2073-555-B BL CONTACT ASSY(9139) (UC)
A-2123-125-C A-2123-125-C BLOCK,SERVICE EXCLUSIVE OPTICS (UC)
A-2084-638-B A-2084-638-B BLOCK,SERVICE EXCLUSIVE OPTICS (UC)
A-2084-638-A A-2084-638-A BLOCK,SERVICE EXCLUSIVE OPTICS (UC)
4-580-331-01 4-580-331-01 BOARD SHEET (9137) (UC)
4-580-650-01 4-580-650-01 BOARD SPACER(9137) (UC)
4-479-829-11 4-479-829-11 BUTTON (9126), FOCUS HOLD (UC)
4-452-512-01 4-452-512-01 CAM FOLLOWER BASE B(9107) (UC)
4-570-827-41 4-570-827-41 CAM FOLLOWER G_A(5.0_4.5) (UC)
4-570-827-71 4-570-827-71 CAM FOLLOWER G_A(5.0_4.5) (UC)
4-570-827-61 4-570-827-61 CAM FOLLOWER G_A(5.0_4.5) (UC)
4-570-827-51 4-570-827-51 CAM FOLLOWER G_A(5.0_4.5) (UC)
4-570-827-31 4-570-827-31 CAM FOLLOWER G_A(5.0_4.5) (UC)
4-570-827-21 4-570-827-21 CAM FOLLOWER G_A(5.0_4.5) (UC)
4-570-827-11 4-570-827-11 CAM FOLLOWER G_A(5.0_4.5) (UC)
4-570-827-01 4-570-827-01 CAM FOLLOWER G_A(5.0_4.5) (UC)
4-570-828-81 4-570-828-81 CAM FOLLOWER G_B(5.0_4.5_4.0) (UC)
4-570-828-71 4-570-828-71 CAM FOLLOWER G_B(5.0_4.5_4.0) (UC)
4-570-828-61 4-570-828-61 CAM FOLLOWER G_B(5.0_4.5_4.0) (UC)
4-570-828-51 4-570-828-51 CAM FOLLOWER G_B(5.0_4.5_4.0) (UC)
4-570-828-41 4-570-828-41 CAM FOLLOWER G_B(5.0_4.5_4.0) (UC)
4-570-828-31 4-570-828-31 CAM FOLLOWER G_B(5.0_4.5_4.0) (UC)
4-570-828-21 4-570-828-21 CAM FOLLOWER G_B(5.0_4.5_4.0) (UC)
4-570-828-11 4-570-828-11 CAM FOLLOWER G_B(5.0_4.5_4.0) (UC)
4-570-828-01 4-570-828-01 CAM FOLLOWER G_B(5.0_4.5_4.0) (UC)
4-570-829-71 4-570-829-71 CAM FOLLOWER G_C(5.0) (UC)
4-570-829-81 4-570-829-81 CAM FOLLOWER G_C(5.0) (UC)
4-570-829-61 4-570-829-61 CAM FOLLOWER G_C(5.0) (UC)
4-570-829-51 4-570-829-51 CAM FOLLOWER G_C(5.0) (UC)
4-570-829-41 4-570-829-41 CAM FOLLOWER G_C(5.0) (UC)
4-570-829-31 4-570-829-31 CAM FOLLOWER G_C(5.0) (UC)
4-570-829-21 4-570-829-21 CAM FOLLOWER G_C(5.0) (UC)
4-570-829-11 4-570-829-11 CAM FOLLOWER G_C(5.0) (UC)
4-570-829-01 4-570-829-01 CAM FOLLOWER G_C(5.0) (UC)
4-452-534-01 4-452-534-01 CAM PIN D(9107)(UC)
4-570-830-01 4-570-830-01 CAM PIN G_B(9137) (UC)
4-570-831-01 4-570-831-01 CAM PIN G_E(9137) (UC)

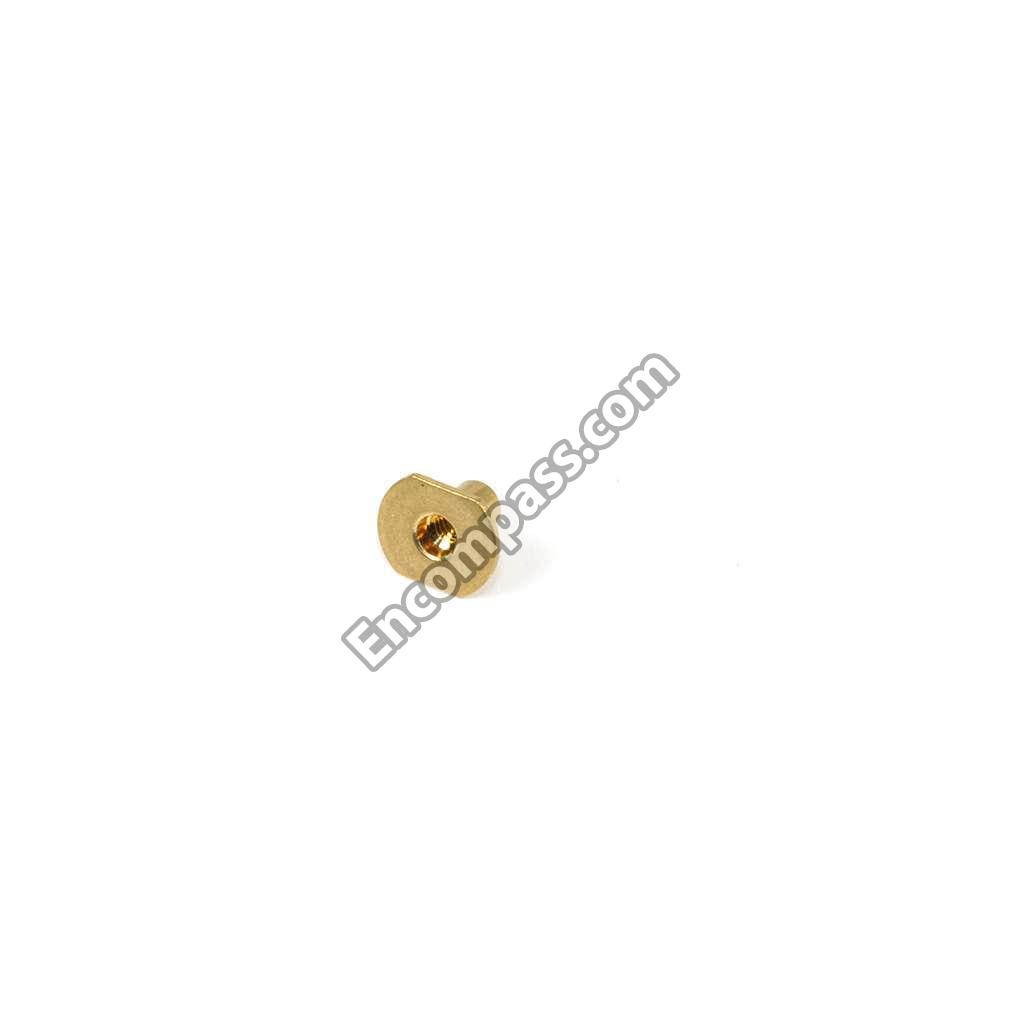

4-476-766-01 4-476-766-01 CAM PIN SHAFT(M) (UC)
X-2592-973-2 X-2592-973-2 CAM STATIONARY BARREL SET ASSY (UC)

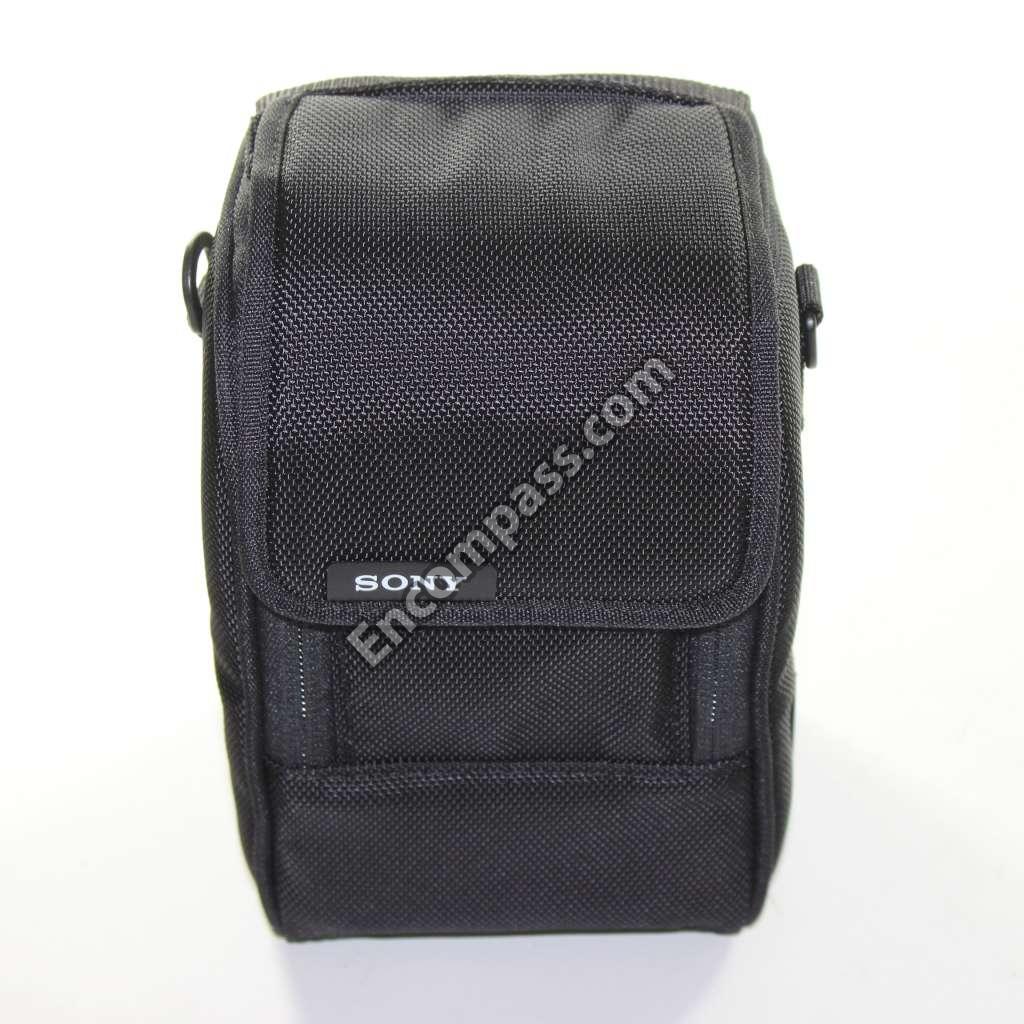

4-581-459-02 4-581-459-02 CASE GMM (UC)
4-441-121-01 4-441-121-01 ESD GASKET (UC)
4-539-970-01 4-539-970-01 ESD GASKET W5H1L2(KRT) (UC)
J-6082-819-A J-6082-819-A FB CHART 10MM
4-568-178-01 4-568-178-01 FILTER SCREW BARREL (UC)
A-2090-014-A A-2090-014-A FOCUS RING ASSY (UC)

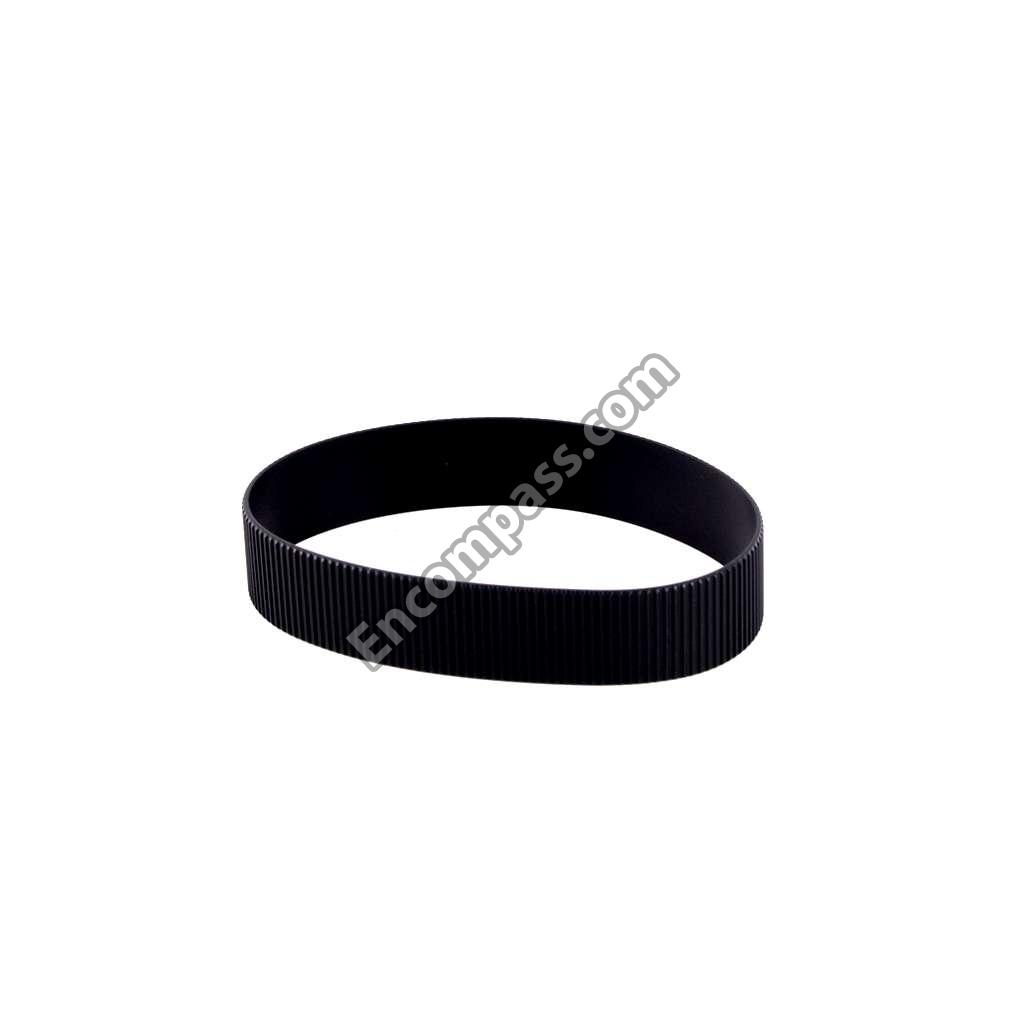

5-000-502-01 5-000-502-01 FOCUS RUBBER RING (UC)
4-567-673-01 4-567-673-01 FPC PLATE (UC)
4-747-147-01 4-747-147-01 FRONT SCREW RING (UC)

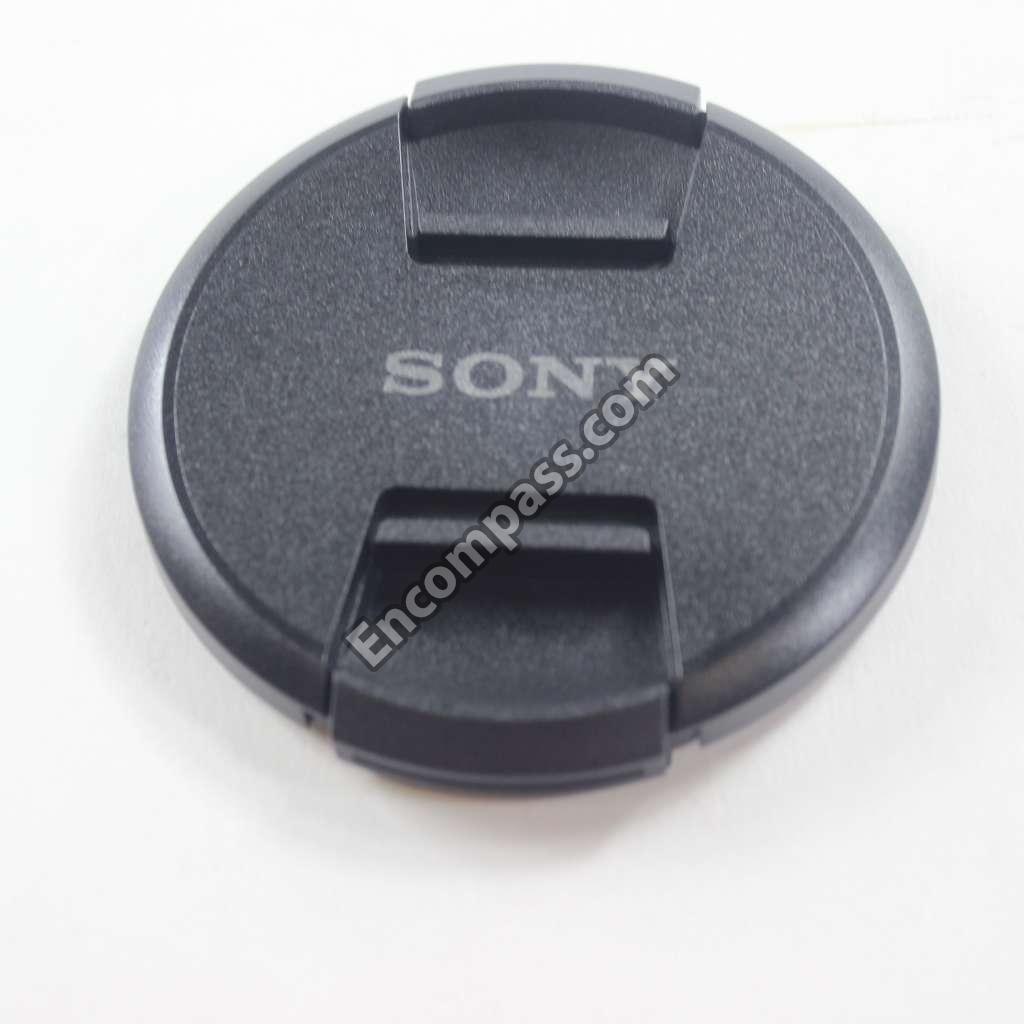

X-2591-280-2 X-2591-280-2 FRONT U_ASSY 82MM (UC)
4-568-219-01 4-568-219-01 GUARD TAPE F (UC)
4-568-220-01 4-568-220-01 GUARD TAPE Z (UC)
4-573-127-81 4-573-127-81 GUIDE ROLLER G_A(5.0) (UC)
4-573-127-71 4-573-127-71 GUIDE ROLLER G_A(5.0) (UC)
4-573-127-61 4-573-127-61 GUIDE ROLLER G_A(5.0) (UC)
4-573-127-51 4-573-127-51 GUIDE ROLLER G_A(5.0) (UC)
4-573-127-41 4-573-127-41 GUIDE ROLLER G_A(5.0) (UC)
4-573-127-31 4-573-127-31 GUIDE ROLLER G_A(5.0) (UC)
4-573-127-21 4-573-127-21 GUIDE ROLLER G_A(5.0) (UC)
4-573-127-11 4-573-127-11 GUIDE ROLLER G_A(5.0) (UC)
4-573-127-01 4-573-127-01 GUIDE ROLLER G_A(5.0) (UC)
4-594-250-01 4-594-250-01 GUIDE ROLLER G_B(5.0)
4-594-250-11 4-594-250-11 GUIDE ROLLER G_B(5.0)
4-594-250-21 4-594-250-21 GUIDE ROLLER G_B(5.0)
4-594-250-31 4-594-250-31 GUIDE ROLLER G_B(5.0)
4-594-250-41 4-594-250-41 GUIDE ROLLER G_B(5.0)
X-2591-884-2 X-2591-884-2 LENS HOOD ASSY.(ALC-SH141)ALCSH141
4-568-233-01 4-568-233-01 LEVER, SELECTION (UC)
A-2090-012-A A-2090-012-A MIDDLE OUTER BARREL (G BADGE) (UC)

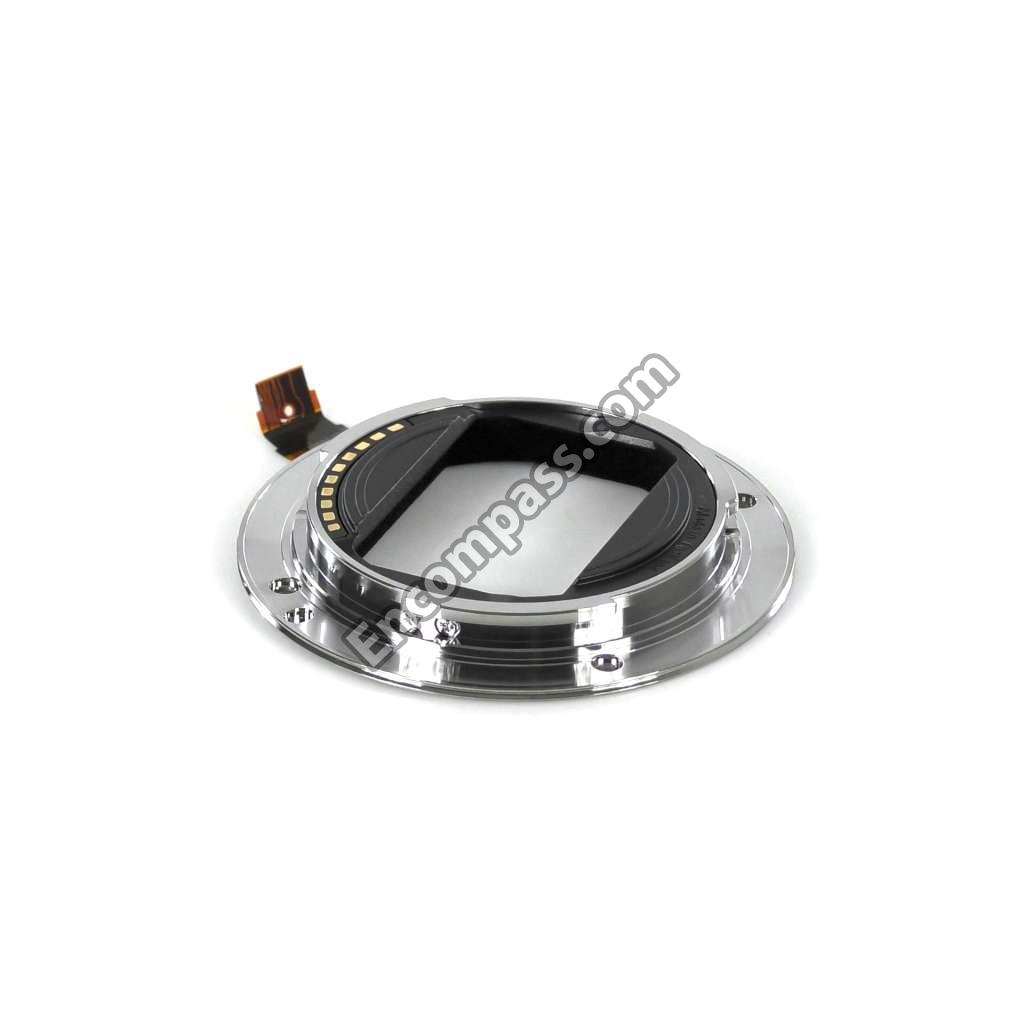

A-2072-620-B A-2072-620-B MOUNT ASSY (UC)

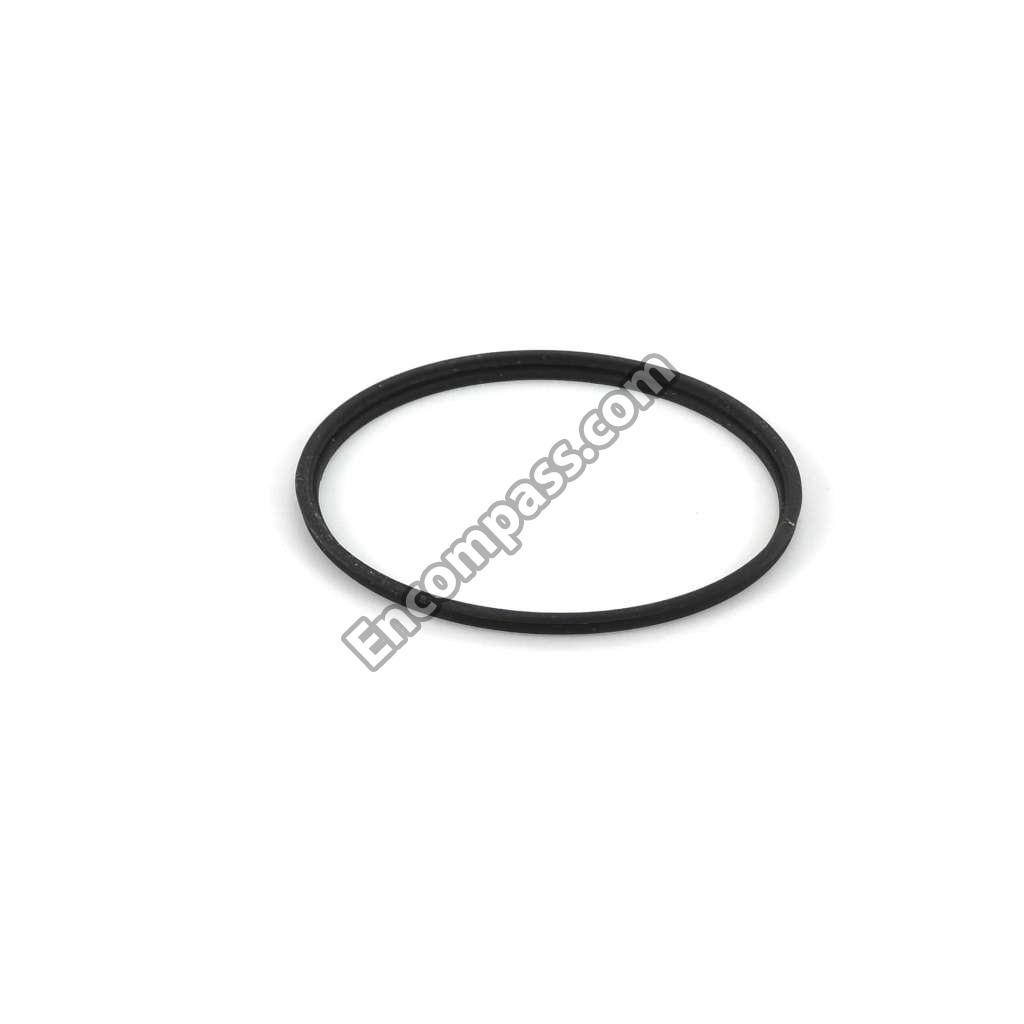

4-593-083-01 4-593-083-01 MOUNT RUBBER (9137) (UC)

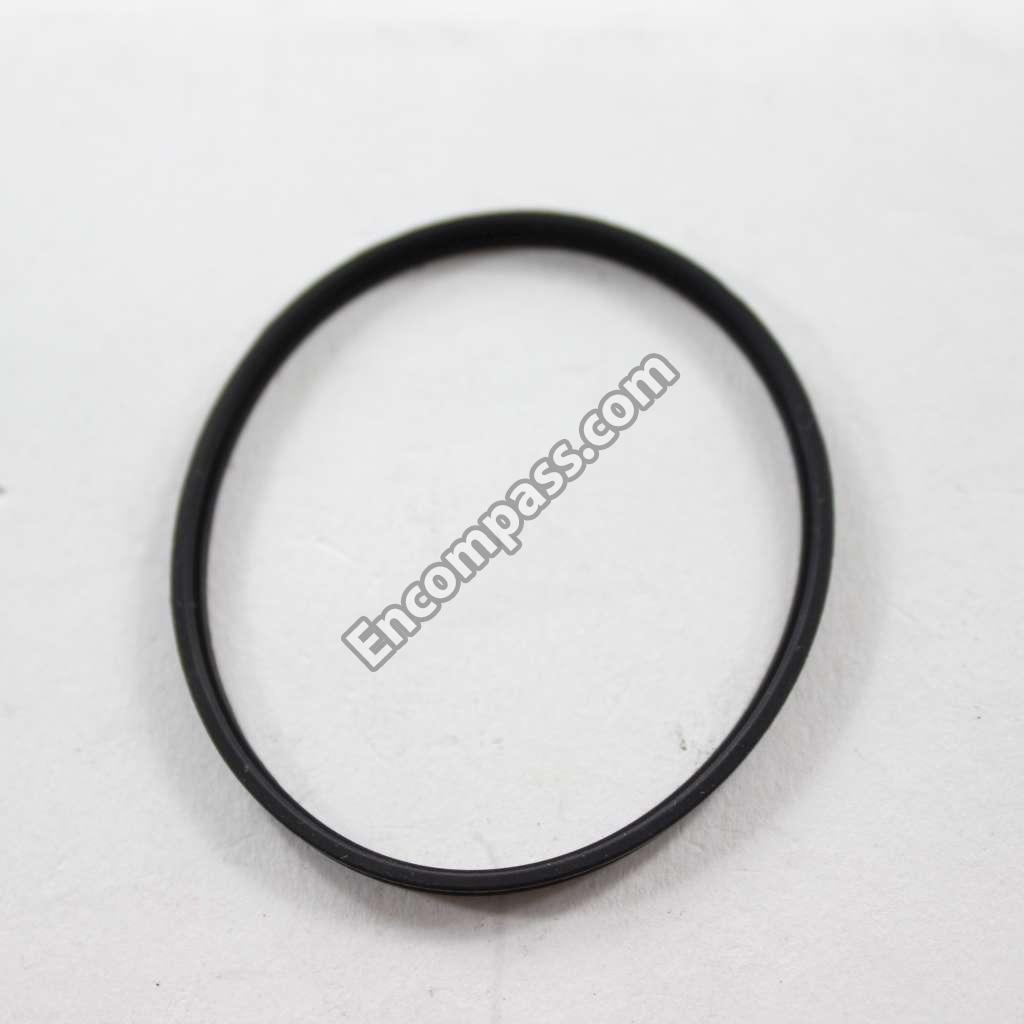

4-568-242-01 4-568-242-01 MOUNT RUBBER (UC)
J-6082-804-A J-6082-804-A NAME RING WRENCH (80MM)
J-6082-804-1 J-6082-804-1 NAME RING WRENCH (80MM) A RUBBER (UC)

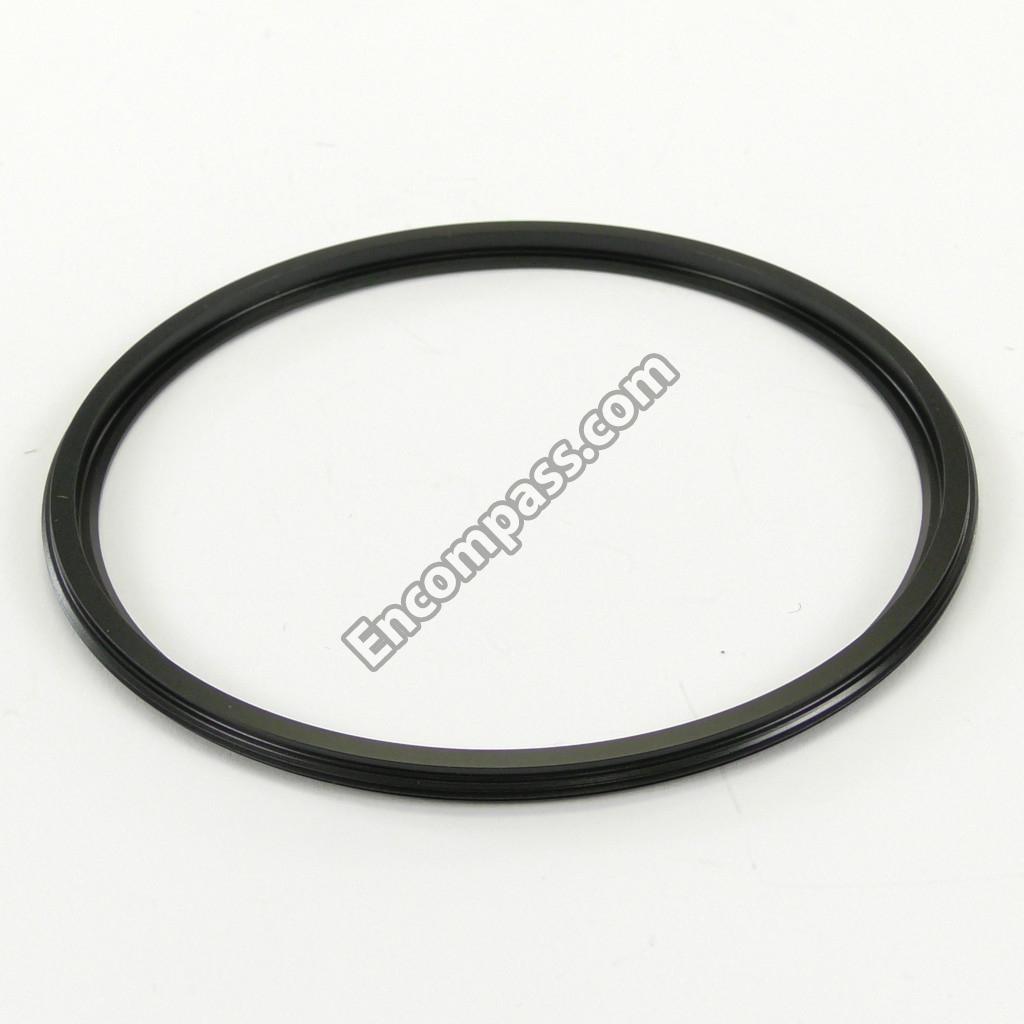

4-567-670-02 4-567-670-02 ORNAMENTAL PLATE (UC)
4-730-022-01 4-730-022-01 ORNAMENTAL PLATE SHEET (UC)
A-2144-921-B A-2144-921-B OUTER BARREL ASSEMBLY FOR SAER
4-568-216-01 4-568-216-01 PIN, FOCUS ROLLER (UC)
4-568-211-01 4-568-211-01 PROTECTION RUBBER 2 (UC)
5-016-572-01 5-016-572-01 PROTECTION TAPE (9137) (UC)
A-2195-272-A A-2195-272-A REAR BARREL ASSY (SERVICE) (UC)
A-5007-544-B A-5007-544-B REAR BARREL ASSY (SERVICE) (UC)

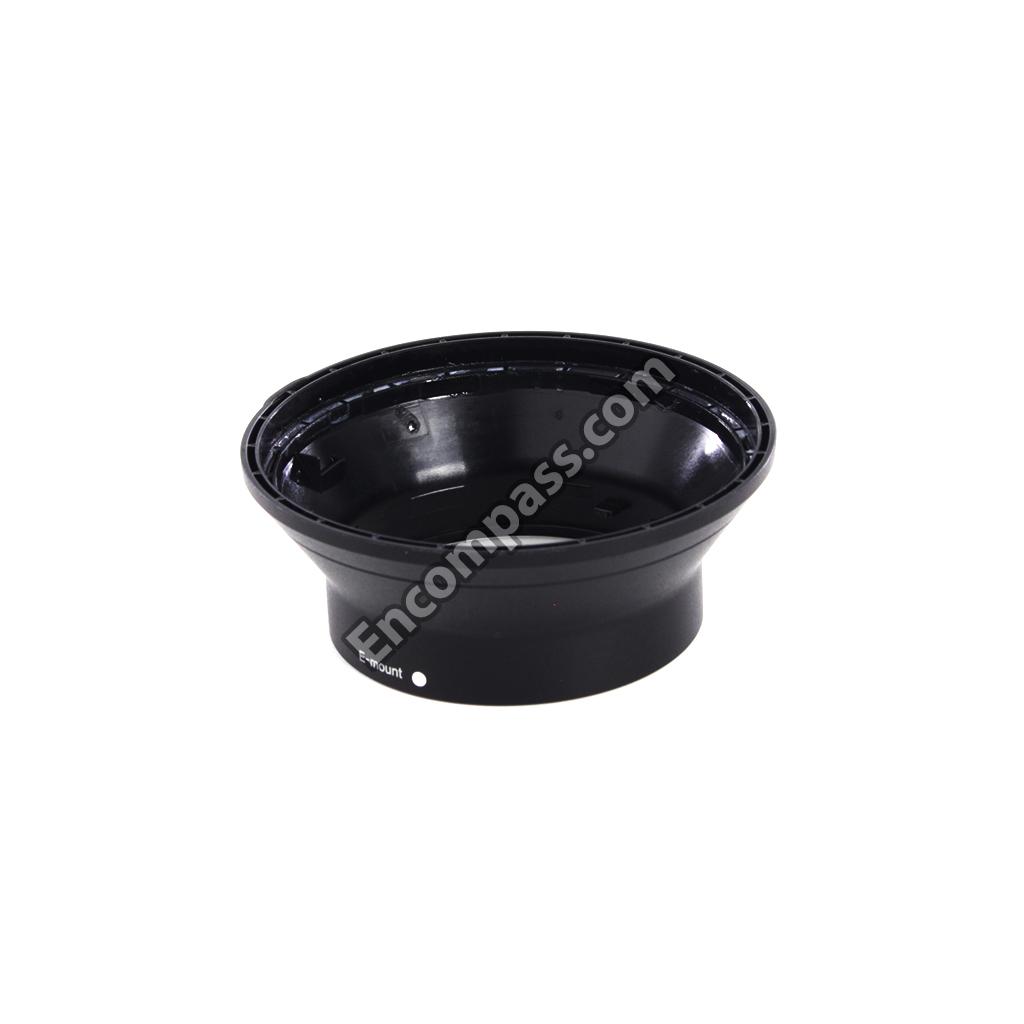

A-2124-451-A A-2124-451-A REAR BARREL ASSY(9139) SERVICE (UC)
4-159-701-05 4-159-701-05 REAR LENS CAP
A-2090-013-B A-2090-013-B REAR OUTER COVER ASSY (UC)
4-540-093-01 4-540-093-01 RETAINER (9133), LEVER (UC)
A-2219-000-B A-2219-000-B S, LENS BLOCK ASSY(9120) (UC)
A-2203-478-A A-2203-478-A S, REAR BARREL ASSY(9120) (UC)
A-5024-085-A A-5024-085-A S-OUTER BLOCK ASSY (9147),REAR (UC)

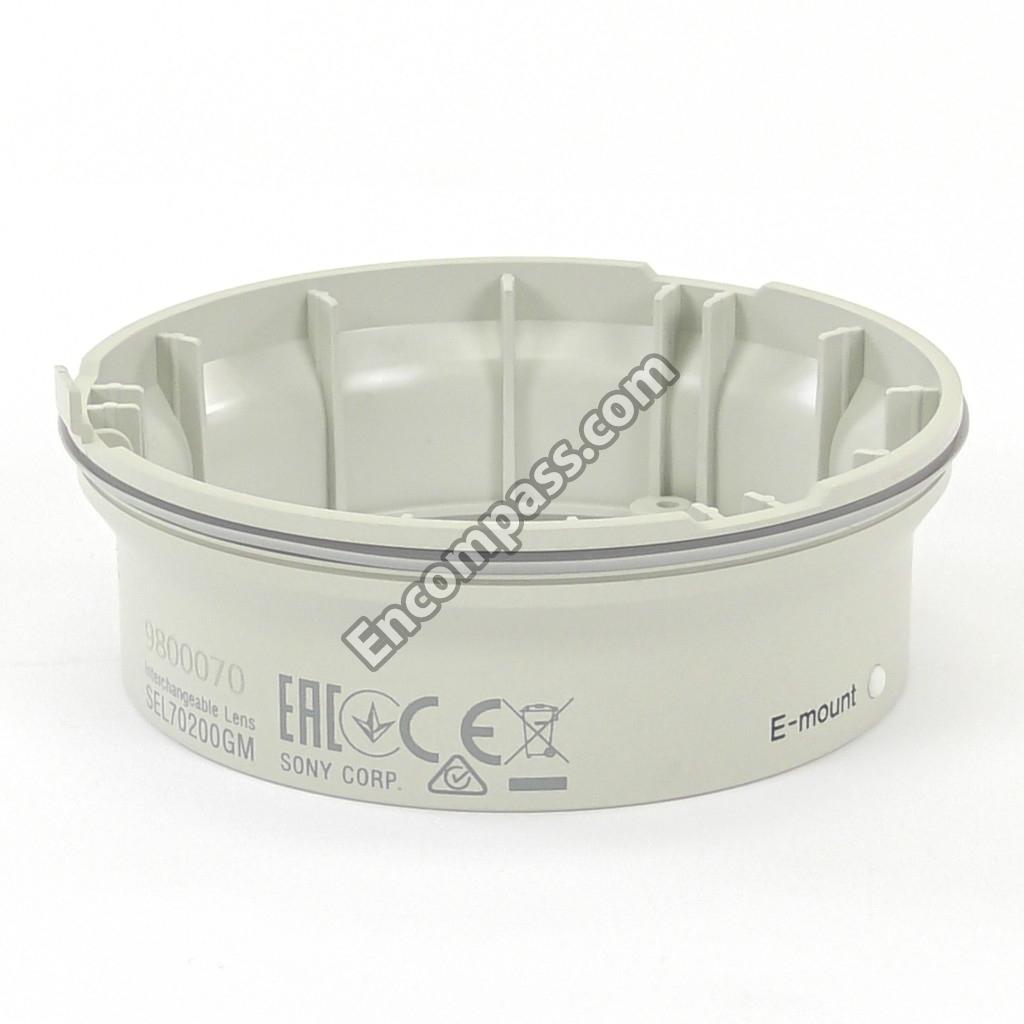

A-5014-963-B A-5014-963-B S-REAR COVER ASSY (UC)
A-2103-351-A A-2103-351-A SERVICE, COMPLETE CL-1048 (UC)
4-540-102-02 4-540-102-02 SHEET (A (9133)), PROTECTION (UC)
4-580-070-01 4-580-070-01 STOPPER PIN G_A (9137) (UC)
4-528-352-01 4-528-352-01 TAPE, FOCUS HOLD BUTTON WASHER
4-589-670-01 4-589-670-01 TAPE, PI 2.5_9 (UC)
4-479-830-11 4-479-830-11 WASHER (9126), HOLD BUTTON (UC)
4-568-229-01 4-568-229-01 ZOOM LOCK KNOB (UC)
A-2072-619-A A-2072-619-A ZOOM RING ASSY (UC)
5-000-503-01 5-000-503-01 ZOOM RUBBER RING (UC)
