Model Image
Manufacturer

Sony

Model Number

SELP18200

Description

Nex Lens E Pz 18-200mm F/3.5-6.3 Oss

Interactive Exploded View

Parts List

Part Number Description

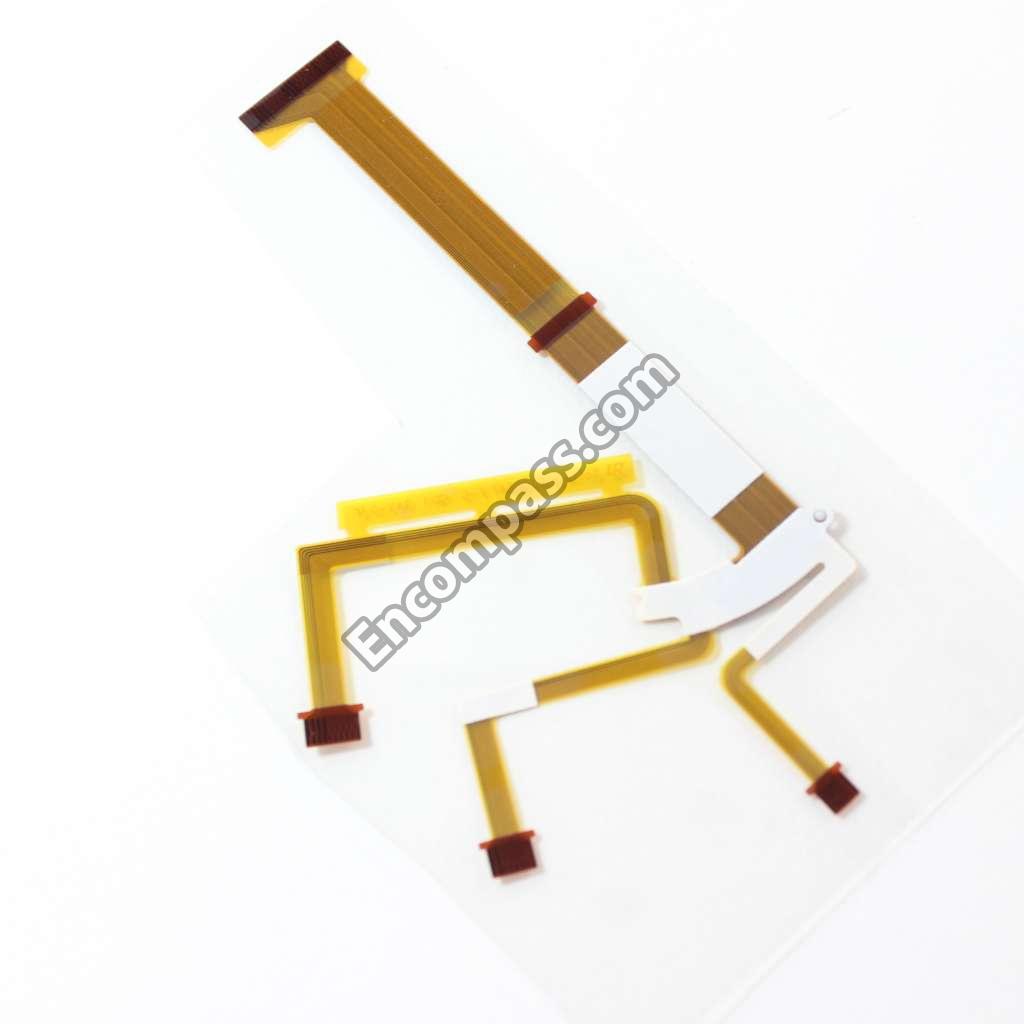

4-578-740-01 4-578-740-01 (941) U FLEXIBLE (CHINOU)

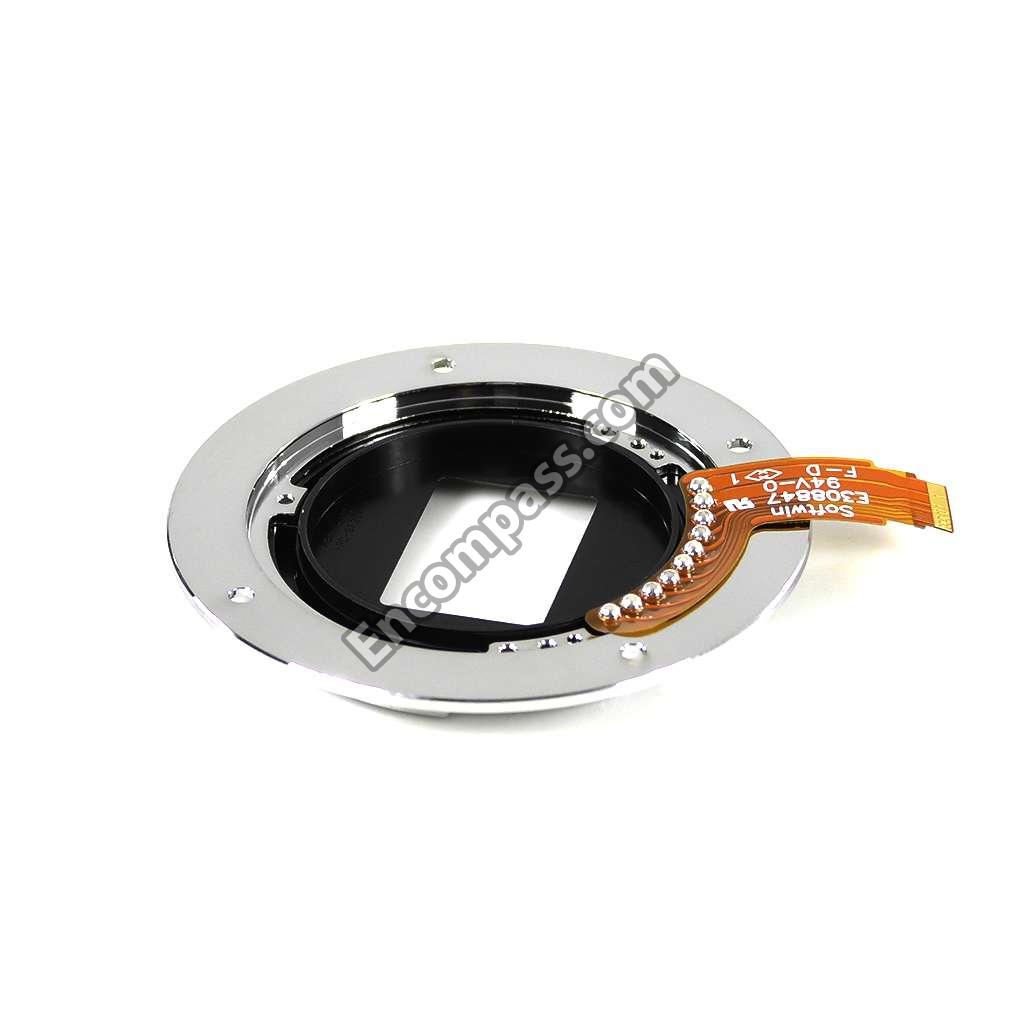

4-439-230-01 4-439-230-01 (A22) MOUNT ASSEMBLY
4-452-593-01 4-452-593-01 BOX (B_) ASSY, GEAR

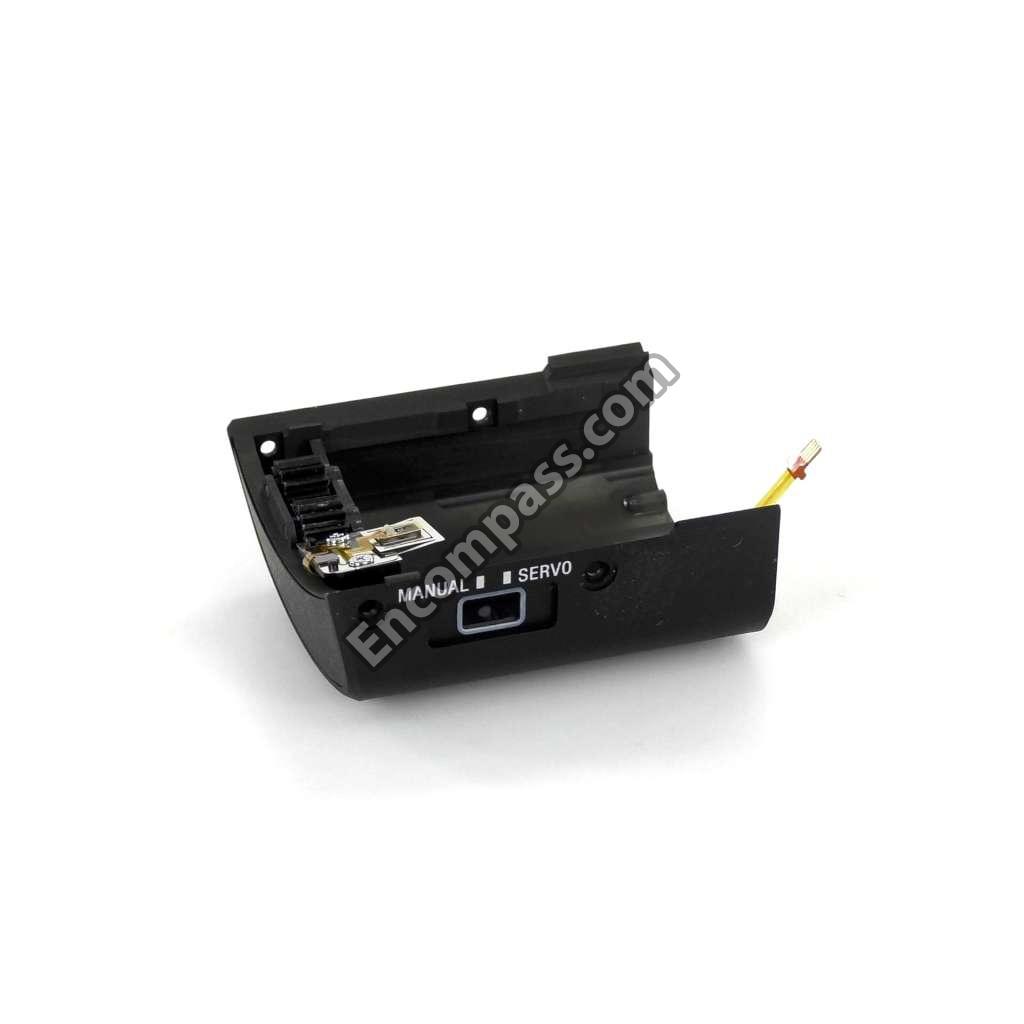

4-452-587-02 4-452-587-02 COVER ASSY, BOX

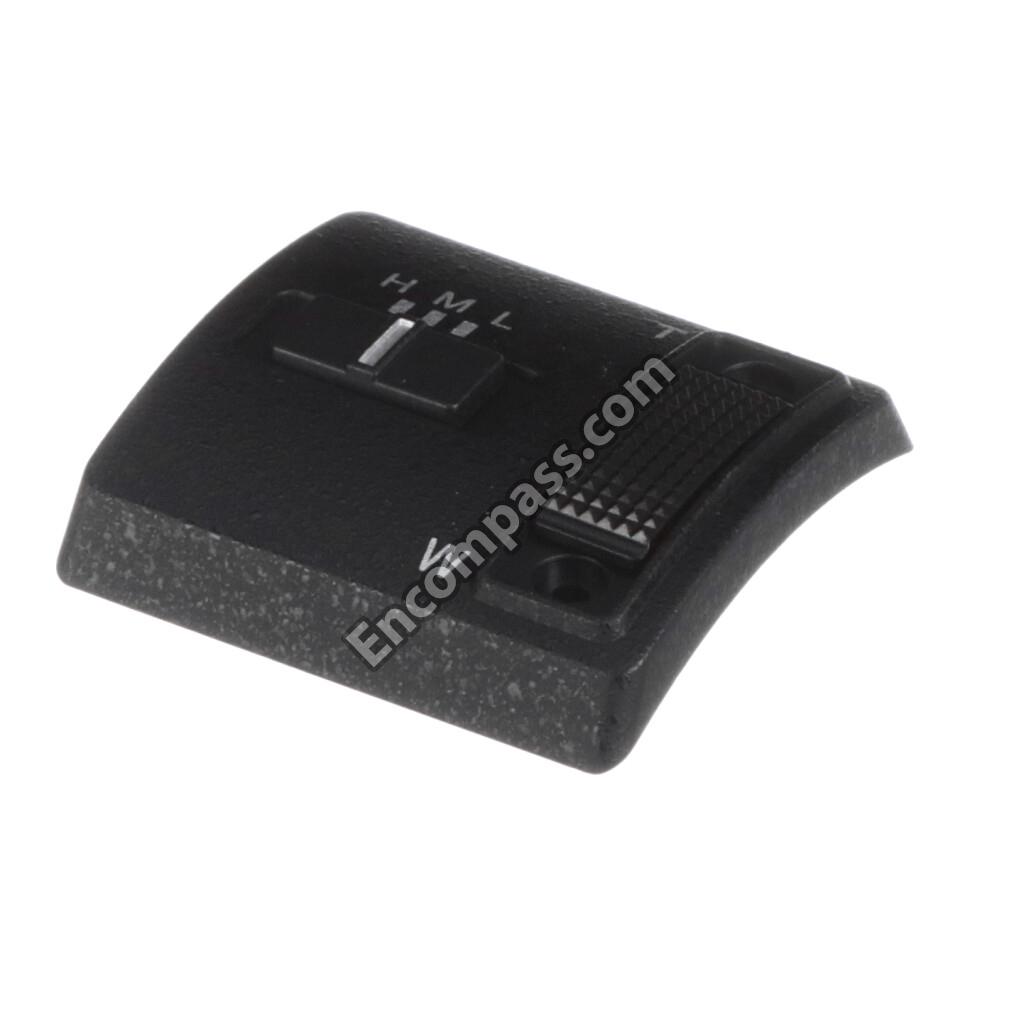

4-452-584-01 4-452-584-01 COVER ASSY, ZOOM (SW)

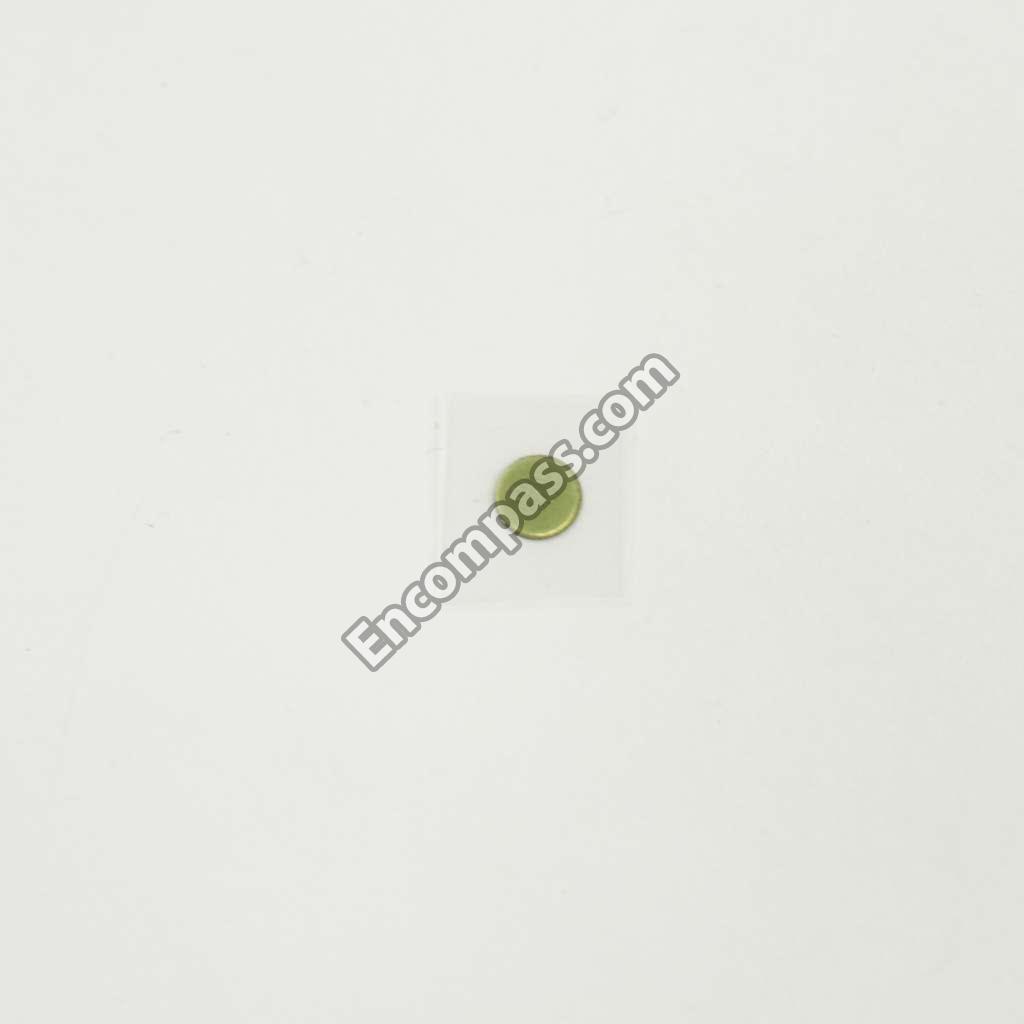

4-452-598-01 4-452-598-01 COVER, SIDE SCREW
4-452-586-01 4-452-586-01 COVER, ZOOM (SW) SCREW
4-452-599-01 4-452-599-01 FLEXIBLE PC BOARD ASSY, RELAY
4-452-588-01 4-452-588-01 FLEXIBLE PC BOARD ASSY, SENSOR
4-208-780-01 4-208-780-01 FRAME ASSEMBLY, (A02) 3 GROUP
X-2548-649-3 X-2548-649-3 FRONT LENS CAP
4-452-591-01 4-452-591-01 GEAR, 2 STEP

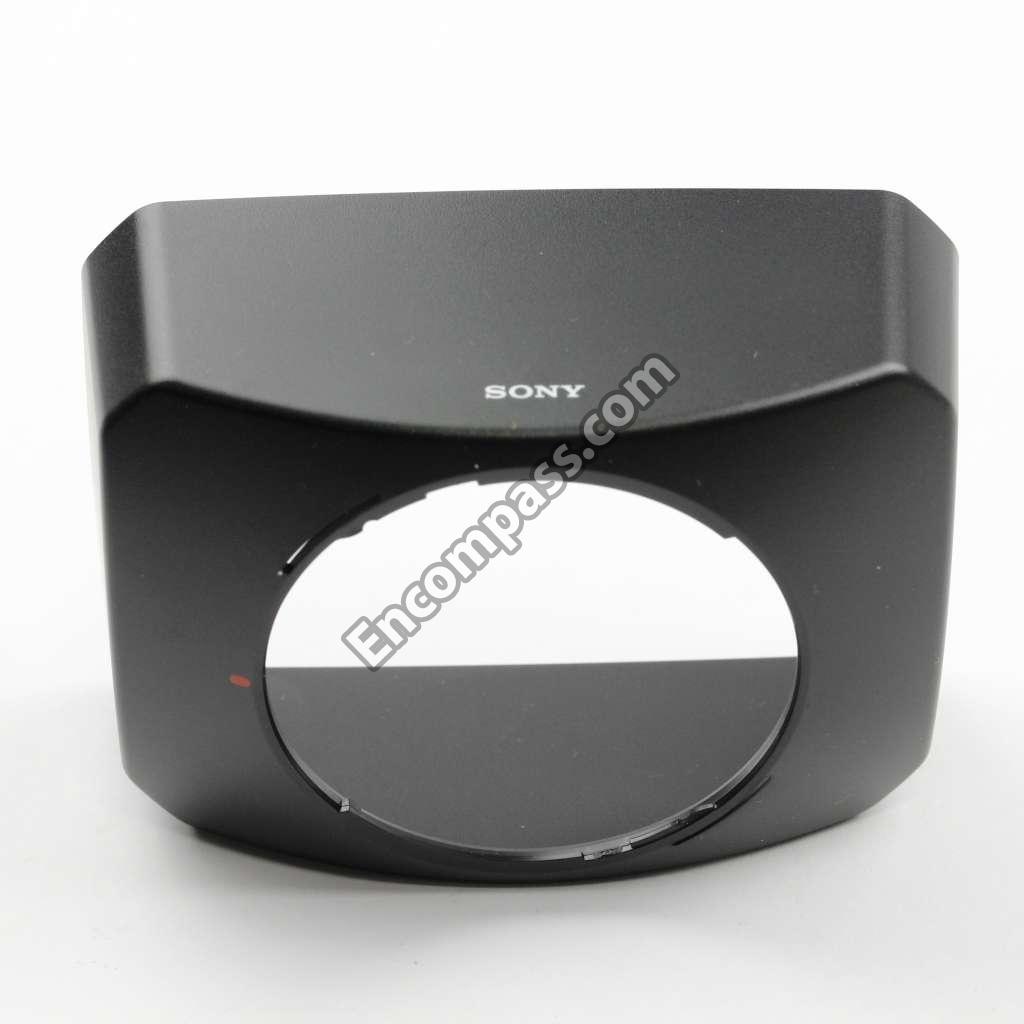

4-440-208-02 4-440-208-02 LENS HOOD
4-452-612-01 4-452-612-01 MOUNTED C, BOARD (9123)
4-464-093-01 4-464-093-01 OPTICAL BLOCK (AB0071

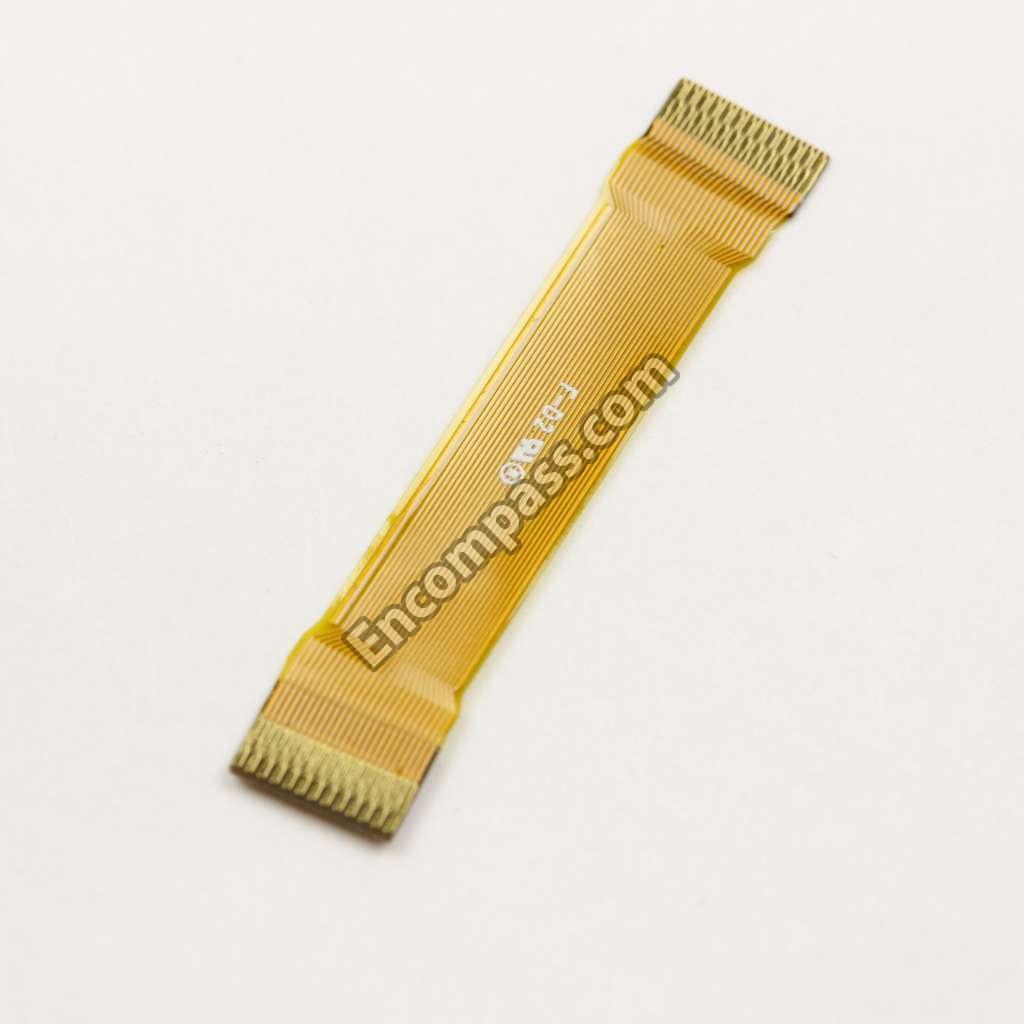

4-452-600-01 4-452-600-01 PC BOARD, POWER ZOOM FLEXIBLE

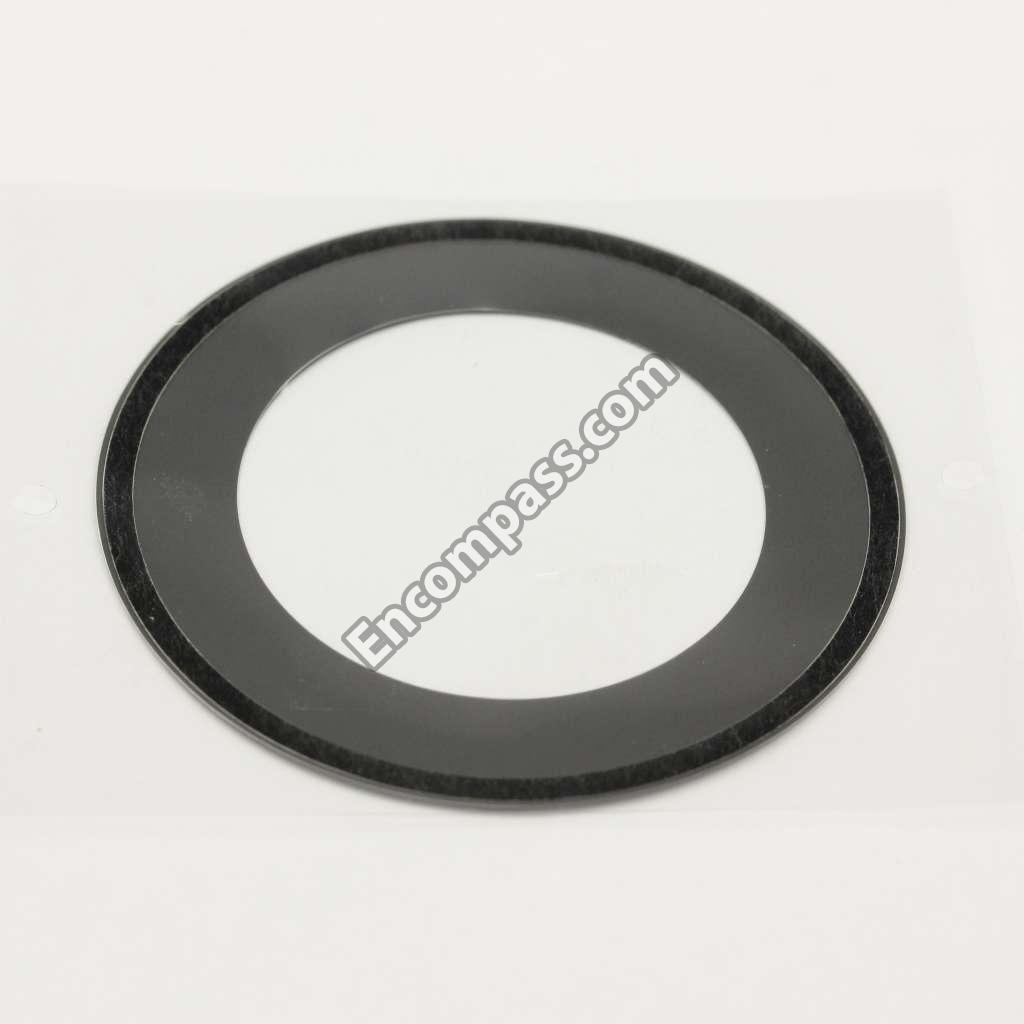

4-208-761-01 4-208-761-01 PLATE, (181) LIGHT INTERCEPTIO
4-159-701-03 4-159-701-03 REAR LENS CAP
4-452-583-01 4-452-583-01 RUBBER (9123), ZOOM
4-452-615-01 4-452-615-01 SCREW 1P2X4C3C
4-452-585-01 4-452-585-01 SCREW 2P1.7X6.5C3C
4-452-594-01 4-452-594-01 SCREW BT2P1.4X4.5C3C
4-452-610-01 4-452-610-01 SCREW BT2P1.4X4C3C
4-452-597-01 4-452-597-01 SCREW BT2P1.7X4C3C
4-452-614-01 4-452-614-01 SCREW BT2P2X10B3C
4-459-730-01 4-459-730-01 SCREW, 2P2X7C3C

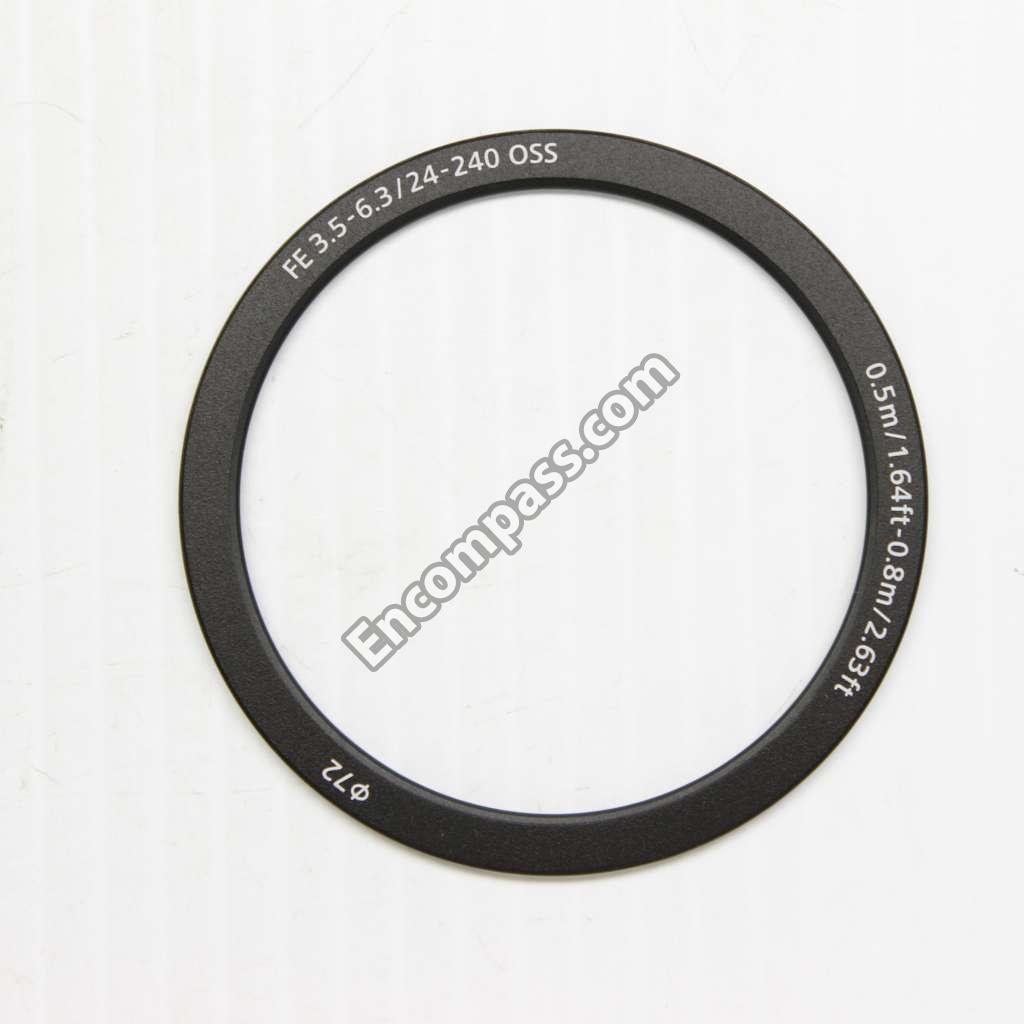

4-567-679-01 4-567-679-01 SERVICE ASSEMBLY, ORNAMENTAL T
4-452-611-01 4-452-611-01 SERVO PC BOARD ASSY
4-452-589-01 4-452-589-01 SPRING, 2 STEP GEAR
4-452-596-01 4-452-596-01 SPRING, MS SELECTION
4-452-595-01 4-452-595-01 SWITCH, MS SELECTION
4-459-094-01 4-459-094-01 TAPE, CONTACT

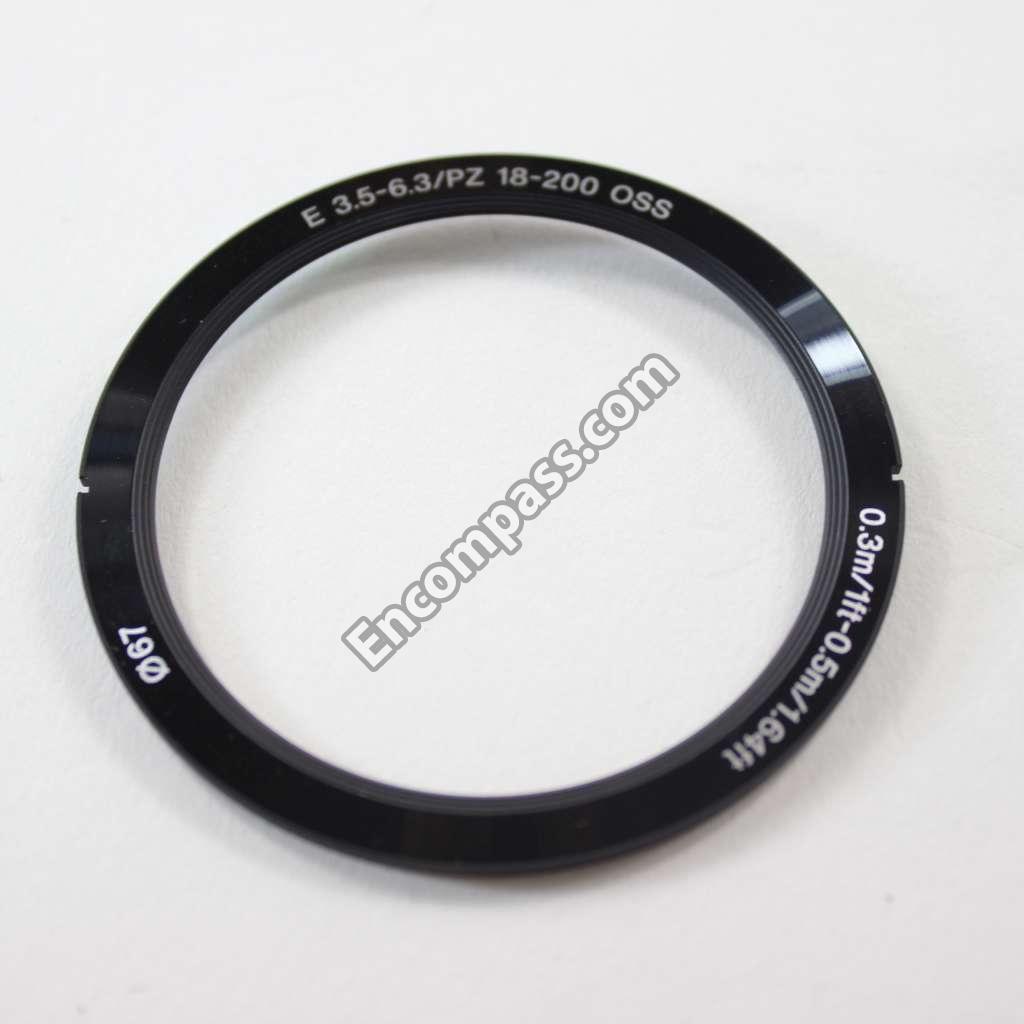

4-452-581-01 4-452-581-01 TUBE ASSY (9123), ORNAMENTAL
4-452-582-01 4-452-582-01 TUBE ASSY, FIXED

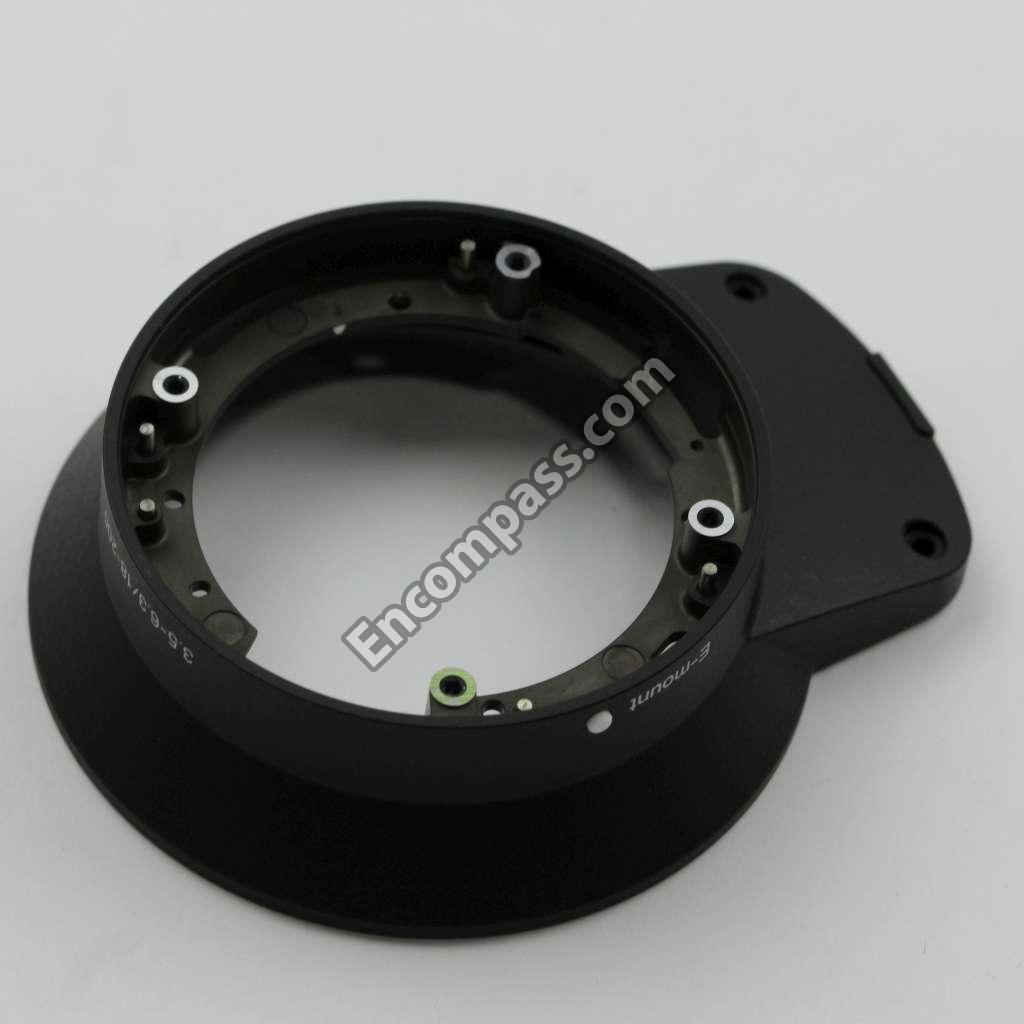

4-452-613-01 4-452-613-01 TUBE, MIRROR ASSY, REAR
4-452-592-01 4-452-592-01 WASHER (2), 2 STEP GEAR
4-452-590-01 4-452-590-01 WASHER, 2 STEP GEAR
