Model Image
Manufacturer

Sony

Model Number

SLTA33

Description

Digital Camera With Translucent Mirror Technology

Interactive Exploded View

Parts List

Part Number Description
A-1779-675-A A-1779-675-A AF DRIVING UNIT
A-1735-179-A A-1735-179-A ALX-8630
A-1779-678-B A-1779-678-B AP APERTURE UNIT

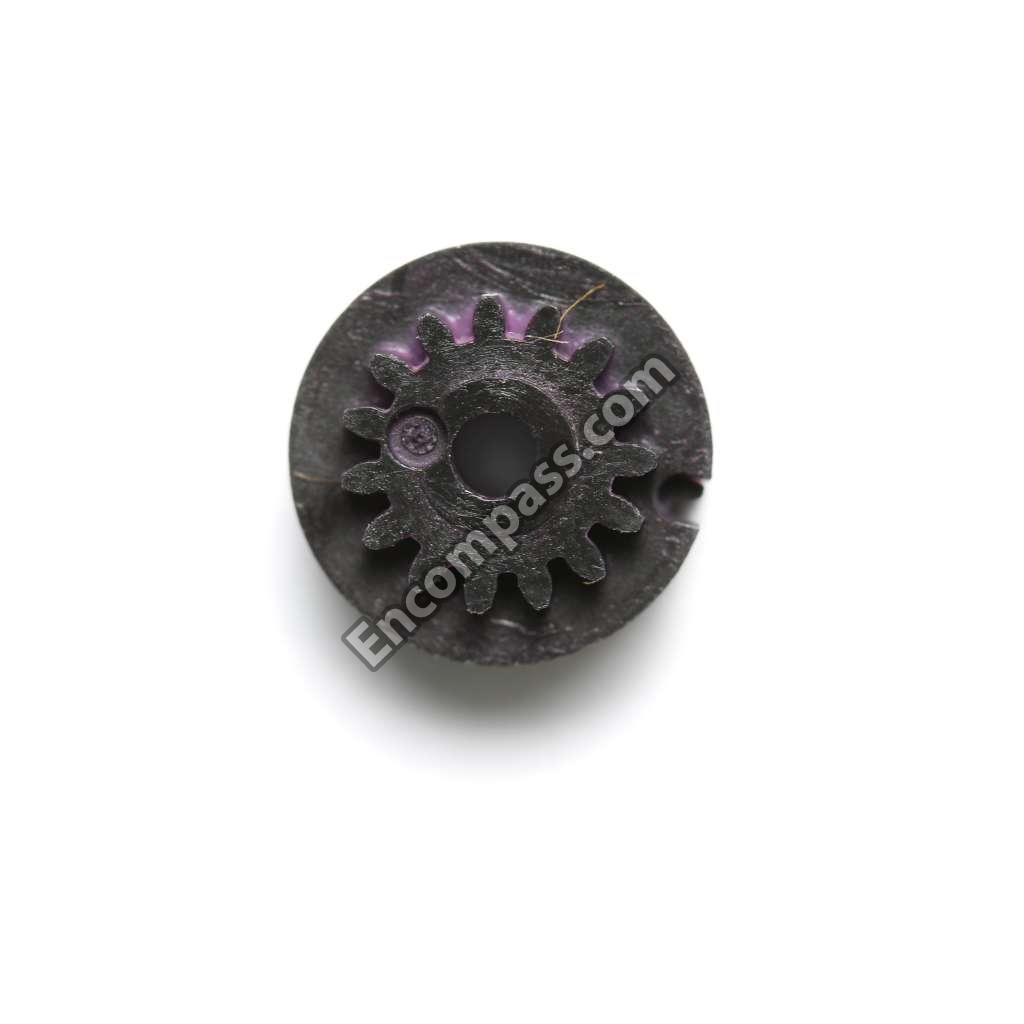

4-185-797-01 4-185-797-01 AP JOINT GEAR
X-2585-425-1 X-2585-425-1 AS HOLDER ACTUATOR ASSY Y(T)
X-2585-421-1 X-2585-421-1 AS SLIDER B ASSY
A-1893-311-A A-1893-311-A AS SLIDER UNIT S(863)S
NPFW50 NPFW50 BATTERY PACK
4-192-228-02 4-192-228-02 BD ABSORBER
4-196-593-01 4-196-593-01 BD AM NOISE SUPPRESSION SHEET
4-194-533-01 4-194-533-01 BD AM RADIATOR SHEET
4-197-652-02 4-197-652-02 BD AS CUSHION
X-2548-482-2 X-2548-482-2 BD BATTERY HOLDER ASSY
4-192-240-02 4-192-240-02 BD BATTERY LOCK
4-192-241-01 4-192-241-01 BD BATTERY LOCK SHAFT
4-192-242-01 4-192-242-01 BD BATTERY LOCK SP
X-2548-480-1 X-2548-480-1 BD BOTTOM FRAME ASSY
X-2548-483-1 X-2548-483-1 BD BT LID COVER ASSY
4-192-246-01 4-192-246-01 BD BT LID COVER OPEN SP
4-192-244-01 4-192-244-01 BD BT LID COVER SHAFT
4-192-221-01 4-192-221-01 BD CONDENSER TAPE
4-192-222-02 4-192-222-02 BD FUSE REPAIR LABEL
4-196-096-01 4-196-096-01 BD HM TAPE (G)
4-196-097-01 4-196-097-01 BD HM TAPE (L)
4-195-077-01 4-195-077-01 BD LIGHT INTERCEPTION SHEET(A)
4-196-095-01 4-196-095-01 BD MC BASE CUSHION
X-2548-481-1 X-2548-481-1 BD SIDE FRAME (L) ASSY
4-192-277-01 4-192-277-01 BD SP HOLDER
4-196-592-01 4-196-592-01 BD ST SHIELD SHEET
4-192-220-01 4-192-220-01 BD TOWER BAR
1-500-919-21 1-500-919-21 BEAD, FERRITE
A-1783-996-A A-1783-996-A BT-062 COMPLE
1-116-522-11 1-116-522-11 CAPACITOR ELECT 180MF
4-192-212-01 4-192-212-01 CV DECORATION RING
X-2548-486-4 X-2548-486-4 CV FRONT COVER ASSY (863)
4-192-213-01 4-192-213-01 CV JACK COVER
X-2548-489-2 X-2548-489-2 CV LCD HINGE ASSY
4-192-305-01 4-192-305-01 CV LCD HINGE COVER (C)
4-192-306-01 4-192-306-01 CV LCD HINGE COVER (M)
4-192-308-01 4-192-308-01 CV LCD HINGE SIDE COVER (G)
4-192-307-01 4-192-307-01 CV LCD HINGE SIDE COVER (L)
X-2548-488-2 X-2548-488-2 CV REAR COVER ASSY (863)
4-193-473-01 4-193-473-01 CV REAR TAPE (BK)
4-192-214-01 4-192-214-01 CV RMC COVER
4-192-225-01 4-192-225-01 CV SIDE COVER (L)
4-192-302-01 4-192-302-01 CV TAPE AS (0526)
4-192-226-01 4-192-226-01 EM GF TAPE (A)
4-192-227-01 4-192-227-01 EM GF TAPE (B)
4-192-309-01 4-192-309-01 EM LCD BOARD TAPE
4-192-303-01 4-192-303-01 EM PD GROUND PLATE
1-257-074-11 1-257-074-11 FIXED CHIP RESISTOR 330K
1-880-877-11 1-880-877-11 FPC, ISL-001
1-880-878-11 1-880-878-11 FPC, ISP-001
9-910-999-TF 9-910-999-TF FPC, LCD-021
6-716-174-01 6-716-174-01 IC BD4221NUX-E2
8-753-341-80 8-753-341-80 IC CXD4115GG-1-T6
6-714-401-01 6-714-401-01 IC K4X1G323PE-8GC6T
A-1773-801-A A-1773-801-A IM IMAGER UNIT 14M
4-194-227-01 4-194-227-01 IM PLATE GUIDE IMAGER FPC
4-194-226-01 4-194-226-01 IM PLATE, LPF RETAINER
4-194-224-01 4-194-224-01 IM SHEET GRAPHITE
4-194-225-01 4-194-225-01 IM TAPE FPC GUIDE
1-481-642-11 1-481-642-11 INDUCTOR, CHIP 10UH (1608)
1-811-202-21 1-811-202-21 LCD MODULE
4-141-107-12 4-141-107-12 LENS CAP
1-858-462-12 1-858-462-12 LOUDSPEAKER (1.0CM)
1-471-558-11 1-471-558-11 MAGNET (NEO44)
1-471-559-11 1-471-559-11 MAGNET (NEO44)
4-187-045-03 4-187-045-03 MANUAL, INSTRUCTION
4-191-592-01 4-191-592-01 MB AF/MF CHANGE LEVER
4-191-591-01 4-191-591-01 MB LENS LOCK BASE PLATE
4-191-597-01 4-191-597-01 MB LENS LOCK BUTTON

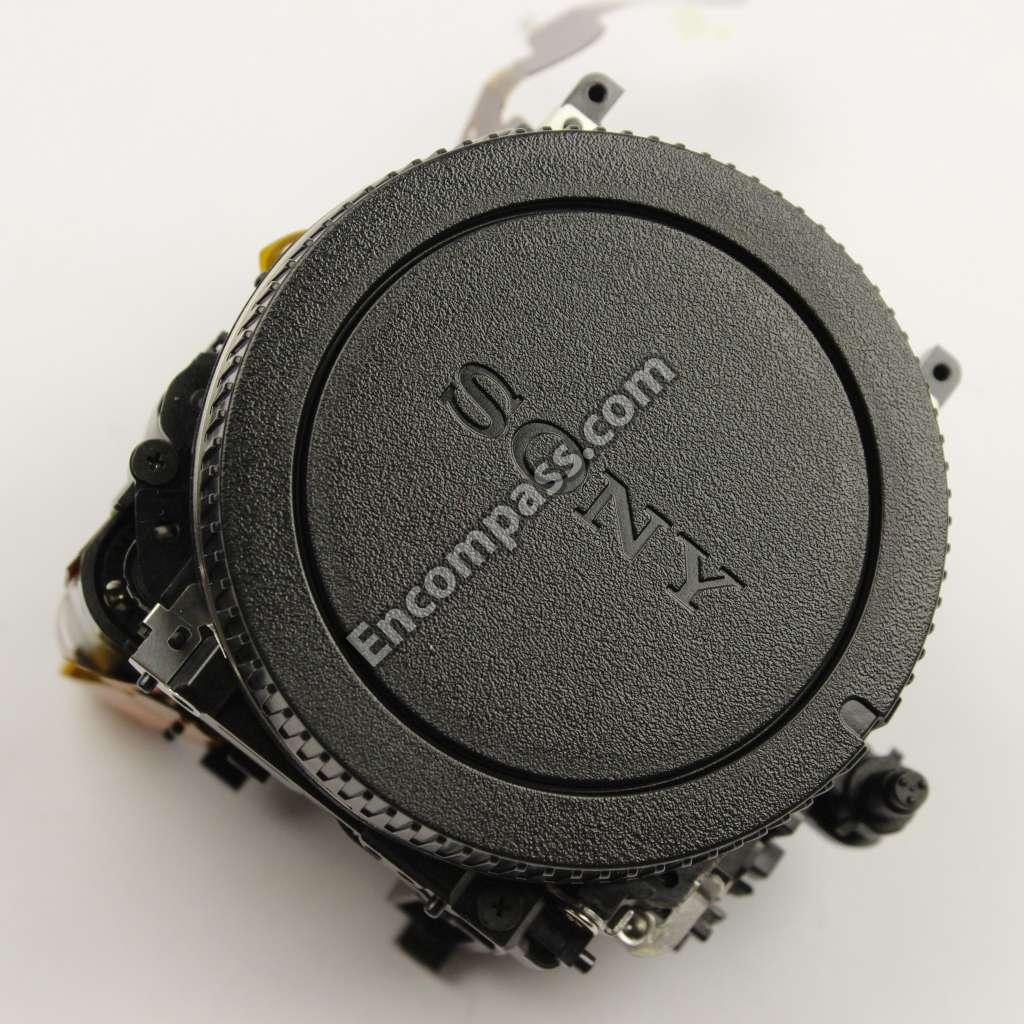

A-1779-681-C A-1779-681-C MB MIRROR BOX SUB UNIT
4-191-603-01 4-191-603-01 MB MOUNT SPACER
A-1779-676-B A-1779-676-B MB SHUTTER CHARGE UNIT
1-881-176-41 1-881-176-41 MOUNT FPC UNIT, GY-024
1-881-235-21 1-881-235-21 MOUNT FPC UNIT, SHD-002
A-1781-920-A A-1781-920-A MOUNTED C.BOARD PD-414
A-1781-919-A A-1781-919-A MOUNTED C.BOARD ST-233
A-1783-995-A A-1783-995-A MOUNTED C.BOARD ST-233
A-1789-527-B A-1789-527-B MOUNTED C.BOARD, AM-022(863)S
A-1789-529-A A-1789-529-A P CAB M BLOCK ASSY(S)
A-1855-640-A A-1855-640-A P.O.I. (SERVICE USE)
A-1783-997-A A-1783-997-A RM-099 COMPLE
4-191-605-01 4-191-605-01 S ADJUSTMENT SCREW
1-489-146-11 1-489-146-11 SENSOR(MEMS)
A-1783-998-A A-1783-998-A SHM-001 COMPLE
1-487-619-33 1-487-619-33 SHUTTER UNIT (H094)
1-487-960-23 1-487-960-23 SHUTTER UNIT(AFE-3032)
4-192-252-01 4-192-252-01 ST AF COVER (G)
4-192-267-01 4-192-267-01 ST AF COVER (L)
4-192-253-01 4-192-253-01 ST CASE (U)
4-192-254-01 4-192-254-01 ST P ARM COVER
4-192-223-01 4-192-223-01 ST SHOE FRAME
X-2548-484-1 X-2548-484-1 ST STROBE BASE ASSY
4-192-224-01 4-192-224-01 ST SW PLATE
4-196-660-01 4-196-660-01 STRAP
A-1780-735-A A-1780-735-A STROBE BASE BLOCK ASSY
1-489-077-11 1-489-077-11 SWITCH BLOCK, CONTROL(RS86300)
1-489-072-12 1-489-072-12 SWITCH BLOCK, CONTROL(TK86300)
1-445-931-21 1-445-931-21 TRANSFORMER, D.C.-D.C.CONVERTER
1-848-676-11 1-848-676-11 USB CABLE

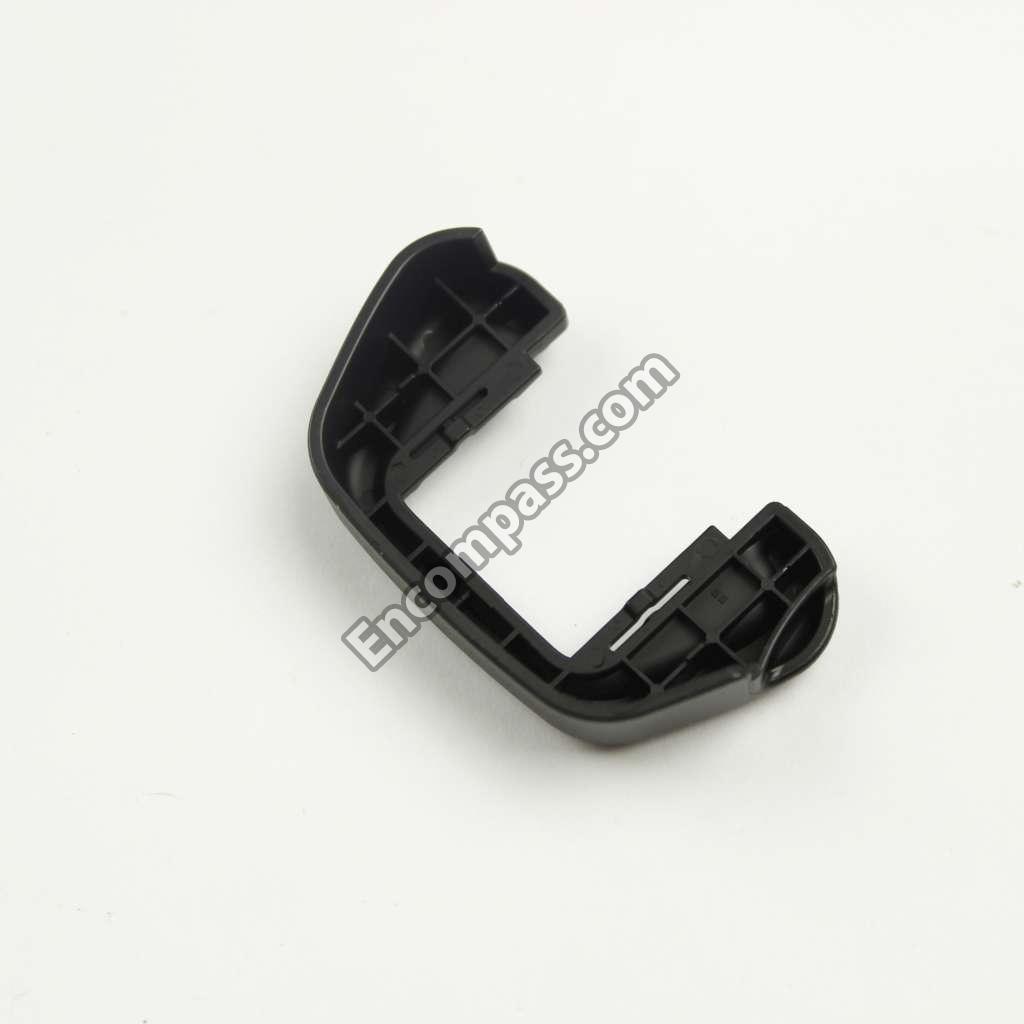

4-279-751-01 4-279-751-01 VM EYE CUP
4-192-268-01 4-192-268-01 VM MODULE HOLDER
X-2548-487-4 X-2548-487-4 VM VF LENS ASSY
