Model Image
Manufacturer

Sony

Model Number

SLTA57

Description

Alpha A57 Slr Digital Camera Body Only

Interactive Exploded View

Parts List

Part Number Description
4-420-755-02 4-420-755-02 ALPHA APPLICATIONSOFTWARE
4-420-755-03 4-420-755-03 ALPHA APPLICATIONSOFTWARE
A-1893-311-A A-1893-311-A AS SLIDER UNIT S(863)S

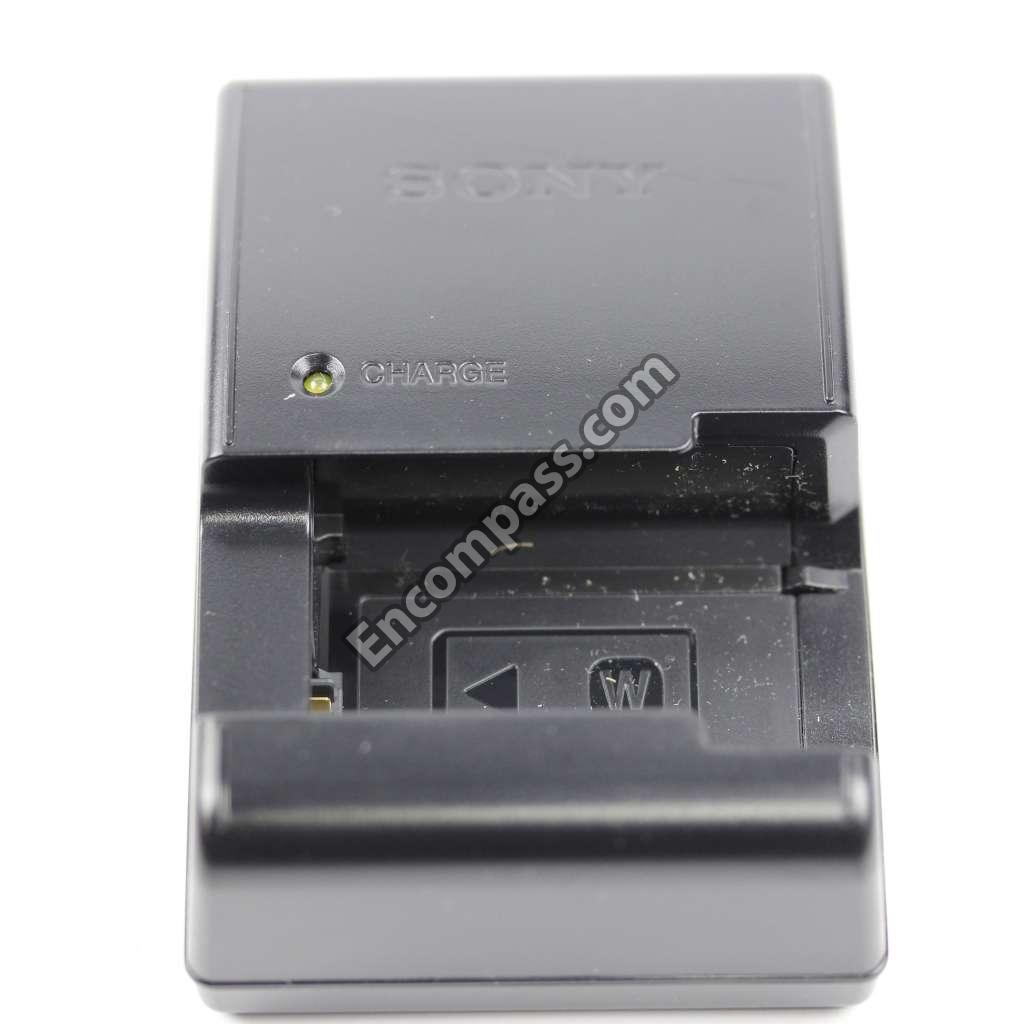

1-487-907-23 1-487-907-23 BATTERY CHARGER
NPFW50 NPFW50 BATTERY PACK
4-421-573-01 4-421-573-01 CV MODEL NAME PLATE (874)
4-296-625-02 4-296-625-02 CV REAR CAUTION LABEL
X-2584-067-2 X-2584-067-2 CV REAR COVER ASSY (874)

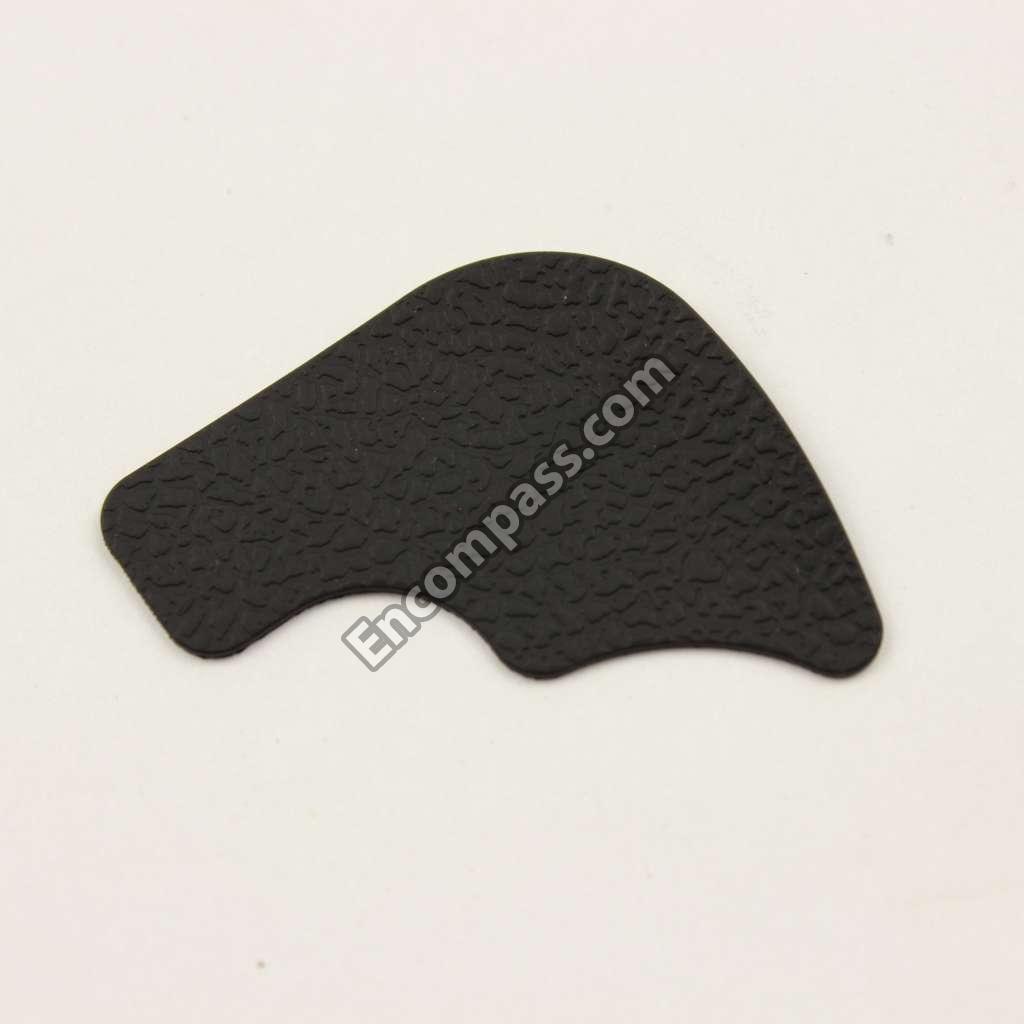

4-293-749-02 4-293-749-02 CV REAR RUBBER

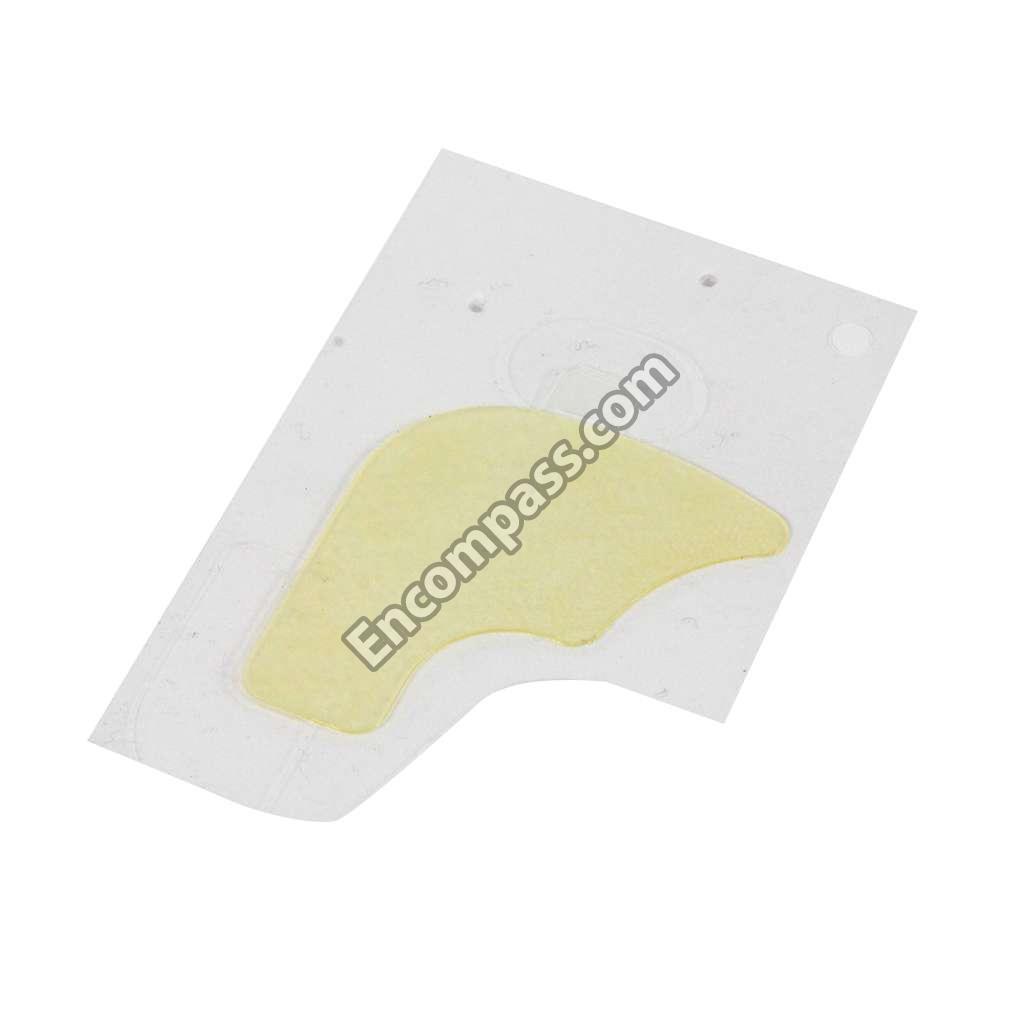

4-293-750-03 4-293-750-03 CV REAR RUBBER TAPE
X-2582-461-4 X-2582-461-4 CV SIDE COVER L ASSY
X-2584-066-2 X-2584-066-2 CV TOP COVER ASSY(874)
4-420-756-01 4-420-756-01 HANDBOOK(PDF)
A-1888-682-A A-1888-682-A IM IMAGER UNIT ASSY (874) TKI
A-1851-271-A A-1851-271-A LCD DISPLAY PANEL
4-420-759-01 4-420-759-01 MANUAL, INSTRUCTION
9-910-999-SM 9-910-999-SM MANUAL, INSTRUCTION
4-420-759-52 4-420-759-52 MANUAL, INSTRUCTION
A-1814-176-D A-1814-176-D MB MIRROR BOX SUB UNIT
A-1878-312-A A-1878-312-A MOUNTED C.BOARD, AM-026(874)(S)
A-1855-640-A A-1855-640-A P.O.I. (SERVICE USE)
J-6082-777-A J-6082-777-A PRECISION SCREWDRIVER HANDLE
1-885-624-11 1-885-624-11 PWB, AO-003
1-885-931-11 1-885-931-11 PWB, ISL-007
1-885-932-11 1-885-932-11 PWB, ISP-007

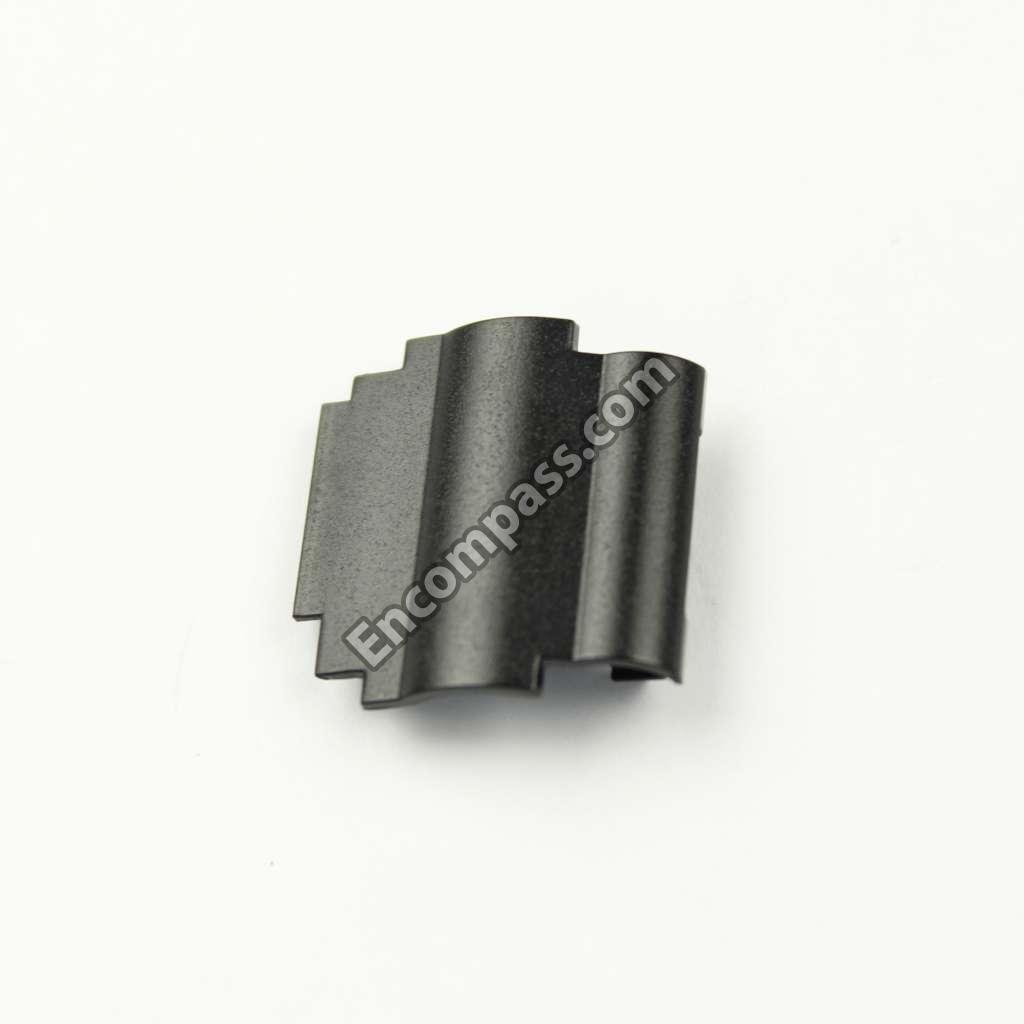

4-293-724-01 4-293-724-01 ST ARM COVER

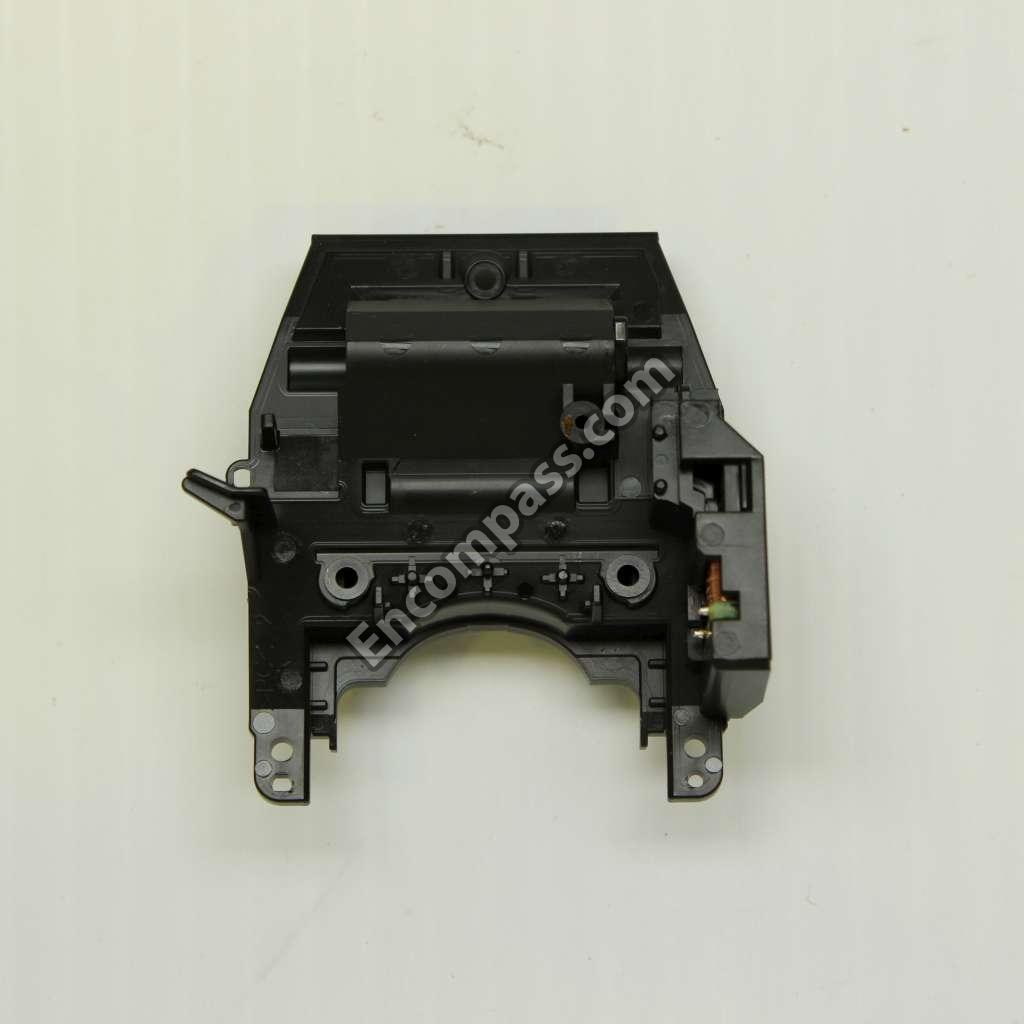

X-2582-404-2 X-2582-404-2 ST BASE ASSY

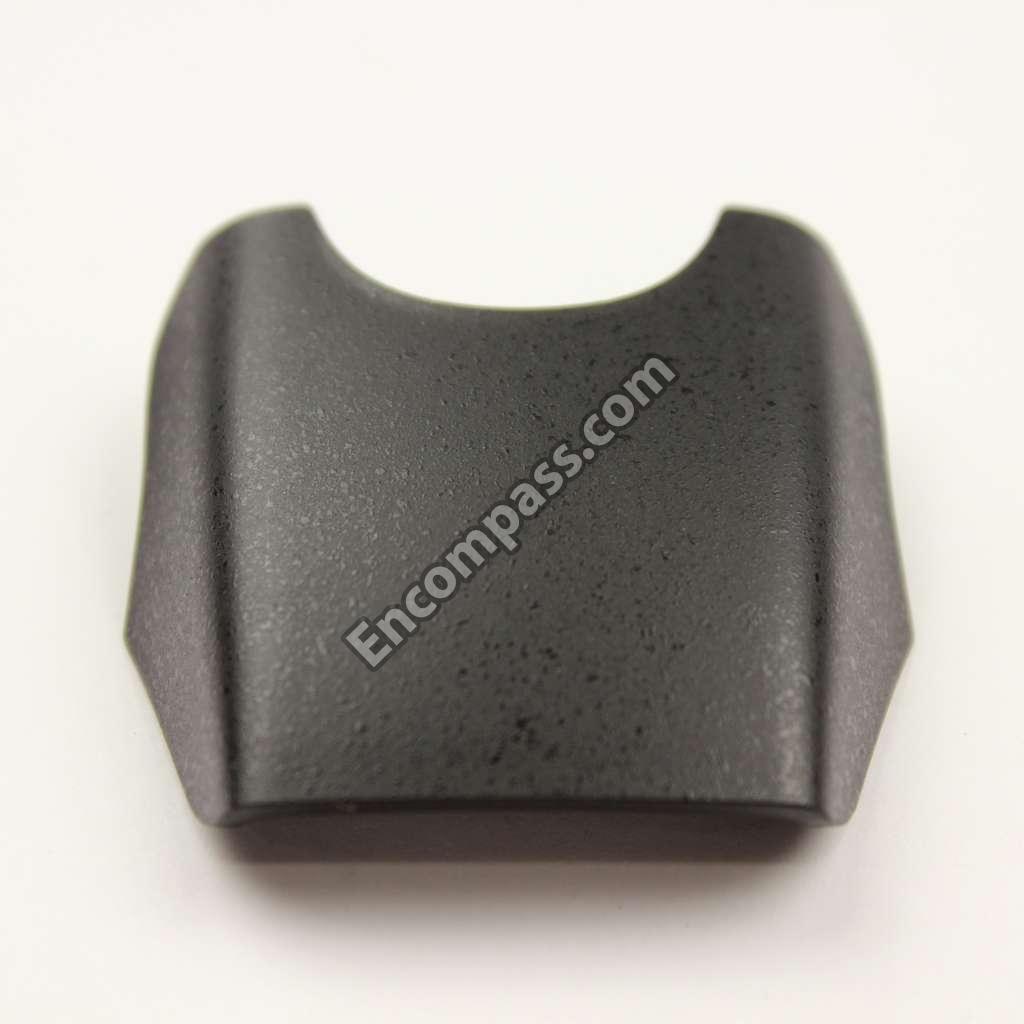

4-293-723-01 4-293-723-01 ST CASE U
6-553-018-01 6-553-018-01 TR RJP4009ANS
X-2584-065-2 X-2584-065-2 VM VF LENS ASSY (874)
