Model Image
Manufacturer

Sony

Model Number

SNCEP520

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-283-461-01 4-283-461-01 BEARING (R-1650), BALL

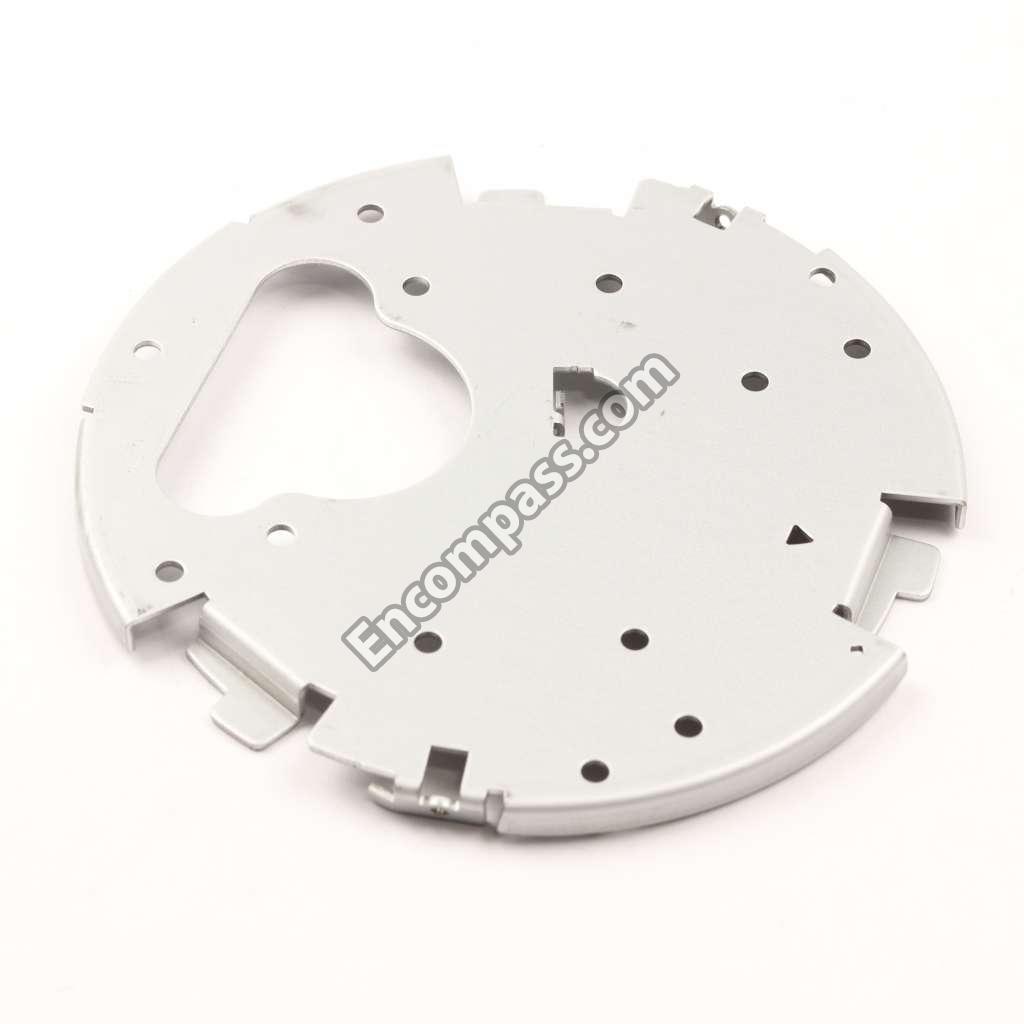

4-288-553-01 4-288-553-01 BRACKET, INSTALL
4-286-213-03 4-286-213-03 CABINET, CAMERA (FRONT)
4-286-218-03 4-286-218-03 CABINET, CAMERA (REAR)
4-286-216-05 4-286-216-05 CABINET, SIDE (C)
4-286-217-04 4-286-217-04 CABINET, SIDE (S)
1-839-189-11 1-839-189-11 CABLE, FLEXIBLE FLAT (16P)
1-116-857-91 1-116-857-91 CAP, CERAMIC 0.22MF B (2012)
4-292-740-01 4-292-740-01 CD-ROM
4-282-058-04 4-282-058-04 CD-ROM
1-481-903-11 1-481-903-11 CHOKE COIL 33UH
A-1807-619-A A-1807-619-A CN-3366 SD MOUNT
1-481-907-11 1-481-907-11 COMMON MODE CHOKE COIL
4-286-223-02 4-286-223-02 COVER, CABLE
4-286-212-01 4-286-212-01 COVER, CN
A-1842-916-A A-1842-916-A FCB ASSY
4-286-219-01 4-286-219-01 GEAR, P1
4-286-220-01 4-286-220-01 GEAR, P2
1-967-898-11 1-967-898-11 HARNESS (20P/SY-MD)
1-967-890-31 1-967-890-31 HARNESS, SUB (30P/PS-SY)
1-967-889-31 1-967-889-31 HARNESS, SUB (5P/PS-SY)
4-288-548-01 4-288-548-01 HOLDER, TM
6-717-513-01 6-717-513-01 IC LV8729V-TLM-H
6-717-577-01 6-717-577-01 IC TPS23756PWPR
A-1845-350-A A-1845-350-A MOUNTED C.BOARD, MD-143 PTZ
A-1835-882-A A-1835-882-A MOUNTED C.BOARD, PS-820

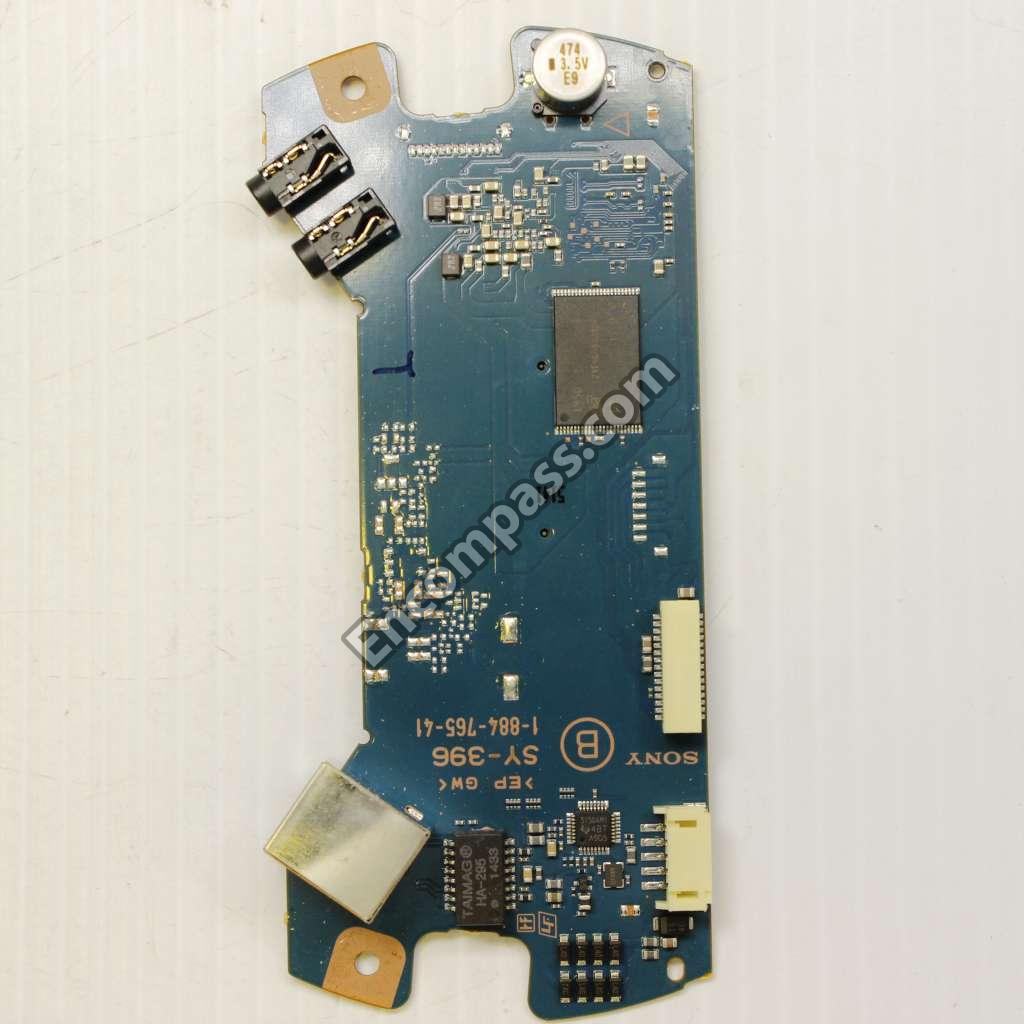

A-1835-881-A A-1835-881-A MOUNTED C.BRD, SY-396A PTZ-SD
A-2065-531-A A-2065-531-A PAN SHAFT ASSY
X-2581-937-1 X-2581-937-1 PLATE ASSY, PAN
X-2581-938-2 X-2581-938-2 PLATE ASSY, TILT
4-288-545-01 4-288-545-01 PLATE, HOLD CABINET
A-1833-389-A A-1833-389-A PM DRIVE ASSY
4-286-208-01 4-286-208-01 PULLEY (P)
1-755-663-11 1-755-663-11 RELAY
A-1807-618-A A-1807-618-A SE-1074 MOUNT
4-535-761-01 4-535-761-01 SHEET, VIBRATION PROOF
3-986-802-01 3-986-802-01 SPRING, PRESS, GEAR
4-289-207-01 4-289-207-01 TEMPLATE
A-1833-390-A A-1833-390-A TM DRIVE ASSY
6-552-864-01 6-552-864-01 TR 2SK3444
6-552-969-01 6-552-969-01 TR PSMN5R5-60YS, 115
1-697-091-12 1-697-091-12 TRANSFORMER, PULSE
