Model Image
Manufacturer

Sony

Model Number

SRPX500PU

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
2-547-750-01 2-547-750-01 BRACKET(3U), RACK MOUNT
1-830-467-11 1-830-467-11 CABLE,FLEXIBLE FLAT (15CO
1-830-469-11 1-830-469-11 CABLE,FLEXIBLE FLAT (25CO
1-830-468-11 1-830-468-11 CABLE,FLEXIBLE FLAT (30CO
1-830-466-11 1-830-466-11 CABLE,FLEXIBLE FLAT (9COR
1-830-470-11 1-830-470-11 CABLE,FLEXIBLE FLAT (9COR
1-131-967-11 1-131-967-11 CAPACITOR, ELECT 10000MF
1-100-153-91 1-100-153-91 CAPACITOR,CHIP CERAMIC 22
2-547-752-01 2-547-752-01 CASE, TOP
2-547-752-02 2-547-752-02 CASE, TOP
1-416-668-31 1-416-668-31 COIL, CHOKE 10UH
1-456-411-11 1-456-411-11 COIL, CHOKE 10UH
4-708-065-01 4-708-065-01 HOLDER (EHS-18), EDGE
6-701-492-01 6-701-492-01 IC AM26C31CNSR
6-701-493-01 6-701-493-01 IC AM26C32CNSR
6-707-687-01 6-707-687-01 IC BAJ0CC0T
6-600-349-21 6-600-349-21 IC NJL23H400A
6-706-218-01 6-706-218-01 IC TC2001
6-706-219-01 6-706-219-01 IC TP2350B
6-701-771-01 6-701-771-01 IC XC31BPN28AMR
1-785-867-31 1-785-867-31 JACK, PIN 1P
3-624-750-11 3-624-750-11 KEYTOP(B)
3-624-750-12 3-624-750-12 KEYTOP(B)
2-591-238-01 2-591-238-01 LABEL, CONDUCTIVE
A-1094-477-A A-1094-477-A MOUNTED C. BOARD, AC
A-1094-473-B A-1094-473-B MOUNTED C. BOARD, FRONT
A-1094-474-A A-1094-474-A MOUNTED C. BOARD, LED
A-1094-469-A A-1094-469-A MOUNTED C. BOARD, METER B
A-1094-686-A A-1094-686-A MOUNTED C. BOARD, PSW
A-1094-465-A A-1094-465-A MOUNTED C. BOARD, REMOTE
A-1113-082-A A-1113-082-A MOUNTED C. BOARD, SPK
A-1094-463-A A-1094-463-A MOUNTED C. BOARD, VIDEO B
A-1094-476-A A-1094-476-A MOUNTED C. BOARD, VR
A-1094-457-A A-1094-457-A MOUNTED C. BOARD,MAIN B
A-1107-848-A A-1107-848-A MOUNTED C.BOARD RETAINER
1-795-937-21 1-795-937-21 OSCILLATOR, CRYSTAL
1-795-945-21 1-795-945-21 OSCILLATOR, CRYSTAL (SMD)
2-547-744-01 2-547-744-01 PANEL, BACK
X-2048-578-2 X-2048-578-2 PANEL, FRONT
1-778-293-11 1-778-293-11 PIN, CONNECTOR (2P)
4-251-297-01 4-251-297-01 PLUG, TERMINAL
1-243-843-91 1-243-843-91 RES, METAL FILM (CHIP) 47
1-225-889-21 1-225-889-21 RESISTOR,ADJ,CERMET(3TYPE
1-219-146-11 1-219-146-11 RESISTOR,FUSE 1
2-547-768-01 2-547-768-01 RUBBER, TUNNER
7-685-671-19 7-685-671-19 SCREW +BVTP5X10(EP-FE/ZNB
2-547-758-02 2-547-758-02 SCREW(M3), ORNAMENTAL
2-547-764-01 2-547-764-01 SHEET (A)
2-547-763-01 2-547-763-01 SHEET, INSULATING
3-691-950-01 3-691-950-01 SPACER, P.C.B

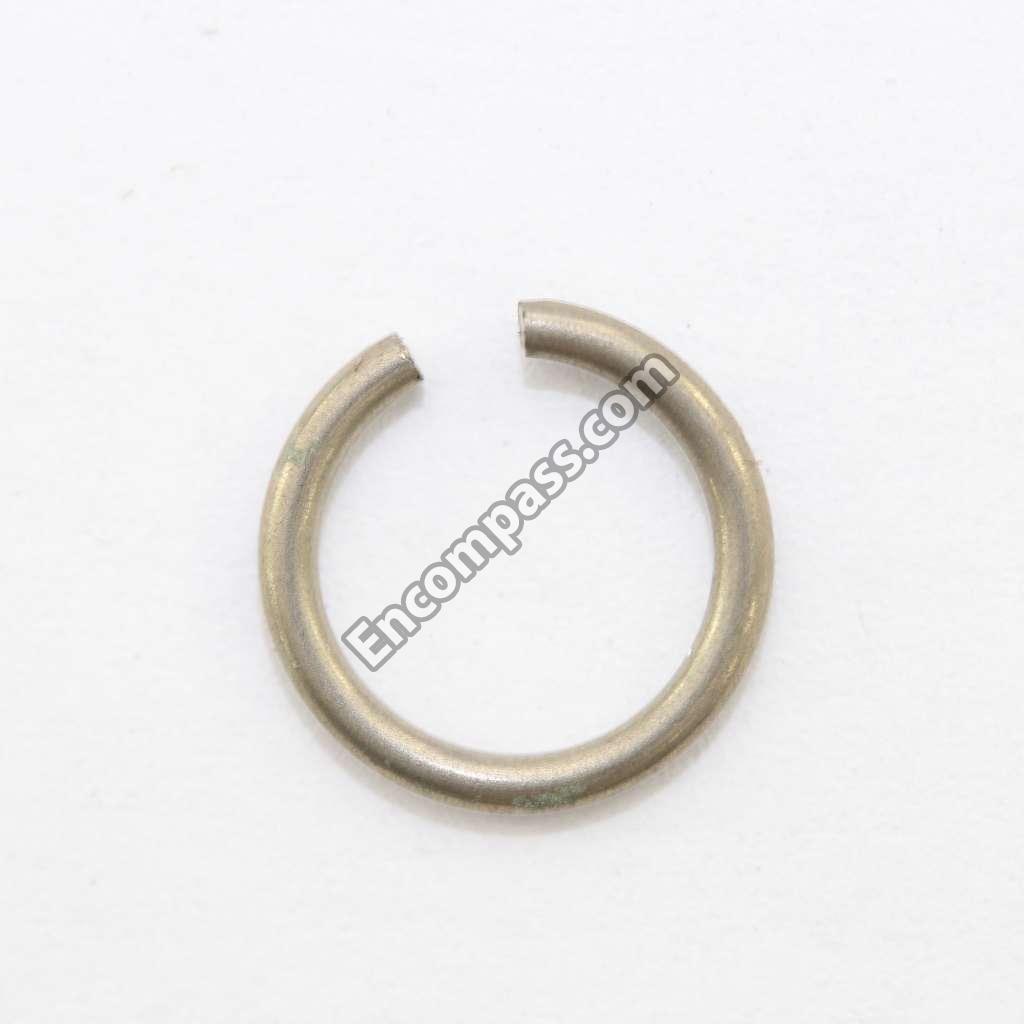

3-354-981-01 3-354-981-01 SPRING (SUS), RING
1-803-314-11 1-803-314-11 THERMISTOR, POSITIVE
1-429-252-11 1-429-252-11 TRANSFORMER, HIGH-FREQUEN
1-443-662-11 1-443-662-11 TRANSFORMER, POWER
1-424-648-11 1-424-648-11 TRANSFORMER,LINE FILTER (
