Model Image
Manufacturer

Sony

Model Number

STRD20

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-931-031-11 4-931-031-11 CASE
1-426-850-11 1-426-850-11 COIL (RF)
8-719-936-55 8-719-936-55 DIODE HZS36-3LTD
8-719-302-35 8-719-302-35 DIODE RBA-402-SL
8-719-002-67 8-719-002-67 DIODE UZL-33H
4-949-235-01 4-949-235-01 HOOK
8-759-989-42 8-759-989-42 IC AK5326-VP
8-759-991-78 8-759-991-78 IC BA7626
8-749-921-11 8-749-921-11 IC GP1F32R
8-759-508-07 8-759-508-07 IC MS514256-80NC
8-759-711-35 8-759-711-35 IC NJM4580D
8-759-145-79 8-759-145-79 IC UPD6372CX
8-759-973-98 8-759-973-98 IC YM3623B
4-938-150-01 4-938-150-01 INDIVIDUAL CARTON
1-568-750-21 1-568-750-21 JACK,PIN (1P SHIELD TYPE)
8-719-310-60 8-719-310-60 LED SEL1510C-C
8-759-077-89 8-759-077-89 NJM78L08A-T3, IC
1-567-797-11 1-567-797-11 OSCILLATOR,CERAMIC
1-770-528-31 1-770-528-31 PIN, CONNECTOR (PC BOARD)
1-564-339-81 1-564-339-81 PIN,CONNECTOR 5P
4-928-467-01 4-928-467-01 PLATE (12P),SHIELD
4-959-363-01 4-959-363-01 PLATE (V.D), GROUND
1-691-766-11 1-691-766-11 PLUG (MICRO CONNECTOR)4P
1-641-877-11 1-641-877-11 PRINTED C.BOARD,MAIN SPEA
1-568-841-11 1-568-841-11 SOCKET,CONNECTOR 25P
1-692-196-11 1-692-196-11 SWITCH, SLIDE

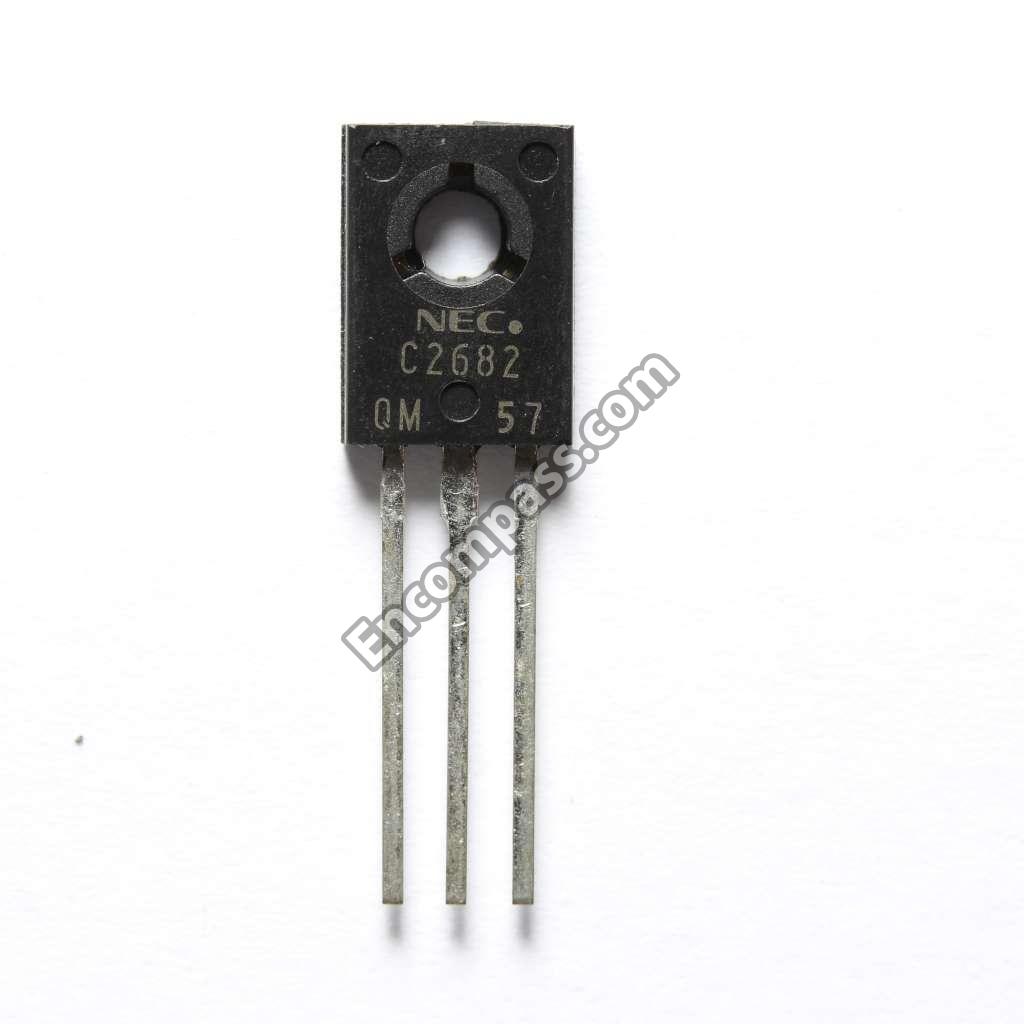

8-729-141-05 8-729-141-05 TRANSISTOR 2SC2682-QPE
1-577-305-11 1-577-305-11 VIBRATOR,CRYSTAL
1-690-422-11 1-690-422-11 WIRE,FLAT TYPE (19 CORE)
1-690-420-21 1-690-420-21 WIRE,FLAT TYPE (7 CORE)
1-590-240-11 1-590-240-11 WIRE,FLAT TYPE(7 CORE)
