Model Image
Manufacturer

Sony

Model Number

STRDH540

Description

5.2 Ch. 4k Av Receiver

Interactive Exploded View

Parts List

Part Number Description
4-442-873-13 4-442-873-13 CASE (ENTRY)
A-1910-917-A A-1910-917-A DCDC BOARD, COMPLETE

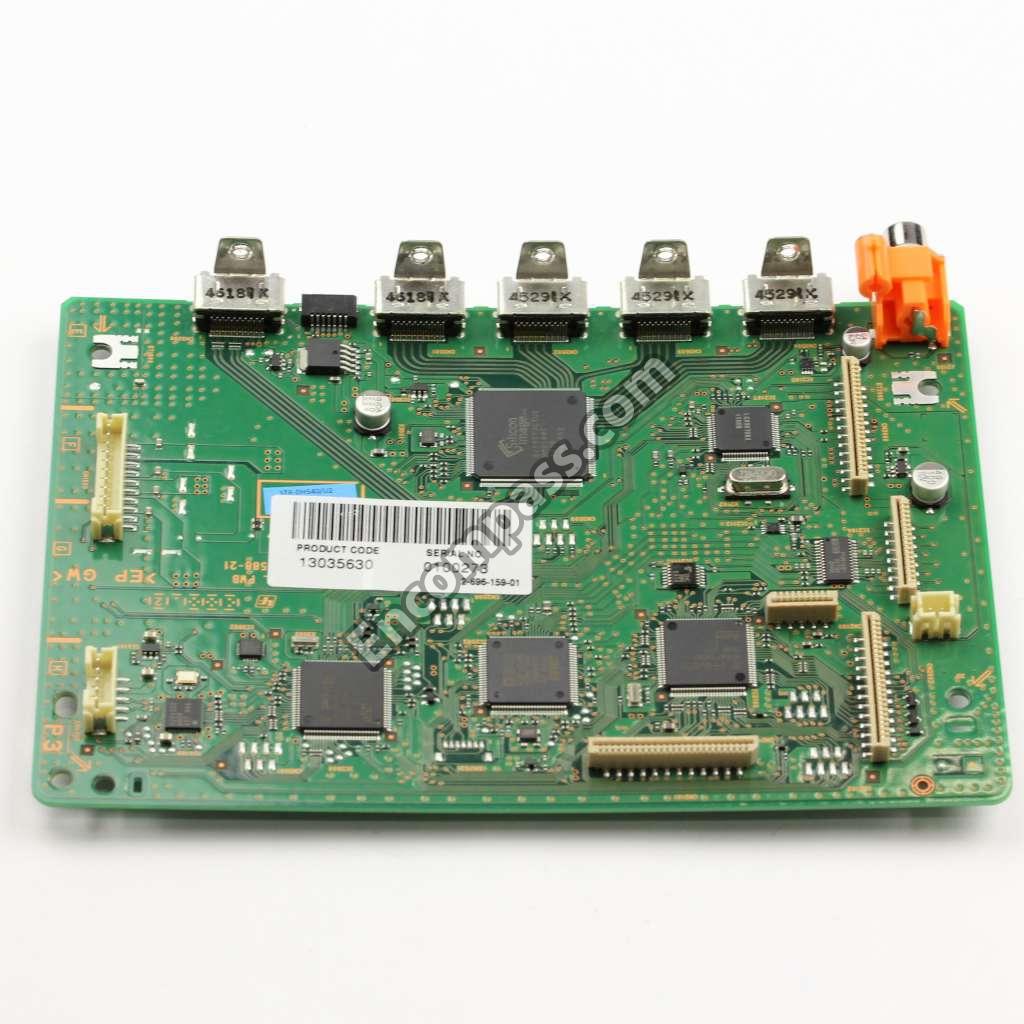

A-1910-627-A A-1910-627-A DIGITAL BOARD, COMPLETE
1-542-830-11 1-542-830-11 ECMAC2 MEASUREMENT MIC
1-793-184-41 1-793-184-41 FM WIRE ANTENNA CONNECTOR (F T
X-2586-107-1 X-2586-107-1 FRONT PANEL ASSY
1-533-311-12 1-533-311-12 FUSE GLASS CYLINDRICAL DIA.5
4-448-426-11 4-448-426-11 INSTRUCTION MANUAL (US,CANADA)
4-448-425-11 4-448-425-11 INSTRUCTION MANUAL (US,CANADA)
4-448-425-21 4-448-425-21 INSTRUCTION MANUAL (US,CANADA)
4-442-860-01 4-442-860-01 KNOB, VOLUME
1-754-741-11 1-754-741-11 LOOP ANTENNA (AM LOOP ANTENNA
A-1907-006-A A-1907-006-A MAIN BOARD, COMPLETE
1-697-232-11 1-697-232-11 POWER TRANSFORMER (MAIN)

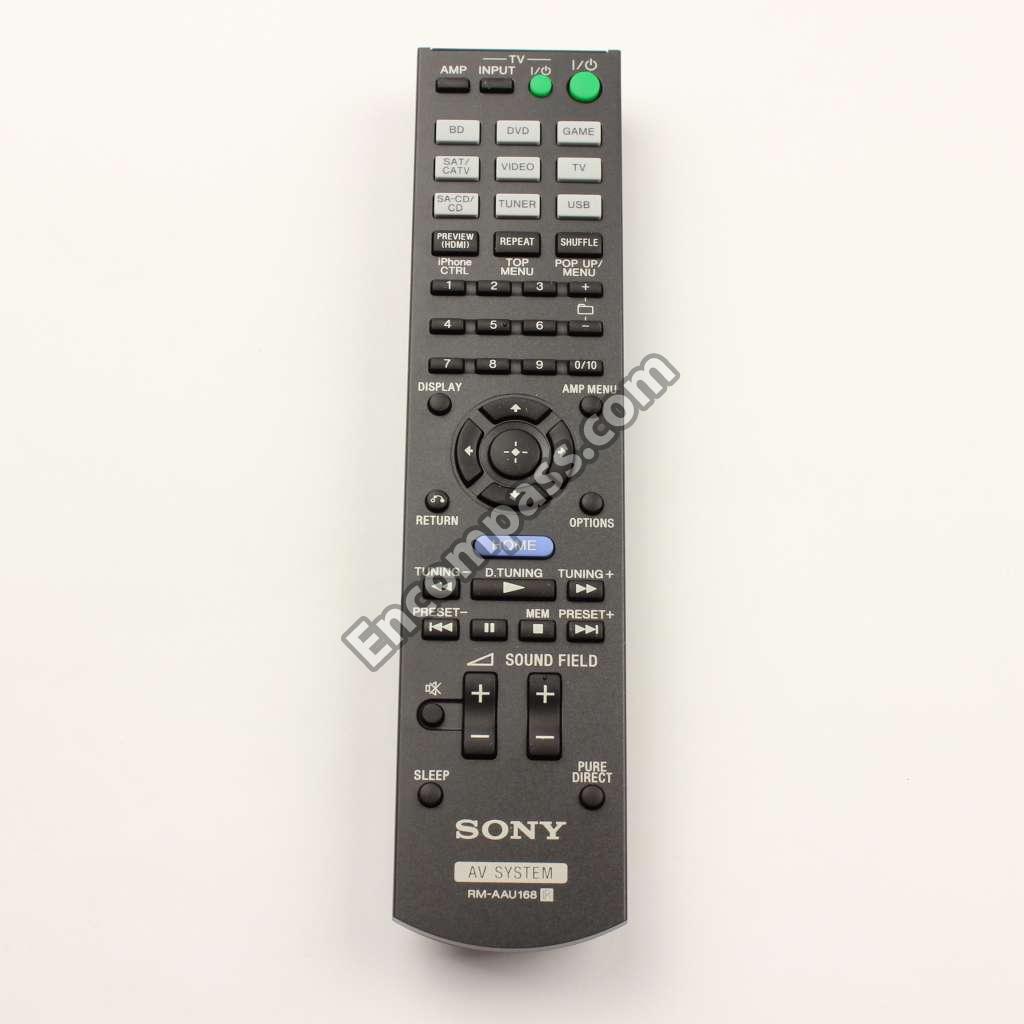

1-492-049-11 1-492-049-11 REMOTE COMMANDER (RM-AAU168)

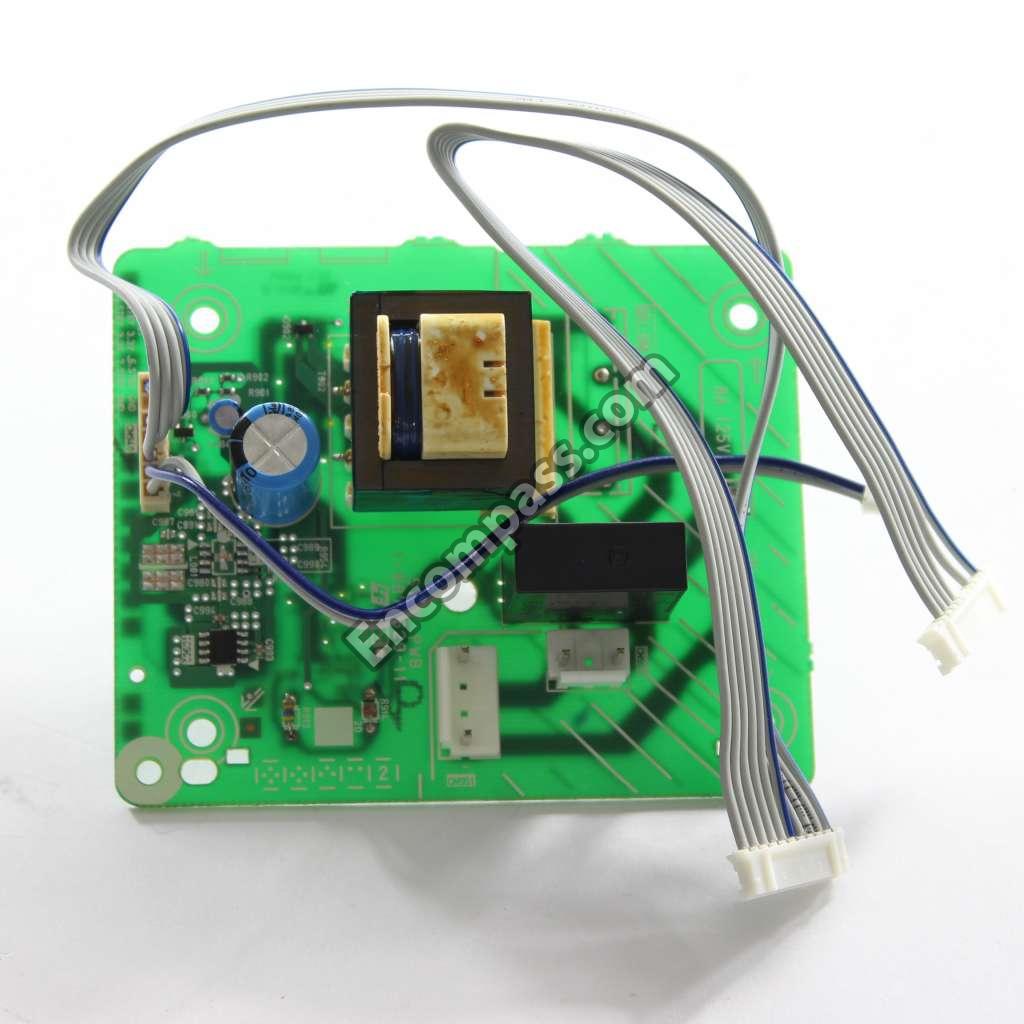

A-1906-372-A A-1906-372-A STANDBY BOARD, COMPLETE
