Model Image
Manufacturer

Sony

Model Number

STRDN1030

Description

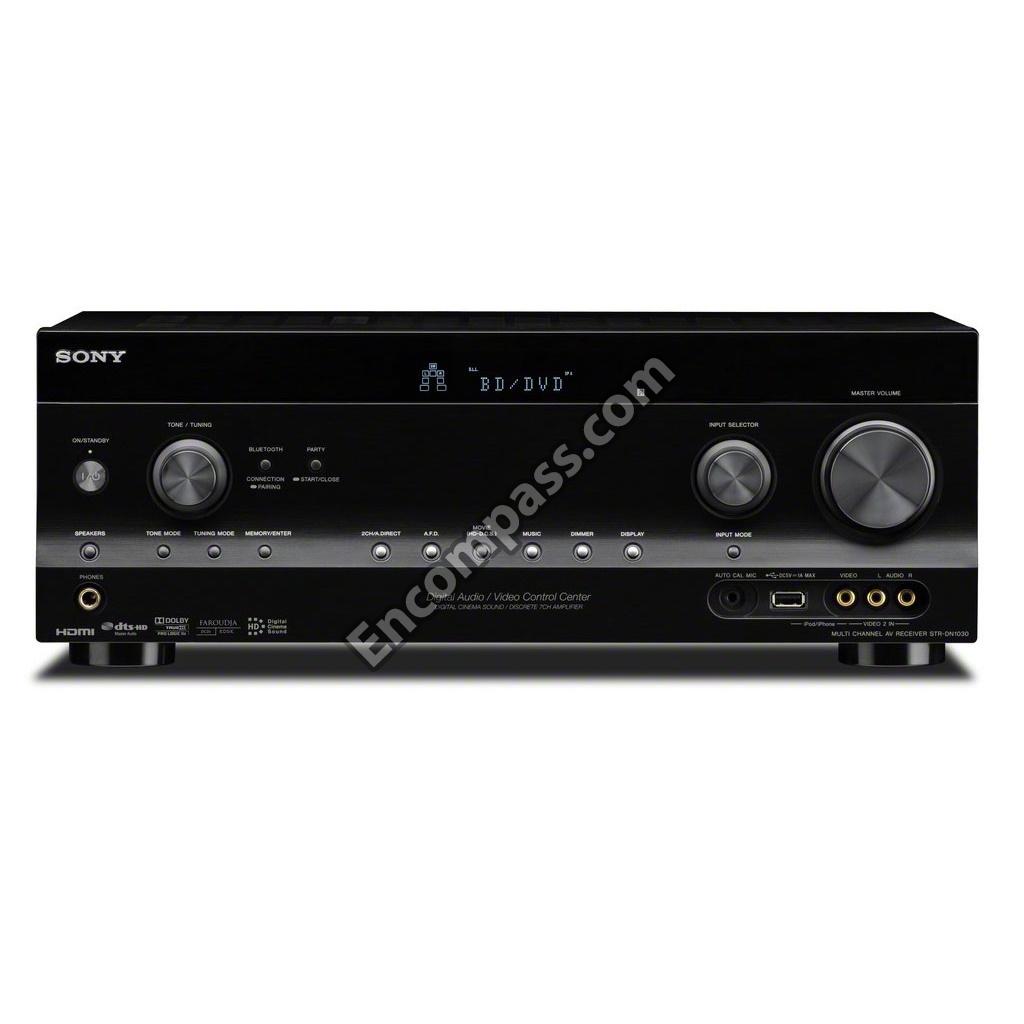

7.2 Receiver With Airplay And Bluetooth

Interactive Exploded View

Parts List

Part Number Description
1-754-741-11 1-754-741-11 AM LOOP ANTENNA
1-754-804-11 1-754-804-11 ANTENNA 2.4GHZ
X-2583-799-1 X-2583-799-1 ASSY, FOOT (US)

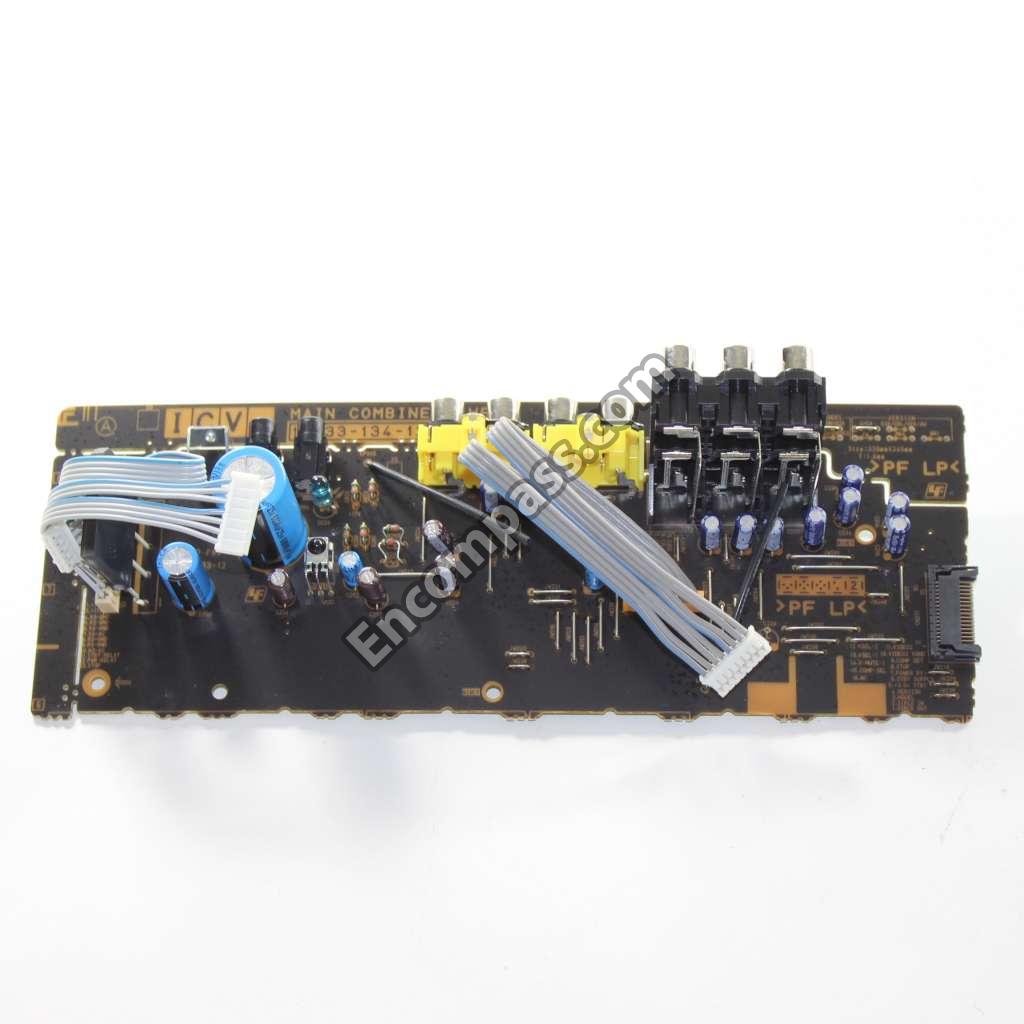

A-1867-545-A A-1867-545-A AVIDEO MOUNTED PC BOARD (US)
1-843-269-11 1-843-269-11 BOARD TO BOARD CONNECTOR 16P (US)
1-843-270-11 1-843-270-11 BOARD TO BOARD CONNECTOR 16P (US)
1-116-385-81 1-116-385-81 CAP,CHIP CERAMIC 4.7PF CH 1005 (US)
1-784-866-61 1-784-866-61 CONNECTOR,FFC(LIF(NON-ZIF))14P (US)
A-1842-609-A A-1842-609-A D-VIDEO MICOM SERVICE (US)
A-1842-610-A A-1842-610-A D-VIDEO SERIAL FLASH SERVICE (US)

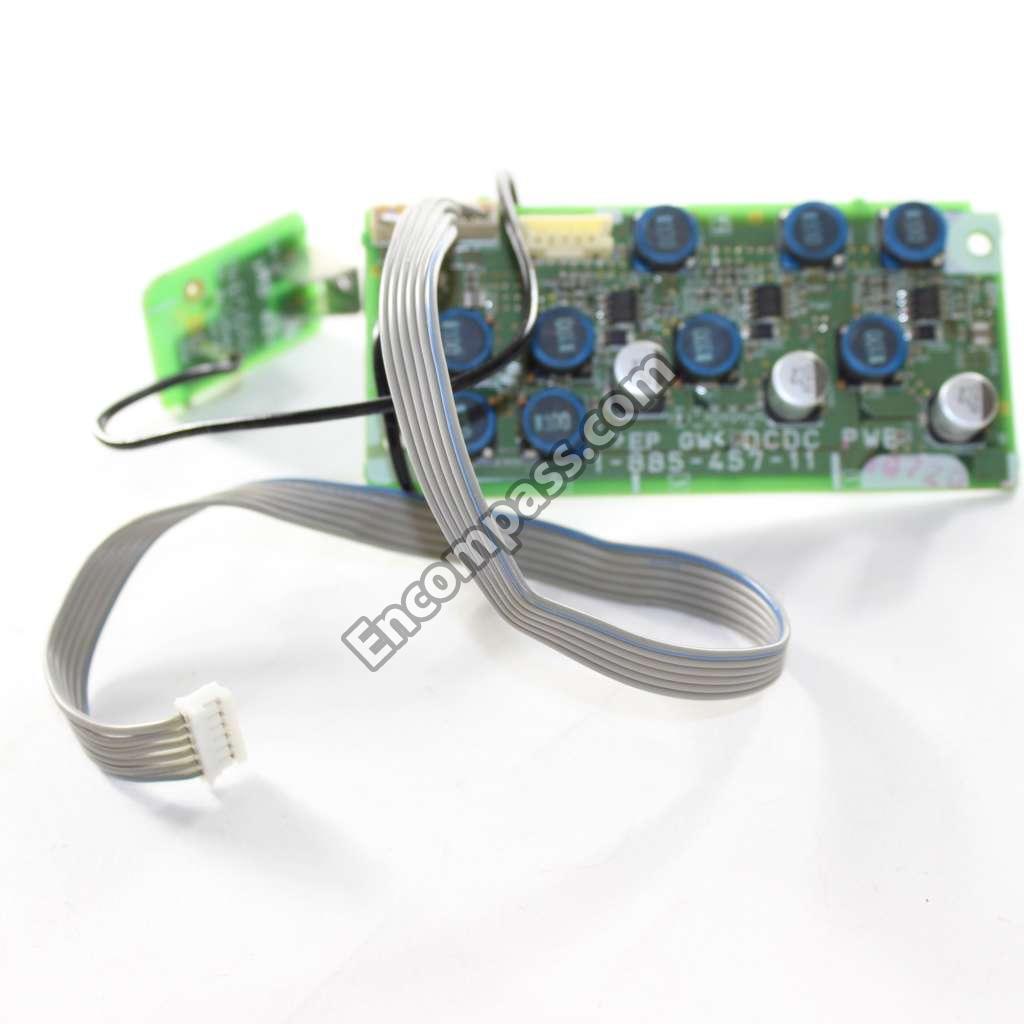

A-1867-539-A A-1867-539-A DCDC MOUNTED PC BOARD (US)
A-1867-538-A A-1867-538-A DIGITAL BOARD COMPLETE
A-1846-105-A A-1846-105-A DISPLAY MOUNTED PC BOARD (US)

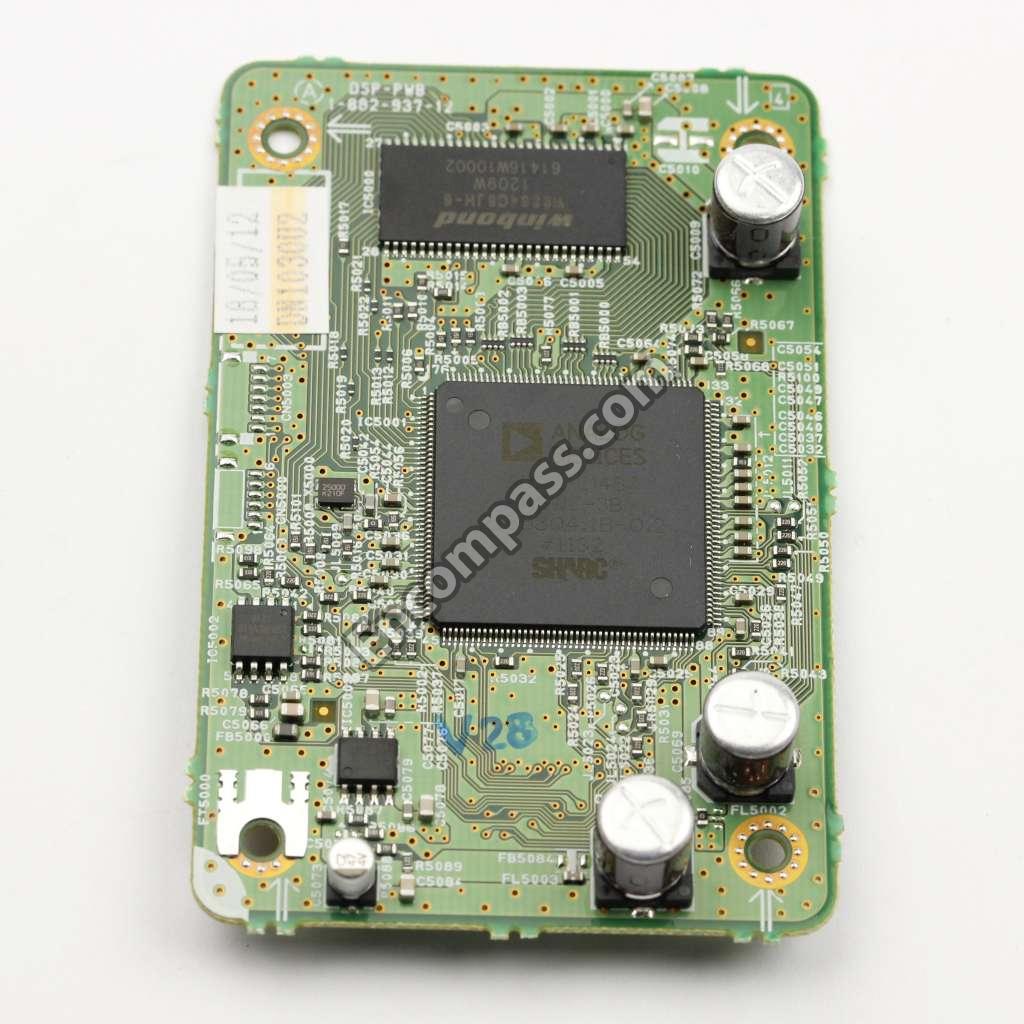

A-1886-376-A A-1886-376-A DSP MOUNTED PC BOARD (US)
A-1867-673-A A-1867-673-A DSP SFLASH SERVICE (US)
1-542-830-11 1-542-830-11 ECMAC2 MEASUREMENT MIC
1-793-184-41 1-793-184-41 FM WIRE ANTENNA
X-2583-946-1 X-2583-946-1 FRONT PANEL ASSY
1-533-311-12 1-533-311-12 FUSE GLASS CYLINDRICAL DIA.5
6-712-294-01 6-712-294-01 IC KIA7807API-U/PF
8-749-010-25 8-749-010-25 IC MN2488-OPY
8-749-010-26 8-749-010-26 IC MP 1620-OPY
4-420-297-41 4-420-297-41 INSTRUCTION MANUAL (US)
4-261-842-01 4-261-842-01 KNOB MENU

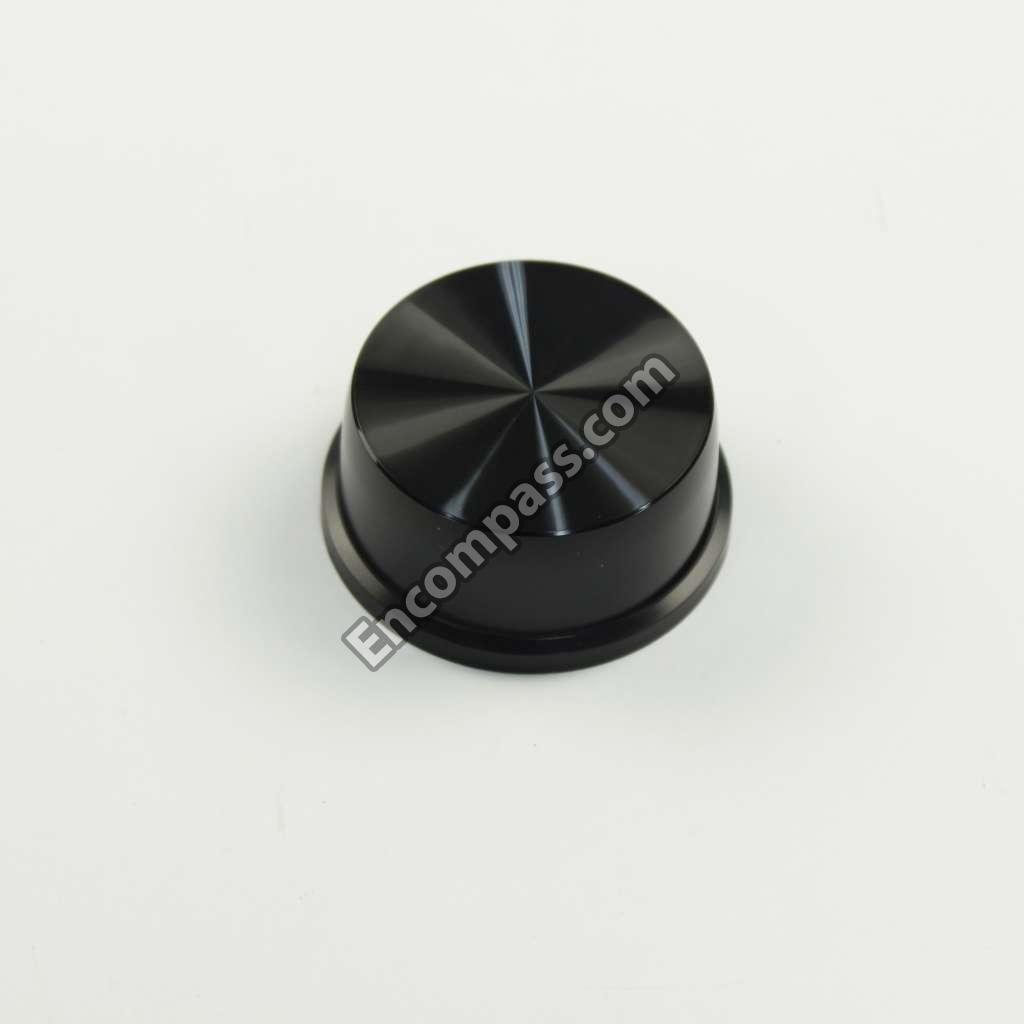

4-261-841-01 4-261-841-01 KNOB VOLUME
A-1867-533-A A-1867-533-A MAIN BOARD, COMPLETE
A-1867-672-A A-1867-672-A MAIN MICOM SERVICE (US)
4-160-845-31 4-160-845-31 OUTER CASE
1-843-387-11 1-843-387-11 PIN JACK 3P (US)
1-697-117-11 1-697-117-11 POWER TRANSFORMER
A-1846-103-A A-1846-103-A POWERKEY MOUNTED PC BOARD (US)

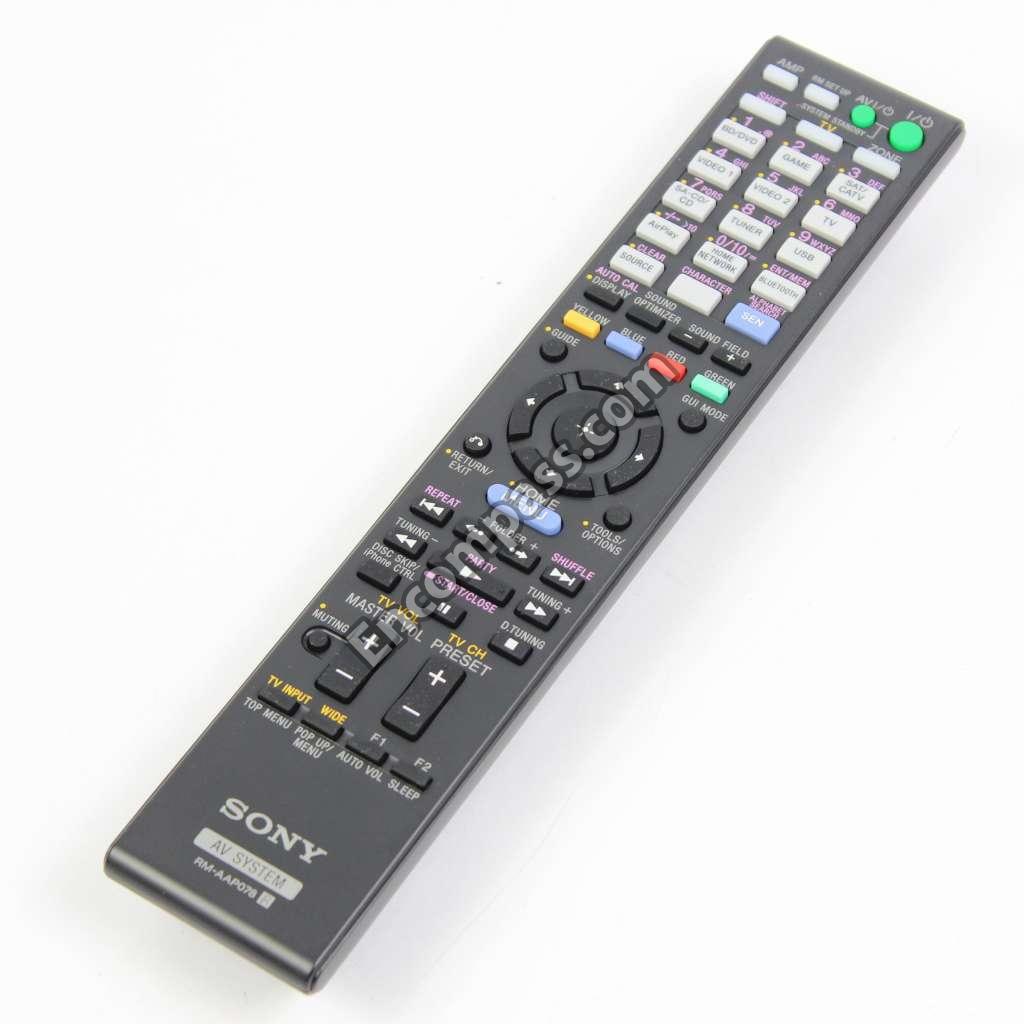

1-490-190-11 1-490-190-11 REMOTE CONTROL RMAAP078
A-1867-536-A A-1867-536-A STANDBY MOUNTED PC BOARD (US)
A-1867-540-A A-1867-540-A USB MOUNTED PC BOARD (US)
1-811-613-11 1-811-613-11 VACUUM FLOURESCENT DISPLAY (US)
