Manufacturer
Sony
Model Number
SVE1413BCXB
Description
Vaio E Series 14 Laptop
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC ADAPTER(VGP-AC19V43)(Q)(S) |
|
|
AC ADAPTOR (VGP-AC19V48)(Q)(S) |
|
|
ANTENNAWLANASSY QTHK6-EQL0102A |
|
|
BATTERY LI 3V 210MAH (CR2032) |
|
|
BATTERY LI3V220MAH(CR2032) |
|
|
CABLE ASSY HK6 ADAPTER(2P/4P) |
|
|
CABLE FFC HK6 MB-PSB(65MM10P) |
|
|
CABLE FFC HK6 MB-TP(80MM6P) |
|
|
CABLE FFC HK6 MB-USB(15730P) |
|
|
CABLEASSY HK6 LCD(40PR1A) GLE |
|
|
CABLEASSY HK6 LCD(40PR1A) HUA |
|
|
CABLEASSY HK6 LCD(40PR1A) MEC |
|
|
CABLEASSY HK6MB-SUSPEND(3P/3P) |
|
|
CAMERA MODULE 11P2BF138 |
|
|
CAMERAMODULE CKFB1B321004170LH |
|
|
CARD WLAN/BT COMBO(Q)(S) |
|
|
COMPL IFX618 COM_USB_BOARD |
|
|
COMPL SWX389 SW BOARD |
|
|
HDD (320G, WD3200BPVT)(B)(S) |
|
|
HDD(320GB,ST320LT020)(B)(S) |
|
|
HDD(320GBMQ01ABD032)(B)(S) |
|
|
HDD(320GBST320LT020)(B)(S) |
|
|

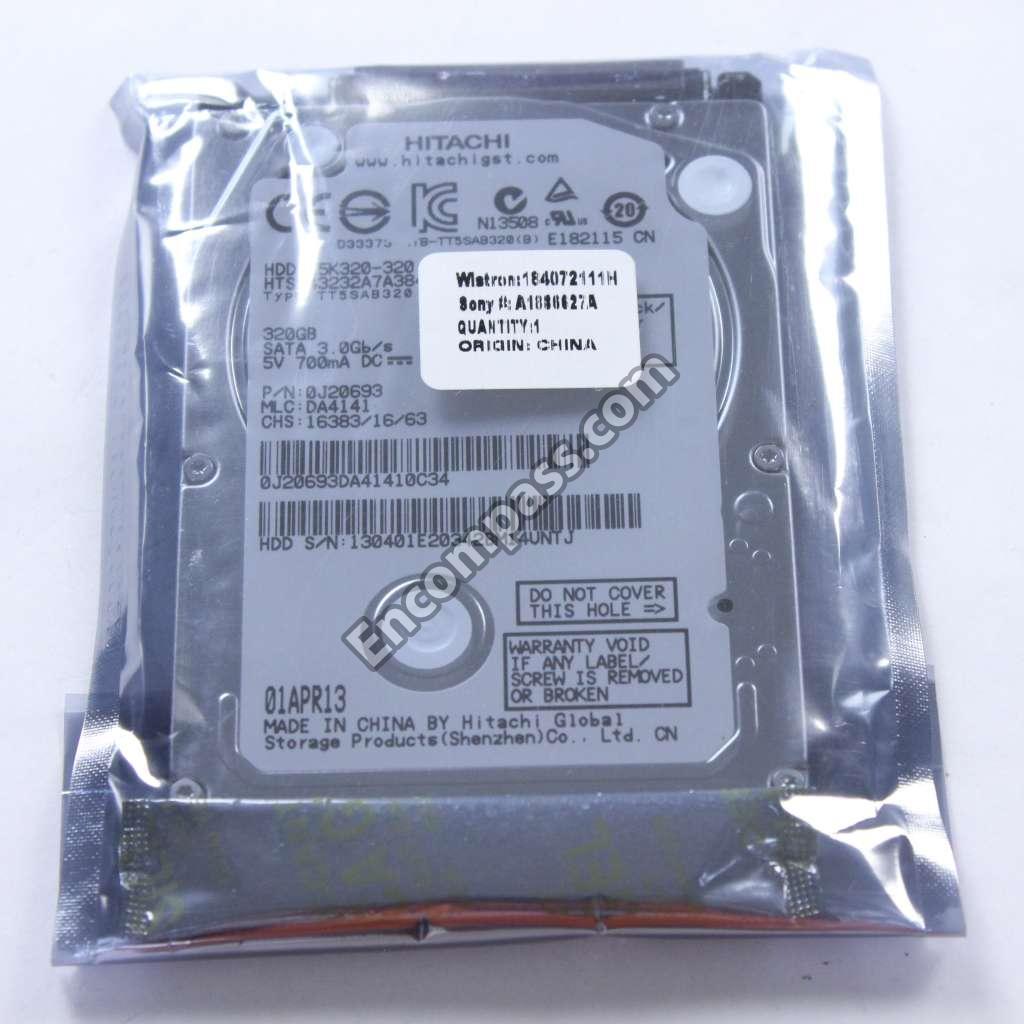

HDD(D320GBHTS545032A7)(B)(S) |
|
|
HK6 HDD BRACKET ASSY |
|
|
HK6 HDD DOOR ASSY |
|
|
HK6 HEAT SINK ASSY 35W DIS FOX |
|
|
HK6 HEAT SINK ASSY 35W UMA CMR |
|
|
HK6 HOUSING BEZEL ASSY(BLACK) |
|
|

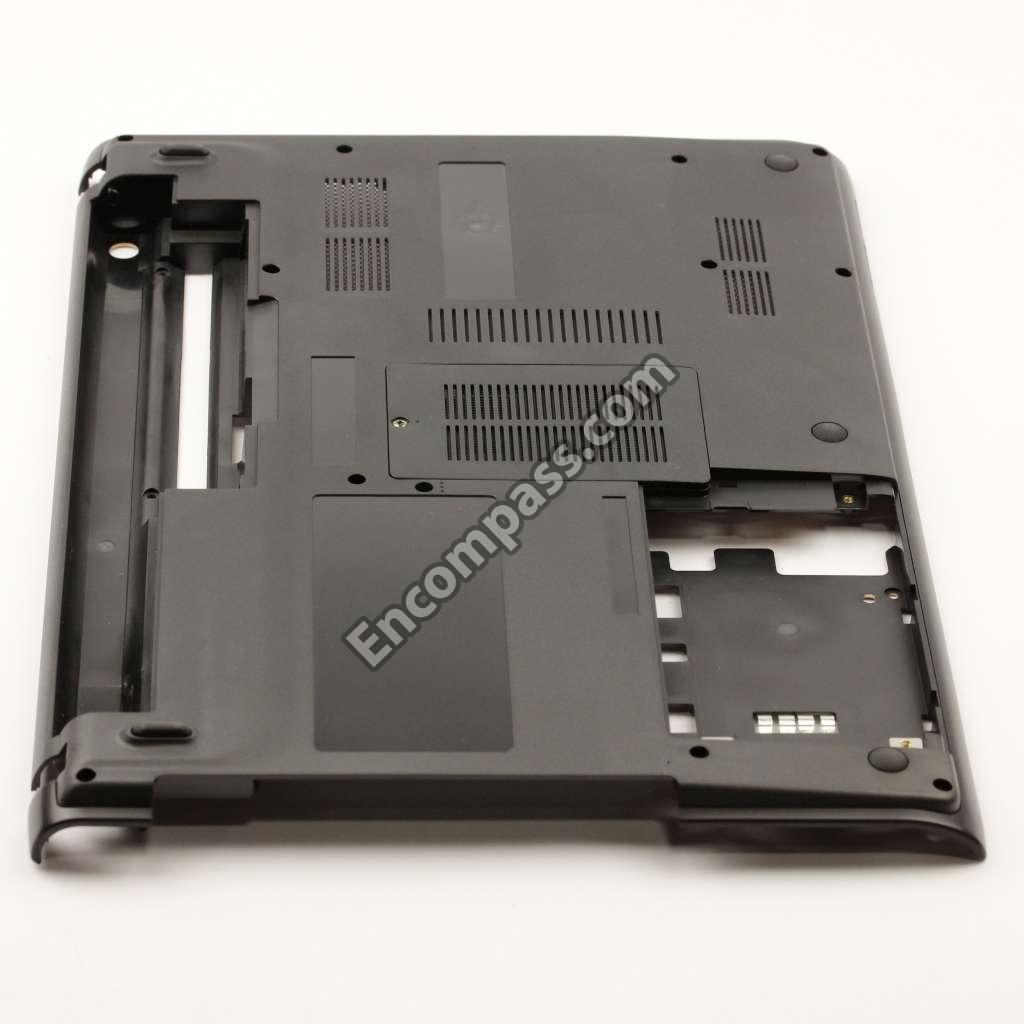

HK6 HOUSING BOTTOM ASSY(BLACK) |
|
|
HK6 HOUSING LCD ASSY(BLACK) |
|
|
HK6 ODD BEZEL ASSY(BK) |
|
|

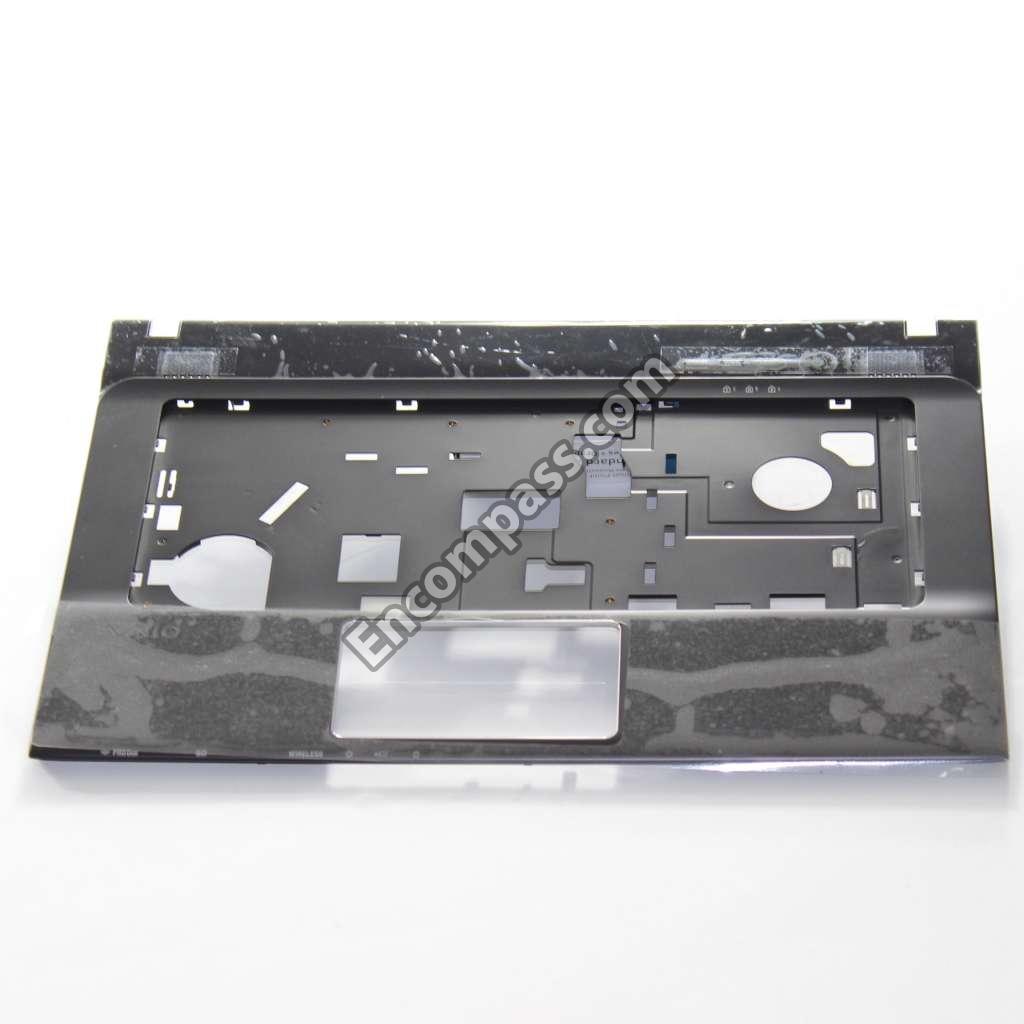

HK6 PALMREST ASSY(BLACK)(S) |
|
|
HK6 RAM DOOR ASSY |
|
|
HK6 SUPPORT CLICKPAD ASSY |
|
|
HK6 TOUCH PAD ASSY(BK) |
|
|
HK6A MB (UMA W/O CPU)(S) |
|
|
IC AW8063801111700SR0TX(B)(S) |
|
|
IC EBJ40UG8BBU0-GN-F(B)(S) |
|
|
IC HMT351S6CFR8C-PBN0(B)(S) |
|
|
IC M471B5273DH0-CK0(B)(S) |
|
|
IC NT4GC64B8HG0NS-DI(B)(S) |
|
|
IC SNY1600S11-4G-EDEG(B)(S) |
|
|
LABEL, (3 X 2) UPC |
|
|
LCD UNIT (B)(S) |
|
|
LCD UNIT (B)(S) |
|
|
LCD UNIT(B)(S) |
|
|
NE7 FAN ASSY MAT |
|
|
ODD (HDS/SMQL/127/GT80)(B)(S) |
|
|
ODD (PSN/SMQL/127/8C0)(B)(S) |
|
|
RAM(4GB)DDR3 HMT351S6CFR8A-PB |
|
|
RAM(4GB)DDR3 NT4GC64C8HG0NS-DI |
|
|
RDVD RECOVERY DISC MODEL SVE1413BCXB |
|
|
SCREW T1.7X3-I(BLACK NI)(STEEL |
|
|

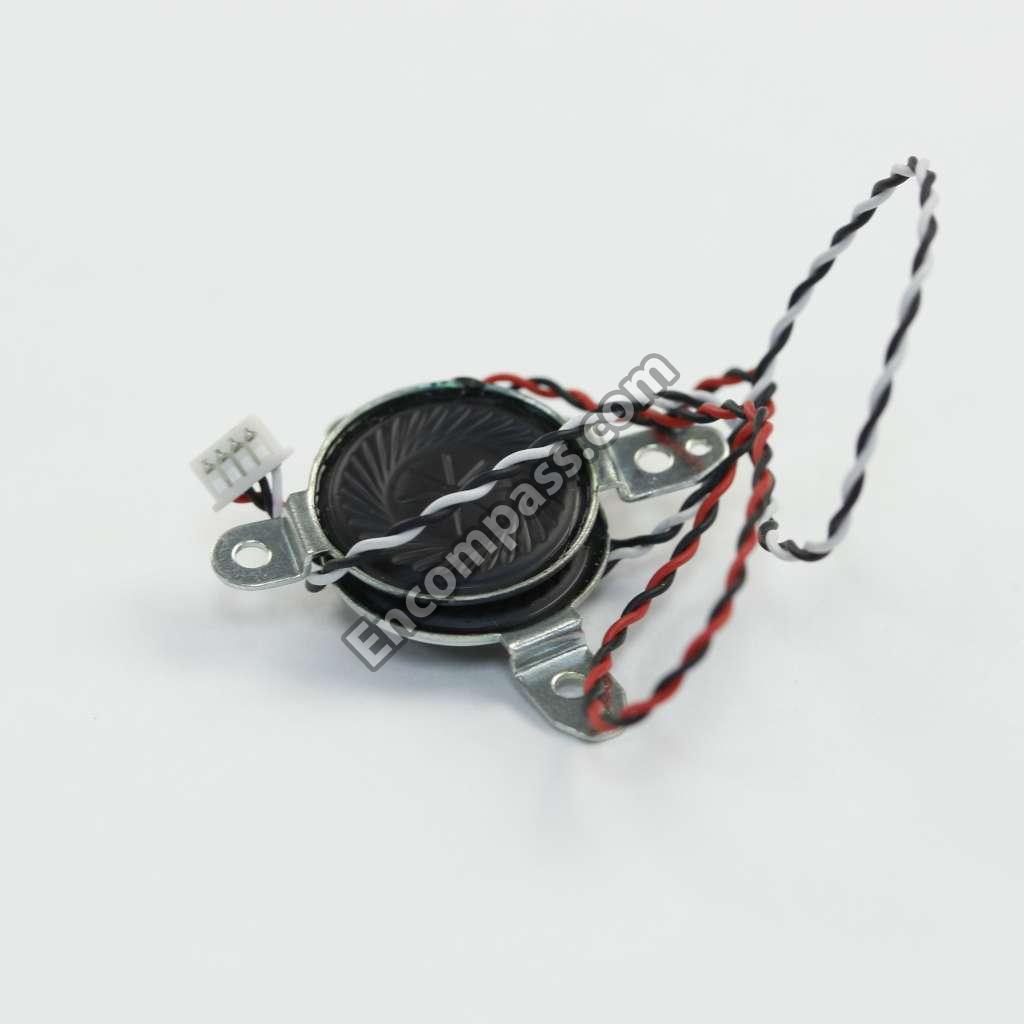

SPK MOD P20CRF04E-5-9LB NON JP |
|
|
THERMAL GREASE X-23-7762- |
|
|
VGP-BPS26A(U)(Q)(S) |
|
|
VGP-BPS26A(U)(Q)(S) |
|
|
VGP-BPS26A(U)(Q)(S) |
|
|
VGP-BPS26A(U)(Q)(S) |
