Manufacturer
Sony
Model Number
SVE14A27CXH
Description
Vaio 14 E Series Laptop
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC ADAPTER VGP-AC19V35(F)(S) |
|
|
AC ADAPTER VGP-AC19V41(F)(S) |
|
|
ACETATE TAPE 10MMX20MM |
|
|
ACETATE TAPE 8MMX20MM |
|
|
ADAPTER,AC(AC19V41)(F)(S) |
|
|
ADAPTERAC(AC19V31)(F)(S) |
|
|
CARD WLAN/BT COMBO(F)(S) |
|
|
CPU PAD 2010MM |
|
|
CPU(988P)I7-3632QM 2.2G SR0V0( |
|
|
F SPECIAL APPEARANCE M3X3 |
|
|
F SPECIAL APPEARANCE M3X8 |
|
|
GASKET 20X4X1 |
|
|
GASKET 20X4X1 |
|
|
GASKET 20X4X1 |
|
|
GASKET 7X7X2 |
|
|
GASKET 7X7X2 |
|
|
GASKET 7X7X2.5 |
|
|
HDD(1TBWD10JPVT-55A1YT0)(B)(S) |
|
|
IC EBJ40UG8BBU0-GN-F(B)(S) |
|
|
IC M471B5273DH0-CK0(B)(S) |
|
|
IC NT4GC64B8HG0NS-DI(B)(S) |
|
|
LABEL, (3 X 2) UPC |
|
|
LCD UNIT (14TFT)(B)(S) |
|
|
ODD (PAN/SMQL/9.5/8C2)(B)(S) |
|
|
ODD (PSN/SMQL/9.5/8B2)(B)(S) |
|
|
ODD (TST/SMQL/9.5/633J)(B)(S) |
|
|
RAM(4GB)DDR3 HMT351S6CFR8A-PB |
|
|
RAM(4GB)DDR3 NT4GC64C8HG0NS-DI |
|
|
RDVD - RECOVERY DISK |
|
|
RTC BATTERY |
|
|
SCREW BI20025M D70T06 BZN |
|
|
SCREW I20030M D35T03 BNI NYLOK |
|
|
V110 BOTTOM HIGH RECYCLE (GM) |
|
|
V110 BOTTOM RUBBER BACK |
|
|
V110 BOTTOM RUBBER FNT CENTER |
|
|
V110 BOTTOM RUBBER FNT SIDE |
|
|
V110 BOTTOM RUBBER FRONT CENTE |
|
|
V110 DCIN CABLE |
|
|
V110 FFC AUDIO(USB BOARD) |
|
|
V110 FFC CLICKPAD |
|
|
V110 FFC FUNCTION BOARD |
|
|
V110 LCD RUBBER ROUND (BK) |
|
|
V110 ODD BRACKET BACK |
|
|
V110 ODD BRACKET RIGHT |
|
|
V110 RAM DOOR RECYCLE |
|
|
V110 RAM MYLAR |
|
|
V110 SPEAKER BOX NOJP |
|
|
V110 SPEAKER BOX NOJP |
|
|
V110 SUBASSY HDD BRACKET |
|
|
V110 SUBASSY HDD DOOR RECYCLE |
|
|
V110 THERMAL MODULE HIGH |
|
|
V110 TOP BRACKET LEFT |
|
|
V111 ASM LCM2 (GM,HD,TS)(B)(S) |
|
|
V111 AUDIO&USB BOARD |
|
|
V111 CLICKPAD MODULE (GUNMETAL |
|
|
V111 FUNCTION BOARD (RENESAS) |
|
|

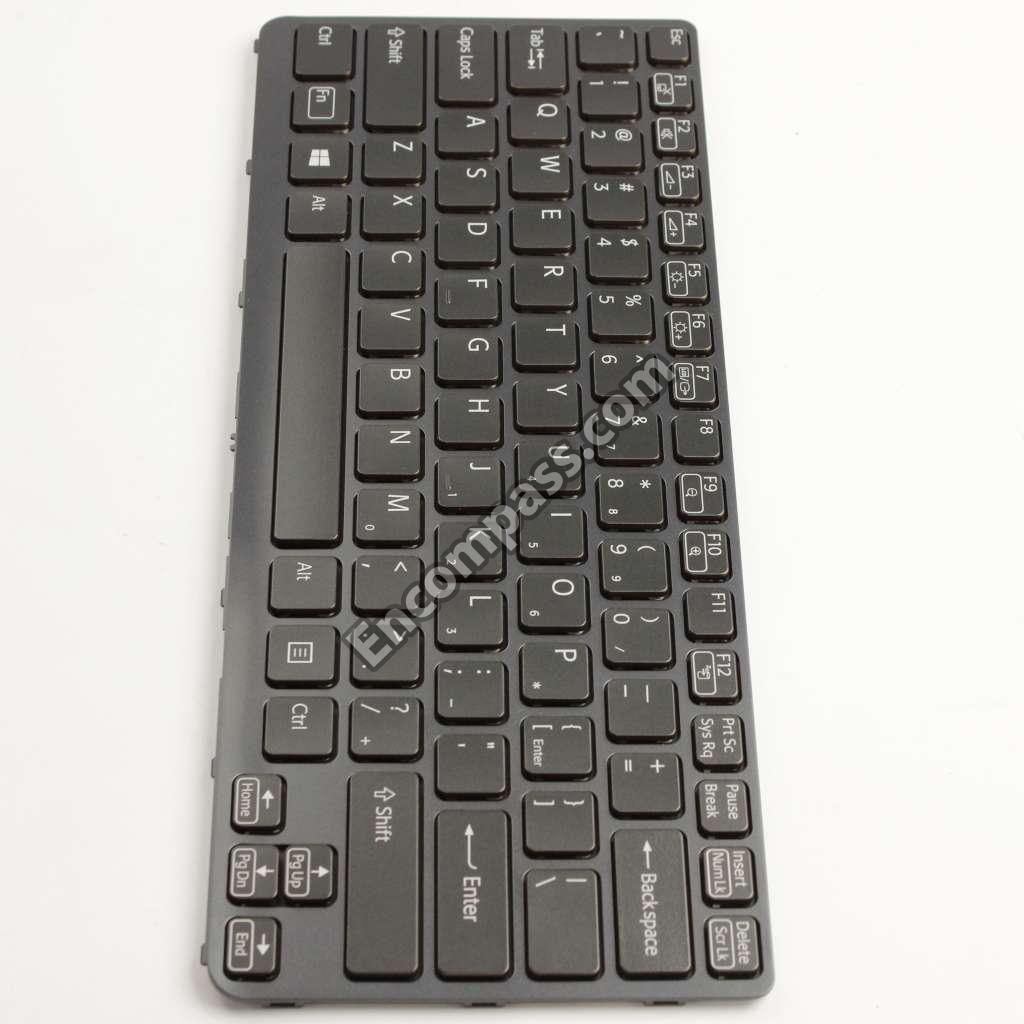

V111 KEYBOARD ASSY BACKLIGHT [ |
|
|
V111 MB ASSY HM76 [AMD/THAMES- |
|
|
V111 SUBASSY TOUCH LCD BEZEL D |
|
|
V111 TP ASSY (GM)(B)(S) |
|
|
VGAPAD12*12MM |
