Manufacturer
Sony
Model Number
SVE1513TCXW
Description
Vaio E Series 15 Laptop
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC ADAPTER(VGP-AC19V43)(Q)(S) |
|
|
AC ADAPTOR (VGP-AC19V48)(Q)(S) |
|
|
ANTEN WLAN ASSY QTHK5-EQL0202A |
|
|
ANTENNA WLAN ASSY 260-23170 |
|
|
BATTERY LI 3V 210MAH (CR2032) |
|
|
BATTERY LI3V220MAH(CR2032) |
|
|
CABLE ASSY HK5 ADAPTER(2P/4P) |
|
|
CABLE ASSY HK5 LCD 40P 30V GLE |
|
|
CABLE ASSY HK5 LCD 40P 30V HUA |
|
|
CABLE FFC HK5 MB-PSB(9510P) |
|
|
CABLE FFC HK5 MB-TP(88.56P) |
|
|
CABLE FFC HK5 MB-USB(16430P) |
|
|
CAMERA MODULE 11P2BF138 |
|
|
CAMERA MODULE BN8TMDNRA-100 |
|
|
CARD WLAN/BT COMBO(Q)(S) |
|
|
COMPL IFX618 COM_USB_BOARD |
|
|
COMPL SWX390 SW_BOARD |
|
|
FANASY DIS(66.6X62X11.4)ADD |
|
|
HDD (320G ST320LM001)(B)(S) |
|
|
HDD (320G, WD3200BPVT)(B)(S) |
|
|
HDD (D320GB,ST320LM001)(B)(S) |
|
|
HDD(320GB,ST320LT020)(B)(S) |
|
|
HDD(320GBMQ01ABD032)(B)(S) |
|
|
HDD(320GBST320LT020)(B)(S) |
|
|
HDD(D320GBHTS545032A7)(B)(S) |
|
|
HK5 FAN ASSY (66.6X62X11.7)MAT |
|
|
HK5 HDD BRACKET ASSY |
|
|
HK5 HEAT SINK ASSY 35W UMA CHM |
|
|
HK5 HEAT SINK ASSY 35W UMA CMR |
|
|
HK5 HOUSING BEZEL ASSY(BK) |
|
|
HK5 HOUSING BOTTOM ASSY(WHITE) |
|
|
HK5 HOUSING LCD ASSY(NISSHA)WH |
|
|
HK5 MEMORY COVER ASSY |
|
|
HK5 PALMREST ASSY(WHITE)(S) |
|
|
HK5 SUPPORT CLICKPAD ASSY |
|
|
HK5 SUPPORT PALMREST L ASSY |
|
|
HK5 SUPPORT PALMREST R ASSY |
|
|
HK5 TOP ASSY(WHITE) |
|
|
HK5A ODD BEZEL ASSY(WHITE) |
|
|
HK5AMB(HM70UMAW/OCPU)(S) |
|
|

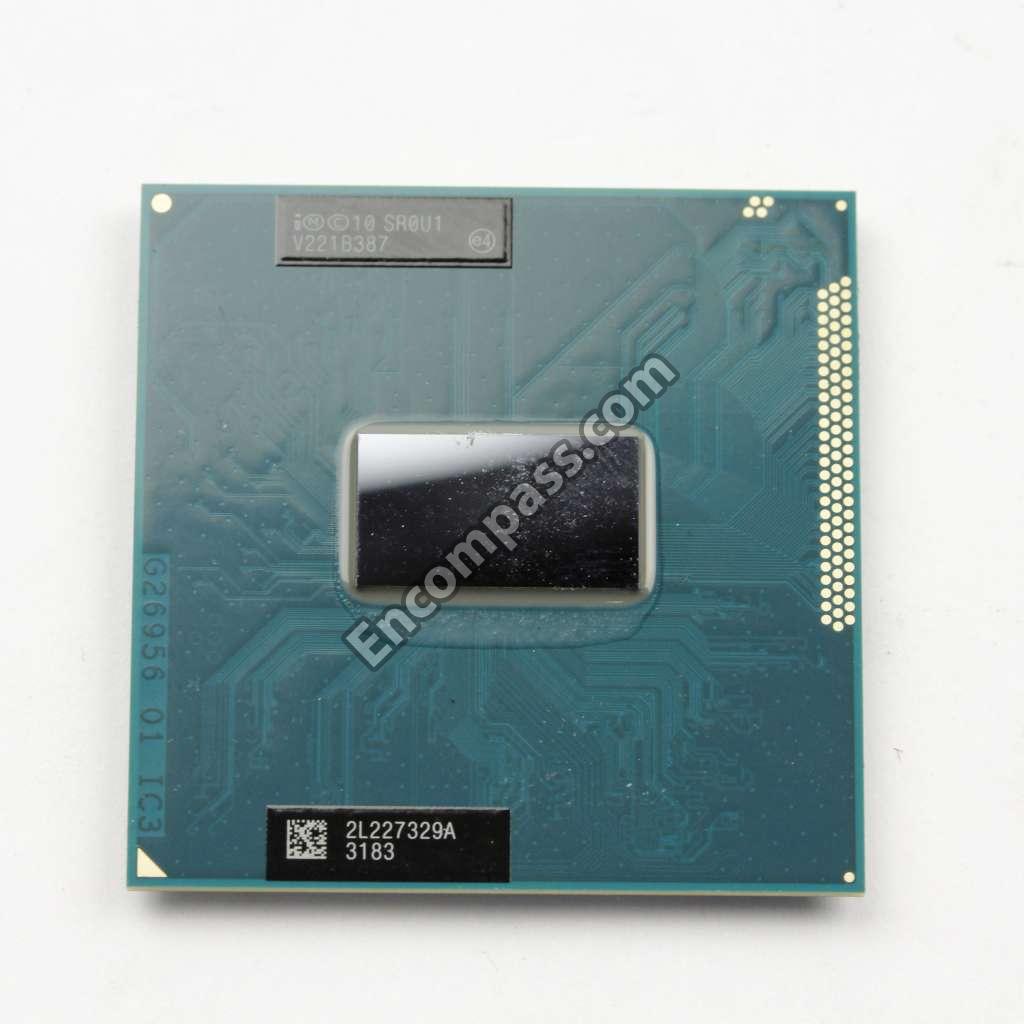

IC AW8063801211202SR0U1(B)(S) |
|
|
IC EBJ40UG8BBU0-GN-F(B)(S) |
|
|
IC HMT351S6CFR8C-PBN0(B)(S) |
|
|
IC M471B5273DH0-CK0(B)(S) |
|
|
IC NT4GC64B8HG0NS-DI(B)(S) |
|
|
IC SNY1600S11-4G-EDEG(B)(S) |
|
|
LABEL, (3 X 2) UPC |
|
|
LCD UNIT (B)(S) |
|
|
LCD UNIT(B)(S) |
|
|
LOCK 2680 RJ5 |
|
|
MYLAR ANT CABLE DOWN HK1 |
|
|
ODD (PSN/SMQL/127/8C0)(B)(S) |
|
|
ODD (PSN/SMQL/127/8C0)(B)(S) |
|
|
RAM(4GB)DDR3 HMT351S6CFR8A-PB |
|
|
RAM(4GB)DDR3 NT4GC64C8HG0NS-DI |
|
|
RDVD RECOVERY DISC MODEL SVE1513TCXW |
|
|
SCREW T1.7X3-I(BLACK NI)(STEEL |
|
|
SCREW T2*4-I(NI)IRON |
|
|
SPK MOD ASSY NONJP(W/ L/R)VAN |
|
|
SYRINGE 7783D S39 |
