Manufacturer
Sony
Model Number
SVE1713CCXB
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC ADAPTOR (VGP-AC19V43)(W)(S) |
|
|
ANTENNA L Z70CR WHAYU |
|
|
ANTENNA L Z70CR WNC |
|
|
ANTENNA R Z70CR WHAYU |
|
|
ANTENNA R Z70CR WNC |
|
|
ASSY DDR DOOR Z50CR |
|
|
ASSY DIMM DOOR TEIJIN TN Z70CR |
|
|
ASSY HDD BRACKET Z50CR |
|
|
ASSY HDD BRACKET Z50CR HW |
|
|
ASSY HDD DOOR TEXTURE Z70CR |
|
|

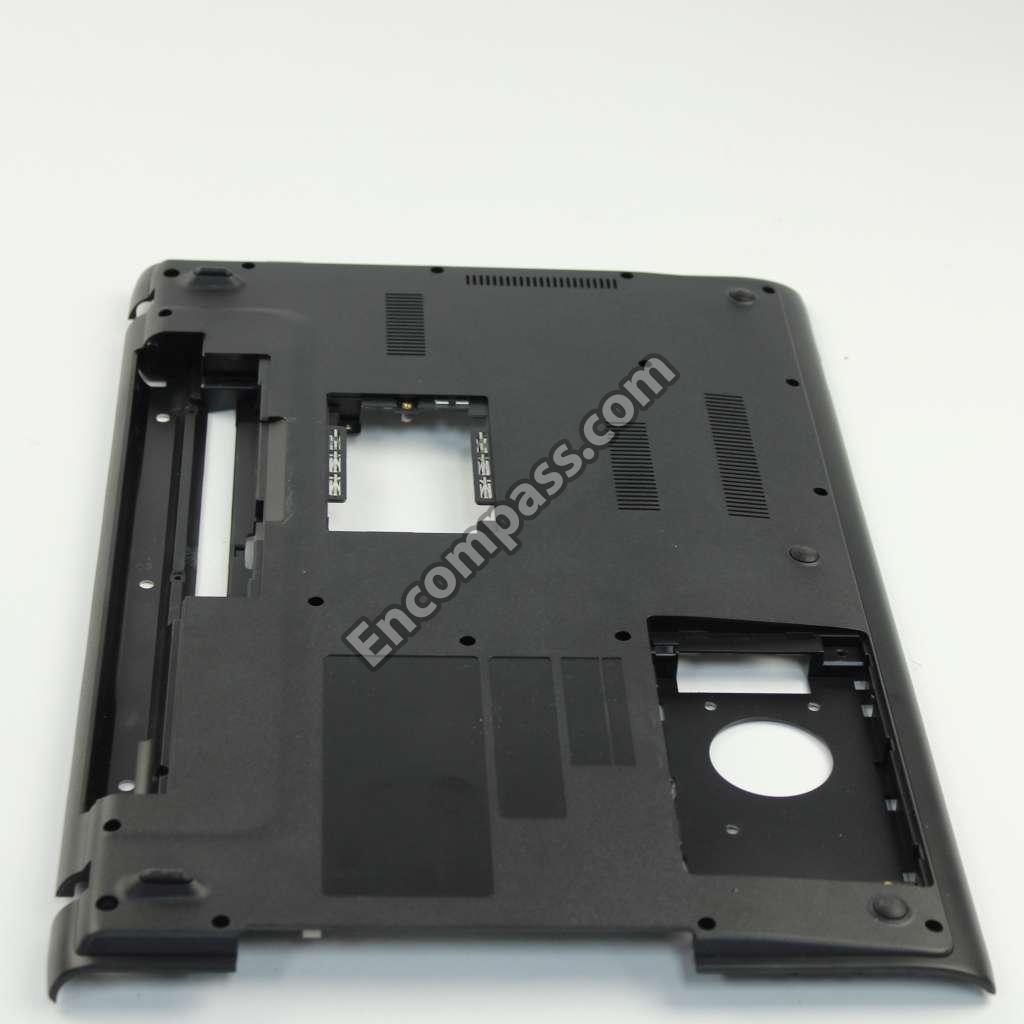

ASSY LCASE BLACK Z70CR |
|
|
ASSY LCD BEZEL Z70CR |
|
|
ASSY LCD COVER BLACK Z70CR |
|
|
ASSY LCD HINGE 65 Z70CR-SNR |
|
|
ASSY ODD BEZEL BLACK Z50CR |
|
|
ASSY TOUCHPAD BLACK(S) |
|
|
ASSY UCASE BLACK Z70CR |
|
|
ASSY Z70CR UMA THM AUR+DELTA |
|
|
ASSY Z70CR UMA THM CCI+DELTA |
|
|
BTY RTC CR2032 DBV 210MAH |
|
|
BTY RTC CR2032 JHT 210MAH |
|
|
C.A. DC IN Z70CR |
|
|
C.A. FUN BD FFC PT Z70CR |
|
|
C.A. FUN BD FFC Z70CR |
|
|
C.A. HALLIC HOTBAR FFC HB Z70C |
|
|
C.A. HALLIC HOTBAR FFC Z70CR |
|
|
C.A. TP FFC PT Z70CR |
|
|
C.A. USB BD FFC PT Z70CR |
|
|
CAMERA 1.3M_HD 1MIC 11P2BF140 |
|
|
CARD WLAN/BT COMBO(W)(S) |
|
|
COMPL IFX616 USB_BOARD |
|
|
COMPL MBX267 UMA_HM76 |
|
|
COMPL SWX387 SW_BOARD |
|
|
CPU(988P)I7-3632QM 2.2G SR0V0( |
|
|
HDD (750GB,WD7500BPVT)(B)(S) |
|
|
HDD (750GBMQ01ABD075)(B)(S) |
|
|
HDD (750GBWD7500BPVT)(B)(S) |
|
|
HDD (D750GB,ST750LM022)(B)(S) |
|
|
IC EBJ40UG8BBU0-GN-F(B)(S) |
|
|
IC HMT351S6CFR8C-PBN0(B)(S) |
|
|
IC M471B5273DH0-CK0(B)(S) |
|
|
IC NT4GC64B8HG0NS-DI(B)(S) |
|
|
IC SNY1600S11-4G-EDEG(B)(S) |
|
|
LABEL, (3 X 2) UPC |
|
|
LCD UNIT(B)(S) |
|
|
LVDS CABLE Z70CR ICT |
|
|
ODD (HDS/SMQL/127/GT80)(B)(S) |
|
|
ODD (PSN/SMQL/127/8C0)(B)(S) |
|
|
ODD (PSN/SMQL/127/8C0)(B)(S) |
|
|
RAM(4GB)DDR3 HMT351S6CFR8A-PB |
|
|
RAM(4GB)DDR3 NT4GC64C8HG0NS-DI |
|
|

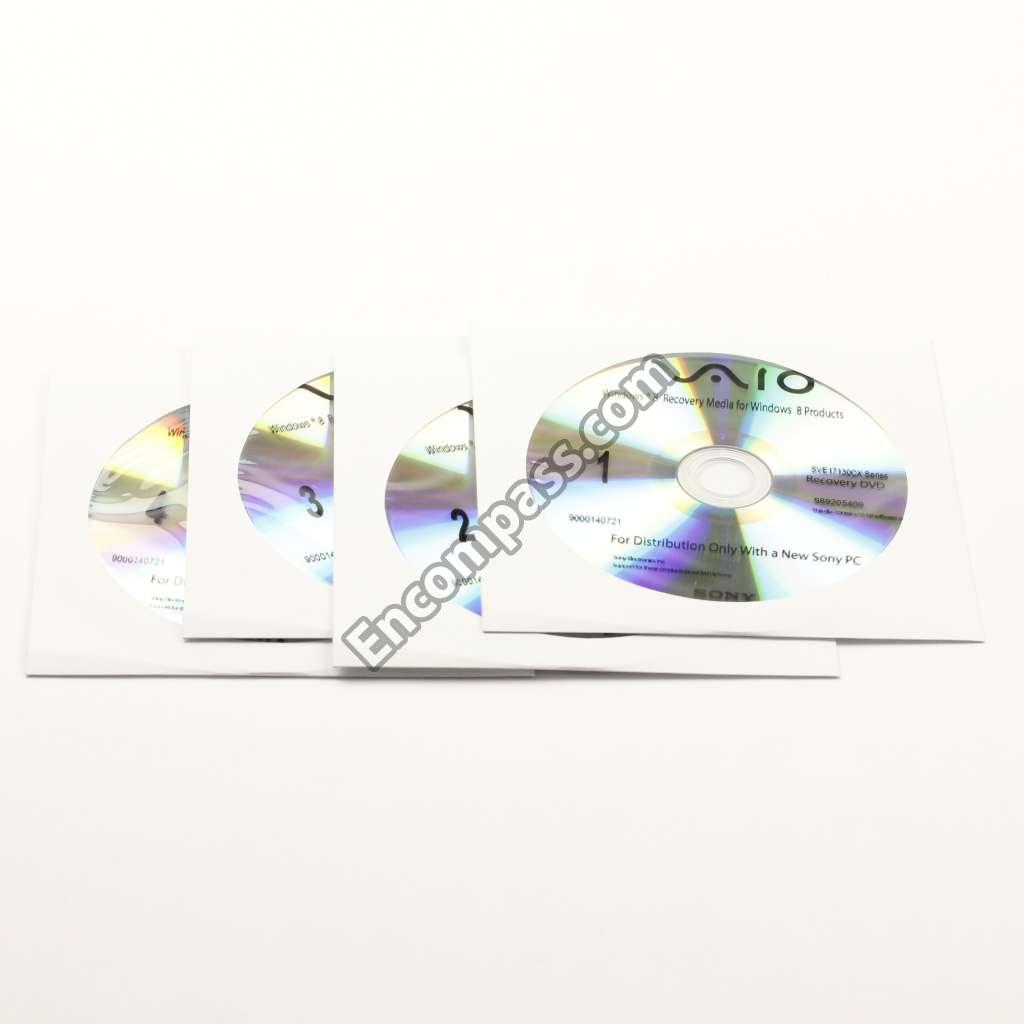

RDVD RECOVERY DISC MODEL SVE1713CCXB |
|
|
SCREW (M2XL3) |
|
|
SCREW (M2XL4) |
|
|
SCREW (M2XL5) |
|
|
SCREW NYLOK (M3XL8) |
|
|
SCREW(M2XL6) |
|
|
SCRW M3*L3.5 #1 NON NYLOK |
|
|
SPEAKER PACK RL YG(S) |
|
|
THERMAL GREASE Z1(S) |
|
|
TP BKT ASSY Z70CR |
|
|

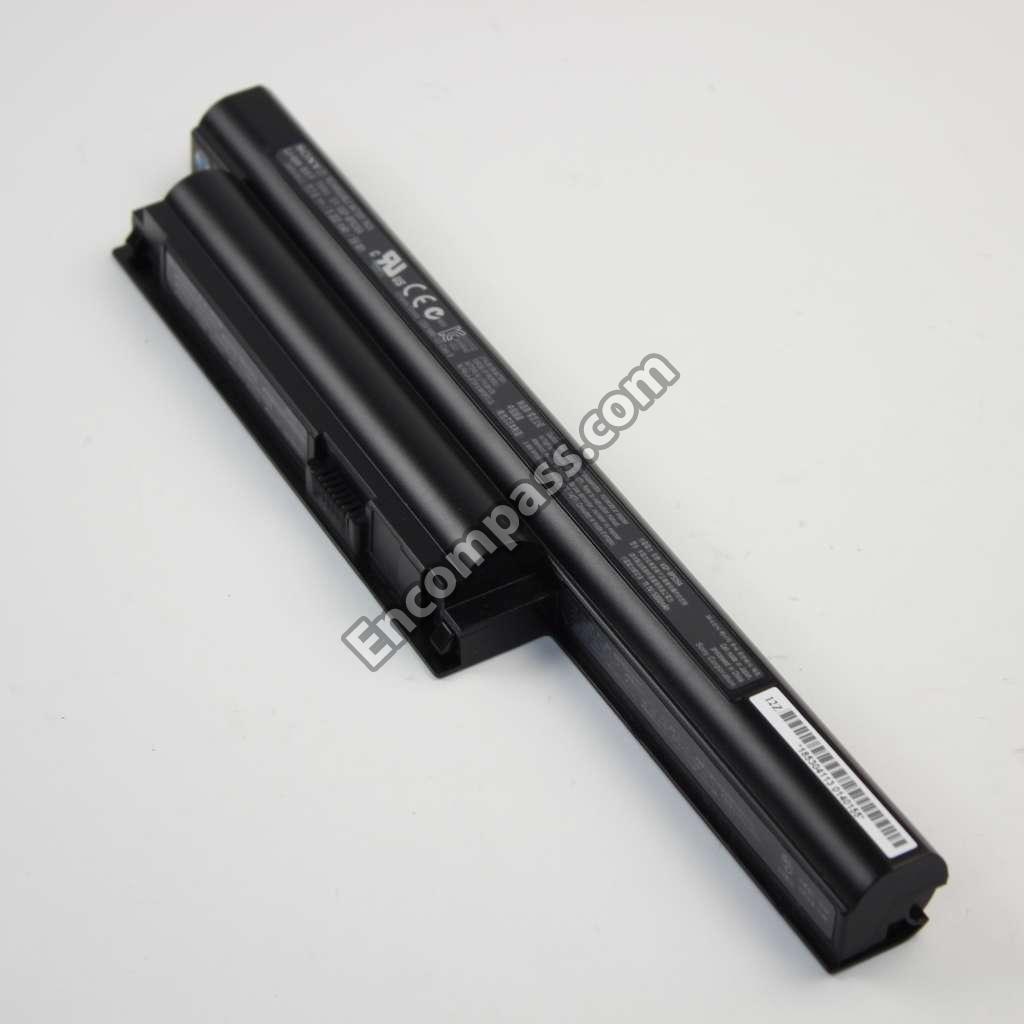

VGP-BPS26A(U)(W)(S) |
|
|
VGP-BPS26A(U)(W)(S) |
|
|
VGP-BPS26A(U)(W)(S) |
|
|
VGP-BPS26A(U)(W)(S) |
|
|
VGP-BPS26A(U)(W)(S) |
|
|
VGP-BPS26A(U)(W)(S) |
|
|
VGP-BPS26A(U)(W)(S) |
