Manufacturer
Sony
Model Number
SVF14215CXB
Description
Vaio Fit 14e Laptop
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANT WLAN ASSY QTHK8-EQL0102A |
|
|
ANTENNA WPR14NRC41 (NFC) |
|
|
BATTERY LI,3V,220MAH(BCR2032) |
|
|
CABLE ASSY HK8 ADAPTER |
|
|

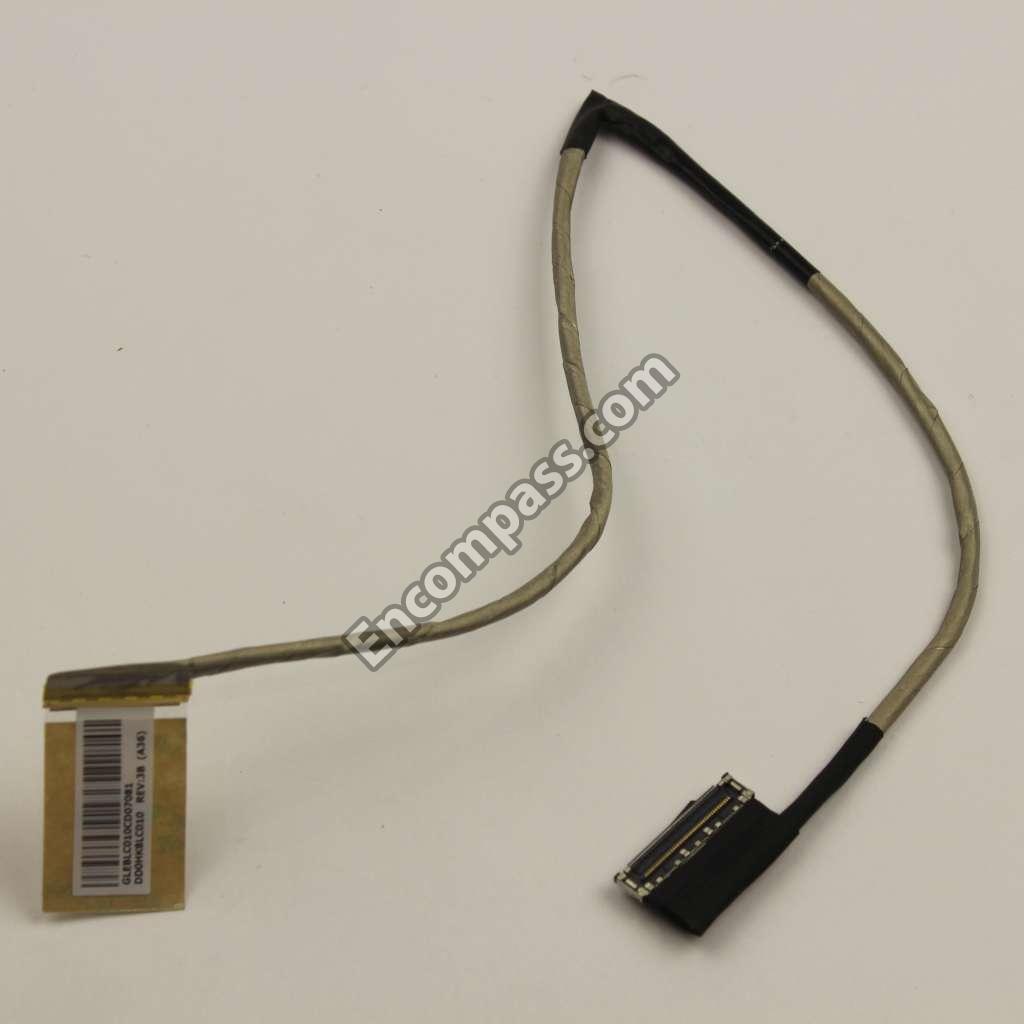

CABLE ASSY HK8 LCD 40PR1A XYE |
|
|
CABLE ASSY HK8 TH CAMERA 4P/4P |
|
|
CABLE FFC HK8 TP(156.5MM,6P) |
|
|
CAMERA MODULE 12P2BF147 |
|
|
CAMERA MODULE BN9P18NTK-500 |
|
|
FFC HK8 NFC(25MM,15P,R1A)3V |
|
|
FFC HK8 PSB(40MM,10P)30V |
|
|
FFC HK8 USB(170MM,24P)30V |
|
|
GASKET PALM-TOUCH PAD HK8 |
|
|
HDD (750GB,MQ01ABD075)(B)(S) |
|
|
HDD (750GB,WD7500BPVT)(B)(S) |
|
|
HDD (D750GB,ST750LM022)(B)(S) |
|
|
HDD(D750GB,HTS541075A9)(B)(S) |
|
|
HK8 BRKT HOLDER MB ASSY |
|
|
HK8 HDD BRACKET ASSY |
|
|
HK8 HDD BRACKET TOP ASSY |
|
|
HK8 HDD COVER ASSY |
|
|
HK8 HOLDER PSB BRKT ASSY |
|
|
HK8 HOUSING BEZEL TH ASSY |
|
|
HK8 HOUSING BOTTOM ASSY W/O SP |
|
|
HK8 MEMORY COVER ASSY |
|
|
HK8 ODD BEZEL ASSY |
|
|
HK8 SUPPORT CLICKPAD ASSY |
|
|
HK8 TOUCH PAD ASSY (B) |
|
|
HK8LCD SUB ASSY14ADT-V0(S) |
|
|
HK8LCD-HOUSING_TH_BLK(S) |
|
|
HK8MB_CI518_UMA (S) |
|
|

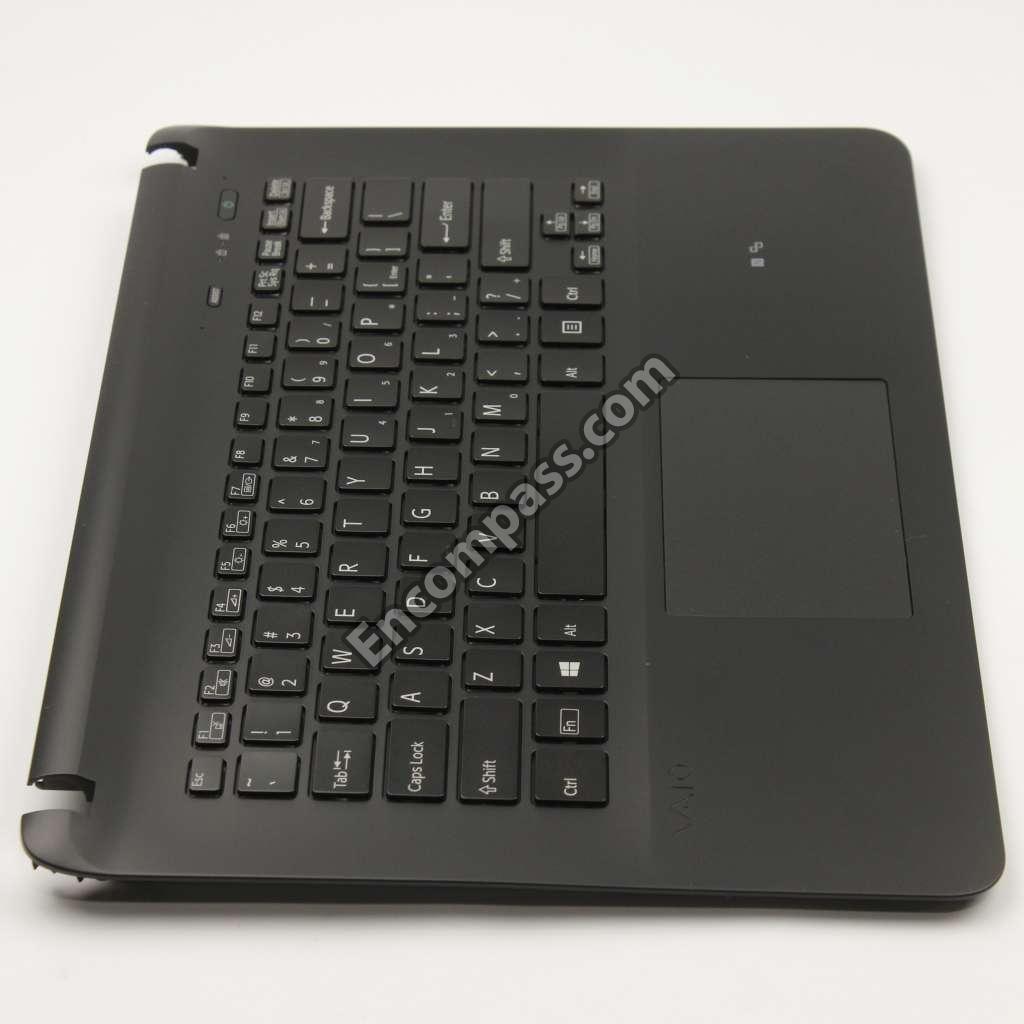

HK8PALM_BK_US_BL_NFC_API(S) |
|
|
HK8_PSW/B (S-DMIC) ASSY (S) |
|
|
HK8_THERMAL_MODULE_UMA_CHM(S) |
|
|
HK8_USB/B ASSY (S) |
|
|
IC SNY16D3LS1KDG/2G(B)(S) |
|
|
LCD UNIT (14TFT)(B)(S) |
|
|
LOCK 2680 RJ5 |
|
|
NFC CARD WNI20NC0301 |
|
|
ODD (PAN/SMQL/9.5/8C2)(B)(S) |
|
|
ODD (TST/SMQL/9.5/208BB)(B)(S) |
|
|
Q SPECIAL APPEAR M1.6X3(NI)(NY |
|
|
Q SPECIAL APPEAR M2X5.5(NI)(NY |
|
|
RAM(2GB)DDR3 M471B5773DH0-YK0 |
|
|
RAM(4GB)DDR3 HMT351S6CFR8A-PB |
|
|
RDVD RECOVERY DISC MODEL SVF14215CXB |
|
|
RUBBER STOPPER DMIC HK8 SI |
|
|
SCREW M2*2 I(BNI-3C)IRON |
|
|
SCREW M2*2-I(BNI)(NYLOK)IRON |
|
|
SCREW M2*2-I(BNI)IRON |
|
|
SCREW M2*3-I(BNI)(NYLOK)IRON |
|
|
SCREW M2*3I(BNI)(NYLOK)IRON |
|
|
SCREW M2*4 -I(NI-3C)NYLOK)IRON |
|
|
SCREW M2*8-I(NI)(NYLOCK)IRON |
|
|
SCREW M3*3.5 I(NI-3C)IRON |
|
|
THERMAL GREASE X-23-7762- |
|
|
VGP-BPS35A(I)(S) |
|
|
VGP-BPS35A(U)(S) |
