Manufacturer
Sony
Model Number
SVF1432ACXB
Description
Vaio Fit 14e Laptop
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANT WLAN ASSY QTHK8-EQL0102A |
|
|
ANTENNA RC-S640/IAA (NFC) |
|
|
BATTERY LI3V220MAH(CR2032) |
|
|
BATTERY VGP-BPS35A(U)(S) |
|
|
CABLE ASSY HK8 ADAPTER |
|
|
CABLE ASSY HK8 TH CAMERA 4P/4P |
|
|

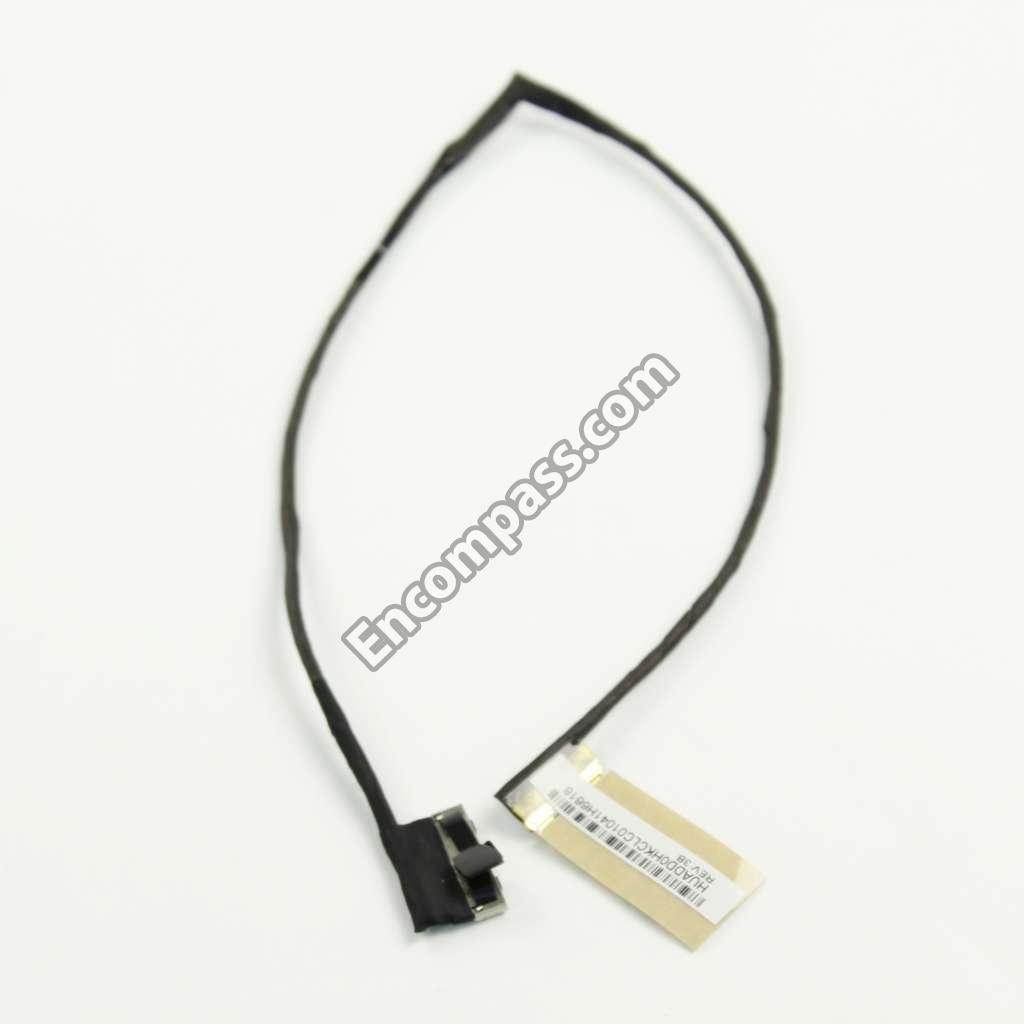

CABLE ASSY HKC LCD 30P,R1A GLE |
|
|
CABLE FFC HK8 TP(156.5MM,6P) |
|
|
CAMERA CHICO_CKFCH7221004173LH |
|
|
CAMERA LITEON_12P2BF147C |
|
|
CU FOIL TOUCH HKA |
|
|
FFC HK8 PSB(40MM,10P)30V |
|
|
FFC HK8 USB(170MM,24P)30V |
|
|
FFC HKC MB-NFC(236MM,15P)30V |
|
|
GASKET PALM-TOUCH PAD HK8 |
|
|
GASKET TOUCH HK8 PU |
|
|
HK8 BRKT HOLDER MB ASSY |
|
|
HK8 HDD BRACKET ASSY |
|
|
HK8 HDD BRACKET TOP ASSY |
|
|
HK8 HDD COVER ASSY |
|
|
HK8 HOLDER PSB BRKT ASSY |
|
|
HK8 HOUSING BEZEL TH ASSY |
|
|

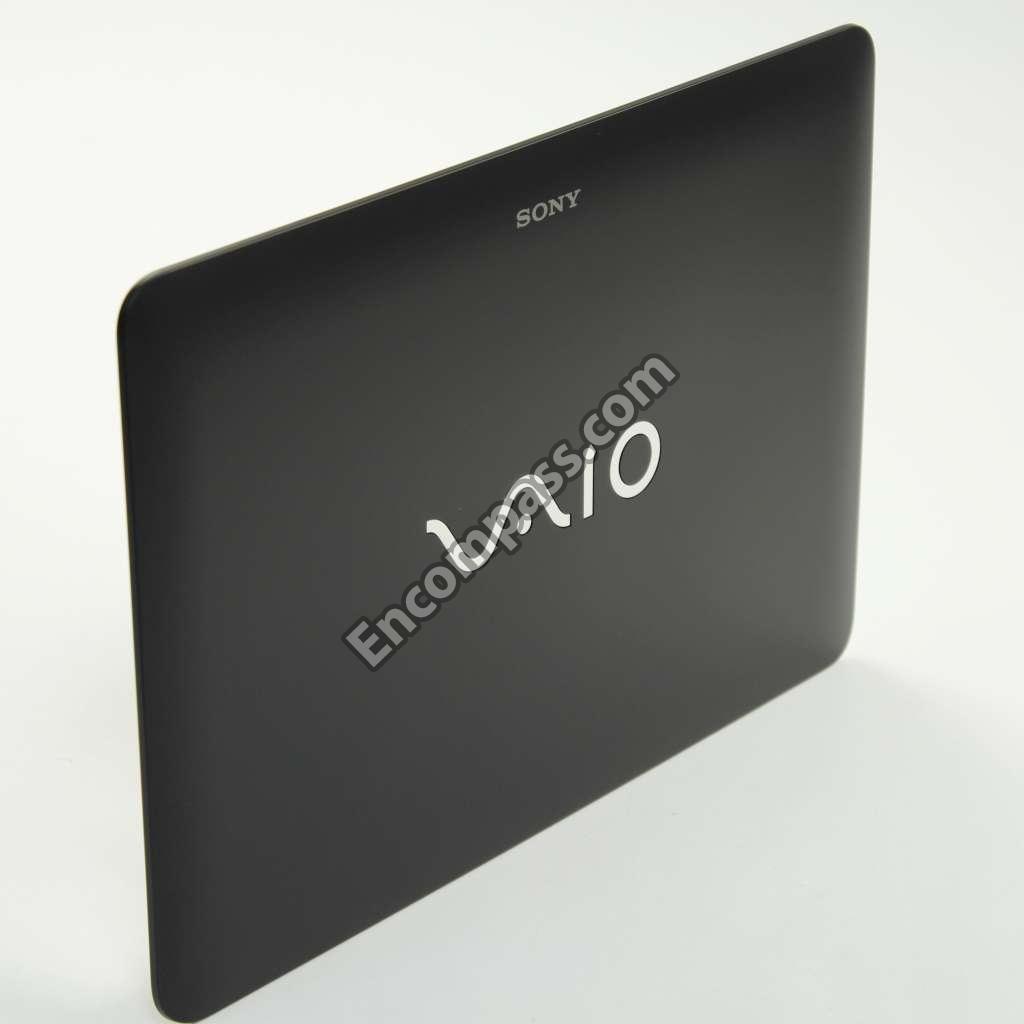

HK8 LCD-HOUSING_TH_BLK(S) |
|
|
HK8 MEMORY COVER ASSY |
|
|
HK8 ODD BEZEL ASSY RECY |
|
|
HK8 SUPPORT CLICKPAD ASSY |
|
|
HK8 TOUCH PAD ASSY (B) |
|
|
HK8_PSW/B (S-DMIC) ASSY (S) |
|
|
HK8_USB/B ASSY (S) |
|
|
HKC H-BTM ASSY W/O SP(NOISE) |
|
|
HKC LCD-TS ASSY AUO-HTN01.1(S) |
|
|
HKC PALM_BK_US_BL_NFC(S) |
|
|
HKC THER MDU ASSY 15W DIS(CHM) |
|
|
HKCA MB CI74500U18_EXT2G(S) |
|
|
INS MYLAR ODD CONN HKC |
|
|
INSULATOR MYLAR DDR HK8 |
|
|
LOCK 2680 RJ5 |
|
|
NFC CARD RC-S640/IA |
|
|
ODD (PAN/SMQL/9.5/8C2)(B)(S) |
|
|
Q SPECIAL APPEAR M1.6X3(NI)(NY |
|
|
Q SPECIAL APPEAR M2X1_7 BZN NY |
|
|
Q SPECIAL APPEAR M2X5.5(NI)(NY |
|
|
RDVD RECOVERY DISC MODEL SVF1432ACXB |
|
|
RUBBER STOPPER DMIC HK8 SI |
|
|
SCREW M2*2 I(BNI-3C)IRON |
|
|
SCREW M2*2-I(BNI)IRON |
|
|
SCREW M2*3-I(BNI)(NYLOK)IRON |
|
|
SCREW M2*3I(BNI)(NYLOK)IRON |
|
|
SCREW M2*4 -I(NI-3C)NYLOK)IRON |
|
|
SCREW M2*8-I(NI)(NYLOCK)IRON |
|
|
SCREW M3*3.5 I(NI-3C)IRON |
|
|
SPK MDU ASSY VAN L/R NJ(NOISE) |
|
|
SPONGE BRKT CLICKPAD HK8 |
|
|
TAPE ADHESIVE ACID BASE HK9 |
|
|
THERMAL GREASE X-23-7762- |
