Manufacturer
Sony
Model Number
SVF1521ECXW
Description
Vaio Fit 15e Laptop
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADHESIVE ACID BEZEL HK9 |
|
|
ANTENNA WLAN ASSY EQL0202A |
|
|
ANTENNA WPR14NRC41 (NFC) |
|
|
BATTERY LI,3V,220MAH(BCR2032) |
|
|
CABLE ASSY HK9 ADAPTER |
|
|
CABLE ASSY HK9 CAMERA(4P)30V |
|
|
CABLE ASSY HK9 LCD 40P,R1A XYE |
|
|
CAMERA MODULE 12P2BF147 |
|
|
CAMERA MODULE BN9P18NTK-500 |
|
|
CONDUCTIVE TAPE RAM L HK9 |
|
|
FFC HK8 USB(170MM,24P)30V |
|
|
FFC HK9 MB-TP(190MM,6P,R1A) |
|
|
FFC HK9 NFC(213MM,15P,R2A)30V |
|
|
FFC HK9 PSB(97.5MM,10P)30V |
|
|
HDD (500GB,MQ01ABF050)(B)(S) |
|
|
HDD (500GBMQ01ABD050)(B)(S) |
|
|
HDD (D500GB,HTS545050A7)(B)(S) |
|
|
HK8 HDD BRACKET ASSY |
|
|
HK8 HDD BRACKET BTM ASSY(7MM) |
|
|
HK8 HDD BRACKET TOP ASSY |
|
|
HK8 MEMORY COVER ASSY |
|
|
HK8 ODD BEZEL ASSY |
|
|

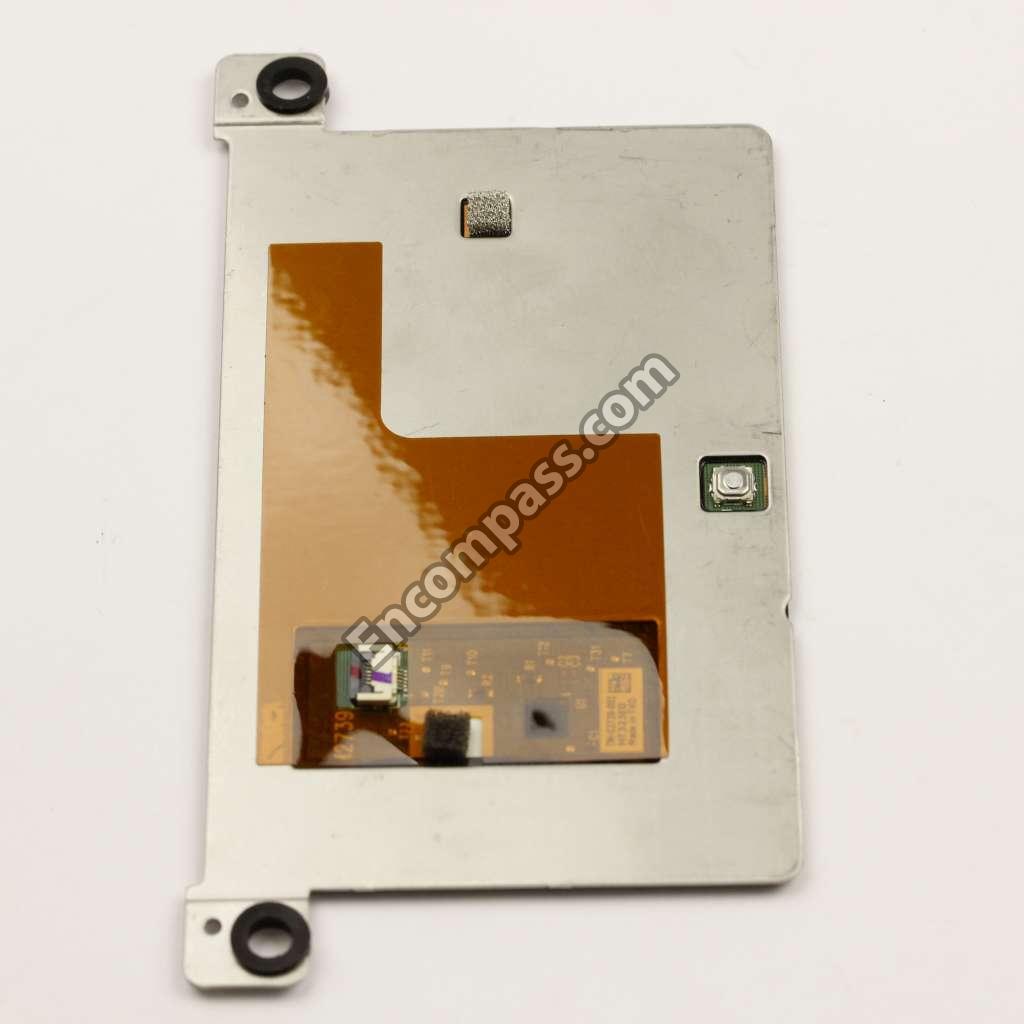

HK8 TOUCH PAD ASSY (W) |
|
|
HK8_USB/B ASSY (S) |
|
|
HK9 HDD COVER ASSY |
|
|
HK9 HOLDER PSB BRKT ASSY |
|
|
HK9 HOUSING BEZEL ASSY |
|
|
HK9 HOUSING BOTTOM ASSY NON-JP |
|
|

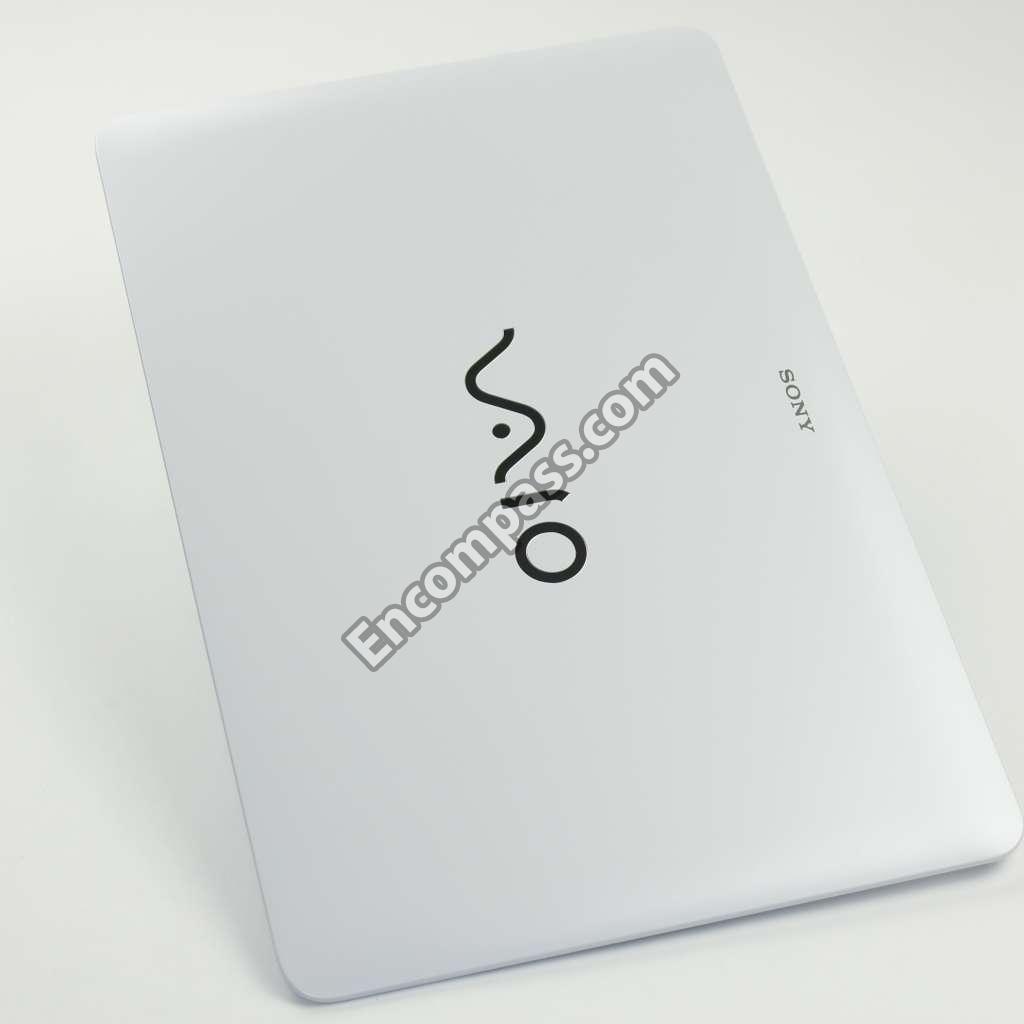

HK9 HOUSING LCD ASSY(P,NJ) |
|
|
HK9 SUPPORT CLICKPAD ASSY |
|
|
HK9PALM_WH_US_BL_NFC_JMO(S) |
|
|
HK9_PSW/B (S-DMIC) ASSY (S) |
|
|
HK9_THERMAL_MODULE_DIS_CHM(S) |
|
|
LCD UNIT (B)(S) |
|
|
LOCK 2680 RJ5 |
|
|
NFC CARD WNI20NC0301 |
|
|
ODD (PAN/SMQL/9.5/8C2)(B)(S) |
|
|
ODD (TST/SMQL/9.5/208BB)(B)(S) |
|
|
Q SPECIAL APPEAR M1.6X3(NI)(NY |
|
|
Q SPECIAL APPEAR M2X1_7 BZN NY |
|
|
Q SPECIAL APPEAR M2X3.5BNI NYL |
|
|
Q SPECIAL APPEAR M2X5.5(NI)(NY |
|
|
RAM(4GB)DDR3 HMT351S6CFR8A-PB |
|
|
RDVD RECOVERY DISC MODEL SVF1521ECXW |
|
|
RUBBER STOPPER DMIC HK8 SI |
|
|
SCREW M2*2-I(BNI)IRON |
|
|
SCREW M2*3-I(BNI)(NYLOK)IRON |
|
|
SCREW M2*3I(BNI)(NYLOK)IRON |
|
|
SCREW M2*4 -I(NI-3C)NYLOK)IRON |
|
|
SCREW M2*8-I(NI)(NYLOCK)IRON |
|
|
SCREW M3*3.5 I(NI-3C)IRON |
|
|
SPK MODULE ASSY VAN WOOFER_NJP |
|
|
THERMAL GREASE X-23-7762- |
|
|
VGP-BPS35A(U)(S) |
