Manufacturer
Sony
Model Number
SVF1532CCXW
Description
Vaio Fit 15e Laptop
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANT WLAN ASSY QTHK9-EQL0102A |
|
|
ANTENNA RC-S640/IAA (NFC) |
|
|
BATTERY LI3V220MAH(CR2032) |
|
|
CABLE ASSY HK9 ADAPTER |
|
|
CABLE ASSY HK9 TH CAMERA 4P/4P |
|
|
CABLE ASSY HKD LCD 30P,R2A HUA |
|
|
CAMERA CHICO_CKFCH7221004173LH |
|
|
CAMERA LITEON_12P2BF147C |
|
|
CONDUCTIVE TAPE CAM R HKD |
|
|
CONDUCTIVE TAPE RAM L HK9 |
|
|
CU FOIL TOUCH HKA |
|
|
FFC HK8 USB(170MM,24P)30V |
|
|
FFC HK9 MB-TP(190MM,6P,R1A) |
|
|
FFC HK9 PSB(97.5MM,10P)30V |
|
|
FFC HKD MB-NFC(241MM,15P)30V |
|
|
GASKET TP HKD |
|
|
GASKET TP TOP HKD |
|
|
HK8 HDD BRACKET BTM ASSY(7MM) |
|
|
HK8 HDD BRACKET TOP ASSY |
|
|
HK8 MEMORY COVER ASSY |
|
|
HK8 ODD BEZEL ASSY RECY |
|
|
HK8 TOUCH PAD ASSY (W) |
|
|
HK8_USB/B ASSY (S) |
|
|
HK9 HDD COVER ASSY |
|
|
HK9 HOLDER PSB BRKT ASSY |
|
|
HK9 HOUSING BEZEL TH ASSY |
|
|

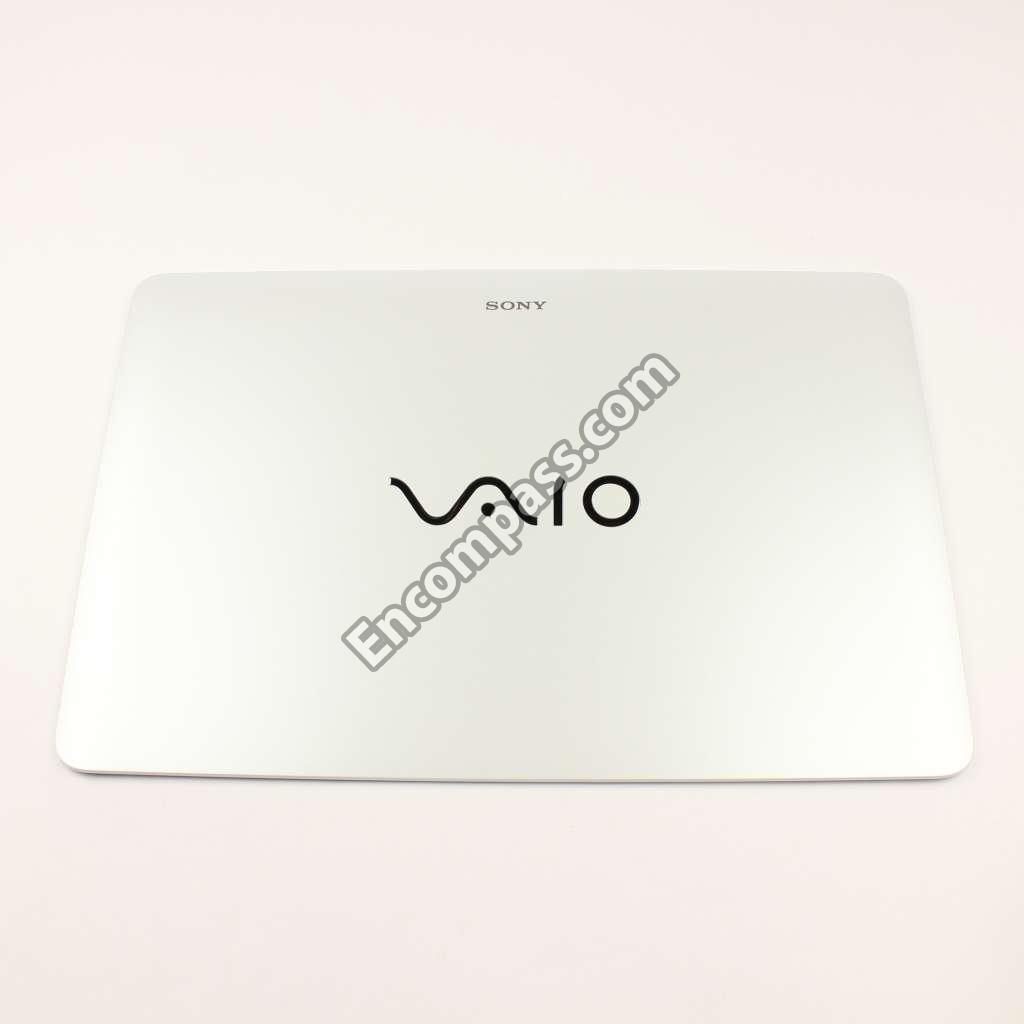

HK9LCD-HOUSING_TH_WHT(S) |
|
|
HK9_PSW/B (S-DMIC) ASSY (S) |
|
|
HKD H-BTM ASSY W/O SP(NOISE) |
|
|
HKD LCD-TS ASSY CMI-EB1(S) |
|
|
HKD SUPPORT CLICKPAD ASSY |
|
|
HKD THER MDU ASSY 15W UMA(CHM) |
|
|

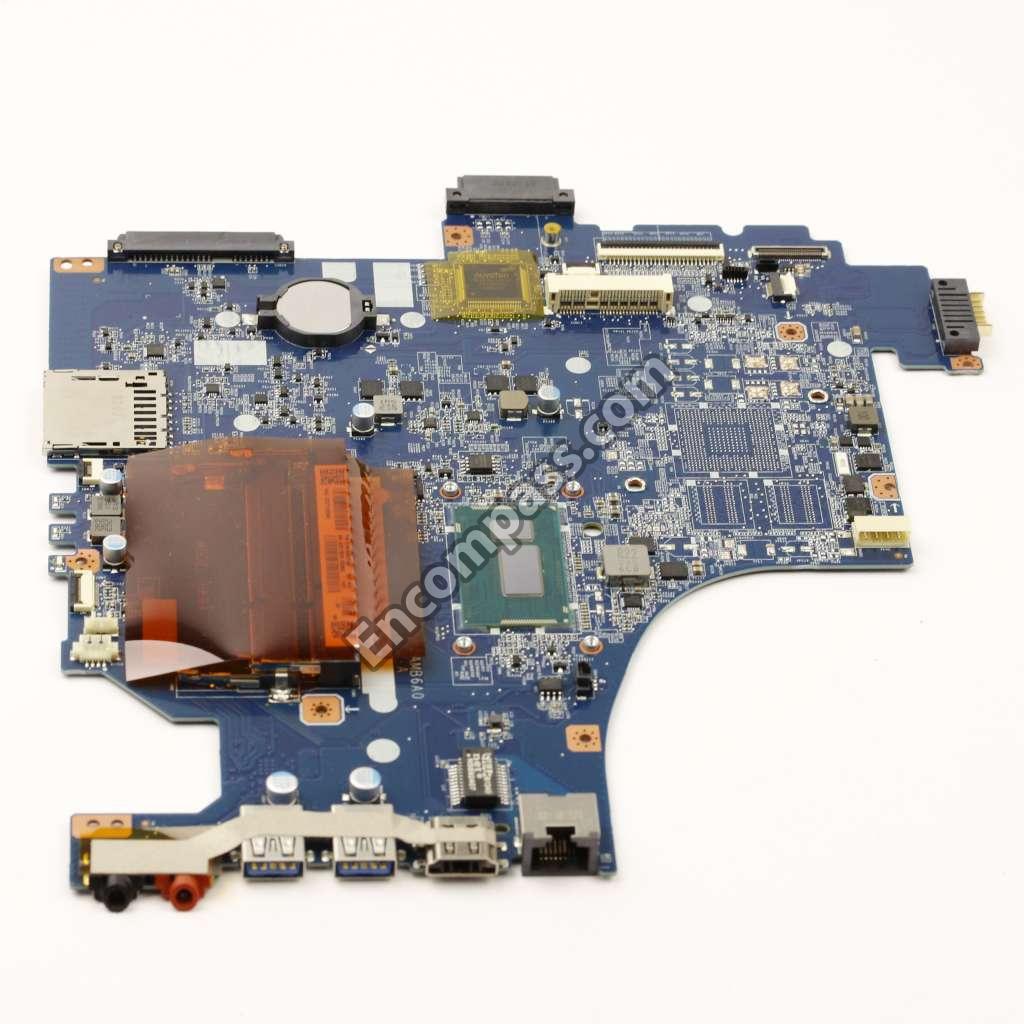

HKDAMB_CI34005U17_UMA(S) |
|
|

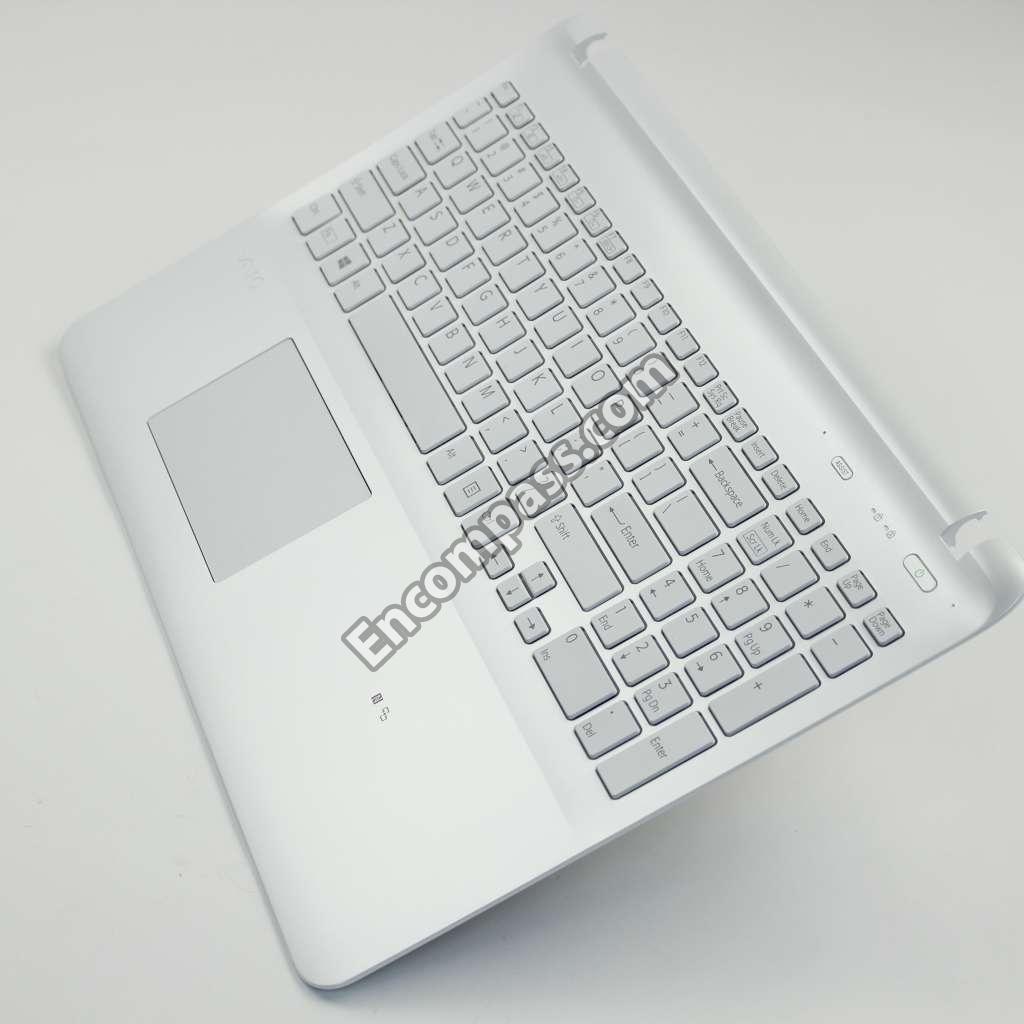

HKDPALM_WH_US_BL_NFC(S) |
|
|
INSULATOR MYLAR DDR HK8 |
|
|
INSULATOR MYLAR EC HKD |
|
|
INSULATOR MYLAR ODD HKD |
|
|
LOCK 2680 RJ5 |
|
|
NFC CARD RC-S640/IA |
|
|
ODD (PAN/SMQL/9.5/8C2)(B)(S) |
|
|
Q SPECIAL APPEAR M1.6X3(NI)(NY |
|
|
Q SPECIAL APPEAR M2X1_7 BZN NY |
|
|
Q SPECIAL APPEAR M2X3.5BNI NYL |
|
|
Q SPECIAL APPEAR M2X5.5(NI)(NY |
|
|
Q SPECIAL APPEAR M2X7(NI)(NYL) |
|
|
RDVD RECOVERY DISC MODEL SVF1532CCXW |
|
|
RUBBER STOPPER DMIC HK8 SI |
|
|
SCREW M2*2 I(BNI-3C)IRON |
|
|
SCREW M2*2-I(BNI)IRON |
|
|
SCREW M2*3-I(BNI)(NYLOK)IRON |
|
|
SCREW M2*3I(BNI)(NYLOK)IRON |
|
|
SCREW M2*4 -I(NI-3C)NYLOK)IRON |
|
|
SCREW M2*8-I(NI)(NYLOCK)IRON |
|
|
SCREW M3*3.5 I(NI-3C)IRON |
|
|
SPK MDU ASSY VAN L/R NJ(NOISE) |
|
|
SPK MODULE ASSY VAN WOOFER_NJP |
|
|
TAPE ADH ACID TH CABLE HK9 |
|
|
TAPE ADHESIVE ACID BASE HK9 |
|
|
THERMAL GREASE X-23-7762- |
|
|
VGP-BPS35A(U)(S) |
