Manufacturer
Sony
Model Number
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACADAPTER(VGP-AC19V39)(W)(S) |
|
|
ACADAPTER(VGP-AC19V57)(W)(S) |
|
|
ANTENNA L Z30UL ACON |
|
|
ANTENNA R Z30UL ACON |
|
|
ASSY 60 HDD BRKT2 Z30UL |
|
|
ASSY 60 HDD DOOR Z10UL |
|
|
ASSY 60 HDD DOOR Z10UL |
|
|
ASSY 60 LCASE Z30UL |
|
|
ASSY 60 LCD BEZEL Z30UL |
|
|
ASSY 60 LCD COVER AL Z30UL |
|
|
ASSY 60 LCD COVER AL Z30UL |
|
|
ASSY 65 HINGE Z30UL JR |
|
|
ASSY 65 HINGE Z30UL LH |
|
|
ASSY 65 HINGE Z30UL SNR |
|
|
ASSY CVR HINGE CAP Z30UL |
|
|
ASSY KB BRKT Z30UL |
|
|
ASSY TOUCHPAD(S) |
|
|
ASSY Z30UL UMA THERMAL AURAS+D |
|
|
ASSY Z30UL UMA THM AURAS+ADDA |
|
|
BTY RTC ML1220_25MM MAXEL |
|
|
BTY RTC ML1220_25MM PANA |
|
|
C.A. DC-IN CABLE MEC Z30UL |
|
|
C.A. DC-IN CABLE SINGATRON Z30 |
|
|
C.A. FRONT LED FFC JH Z30UL |
|
|
C.A. LVDS Z30UL HT |
|
|
C.A. LVDS Z30UL HT |
|
|
C.A. LVDS Z30UL ICT |
|
|
C.A. TP FFC JH Z30UL |
|
|
C.A. TP FFC P2 Z30UL |
|
|
CAMERA 1.3M_HD 1MIC 11P2BF139 |
|
|
CAMERA 1.3M_HD 1MIC CKFB1B1210 |
|
|
CARD WLAN/BT COMBO(W)(S) |
|
|

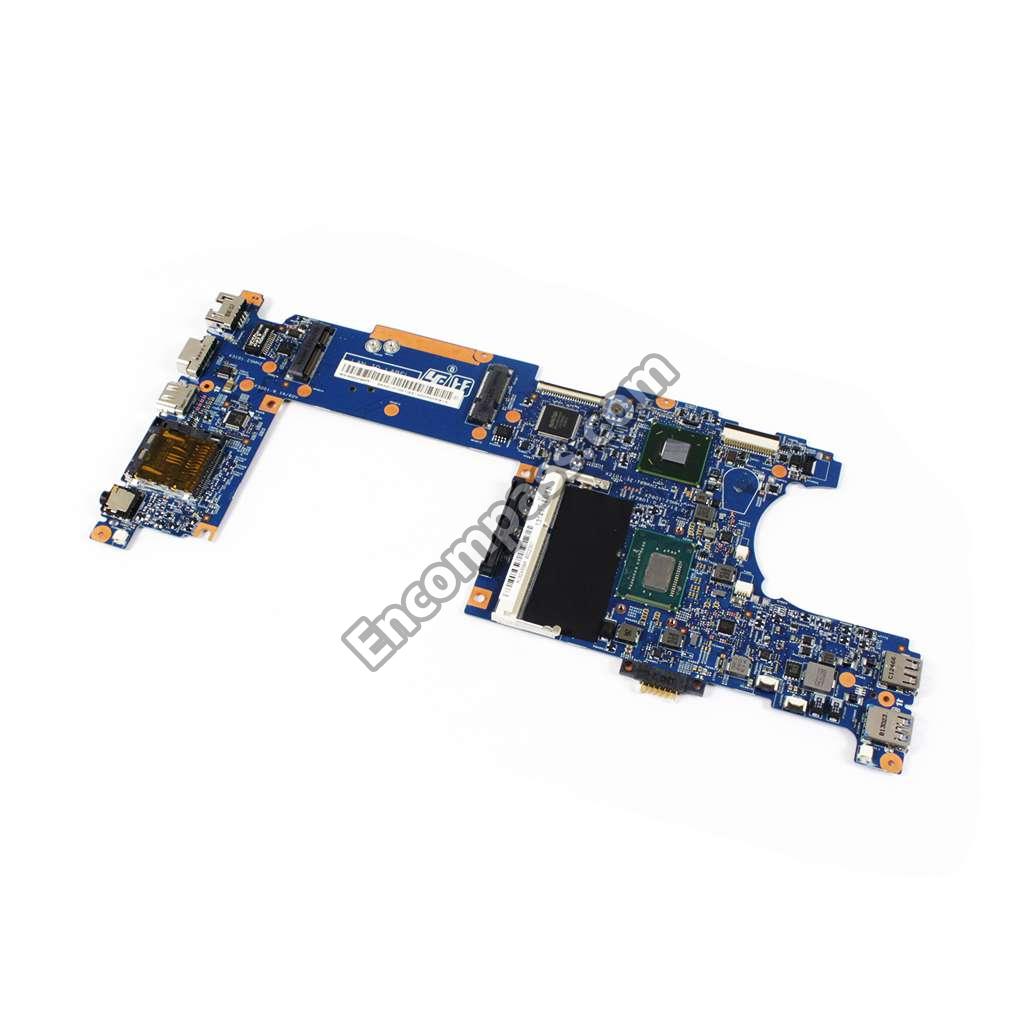

COMPL MBX265_I3_1.9G_HM76_4G |
|
|
DB LED Z10UL |
|
|
HDD (500GB,MQ01ABF050)(B)(S) |
|
|
HDD (D500GB,ST500LT012)(B)(S) |
|
|
HDD (D500GBHTS545050A7)(B)(S) |
|
|
IC AXM13S2 24GM-B(B)(S) |
|
|
LABEL, (3 X 2) UPC |
|
|
LCD UNIT(B)(S) |
|
|

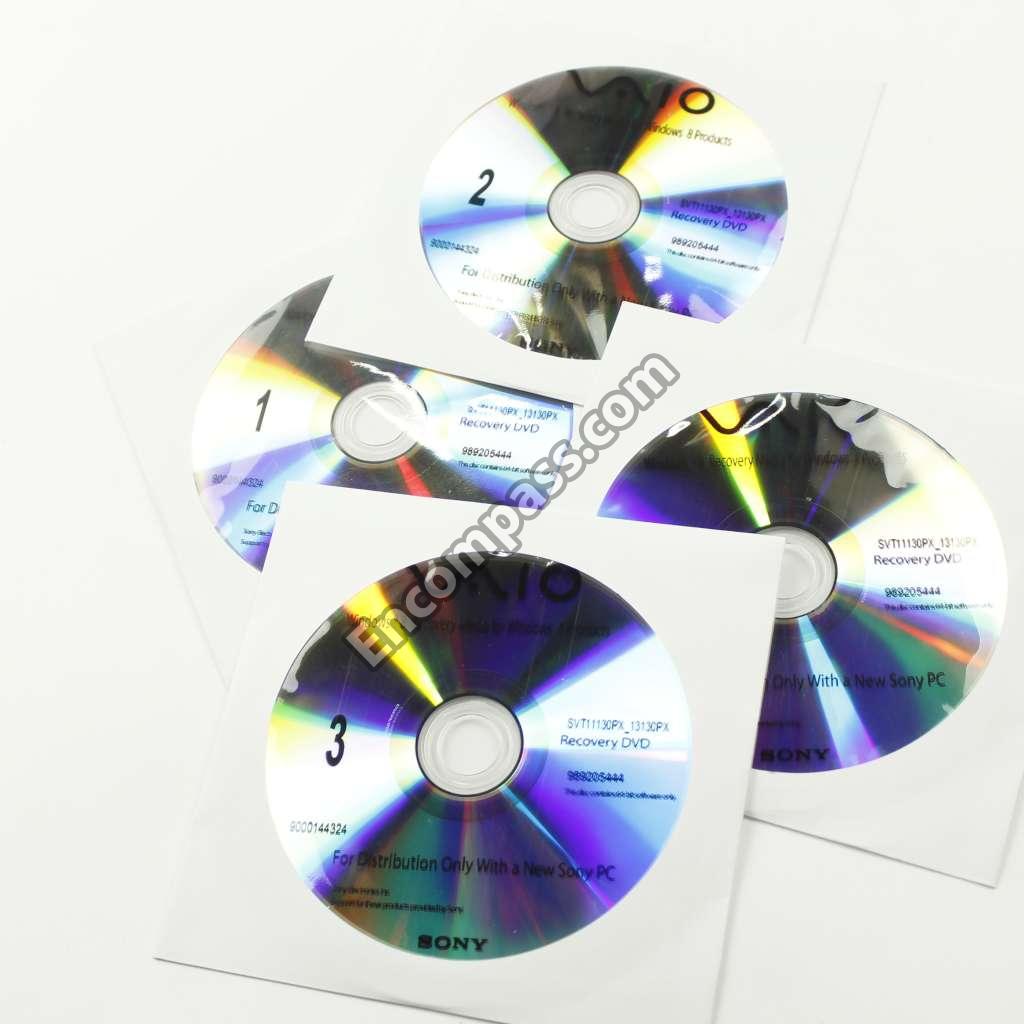

RDVD RECOVERY DISC MODEL SVT13132PXS |
|
|
SCREW (M2XL3) |
|
|
SCREW (M2XL4) |
|
|
SCREW M2XL4 (SPECIAL) |
|
|
SCRW M1.2L1.4 T0.3 D3.5 (LCD T |
|
|
SCRW M1.4L1.8 #0 T=0.4 D=4/BL |
|
|
SCRW M2L2.5 #1 T=0.5 D=4/BLAC |
|
|
SCRW M2L3 #1 T=0.5 D=4/WHITE |
|
|
SCRW M2XL2 T0.35 D7 GL |
|
|
SCRW M2XL3 HEAD T=0.3 BZN(BEZE |
|
|
SCRW M3*L3.5 #1 NON NYLOK |
|
|
SKT SATA 22P LD3022J-S4QL |
|
|
THERMAL GREASE Z1(S) |
