Manufacturer
Sony
Model Number
SVT1511ACXS
Description
Vaio T Series 15 Ultrabook...
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC ADAPTOR (VGP-AC19V43)(W)(S) |
|
|

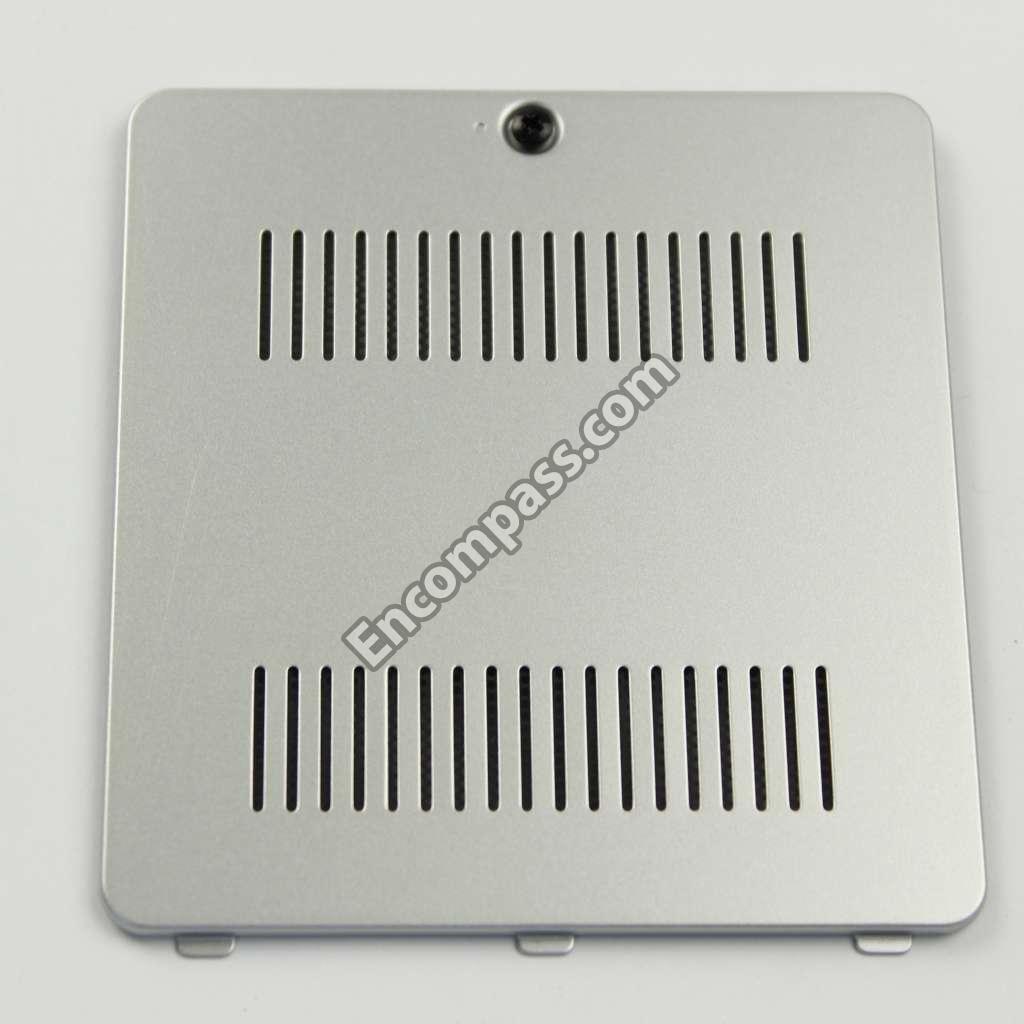

ASSY 60 DIMM DOOR Z50UL |
|
|

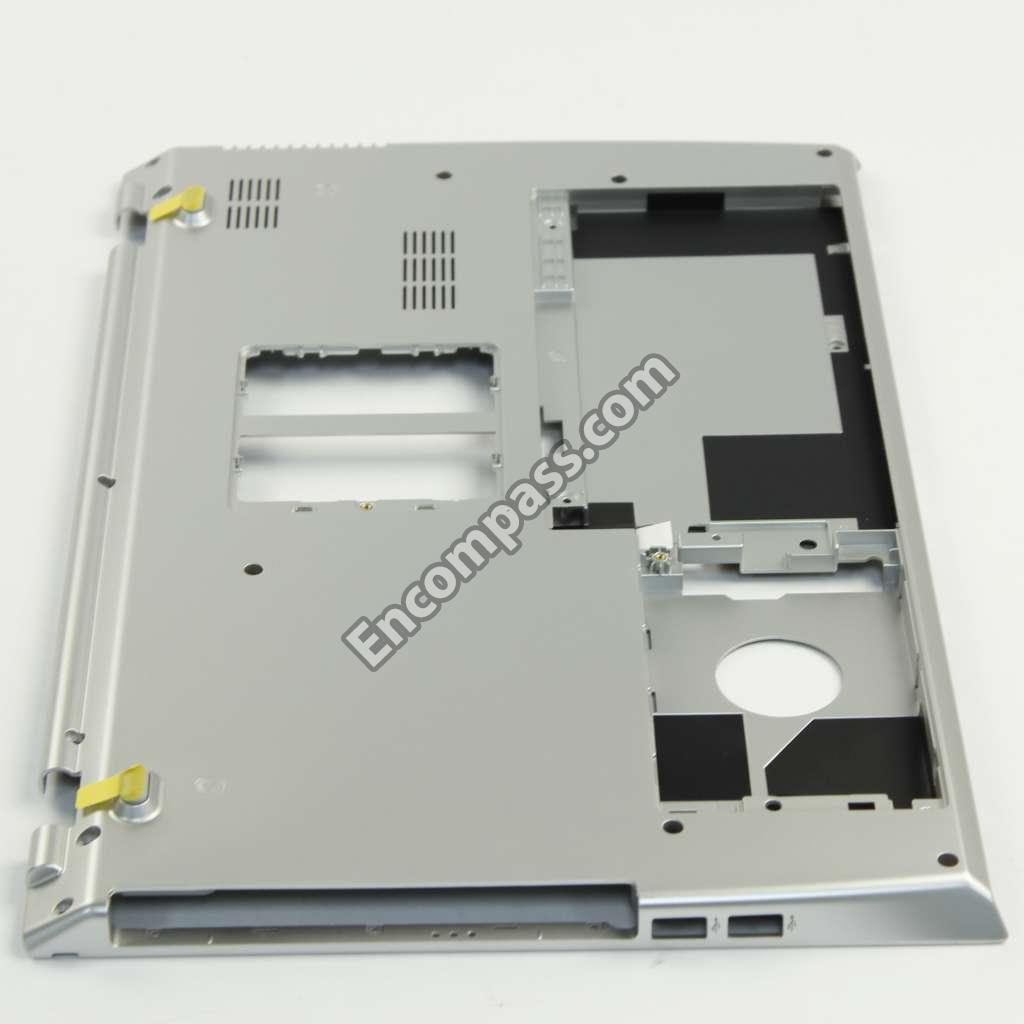

ASSY 60 LCASE Z50UL |
|
|

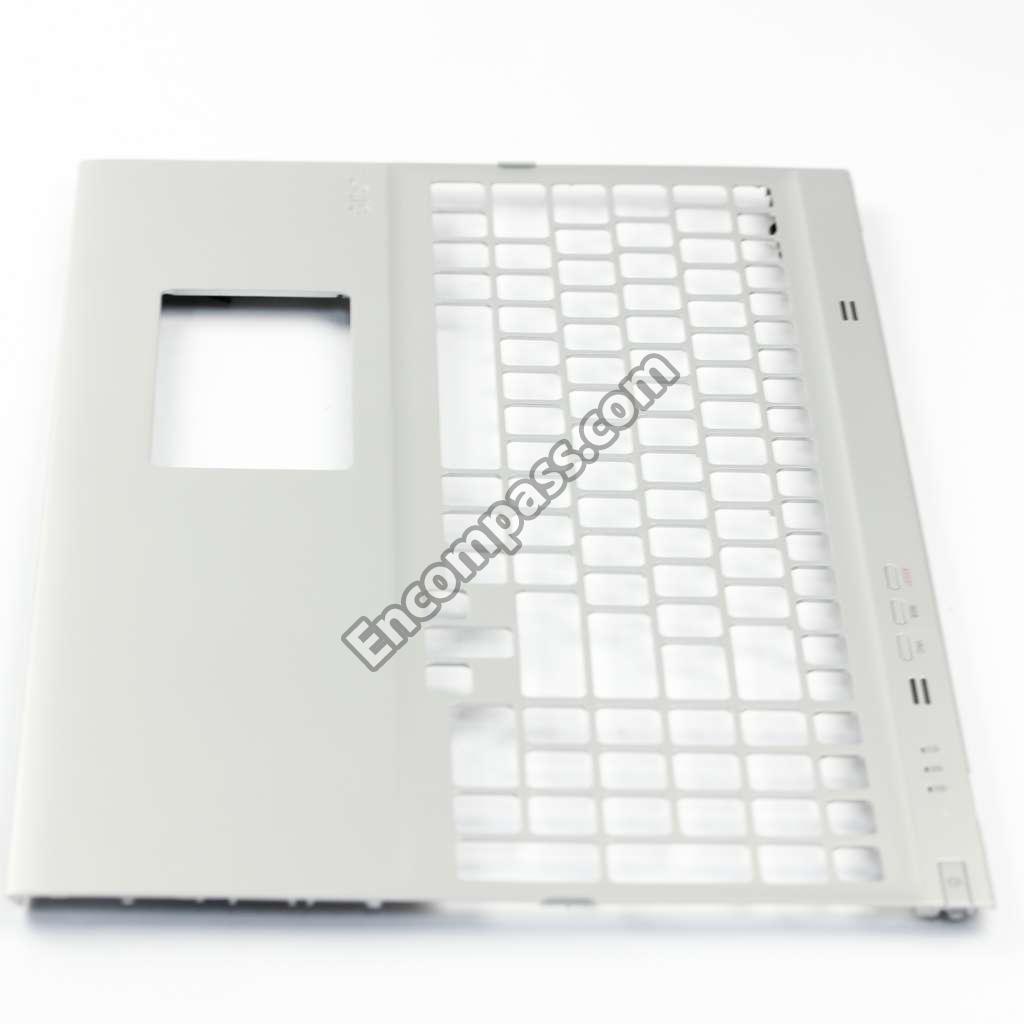

ASSY 60 UCASE US Z50UL |
|
|
ASSY 60-HDD_DOOR-Z40UL |
|
|
ASSY ANTENNA ACON Z50UL |
|
|
ASSY ANTENNA WHAYU Z50UL |
|
|

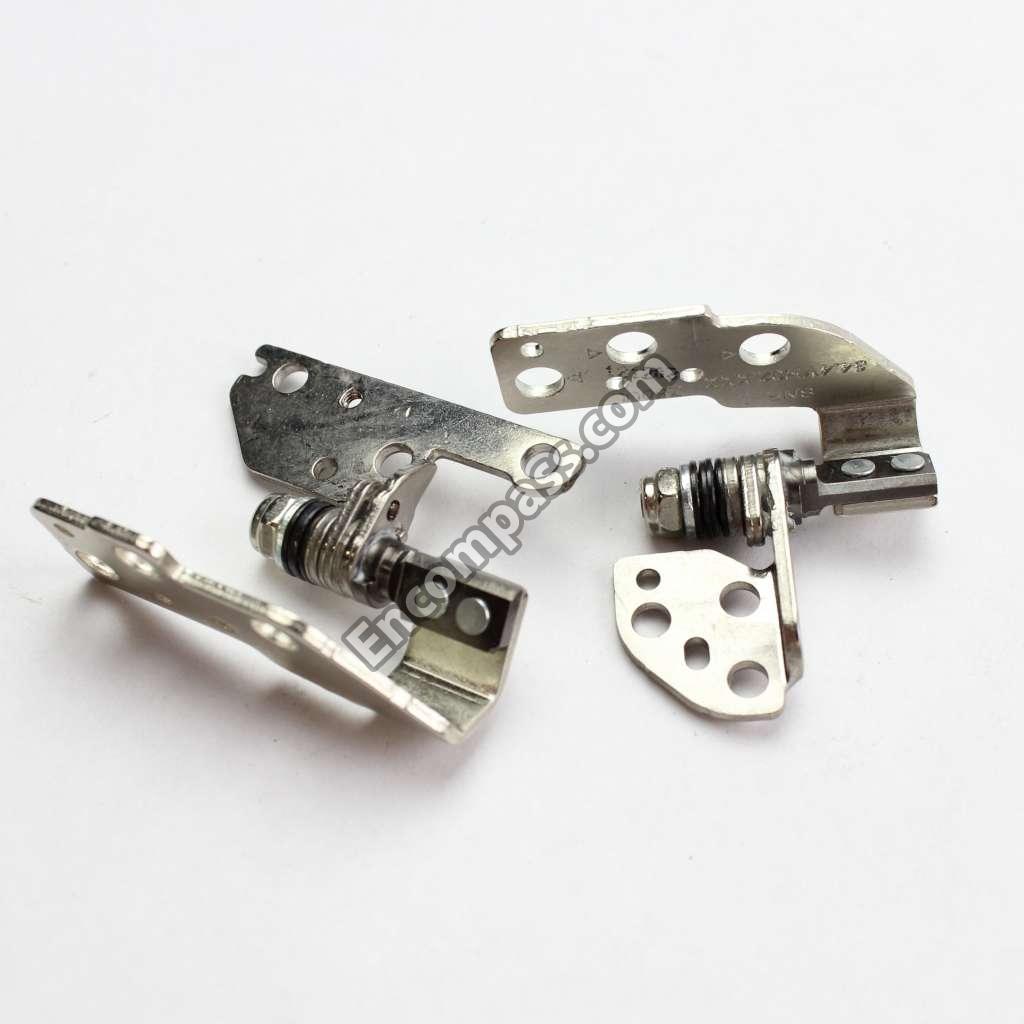

ASSY HINGE LH Z50UL |
|
|
ASSY LCD PANEL 60 Z50UL |
|
|
ASSY SPEAKER YG Z50UL |
|
|
ASSY TOUCHPAD |
|
|

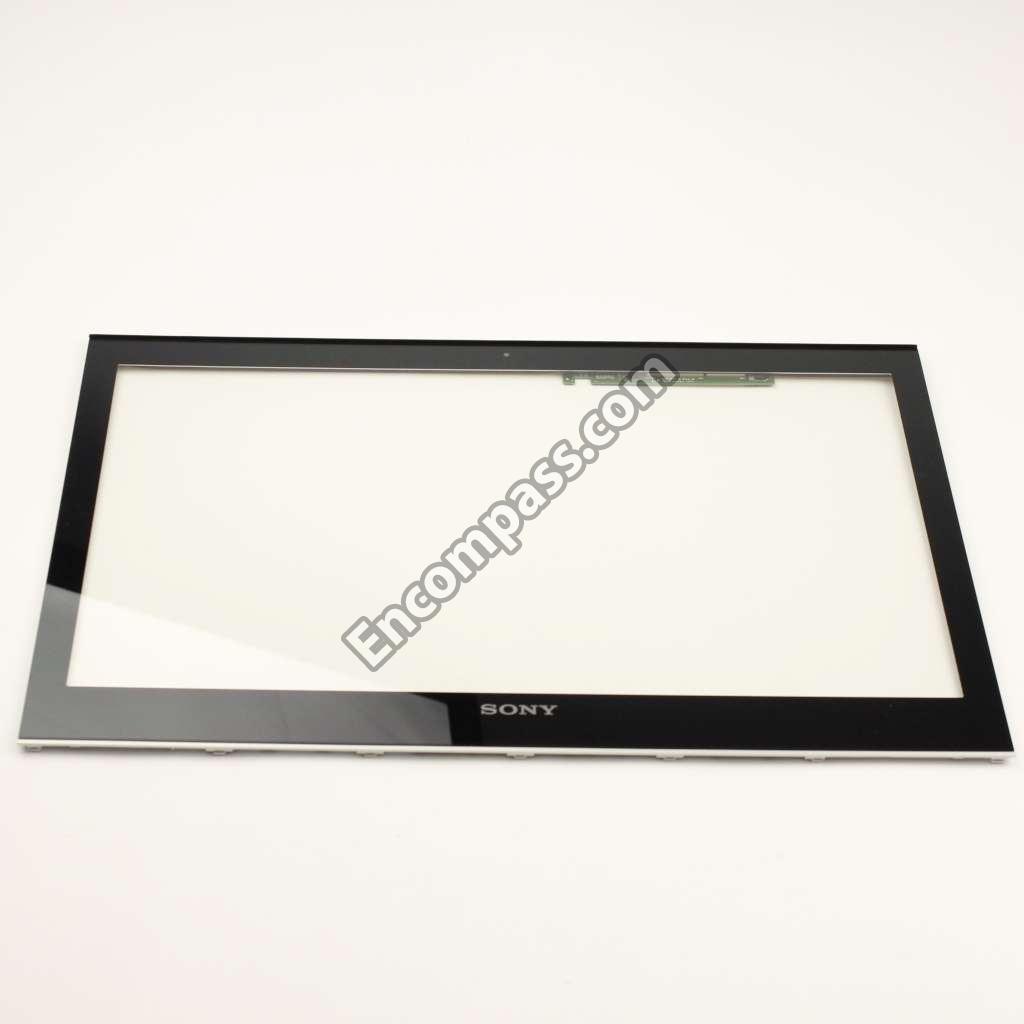

ASSY TPK KIT(B)(S) |
|
|

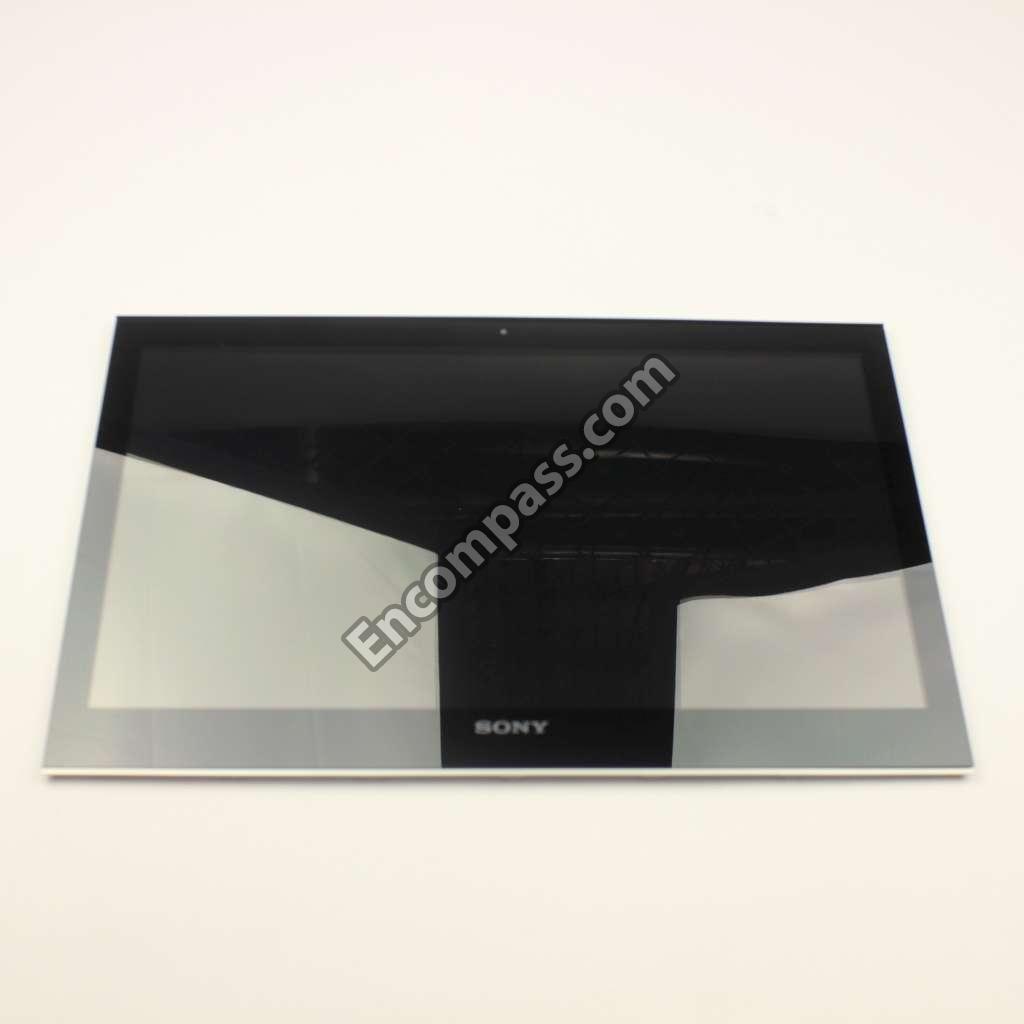

ASSY TPK+LCD PANEL(B)(S) |
|
|

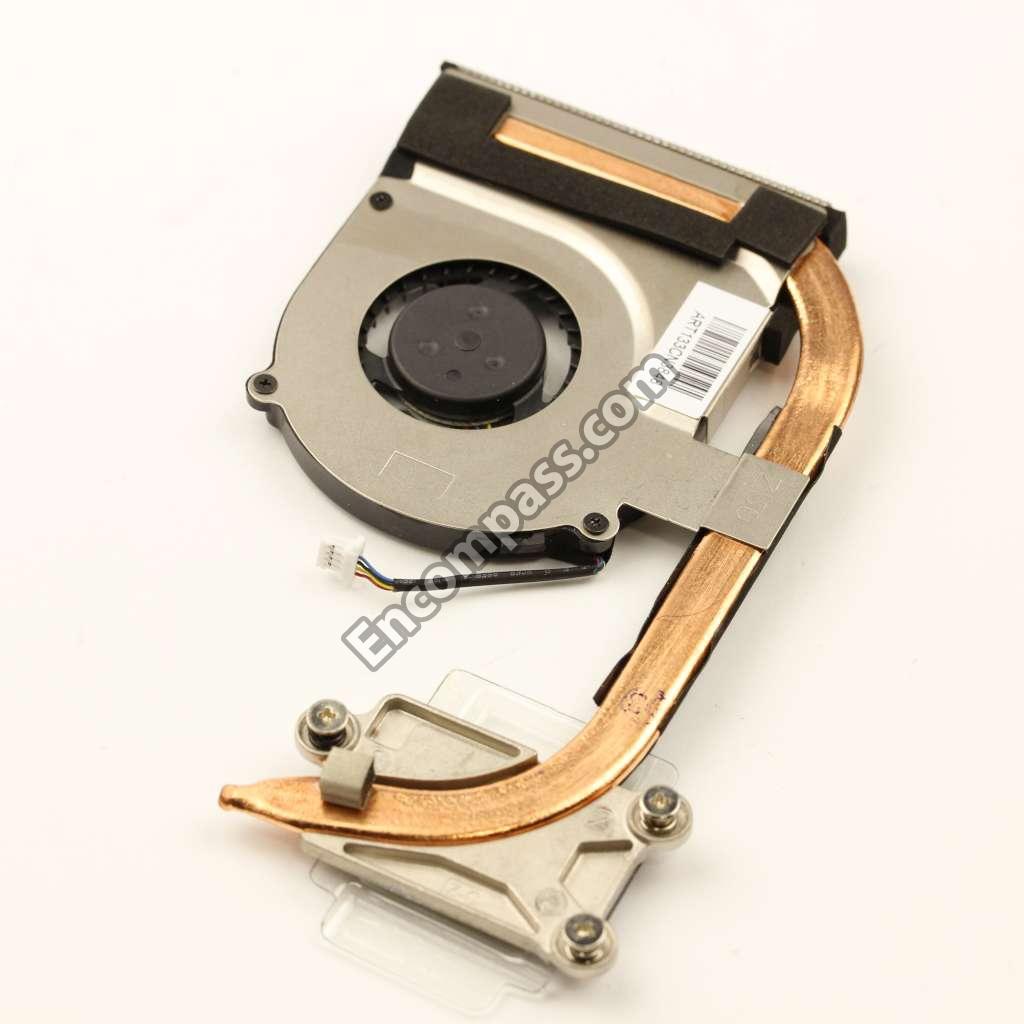

ASSY Z50UL UMA TH AURAS+DELTA |
|
|
ASSY Z50UL UMA THM CCI+ADDA |
|
|
BTY RTC ML1220_25MM PANA |
|
|
C.A. CARD BD FFC |
|
|
C.A. CARD BD HB FFC |
|
|

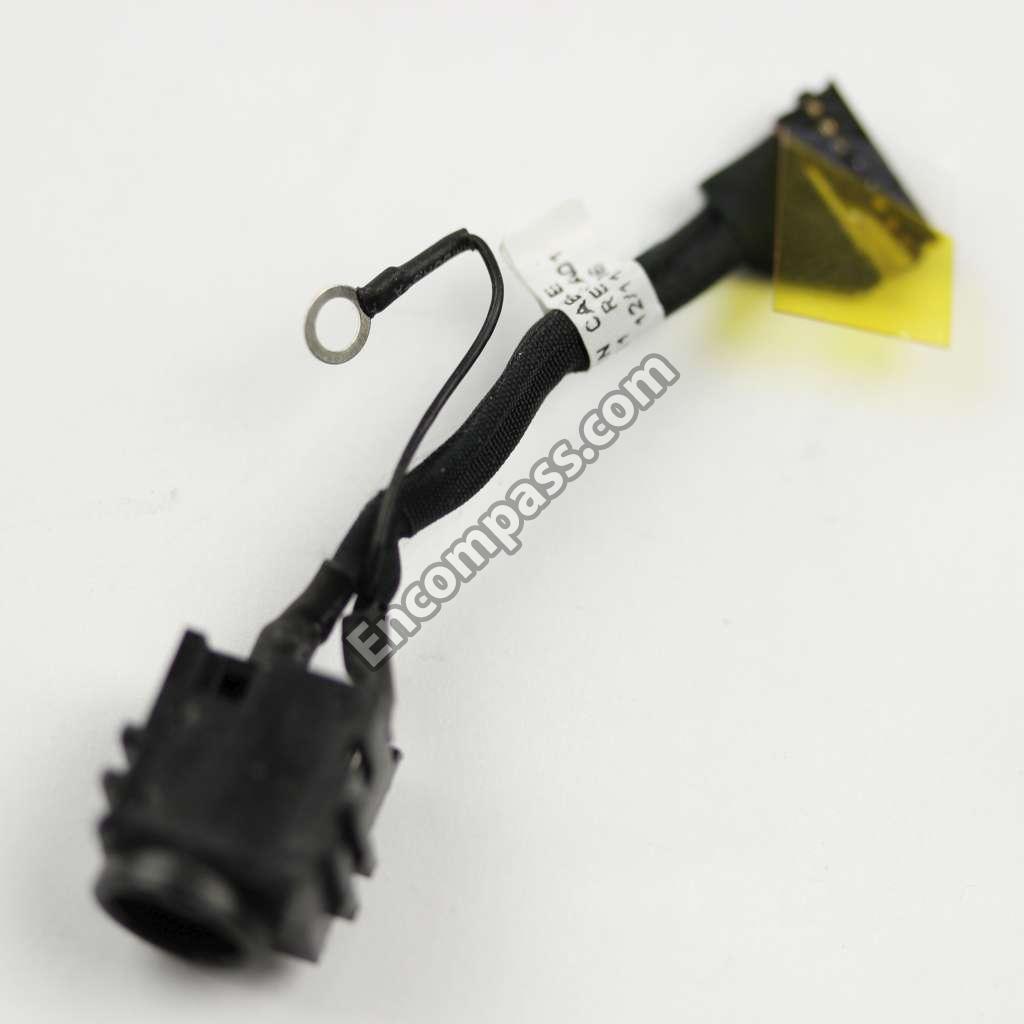

C.A. DC_IN CABLE Z50UL |
|
|

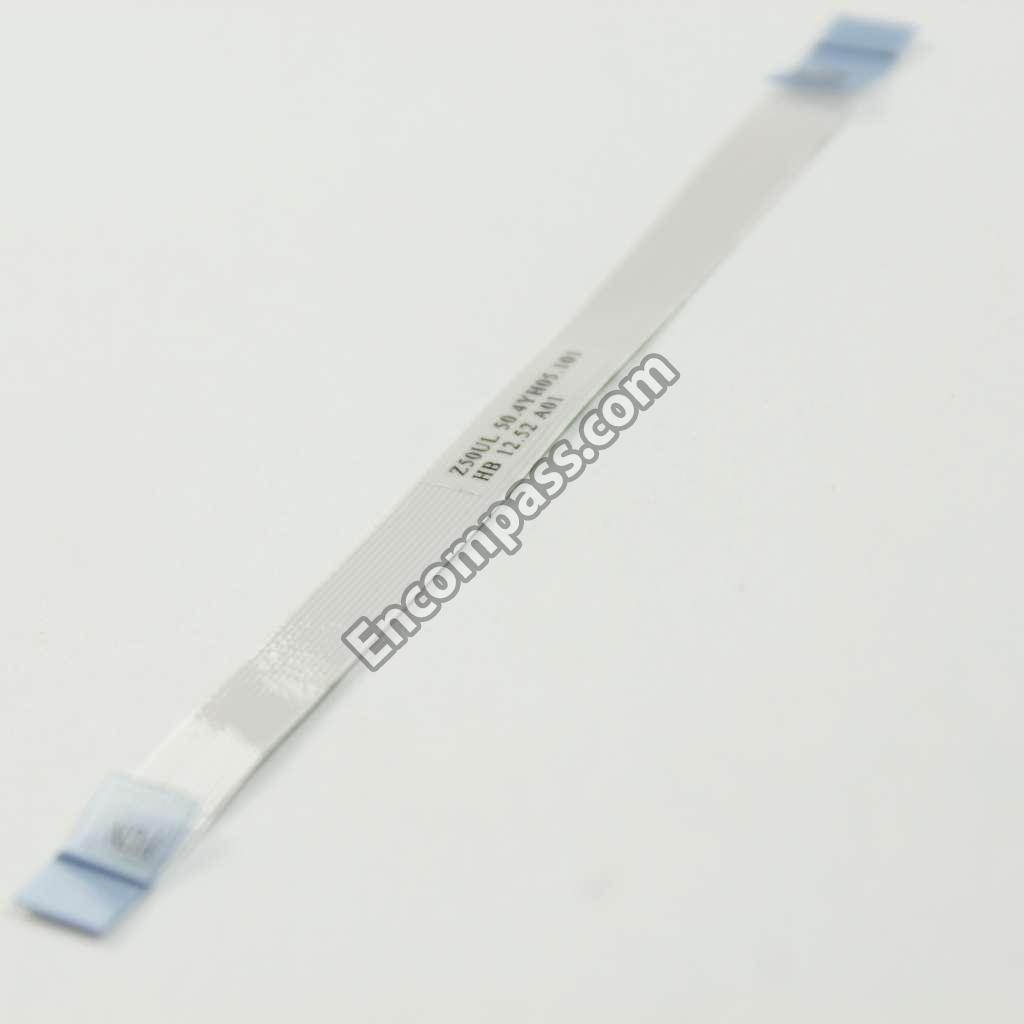

C.A. FUNC BD FFC HB Z50UL |
|
|
C.A. LED BD FFC HB Z50UL |
|
|
C.A. LED BD FFC Z50UL |
|
|
C.A. LVDS Z50UL ICT |
|
|
C.A. TP FFC HB Z50UL |
|
|
C.A. TP FFC Z50UL |
|
|
C.A. USB BD FFC HB Z50UL |
|
|
C.A. USB BD FFC Z50UL |
|
|
CAMERA 1.3M_HD CHICONY |
|
|
CARD WLAN/BT COMBO(W)(S) |
|
|
COMPL IFX631_MEMORY_CARD_DMIC |
|
|
COMPL IFX632_USB |
|
|
COMPL LEX112_LED |
|
|
COMPL MBX280_HM76_CI7_3537U |
|
|
COMPL SWX406_POWER_BUTTON |
|
|
IC HMT351S6EFR8A-PBN0(B)(S) |
|
|
IC THNSNS256GMCP-TAC(B)(S) |
|
|
LABEL, (3 X 2) UPC |
|
|
LCD UNIT(B)(S) |
|
|
ODD (PAN/BCXL/9.5/162)(B)(S) |
|
|
RDVD RECOVERY DISC MODEL SVT1511ACXS |
|
|
SCREW (M2XL3) |
|
|
SCREW (M2XL4) |
|
|
SCREW M1.4*1.2(OD3.8) |
|
|
SCREW M1.7*L1.7, #0, D3.5 |
|
|
SCREW M2XL4 (SPECIAL) |
|
|
SCREW(M2XL6) |
|
|
SCRW IMS M2X2 NI NYLOK |
|
|
SCRW M1.6 L2.0 OD3.5 SANDRA |
|
|
SCRW M2XL2 T0.35 D7 GL |
|
|
SCRW M3L6,#1BZN/NYLOK |
|
|
THERMAL GREASE Z1(S) |
