Sony

Model Number

SVZ13114GXX

Description

Vaio 13.1 Z Series Laptop

Interactive Exploded View

Parts List

Part Number Description
1-458-529-12 1-458-529-12 "CAMERA MODULE, HD (11P2BF141)"
A-1886-435-A A-1886-435-A "PALM(BK,PB,GPB/USU/BL/KBU) (S)"
A-1886-419-A A-1886-419-A "TOUCHPAD (BK,PB,GPB/FP) (S)"
1-489-079-31 1-489-079-31 AC ADAPTOR (VGP-AC19V49)
1-754-758-12 1-754-758-12 ANTENNA WIMAX/WLAN MAIN
1-754-759-22 1-754-759-22 ANTENNAWIMAX/WLAN SUB NO CORE
X-2580-948-2 X-2580-948-2 ASSY BUTTON POWER BK [BLACK/PREMIUM BLAC
X-2580-932-7 X-2580-932-7 ASSY HOUSING BEZEL BK
X-2581-398-2 X-2581-398-2 ASSY LENS LED FRONT
4-276-330-01 4-276-330-01 BACK PLATE
4-166-880-01 4-166-880-01 BACKED AL FOIL 0.09MM
3-701-625-01 3-701-625-01 BAG, POLYETHYLENE 300 MM X 200 MM (FOR M
4-276-315-01 4-276-315-01 BKT KENSINGTON
A-1887-279-A A-1887-279-A COMPL FPC-282 (S)
A-1887-280-A A-1887-280-A COMPL FPC-283 (S)
A-1887-281-A A-1887-281-A COMPL FPC-284 (S)
A-1887-278-A A-1887-278-A COMPL FPC-296 (S)
A-1887-264-A A-1887-264-A COMPL IFX-613 (IBT/N-SIM) (S)
A-1887-265-A A-1887-265-A COMPL IFX-615 (FP/BL_KB) (S)
A-1887-259-A A-1887-259-A COMPL IFX612_N-WAN/HP (S)
A-1887-241-A A-1887-241-A COMPL MBX257(CI7/3612QM)TPM(S)
A-1887-277-A A-1887-277-A COMPL MM-19 (4GB/1600) (S)
A-1887-247-A A-1887-247-A COMPLETE LEX-105 (S)
A-1835-654-A A-1835-654-A COMPLETE PWB FPC-225 (S)
A-1835-656-A A-1835-656-A COMPLETE PWB FPC-232 (S)
A-1887-248-A A-1887-248-A COMPLETE SWX-386 (S)
1-842-940-31 1-842-940-31 CONNECTORRJ-45 [BLACK/PREMIUM BLACK/BLUE
4-276-318-01 4-276-318-01 COVER 2ND BATT [BLACK/PREMIUM BLACK/BLUE
4-276-308-02 4-276-308-02 COVER DISPLAY
4-276-317-21 4-276-317-21 COVER SIM [PREMIUM BLACK]
4-279-297-01 4-279-297-01 CUSHION 2ND BATT
4-291-198-01 4-291-198-01 CUSHION 9X9
4-414-271-01 4-414-271-01 CUSHION BEZEL LOW
4-290-873-02 4-290-873-02 CUSHION BOARD A
4-290-874-02 4-290-874-02 CUSHION BOARD B
4-276-327-02 4-276-327-02 CUSHION CIO
4-290-872-01 4-290-872-01 CUSHION HP
4-414-870-01 4-414-870-01 CUSHION KBD
4-276-307-01 4-276-307-01 CUSHION LCD CAMERA
4-276-325-02 4-276-325-02 CUSHION MEM
4-290-875-02 4-290-875-02 CUSHION MEM 2
4-298-375-01 4-298-375-01 CUSHION MEMBRANE
4-276-403-01 4-276-403-01 ESCUTCHEON FRONT
1-839-132-11 1-839-132-11 FFC (IFX577-LEX97)
1-839-131-11 1-839-131-11 FFC (MBX236-SWX354)
4-276-314-01 4-276-314-01 FOOT BOTTOM
4-276-309-11 4-276-309-11 FOOT DISPLAY
4-291-094-02 4-291-094-02 GASKET 5X5
4-276-324-02 4-276-324-02 GASKET MBX
4-276-393-01 4-276-393-01 GASKET T2
4-276-397-01 4-276-397-01 GND SSD SAM A
4-276-398-01 4-276-398-01 GND SSD SAM B
1-967-877-12 1-967-877-12 HARNESS (DC JACK)
1-967-872-12 1-967-872-12 HARNESS (IRX-5590 LCD&CAMERA)
8-912-834-90 8-912-834-90 HEADPHONE MDRNC033L2BMSET NC
4-147-017-02 4-147-017-02 HEAT CAUTION LABEL(PA)
4-276-302-21 4-276-302-21 HINGE COVER L [PREMIUM BLACK]
4-276-303-21 4-276-303-21 HINGE COVER R [PREMIUM BLACK]

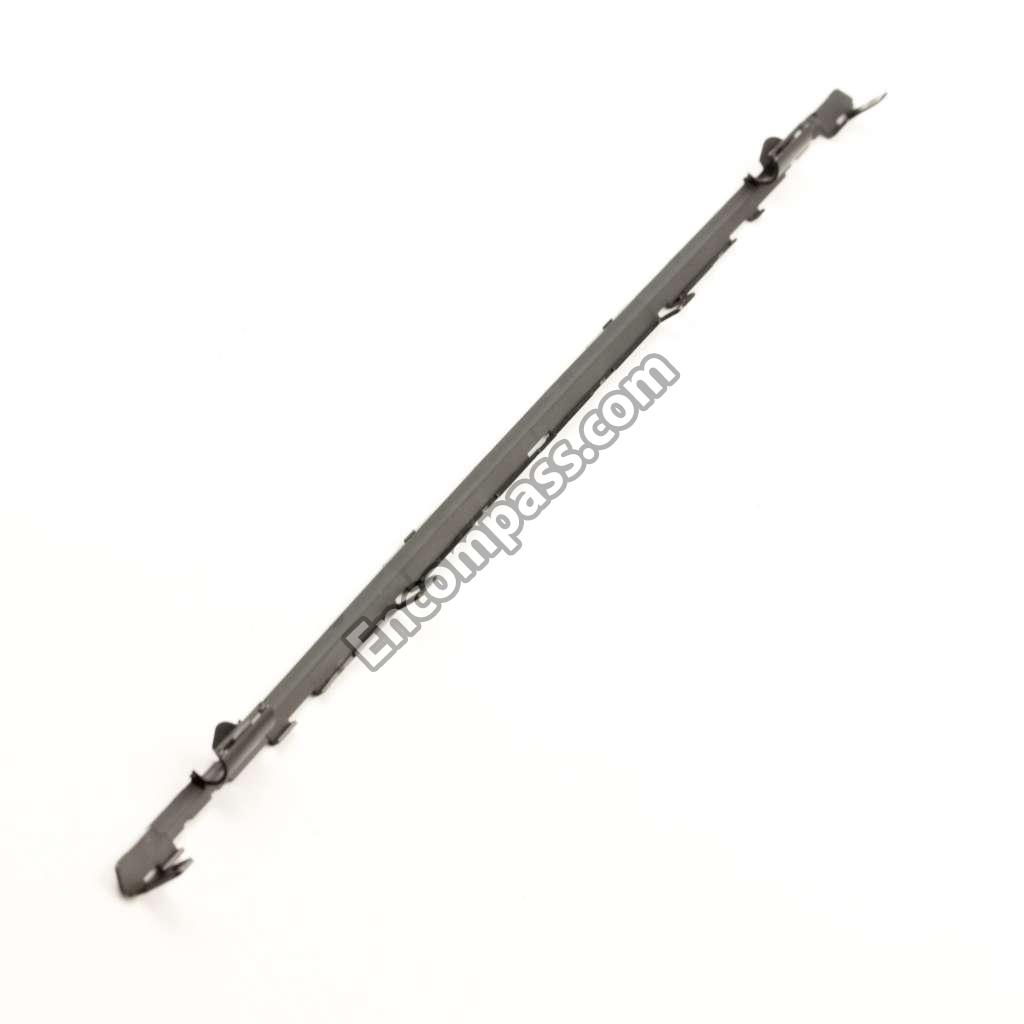

4-276-301-02 4-276-301-02 HINGE COVER TOP [BLACK/PREMIUM BLACK/BLU
4-276-296-02 4-276-296-02 HINGE L
4-276-297-02 4-276-297-02 HINGE R
4-276-365-01 4-276-365-01 HOLDER FP [BLACK/PREMIUM BLACK]
4-276-384-01 4-276-384-01 HOLDER SP L
4-276-385-01 4-276-385-01 HOLDER SP R
4-276-396-02 4-276-396-02 HOLDER SSD SAM
A-1886-417-A A-1886-417-A HOUSING DISPLAY (PB)(CR) (S)
6-718-726-01 6-718-726-01 IC MZRPC256HADR-000-05S
1-856-233-13 1-856-233-13 JUMPER CABLE WITH OE MODULE
Y-8307-001-8 Y-8307-001-8 LABEL, (3 X 2) UPC
A-1846-020-A A-1846-020-A LCD (B131HW02V0)-41(S)
4-276-310-01 4-276-310-01 LENS CAMERA
4-276-395-02 4-276-395-02 LENS MSSD
4-276-379-01 4-276-379-01 LENS PHOTO DIODE
1-853-088-11 1-853-088-11 MN-LI RECHARGEABLE BATTERY
4-276-298-01 4-276-298-01 PLATE CAMERA
4-276-299-02 4-276-299-02 PLATE GND LCD L
4-276-300-01 4-276-300-01 PLATE GND LCD R
4-276-364-02 4-276-364-02 PLATE GND TP
4-276-362-01 4-276-362-01 PLATE PALMREST TP
4-276-386-01 4-276-386-01 PLATE SP
1-884-606-12 1-884-606-12 PWB FPC-224 FLEXIBLE PRINT
9-892-045-56 9-892-045-56 RDVD ASSY SVZ13110GX SERIES
4-282-610-01 4-282-610-01 SCREW M2 SPECIAL HEAD
4-165-776-11 4-165-776-11 SCREW STEP 17
4-672-834-01 4-672-834-01 SCREW, +B EG GRIP
4-645-214-92 4-645-214-92 SCREW, GRIP M2
A-1835-873-A A-1835-873-A SENSOR BUTTON (S)
4-276-320-11 4-276-320-11 SHAFT COIN
4-276-320-01 4-276-320-01 SHAFT COIN
4-289-430-01 4-289-430-01 SHEET 140X9
4-291-322-01 4-291-322-01 SHEET 7X14
4-293-280-01 4-293-280-01 SHEET COVER 1
4-293-281-01 4-293-281-01 SHEET COVER 2
4-276-331-01 4-276-331-01 SHEET CPU BTM
4-165-823-01 4-165-823-01 SHEET FPC NC
4-276-311-01 4-276-311-01 SHEET HINGE
4-276-323-02 4-276-323-02 SHEET KBD
4-276-326-02 4-276-326-02 SHEET MEM
4-276-342-01 4-276-342-01 SHEET MESH BTM
4-276-341-01 4-276-341-01 SHEET MESH FAN
4-276-391-01 4-276-391-01 SHEET MSSD BOARD
2-680-593-01 2-680-593-01 SHEET PASTE CABLE
4-276-392-01 4-276-392-01 SHEET PLATE TP
4-293-467-01 4-293-467-01 SHEET RJ45
4-170-528-01 4-170-528-01 SHEET THERMAL MCP
4-281-358-01 4-281-358-01 SHEET WAN
4-293-283-01 4-293-283-01 SPACER COVER
4-276-344-02 4-276-344-02 SPACER FAN
2-660-915-03 2-660-915-03 SPACER PCC
1-858-560-21 1-858-560-21 SPEAKER
4-658-789-02 4-658-789-02 TAPE (HARNESS)
4-283-713-01 4-283-713-01 TAPE CAMERA FPC
4-291-318-01 4-291-318-01 TAPE COVER SENSOR
4-293-282-01 4-293-282-01 TAPE COVER SIDE
4-291-320-01 4-291-320-01 TAPE FPC223
4-276-390-01 4-276-390-01 TAPE SENSOR
4-279-000-01 4-279-000-01 THERMAL SHEET CAP
4-279-298-01 4-279-298-01 THERMAL SHEET FET2
4-276-338-01 4-276-338-01 THERMAL SHEET PCH
4-278-999-01 4-278-999-01 THERMAL SHEET SSD
4-276-339-01 4-276-339-01 THERMAL SHEET VR
4-276-389-02 4-276-389-02 UNDERCOVER TP
A-2060-457-A A-2060-457-A VGP-BPS27/B (U) (S)
A-1887-704-A A-1887-704-A VGP-BPS27/Q (U) (S)
A-1868-585-A A-1868-585-A VGP-BPS27/X (U) (S)
