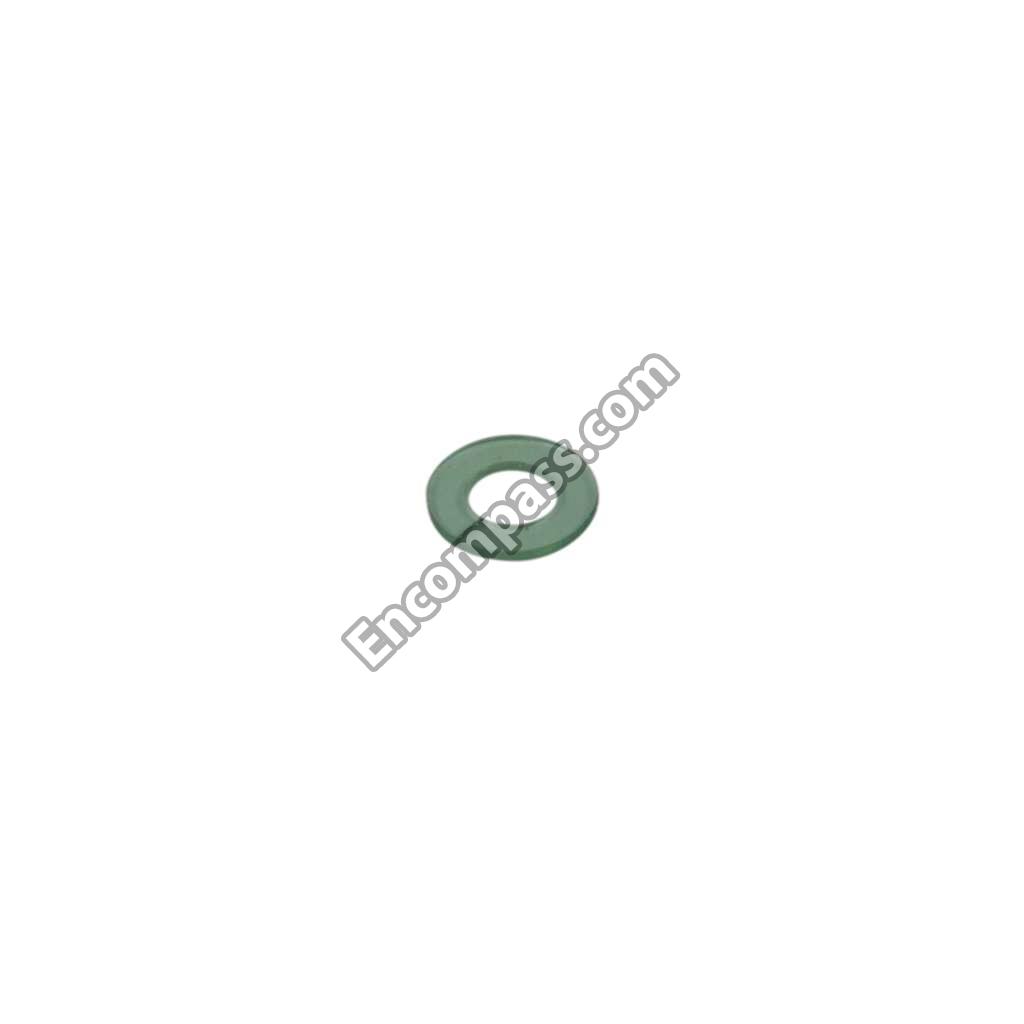

Model Image
Manufacturer

Sony

Model Number

SY

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
3-680-155-01 3-680-155-01 CASE (A) MAIN,SHIELD,RP
X-3675-404-0 X-3675-404-0 CHASSIS ASSY,FL
3-680-016-00 3-680-016-00 CHASSIS,FRAME
3-680-160-00 3-680-160-00 CHASSIS,FRAME
1-232-433-00 1-232-433-00 COMPOSITION CIRCUIT BLOCK
1-232-434-00 1-232-434-00 COMPOSITION CIRCUIT BLOCK
1-232-436-00 1-232-436-00 COMPOSITION CIRCUIT BLOCK
1-232-438-00 1-232-438-00 COMPOSITION CIRCUIT BLOCK
1-232-440-00 1-232-440-00 COMPOSITION CIRCUIT BLOCK
1-232-441-00 1-232-441-00 COMPOSITION CIRCUIT BLOCK
1-232-442-00 1-232-442-00 COMPOSITION CIRCUIT BLOCK
1-232-514-00 1-232-514-00 COMPOSITION CIRCUIT BLOCK
3-675-470-00 3-675-470-00 COVER,TERMINAL,PINCH PL
8-752-006-12 8-752-006-12 CX20061,IC
8-719-101-80 8-719-101-80 DIODE
8-719-110-31 8-719-110-31 DIODE
8-719-109-93 8-719-109-93 DIODE
8-719-907-43 8-719-907-43 DIODE LD-701GG
1-232-418-00 1-232-418-00 ENCAPSULATED COMPONENT
1-232-419-00 1-232-419-00 ENCAPSULATED COMPONENT
1-232-422-00 1-232-422-00 ENCAPSULATED COMPONENT
1-232-423-00 1-232-423-00 ENCAPSULATED COMPONENT
1-232-424-00 1-232-424-00 ENCAPSULATED COMPONENT
1-232-425-00 1-232-425-00 ENCAPSULATED COMPONENT
1-232-426-00 1-232-426-00 ENCAPSULATED COMPONENT
1-232-431-00 1-232-431-00 ENCAPSULATED COMPONENT
1-232-432-00 1-232-432-00 ENCAPSULATED COMPONENT
1-235-256-00 1-235-256-00 EQ BP FILTER 1.53M
1-235-257-00 1-235-257-00 EQ BP FILTER 1.83M
8-825-687-30 8-825-687-30 HEAD EF182-21
3-675-425-00 3-675-425-00 HEAT SINK
3-680-165-00 3-680-165-00 HEAT SINK
3-675-410-00 3-675-410-00 HEAT SINK,DRV
1-533-166-00 1-533-166-00 HOLDER,FUSE
3-675-445-00 3-675-445-00 HOLDER,LED
3-675-437-00 3-675-437-00 HOLDER,LED,3 GANG
8-759-400-04 8-759-400-04 I.C.
8-759-600-24 8-759-600-24 IC
8-759-600-59 8-759-600-59 IC
1-408-611-31 1-408-611-31 INDUCTOR MICRO 47UH
1-507-588-91 1-507-588-91 JACK
1-507-588-81 1-507-588-81 JACK,PIN (W/SW) RED
3-680-147-01 3-680-147-01 LABEL,MODEL NUMBER
3-680-132-00 3-680-132-00 LABEL,MPX OUT
3-680-178-00 3-680-178-00 LID,BOTTOM,SHIELD CASE,RP
3-680-156-01 3-680-156-01 LID,SHIELD CASE (A),RP
8-759-912-77 8-759-912-77 LM324, IC
1-408-607-31 1-408-607-31 MICRO N
A-7850-369-A A-7850-369-A MSB ASSY APX-069
X-3326-120-1 X-3326-120-1 PLATE ASSY, ORNAMENTAL (R
3-325-393-01 3-325-393-01 PULLEY, MIDWAY
T-9480-980-2 T-9480-980-2 PWA ARB, PCM-3102
3-711-542-01 3-711-542-01 REAR DOOR
1-223-239-11 1-223-239-11 RES,VAR,CARBON 10K
1-216-201-00 1-216-201-00 RESISTOR,CHIP 1.3K
3-325-386-01 3-325-386-01 RING (A), C
3-321-483-01 3-321-483-01 RING, RETAINING
3-321-483-11 3-321-483-11 RING, RETAINING
3-326-145-11 3-326-145-11 SCREW 0 P2 M1.7
7-621-775-20 7-621-775-20 SCREW 2.6X5
3-326-159-01 3-326-159-01 SHEET (B), SHIELD
3-326-158-01 3-326-158-01 SHEET, SHIELD
X-3324-923-1 X-3324-923-1 SLIDER ASSY,SHUT-OFF
3-324-996-01 3-324-996-01 SPRING
3-325-341-01 3-325-341-01 SPRING
3-325-345-01 3-325-345-01 SPRING, TENSION
3-325-347-01 3-325-347-01 SPRING, TENSION
3-325-351-01 3-325-351-01 SPRING, TENSION
3-326-134-01 3-326-134-01 SPRING, TORSION
3-326-120-11 3-326-120-11 STOPPER BUCKLE
1-570-175-11 1-570-175-11 SWITCH,LEAF
1-570-261-11 1-570-261-11 SWITCH,SLIDE
1-413-183-11 1-413-183-11 SWITCHING REGULATOR (UR-0
8-759-746-25 8-759-746-25 TBP24S10N, IC
8-759-750-20 8-759-750-20 TBP28L22N, IC
1-807-193-11 1-807-193-11 THERMISTOR
3-326-161-01 3-326-161-01 WASHER
3-327-708-01 3-327-708-01 WASHER
3-327-708-11 3-327-708-11 WASHER
3-701-437-21 3-701-437-21 WASHER
3-316-308-00 3-316-308-00 WASHER
3-325-306-01 3-325-306-01 WASHER (DIA 1.6)
3-538-062-00 3-538-062-00 WASHER, POLYETHYLENE
