Manufacturer
Sony
Model Number
VPCEE41FX
Description
Sony Vaio Vpcee41fx
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
AC ADAPTER (AC19V48)(Q)(S) |
|
|
AL FOIL LCD NE7 |
|
|
AMD VISION STICKER |
|
|
ANTENNA WLAN ASSY |
|
|
ATI RADEON STICKER |
|
|
BAT LI3V225MAH (CR-2032L/DBN |
|
|
BATT VGP-BPS22(U)(Q)(S) |
|
|
BATTERY LI 3V 210MAH (CR2032) |
|
|
BATTERY LI3V220MAH (CR2032) |
|
|
BRKT LCD L LED NE7 |
|
|
BRKT LCD R LED NE7 |
|
|
CABLE ASSY NE7 DC(2P/4P/REV1A) |
|
|
CABLE ASSY NE7 LCD(REV1A)_LED |
|
|
CABLE ASSY NE7 LCD(REV3A)_LED |
|
|
CABLE FFC NE7 MB-BTNB |
|
|
CABLE FFC NE7 MB-TP |
|
|
CABLE FFC NE7 MB-USB |
|
|
CAMERA MODULE CN031A-S33B-HN01 |
|
|
CAMERA MODULE CNFA01421004170L |
|
|
CHOCK TIM XR-HL 10*10*1.0 |
|
|
CONDUCT TAPE SUPPORT R USB |
|
|
CONDUCTIVITY TAPE TP NE7 |
|
|
CONDUCTIVITY TAPE TP R NE7 |
|
|
CORD SET POWER |
|
|
COSMETIC SCREW (M2) |
|
|
COSMETIC SCREW (M2) |
|
|
ENERGY STAR LABEL ( C ) (BLACK) |
|
|
GASKET SUPPORT PALMREST R |
|
|
HDD (500GB MK5055GSX)(Q)(S) |
|
|
HDD (500GB MK5065GSX)(Q)(S) |
|
|
HEAT CAUTION LABEL (U-EN) |
|
|
HINGE L LED JAR NE7 |
|
|
HINGE L LED SNR NE7 |
|
|
HINGE L LED SZS NE7 |
|
|
HINGE R LED JAR NE7 |
|
|
HINGE R LED SNR NE7 |
|
|
HINGE R LED SZS NE7 |
|
|
IC AD73I1B1672EU(Q)(S) |
|
|
IC AMP360SGR22GM(Q)(S) |
|
|
IC SNY1333S9-2G-ELFE(Q)(S) |
|
|
INSULATOR KB NE7 |
|
|
KAPTON BLUETOOTH RJ6 |
|
|
KAPTON M/B NE7 |
|
|

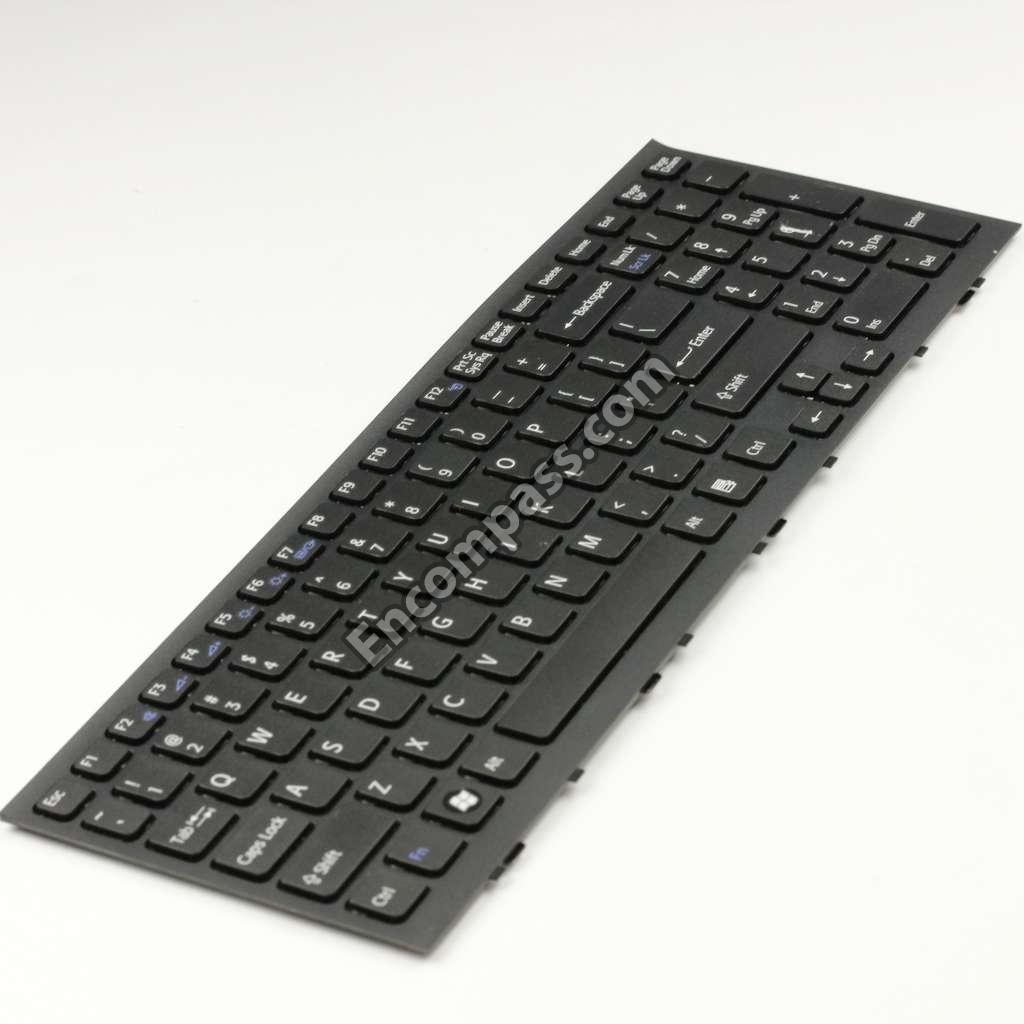

KEY BOARD UNIT US B B |
|
|
KEY BOARD UNIT US B B |
|
|
LABEL ID 5360 UXFE-T |
|
|
LAN MODULE WIRELESS(Q)(S) |
|
|
LCD UNIT(Q)(S) |
|
|
LOCK 20010-I(BNI_NYLOK) |
|
|
LOCK 2680 RJ5 |
|
|
MS 7 LABEL (C) |
|
|
MYLAR THERMAL OUTLET NE8 |
|
|
NE7 BUTTON/B ASSY |
|
|
NE7 HDD COVER ASSY |
|
|
NE7 HOUSING LCD ASSY(LED)BROWN |
|
|
NE7 HOUSING P-ASSY(BT-)BROWN_3 |
|
|
NE7 MB ASSY W/O CPU(AMD UMA) |
|
|
NE7 MEMORY COVER ASSY |
|
|
NE7 THERMAL MODULE ASSY UMA CM |
|
|
NE7 USB/B ASSY |
|
|
ODD (SOP/SMQL/127/7710)(Q)(S) |
|
|
ODD (TST/SMQL/127/633C)(Q)(S) |
|
|
ODD(HDS/SMQL/127/GT30)(Q)(S) |
|
|
ODD(SOP/SMQL/127/7700) (Q)(S) |
|
|
PORON BATTERY NE7 |
|
|
PORON FRONT LENS NE7 |
|
|
PORON FRONT LENS UPPER NE7 |
|
|
PORON HDD BRKT NE7 |
|
|
PORON SPEAKER NE7 |
|
|
QCM 03K CAMERA BD & LENS ASSY |
|
|
RAM (2G) DDR3 M471B5673FH0-CF8 NEO B/S |
|
|
RAM (2GB) IC NT2GC64B8HC0NS-BE(Q)(S) |
|
|
RAM(2GB)DDR3 IC EBJ21UE8BFU0-DJ-F(Q)(S) |
|
|
RAM(2GB)DDR3 IC M471B5673FH0-CH9(Q)(S) |
|
|
RAM(2GB)DDR3 IC NT2GC64B88B0NS-CG(Q)(S) |
|
|
RDVD ASSY VPCE_40FX SERIES - PMB |
|
|
RUBBER BEZEL CAM NE7 |
|
|
RUBBER BEZEL HINGE NE7 BROWN |
|
|
RUBBER BEZEL SCREW NE7 BROWN |
|
|
RUBBER BEZEL SIDE NE7 |
|
|
RUBBER FOOT BATT NE7 |
|
|
RUBBER FOOT FRONT NE7 |
|
|
SCREW (M2), SPECIAL HEAD |
|
|
SCREW M2X6-I(NI) ANTI-LOOSE |
|
|
SPEAKER MODULE ASSY W/ L/R VAN |
|
|
SPONGE PALMREST NE8 |
|
|
THERMAL GREASE X-23-7762-2.5G |
|
|
VGA TIM GR-HM 12*12*0.8 |
