Model Image
Manufacturer

Sony

Model Number

VPLFE110U

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
X-4036-258-2 X-4036-258-2 BASE ASSY
4-069-085-01 4-069-085-01 BRACKET (C), FRONT
4-069-086-01 4-069-086-01 BRACKET (D), FRONT

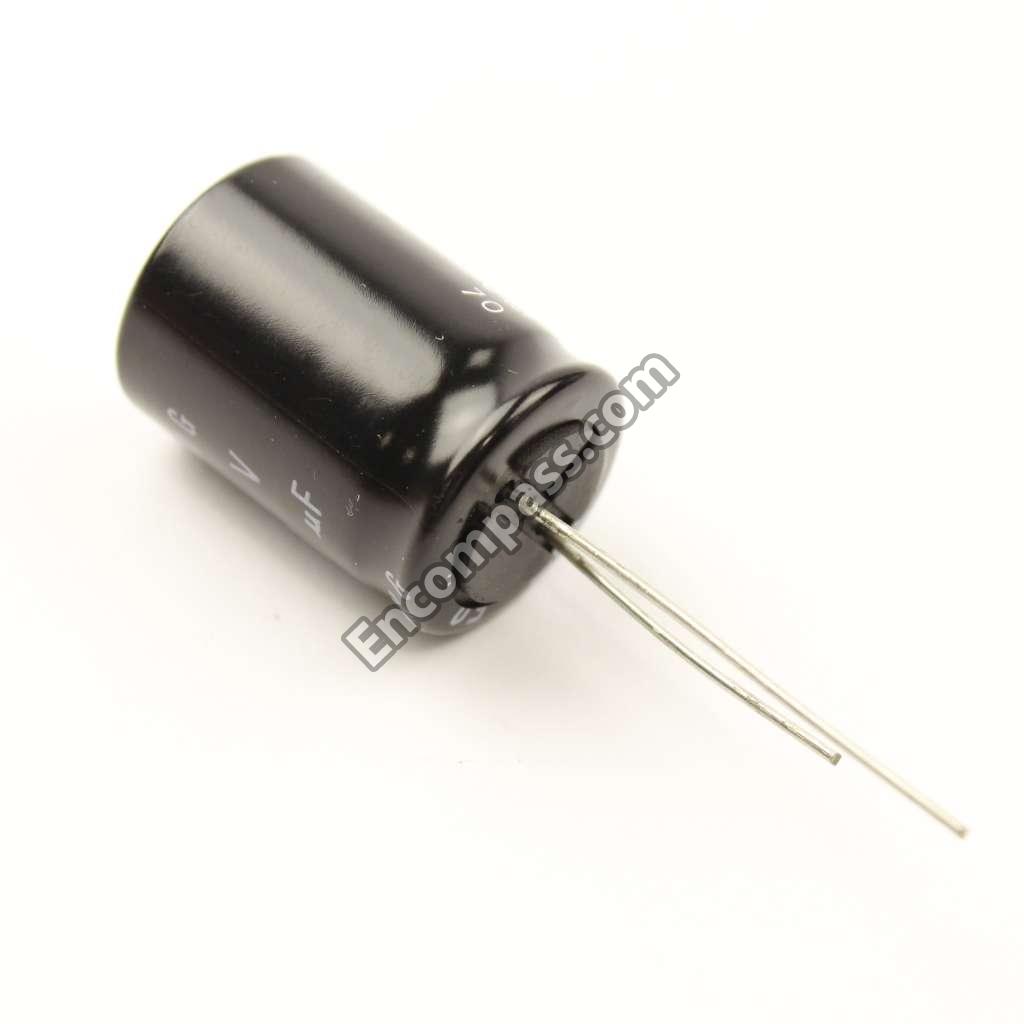

1-128-550-11 1-128-550-11 CAPACITOR, ELECT 2200MF/50V
4-080-552-01 4-080-552-01 CARD, DUMMY
4-080-680-01 4-080-680-01 CD-ROM (MANUAL INSTRUCTION )
A-1501-816-A A-1501-816-A CF CARD ASSY ( FE110J)
1-409-523-22 1-409-523-22 COIL, CHOKE 168UH
1-409-523-21 1-409-523-21 COIL, CHOKE 168UH
X-4036-250-5 X-4036-250-5 COVER ASSY, G
4-068-144-01 4-068-144-01 COVER, FILTER
4-081-848-01 4-081-848-01 CUSHION (BM)
8-719-061-49 8-719-061-49 DIODE FCH20A10
8-719-050-21 8-719-050-21 DIODE FCQ20A04
8-719-045-60 8-719-045-60 DIODE SEC1401C
1-763-256-21 1-763-256-21 FAN, DC
1-469-112-11 1-469-112-11 FERRITE, EMI (SMD)
4-071-408-01 4-071-408-01 FILTER (LCD), FAN
1-235-096-00 1-235-096-00 FILTER, LOW PASS
4-068-149-02 4-068-149-02 HANDLE (L)
4-068-058-01 4-068-058-01 HOLDER (B), HOOD
4-068-086-01 4-068-086-01 HOLDER, HOOD
8-759-639-17 8-759-639-17 IC 74LVT244MTCX
8-759-599-23 8-759-599-23 IC ADG736BRM-REEL
8-752-068-45 8-752-068-45 IC CXA1855Q
8-759-563-32 8-759-563-32 IC CXG8007TQ
8-759-543-74 8-759-543-74 IC CY7C1021-20ZC
8-759-485-61 8-759-485-61 IC FA5331P
8-759-639-16 8-759-639-16 IC GMZ3CH2
8-759-571-45 8-759-571-45 IC ISPLSI2032-80LT48-M01V1
8-759-698-55 8-759-698-55 IC ISPLSI2064VE-135LT44-B
8-759-431-38 8-759-431-38 IC MAX4121CSA-TE2
8-759-577-22 8-759-577-22 IC OPA658U/2K5
LMPQ130 LMPQ130 LAMP (4 PACK)
LMPC120 LMPC120 LAMP SINGLE
8-719-976-22 8-719-976-22 LED MU03-2205
9-885-011-59 9-885-011-59 LENS (B), RELAY
9-885-011-64 9-885-011-64 LID, PRISM BLOCK
A-1136-151-A A-1136-151-A MOUNTED C. BOARD, BB
A-1136-152-A A-1136-152-A MOUNTED C. BOARD, BG
A-1131-663-A A-1131-663-A MOUNTED C. BOARD, BM
A-1316-555-A A-1316-555-A MOUNTED C. BOARD, GAM
A-1311-898-A A-1311-898-A MOUNTED C. BOARD, GM
A-1306-597-A A-1306-597-A MOUNTED C. BOARD, M
A-1275-194-A A-1275-194-A MOUNTED C. BOARD, QC
A-1391-093-A A-1391-093-A MOUNTED C. BOARD, XA
A-1316-403-A A-1316-403-A MOUNTED C.BOARD, COMPL
A-1390-961-A A-1390-961-A MOUNTED C.BOARD, N
A-1275-177-A A-1275-177-A MOUNTED C.BOARD, QA COMPL
A-1275-161-A A-1275-161-A MOUNTED C.BOARD, QB COMPL
A-1390-906-A A-1390-906-A MOUNTED C.BOARD, XC
C-VPL1-10_-4 C-VPL1-10_-4 NETWK SOFTWRE,WINDOWS CE
4-080-676-24 4-080-676-24 OPERATING INSTRUCTIONS(FOR NW)
4-080-676-11 4-080-676-11 OPERATING INSTRUCTIONS(FOR NW)
4-080-673-22 4-080-673-22 OPERATING, INSTRUCTIONS
4-080-673-15 4-080-673-15 OPERATING, INSTRUCTIONS
A-1501-851-A A-1501-851-A OPTICAL UNIT SERVICE ASSY
4-081-296-01 4-081-296-01 OUT - POLARIZER (R+FILM)
4-080-459-01 4-080-459-01 PANEL (CE), REAR
4-068-148-03 4-068-148-03 PANEL (L), SIDE
4-080-469-02 4-080-469-02 PANEL (M), REAR
4-068-147-04 4-068-147-04 PANEL (R), SIDE
4-068-154-11 4-068-154-11 PANEL, REAR
1-778-393-11 1-778-393-11 PIN, PC CONNECTOR 96P
4-035-771-01 4-035-771-01 PLATE, BLIND
4-080-464-01 4-080-464-01 PLATE, PLUG
9-929-687-61 9-929-687-61 PM VPLFE110U/VPLFE110M
A-1501-929-A A-1501-929-A PRISM BLOCK ASSY
1-217-418-00 1-217-418-00 RESISTOR, FUSE 0.47 1/2W
4-068-167-01 4-068-167-01 RING (A), LENS
4-068-168-01 4-068-168-01 RING (B), LENS
4-070-718-01 4-070-718-01 RING (STF), LENS
4-080-465-01 4-080-465-01 SHEET (A), DUCT
4-080-460-01 4-080-460-01 SHEET (B), DUCT
4-080-455-01 4-080-455-01 SHEET (C), DUCT
9-929-687-01 9-929-687-01 SM VPLFE110U/VPLFE110M
1-540-212-11 1-540-212-11 SOCKET (ROTARY SWITCH)
1-778-391-11 1-778-391-11 SOCKET, PC CONNECTOR 96P
4-068-138-01 4-068-138-01 SPACER, CONTROL
4-068-799-01 4-068-799-01 SPRING (CG)
1-572-853-11 1-572-853-11 SWITCH, ROTARY
1-570-838-11 1-570-838-11 SWITCH, SLIDE (2-2-2)
8-729-043-15 8-729-043-15 TRANSISTOR 2SK3013F-02
C-VPL1-10_-2 C-VPL1-10_-2 V1.01 FOR MAIN SOFTWARE
A-1092-994-A A-1092-994-A VPLL-2009 SERVICE(LENS)
A-1092-993-A A-1092-993-A VPLL-2014 SERVICE(LENS)
A-1092-990-A A-1092-990-A VPLL-2075 SERVICE(LEMS)
A-1093-001-A A-1093-001-A VPLL-3050 SERVICE (LENS)
A-1092-995-A A-1092-995-A VPLL-Z3020 SERVICE(LENS)
