Model Image
Manufacturer

Sony

Model Number

VPLFX30

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
X-2546-174-3 X-2546-174-3 ADJUSTOR
X-2587-877-1 X-2587-877-1 BASE ASSY
A-1776-037-B A-1776-037-B BOARD, C
4-172-336-21 4-172-336-21 BUTTON (ARROW)
4-172-335-21 4-172-335-21 BUTTON (H)
1-114-734-11 1-114-734-11 CAP, CERAMIC 6800PF X7R 1005
4-186-008-02 4-186-008-02 CAP, PACKING
1-910-400-15 1-910-400-15 CONNECTOR ASSY, 3P
1-910-400-21 1-910-400-21 CONNECTOR ASSY, FASTON
1-910-400-13 1-910-400-13 CONNECTOR ASSY, FUSE
1-910-400-20 1-910-400-20 CONNECTOR ASSY, VH 3P
1-842-221-11 1-842-221-11 CONNECTOR, BNC (RECEPTACLE) 5P
4-172-345-01 4-172-345-01 COVER (BOTTOM), FILTER
4-172-344-01 4-172-344-01 COVER (TOP), FILTER

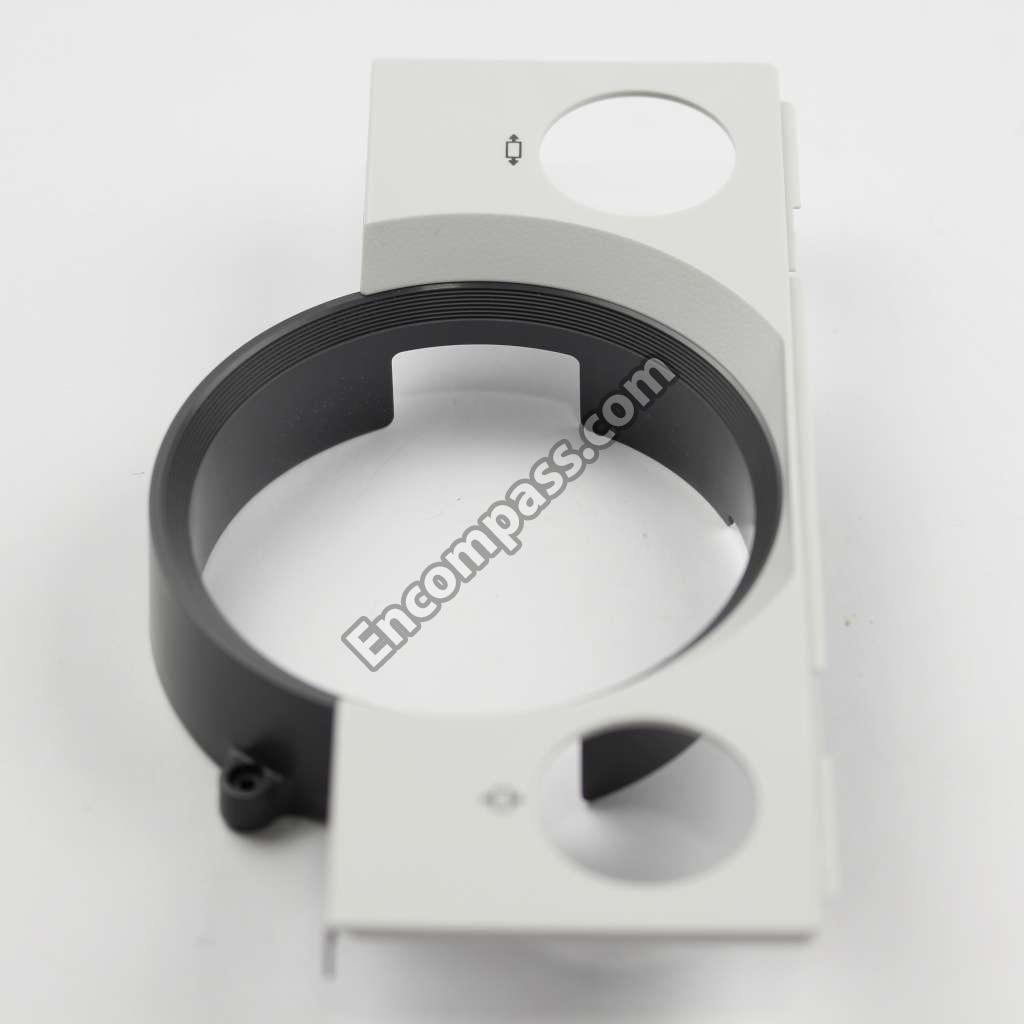

X-2546-177-1 X-2546-177-1 COVER ASSY LENS
4-264-738-01 4-264-738-01 CUSHION (FAN)
4-184-728-01 4-184-728-01 CUSHION (FILTER)
1-787-974-11 1-787-974-11 D.C. FAN
4-195-278-02 4-195-278-02 DAMPER (FAN)
6-503-016-01 6-503-016-01 DI DZ2J07500L
6-503-029-01 6-503-029-01 DI DZ2J16000L
4-172-360-01 4-172-360-01 DIAL, GEAR
4-172-354-11 4-172-354-11 DUCT (BOTTOM), PRISM
4-172-355-11 4-172-355-11 DUCT (TOP), PRISM
1-787-970-11 1-787-970-11 FAN, D.C. (92 SQUARE)

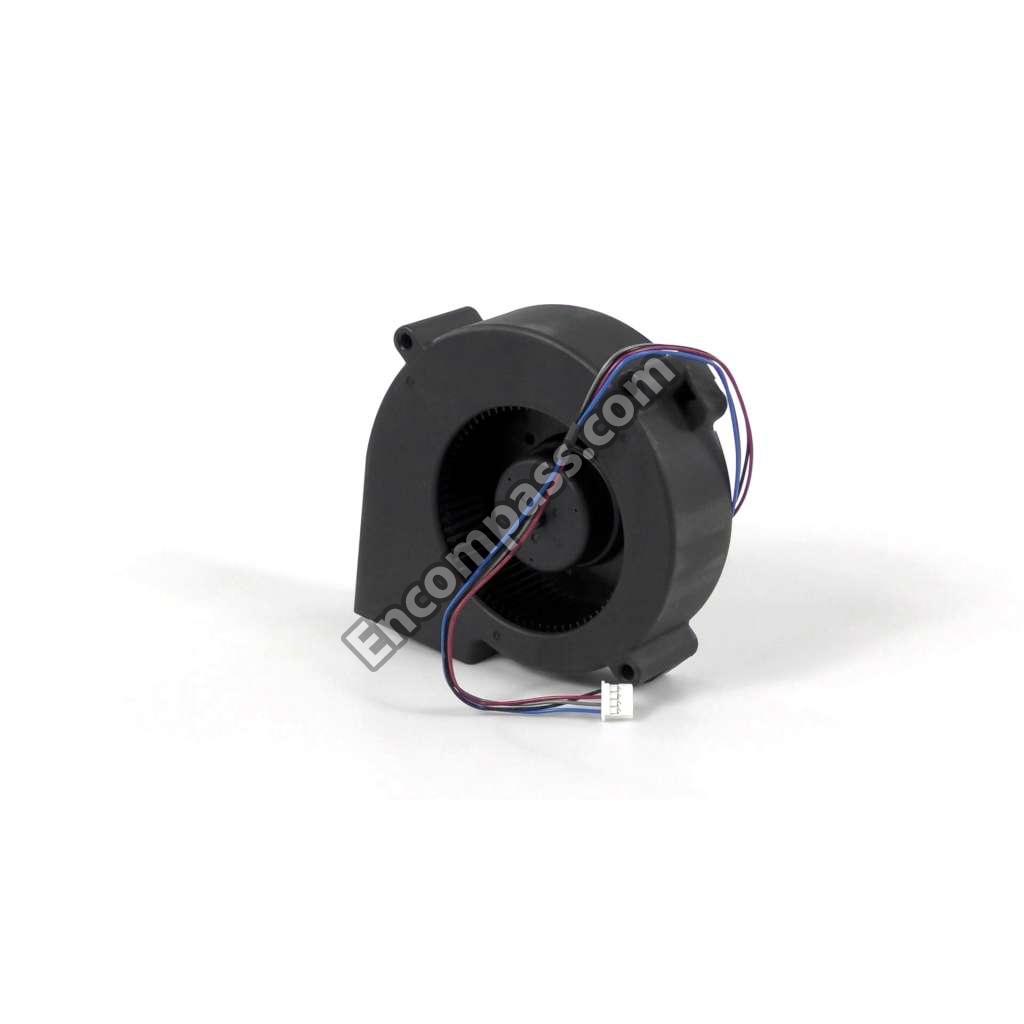

1-855-249-11 1-855-249-11 FAN, DC

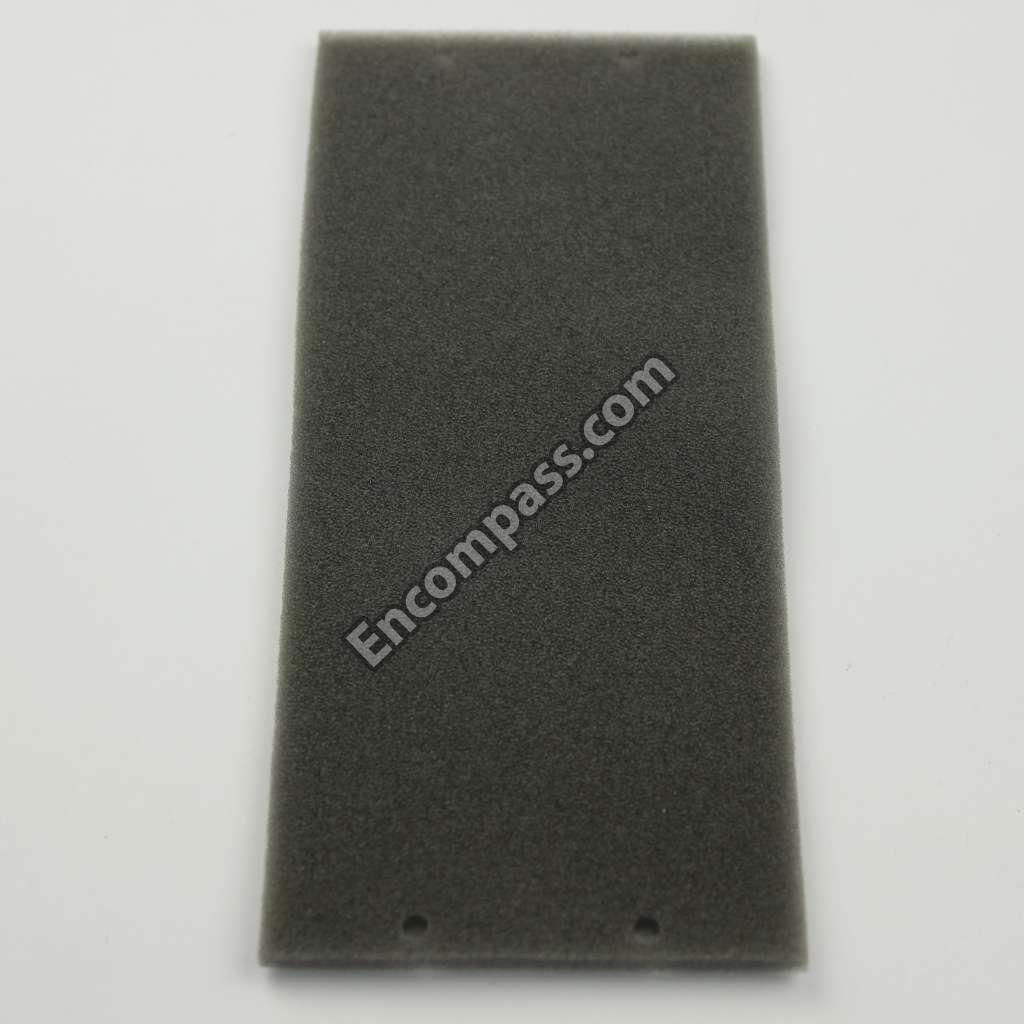

4-172-387-01 4-172-387-01 FILTER (BOTTOM)
4-172-386-01 4-172-386-01 FILTER (TOP)
1-820-530-11 1-820-530-11 HEADER ASSEMBLY FOR PWB 3P

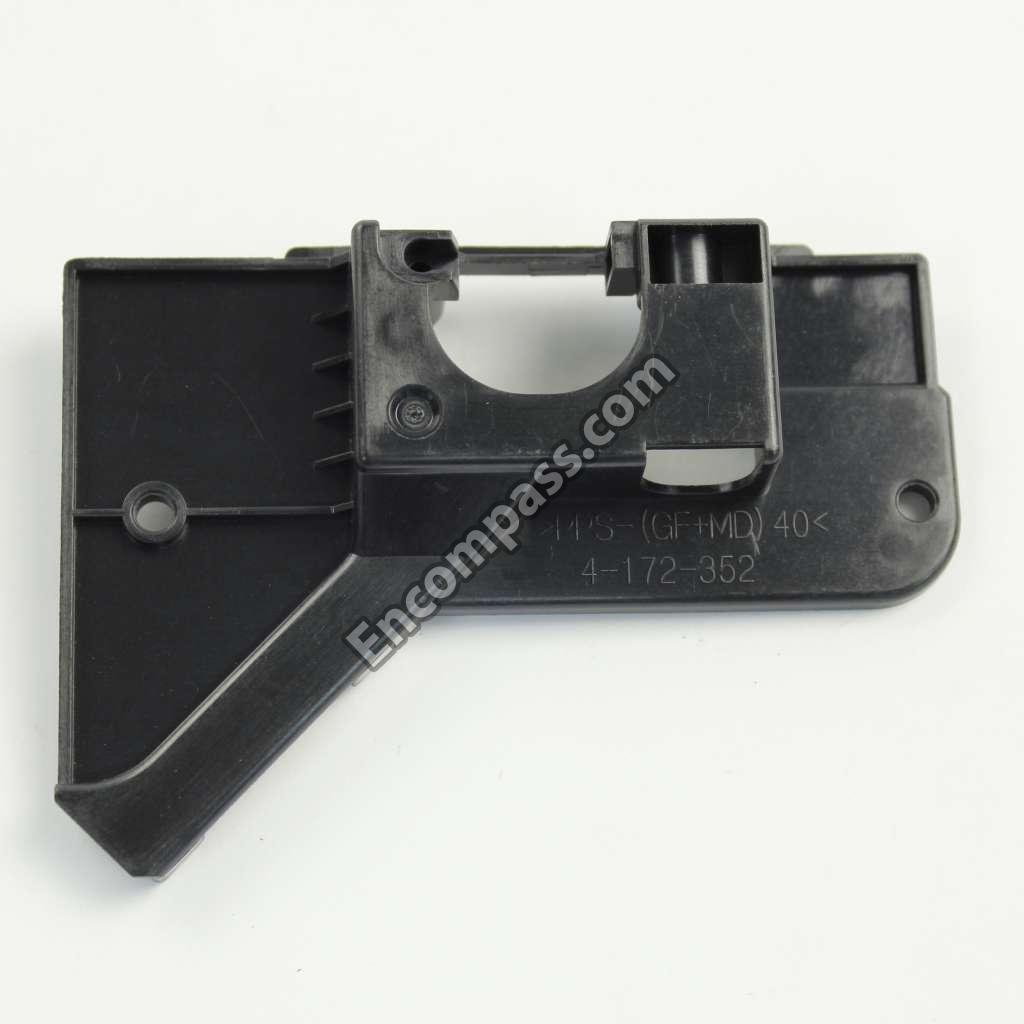

4-172-352-01 4-172-352-01 HOLDER, CONNECTOR
4-172-351-01 4-172-351-01 HOLDER, FILTER
6-715-445-01 6-715-445-01 IC AIC1189AH-18GE5TR
6-714-383-01 6-714-383-01 IC MP2303ADN-C249-LF-Z
6-715-659-01 6-715-659-01 IC PST8428UL
6-711-413-01 6-711-413-01 IC TC74VHC123AFK(EL, K)
6-711-417-01 6-711-417-01 IC TC74VHC153FK(EL)
4-172-391-01 4-172-391-01 LABEL (PANTHER), CAUTION
A-1776-038-A A-1776-038-A MOUNTED C.BOARD, GB COMPL
A-1877-941-A A-1877-941-A MOUNTED C.BOARD, H
A-1877-942-A A-1877-942-A MOUNTED C.BOARD, NF
A-1776-039-C A-1776-039-C MOUNTED C.BOARD, QA COMPL
A-1776-039-A A-1776-039-A MOUNTED C.BOARD, QA COMPL
A-1882-183-A A-1882-183-A MOUNTED C.BOARD, QB COMPL
A-1776-040-A A-1776-040-A MOUNTED C.BOARD, QB COMPL
A-1882-184-A A-1882-184-A MOUNTED C.BOARD, QC COMPL
A-1877-946-A A-1877-946-A MOUNTED C.BOARD, U
A-1877-947-A A-1877-947-A MOUNTED C.BOARD, V
A-1784-676-A A-1784-676-A OPTICS UNIT ASSY S (VPLFX30)
X-2546-176-2 X-2546-176-2 PANEL ASSY REAR
X-2587-878-1 X-2587-878-1 PANEL ASSY TOP
X-2546-175-2 X-2546-175-2 PANEL ASSY, TOP
4-172-372-01 4-172-372-01 PLATE (NUT)
1-474-225-12 1-474-225-12 POWER SUPPLY BLOCK
1-831-498-11 1-831-498-11 POWER SUPPLY CORD SET (2P)
1-474-223-12 1-474-223-12 POWER UNIT
A-1784-680-A A-1784-680-A PRISM ASSY, S
9-968-756-09 9-968-756-09 PROTOCOL MANUAL
9-968-756-07 9-968-756-07 PROTOCOL MANUAL
9-968-755-09 9-968-755-09 PROTOCOL MANUAL
9-968-755-07 9-968-755-07 PROTOCOL MANUAL
A-1784-682-A A-1784-682-A PS ASSY
1-814-356-11 1-814-356-11 QUARTZ CRYSTAL UNIT
1-489-092-12 1-489-092-12 REMOTE CONTROL (RM-PJ19)

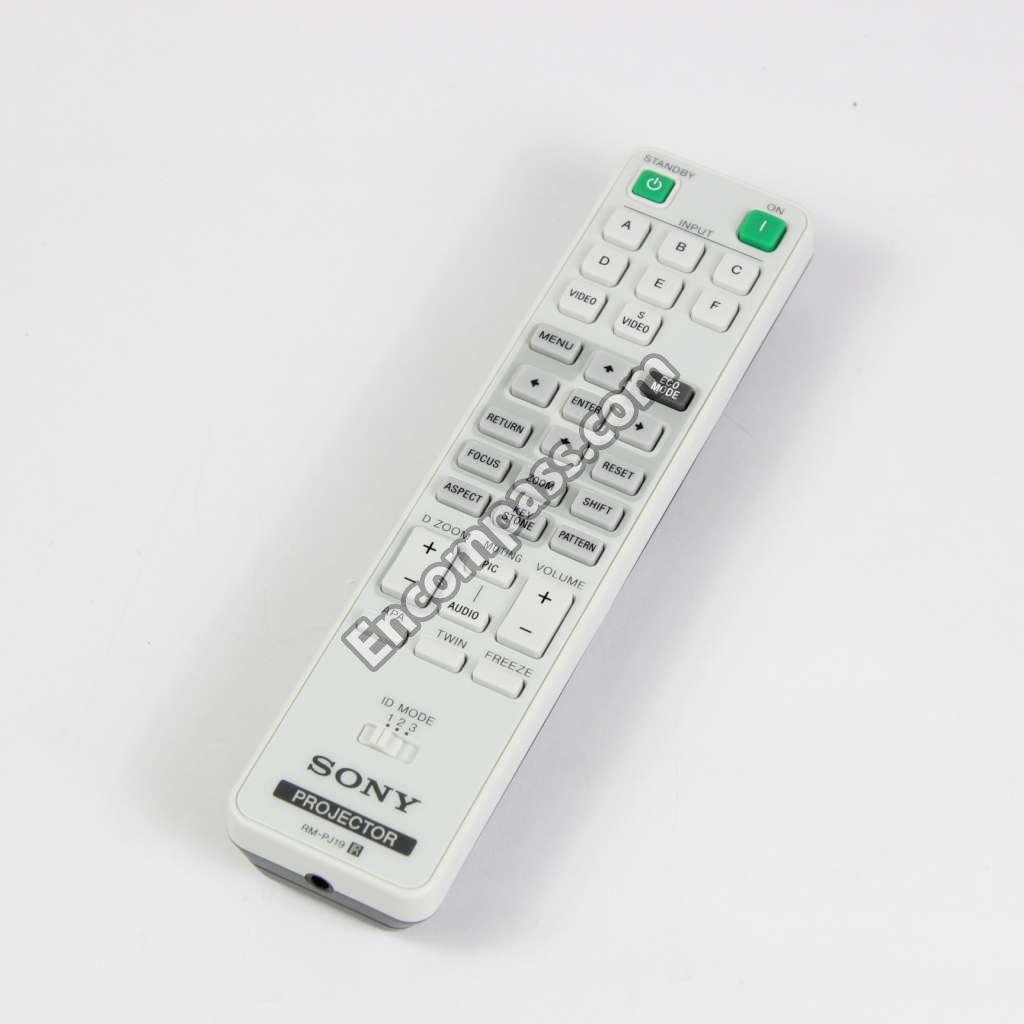

1-489-092-11 1-489-092-11 RM-PJ19 REMOTE COMMANDER
A-1784-684-A A-1784-684-A S IN-POLARIZER (G) ASSY
A-1784-683-A A-1784-683-A S IN-POLARIZER (R) ASSY
A-1784-685-A A-1784-685-A S IN-POLARIZER(B)ASSY
A-1784-688-A A-1784-688-A S OUT-POLARIZER (B) ASSY
A-1784-687-A A-1784-687-A S OUT-POLARIZER (G) ASSY
A-1784-691-A A-1784-691-A S OUT-PRE-POLARIZER (B) ASSY
A-1784-690-A A-1784-690-A S OUT-PRE-POLARIZER (G) ASSY
A-1784-689-A A-1784-689-A S OUT-PRE-POLARIZER (R) ASSY
1-842-295-11 1-842-295-11 S TERMINAL
9-885-145-34 9-885-145-34 S-LENS
4-568-637-01 4-568-637-01 S-SHIFT
4-172-393-01 4-172-393-01 SCREW (M3), STOPPER
4-264-739-01 4-264-739-01 SCREW, STEP
A-1784-494-A A-1784-494-A SERVICE KIT ASSY
9-968-754-02 9-968-754-02 SERVICE MANUAL
4-172-361-01 4-172-361-01 SHAFT, GEAR
4-172-378-01 4-172-378-01 SHEET (BALLAST 230)
4-184-667-01 4-184-667-01 SHEET (BNC)
4-186-471-01 4-186-471-01 SHEET (CAP)
4-172-380-01 4-172-380-01 SHEET (GA)
4-284-029-01 4-284-029-01 SHEET (IR)
4-172-377-01 4-172-377-01 SHEET (Q)
4-172-383-01 4-172-383-01 SHEET (RP)
4-172-382-02 4-172-382-02 SHEET (TOP)
4-085-021-31 4-085-021-31 SUPPORT, PWB
1-814-304-11 1-814-304-11 VIBRATOR, CRYSTAL
